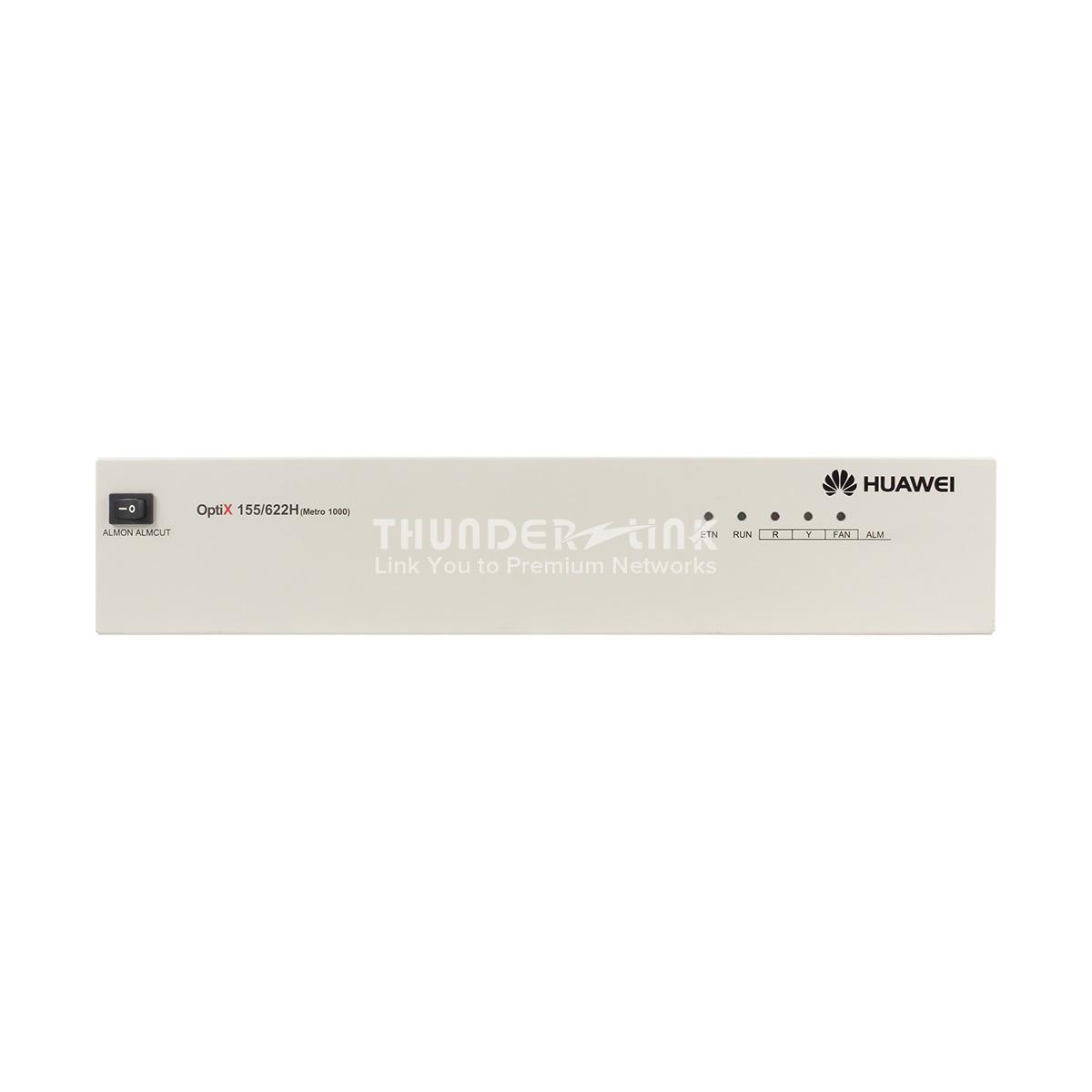

Huawei OptiX Metro1000

Huawei STM-4/STM-1 level MSTP Metro 1000 Subrack Intergrated 16xE1 with 4 service slots

(1 customer review) | 9 sold | 6 QA

2 in stock      3-5 days lead time

16 People watching this product now!
PN: 02319232 Category:
Firmware Upgrades

Firmware Upgrades x

Firmware upgrades allow our customers to utilize the latest features and security enhancements that simply make the devices to operate proficiently Learn more

Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Software Compatibility

Software Compatibility x

Software compatibility test between active/standby system board, main control board and service board, mother/sub-card; system commissioning test to prevent all software conflicts.

Huawei OSN 3500 System Test Procedure
In this document, we will show you how thunder-link.com tests SDH equipment product boards.
Learn More

Description

Includes Metro1000 Subrack, 2 PCS Power Cable, 1 PCS Earth Cable, 2 PCS Mount Ear, accessory Package

Supports 21.25 Gbit/s higher order cross-connections, and 5 Gbit/s lower order cross-connections.

Supports networking topologies including point-to-point, chain, ring, hub, and mesh, etc.

Supports SDH/PDH service, Ethernet service, ATM service, Audio and data service, DDN service, G.SHDSL.

Supports smooth evolution from STM-1 to STM-4.

Supports 1+1 hot backup for the power supply.

Supports Ring MSP, Sub network connection protection (SNCP).

Supports Protection for inter-ring services, Fiber-shared virtual path protection.

Supports transparent transmission of the DCC bytes.

Supports management information transmission.

Supports high-precision time synchronization to meet power, finance, and other industry requirements.



Huawei Metro 1000 is a STM-4 level MSTP, It have 4 service slots,

Metro 1000 empty subrack default equipped with 2 POU (Power Interface Unit), 1 SCB (System Auxiliary Interface Board), 2 PCS power cable, 1 PCS earth cable, 1 accessory package. Others system board and service board are configurable.

Thunder-link.com also offers typical configuration bundle line, to meet your different requirement on various scenarios. In addition, Thunder-link.com provides self configuration page, where you can configure your own Metro1000 by selecting boards and items yourself. With our professional technical support to rich your experience. Besides Metro1000, Thunder-link.com also provide larger capacity Metro3000, if your service requirement is STM16 level, we can provide OSN 1500, OSN 2500, STM 64 level, we can provide OSN 3500, OSN 7500

Tech Specs
Specification
Aggregation STM-1/STM-4/STM-16
Switch Capacity TDM: 21.25Gbit/s (136×136 VC4, higher order), 5Gbit/s (32×32 VC4, lower order)
Packet: 8Gbit/s
Service Slots 5 slots for processing boards
Supported Interface MSTP interfaces STM-1/4/16, E1/E3/T1/T3, FE/GE, DDN, ATM, SHDSL
PCM interfaces Framed E1, RS232/RS422, two-wire/four-wire audio interfaces
V.35/V.24/X.21/RS449/EIA-530/RS-530/RS-530A
Packet transport interfaces E1 CES, FE/GE
Power Supply DC: -48V DC/-60V DC/+24V DC
AC: 220V/110V AC
Clock Synchronization Line clock source
Tributary clock source
Two external clock inputs/outputs (2 MHz or 2 Mbit/s)
Auxiliary Interface Housekeeping signal input/output interface, RS232/RS422 serial communication interface
Modem interface, NM interface
Orderwire phone interface
Mechanical Specification
Dimensions (mm) 86 (H) x 436 (W) x 293 (D)



Additional information
Weight 13.0 kg
Dimensions 62.0 × 43.5 × 35.5 cm
Q&A

Q: What boards are  applicable on Metro1000?

A:

List of Cross-connect and system control board
Board Description Valid Slot
SCB System control board SCB



List of SDH boards
Board Description Valid Slot
OI16D 2xSTM-16 optical interface board The OI16D is integrated with the SCB
OI4 1xSTM-4 optical interface board IU1, IU2, and IU3
OI4D 2xSTM-4 optical interface board The OI4D is integrated with the SCB
IU1, IU2, and IU3
OI2S 1xSTM-1 optical interface board IU1, IU2, and IU3
OI2D 2xSTM-1 optical interface board The OI12D is integrated with the SCB
IU1, IU2, and IU3
SL1Q 4xSTM-1 optical interface board IU4
SL1O 8xSTM-1 optical interface board IU4
SB2L 1xSTM-1 single-fiber bidirectional optical interface board IU1, IU2, and IU3
SB2R 1xSTM-1 single-fiber bidirectional optical interface board IU1, IU2, and IU3
SB2D 2xSTM-1 single-fiber bidirectional optical interface board IU1, IU2, and IU3
SLE 1xSTM-1 electrical interface board IU1, IU2, and IU3
SDE 2xSTM-1 electrical interface board IU1, IU2, and IU3



List of PDH boards
Board Description Valid Slot
SP1S 4xE1 electrical interface board IU1, IU2, and IU3
SP1D 8xE1 electrical interface board IU1, IU2, and IU3
SP2D 16xE1 electrical interface board IU1, IU2, and IU3.
The SP2D is integrated with the SCB.
PD2S 16xE1 electrical interface board IU4
PD2D 32xE1 electrical interface board IU4
PD2T 48xE1 electrical interface board IU4
SM1S 4xE1/T1 electrical interface board IU1, IU2, and IU3
SM1D 8xE1/T1 electrical interface board IU1, IU2, and IU3
PM2S 16xE1/T1 electrical interface board IU4
PM2D 32xE1/T1 electrical interface board IU4
PM2T 48xE1/T1 electrical interface board IU4
PE3S 1xE3 electrical interface board IU1, IU2, and IU3
PE3D 2xE3 electrical interface board IU1, IU2, and IU3
PE3T 3xE3 electrical interface board IU1, IU2, and IU3
PT3S 1xT3 electrical interface board IU1, IU2, and IU3
PT3D 2xT3 electrical interface board IU1, IU2, and IU3
PT3T 3xT3 electrical interface board IU1, IU2, and IU3



List of data boards
Board Description Valid Slot
ET1 8-port Ethernet service interface board IU4
ET1O 8-port Ethernet service electrical interface board IU4
ET1D 2-port Ethernet service electrical interface board IU1, IU2, and IU3
EF1 6-port Ethernet service interface board IU4
ELT2 2-port 100M Ethernet optical interface board IU1, IU2, and IU3
AIUD 2-port ATM interface board IU4
AIUQ 4-port ATM interface board IU4
SHLQ Single-pair high-speed digital subscriber line board IU1, IU2, and IU3
EFS 4-port Ethernet service switching board IU1, IU2, and IU3
EFT 4-port Ethernet service interface board IU1, IU2, and IU3
EGS 1-port 1000M Ethernet optical interface board IU1, IU2, and IU3
EFSC 12-port Ethernet service switching board C
EGT 1-port 1000M Ethernet transparent transmission board IU1, IU2, and IU3
N64 Nx64 kbit/s interface board IU1, IU2, and IU3
N64Q 4xNx64 kbit/s interface board IU1, IU2, and IU3
FP2D 16xFramed E1 electrical interface board IU1, IU2, and IU3
TDA Multiple-channel audio and data access board IU4



Q: Can I use new version board to replace old version ones?

A: Yes, most of Metro1000 service board, you can use newer version to replace old ones, here listed some ordinary substitution boards below, or you can contact Thunder-link.com technical sales team to confirm the board substitution relation.

Substitute Board To-Be-Substituted  Board Substitute Board To-Be-Substituted  Board
SS44OI4 SS42OI4 SS49OI2D SS48OI2D
SS49OI2S SS48OI2S SS48SP2D SS42SP2D
SS48PD2S SS42PD2S,SS44PD2S SS48PD2D SS42PD2D,SS44PD2D
SS48PD2T SS42PD2T,SS44PD2T SS49EFS SS42EFS
SS45EGS SS42EGS SS45EGT SS42EGT



Q: Do you have U2000 NMS if I buy Metro1000 from you?

A: Yes,we can share U2000 software package to our customers for free.



Q: Do you have U2000 NMS License if I buy Metro1000 from you?

A: Yes, we provide to our customer U2000 license for test purpose, not for commercial use.



Q: Does Metro1000 have AC power supply?

A: Yes, we supply Metro1000 with AC or DC power, please contact with Thunder-link.com sales team for details.



Q: Do you offer Metro1000 Subrack separately?

A: Yes, please contact with our sales team for details.
