MA5683T Gold Line

MA5683T Gold Line

Part Number:

Description:

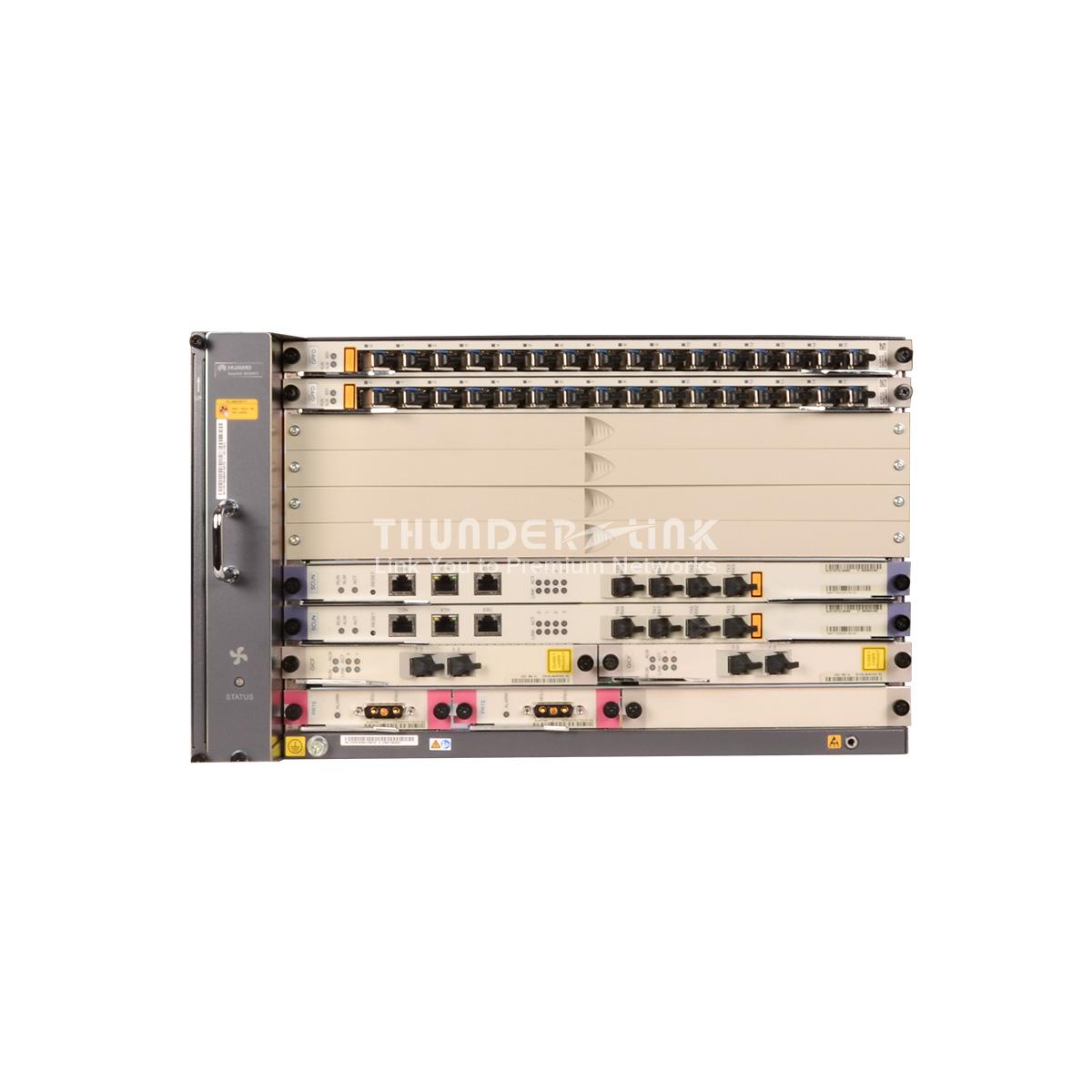

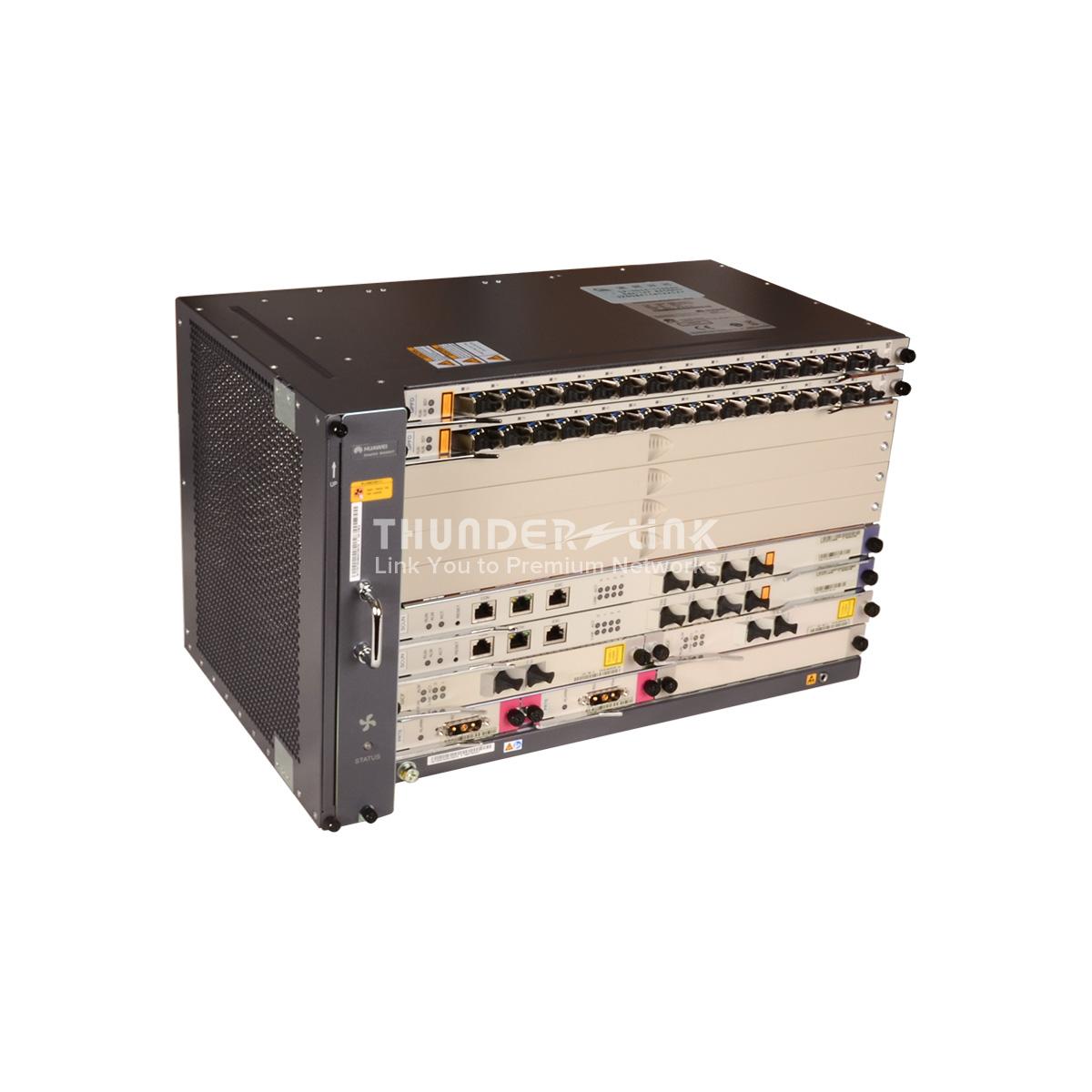

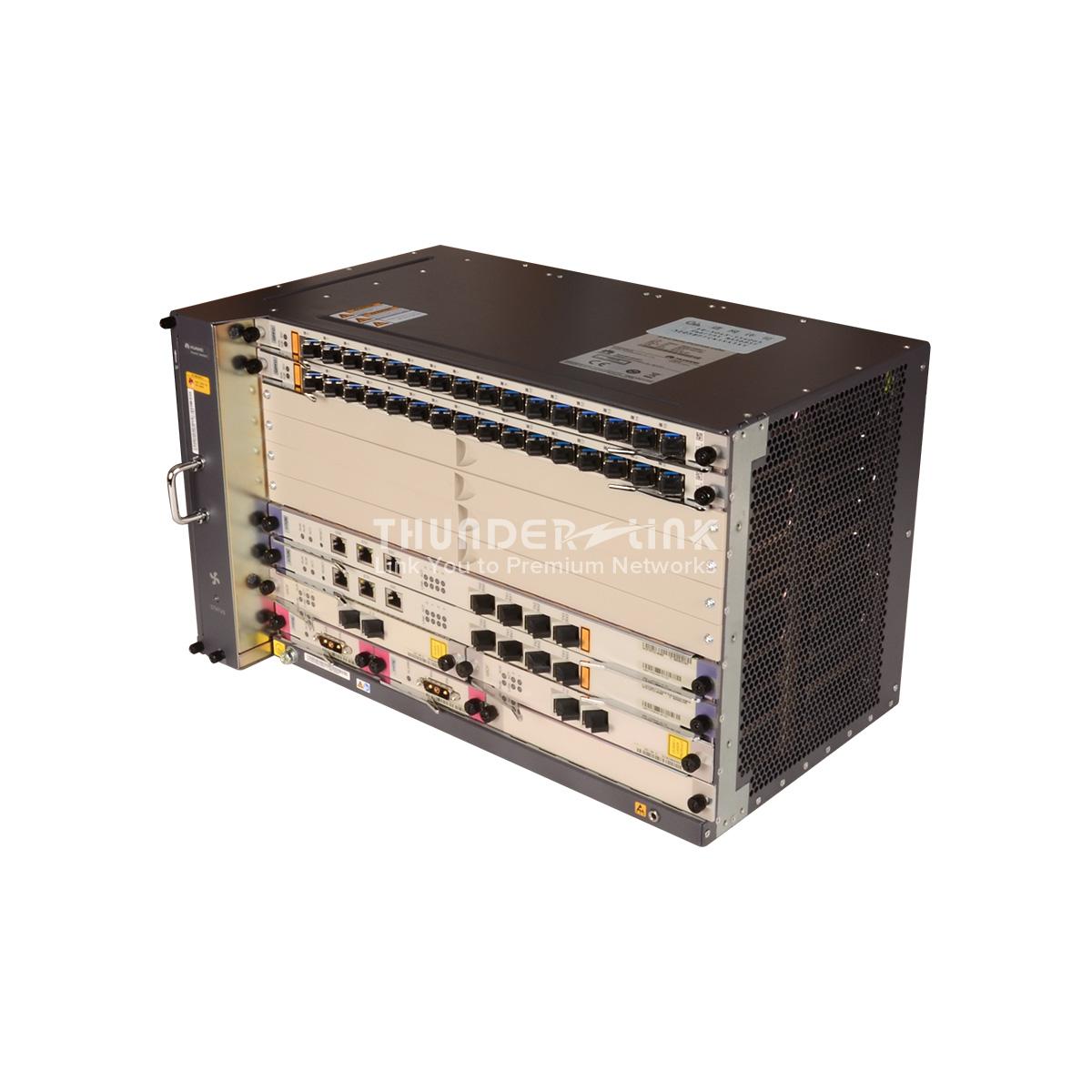

MA5683T Chassis with 2*PRTE, 2*SCUN, 2*GICF(GE SFP Module), 2*GPFD(C+ SFP Module)
Availability:   In Stock
  units



key Feature

  • Main Control Board:1+1 redundancy

  • Upstream Board:1+1 redundancy

  • Power Supply Board:1+1 redundancy

  • Provide 32 GPON Port(with C+ SFP)

    4 GE Upstream Port(with GE SFP)

  • 2 Slots Occupied, 4 Slots Remain


What's Included
  • MA5683T Chassis

  • 2 PCS PRTE

  • 2 PCS SCUN

  • 2 PCS GICF

  • 2 PCS GPFD

  • Power Cable, Accessory


Relevant Items
Huawei MA5683T

Huawei MA5683T

Huawei GPON OLT system..


Overview

MA5683T Gold Line configuration including:

  • MA5683T Chassis

  • 1+1 SCUN equipped, Switching capacity 480Gbit/s active/standby mode.

  • 1+1 PRTE equipped, Connect Power Board -48V DC

  • 2 PCS GICF 2-Port GE Optical Interface Card, with 2 GE SFP Module

  • 2 PCS GPFD 16-Port GPON OLT Interface Board with 16 C+ SFP Module


    Huawei MA5683T Gold Line Configuration, is a recommended board bundle provided by Thunder-link.com, it has most common service type and ordinary ports. You can find other configuration bundle at CONFIGURE page, where you can even configure by yourself by selecting the boards you need. If you need customized configuration, please contact with Thunder-link.com Sales Team. who will come back to you shortly.


    V8R11 will be the default delivery version, as it is the most compatible version; Please contact Thunder-link.com sales team, if you need other different version.





Tech Specs
Switching Capacity480Gbit/s (active/standby mode)
Service Slots2 slot occupied, 4 remain
Power SupplyDC:  -48V DC
Number of Services EquippedService InterfaceEquippedService InterfaceEquipped
GE4GPON32
Mechanical specification
Dimensions (W x D x H excluding mounting brackets)442.00 mm x 283.20 mm x 263.90 mm
Dimensions (W x D x H, including mounting brackets)535.00 mm x 283.20 mm x 263.90 mm, for ETSI cabinet
482.60 mm x 283.20 mm x 263.90 mm, for IEC cabinet
Working environment temperatureFor an indoor cabinet
Configured with 1 subrack: -25°C to +65°C
Configured with 2 subracks: -25°C to +55°C
Working environment humidity5% RH to 95% RH
Atmosphere pressure61 kPa to 106 kPa
Altitude< 4000 m





Q & A

Q: What is the difference between MA5683T and MA5603T?

A: MA5603T is multi service based while MA5683T is just OLT, MA5603T can support service like ADSL, VDSL, GPON etc, while MA5683T only supports GPON, P2P etc, but their hardware and configuration command is the same.



Q: What is the difference between MA5683T and MA5680T?

A: The only difference is capacity, MA5683T max support 6 service slots, MA5680T max support 16 service slots. So MA5683T with smaller chassis.



Q: What is the most hot selling Huawei OLT?

A: MA5683T is the best-selling OLT, next is MA5680T.



Q: Do you provide configuration manual to me if we purchase MA5683T from you?

A: Yes, you may contact our sales representative or out support team.



Q: Can I get technical support from thunder-link.com if we purchase MA5683T from you?

A: Yes, thunder-link.com has experienced technical team on Huawei FTTx solution, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.



Q: Does MA5683T support AC power?

A: No, only support DC power, but you can purchase a telecom level AC to DC converter if you just have AC power source.



Q: Does the GPON SFP Module included in the bundle?

A: Yes, with GPBD board, 8 B+ SFP Module are included for free.


Q: Can I use MA5683T main control board SCUN as uplink so as to save the uplink board cost?

A: Yes, you can, but we don’t suggest, as Huawei OLT SCUN load balance is not well supported, so most customers are using SCUN in active/standby mode, if OLT lose power, which SCUN will work as the active SCUN will be randomly, which may affect service, also if the link is down, the active SCUN will not shift to the standby SCUN (it will only shift when SCUN board is down), then service may get affected also.



Q: Can I have 1000 Base-T as uplink?

A: Yes, instead of GICF uplink board you can purchase GICG uplink board, if use GICF, you can buy a electrical SFP module then you can have 1000 Base-T.



Q: What is the difference between different GPON board?

A:

BoardGPON TypePort QuantityOptical ModuleMaximum Split RatioONU based shaping
H802GPBD1G-GPON8SFP (Class B+ and Class C+)1:128No
H805GPBD/H806GPBD1G-GPON8SFP (Class B+ and Class C+)1:128Yes
H802GPFD1G-GPON16SFP (Class B+ and Class C+)1:128Yes
H806GPBH1G-GPON8SFP (Class B+ and Class C+)1:128Yes
H802XGBC10G-GPON4SFP (Class B+ and Class C+)1:128Yes



Q: Does MA5683T support 10G GPON?

A: Yes, but the bottleneck is the uplink bandwidth.



Q: Can I use a 3rd party ONT with the MA5683T?

A: We don’t suggest so, as the understanding of TR069/OMCI protocol may different between different vendors.



Q: Can I buy 10G uplink board instead of GE?

A: Yes, then you may request our sales quote you X2CS board instead of GICF uplink board, each X2CS provide 2*10G ports.



Q: What is the difference between GPON B+ and C+ GPON transceiver?

A:


B+ ModuleC+ Module
TypeOne-fiber bi-directional optical   module, class B+One-fiber bi-directional optical   module, class C+
Operating WavelengthTx: 1490 nm
Rx: 1310 nm
Tx: 1490 nm
Rx: 1310 nm
Encapsulation TypeSFPSFP
Port RateTx: 2.49 Gbit/s
Rx: 1.24 Gbit/s
Tx: 2.49 Gbit/s
Rx: 1.24 Gbit/s
Minimum Output Optical Power1.50 dBm3.00 dBm
Maximum Output Optical Power5.00 dBm7.00 dBm
Maximum Receiver Sensitivity-28.00 dBm-32.00 dBm
Optical Connector TypeSC/PCSC/PC
Optical Fiber TypeSingle-modeSingle-mode
Reach20.00 km20.00 km
Overload Optical Power-8.0 dBm-12.0 dBm
Extinction Ratio8.2 dB8.2 dB



Q: What is the max transmit distance between GPON OLT and ONT?

A: Max 20KM.



Q: Can I use 1:128 split ratio with B+ SFP Module?

A: Yes, but not suggested, most of our customers even use C+ module, are max using 1:64 split ratio.



Q: Do you also offer FTTH tool and accessories?

A: Yes, as a FTTx solution provider, also we offer FTTx accessories like FTTH tool box, optical splitter, terminal box, patch cord, power system etc.
