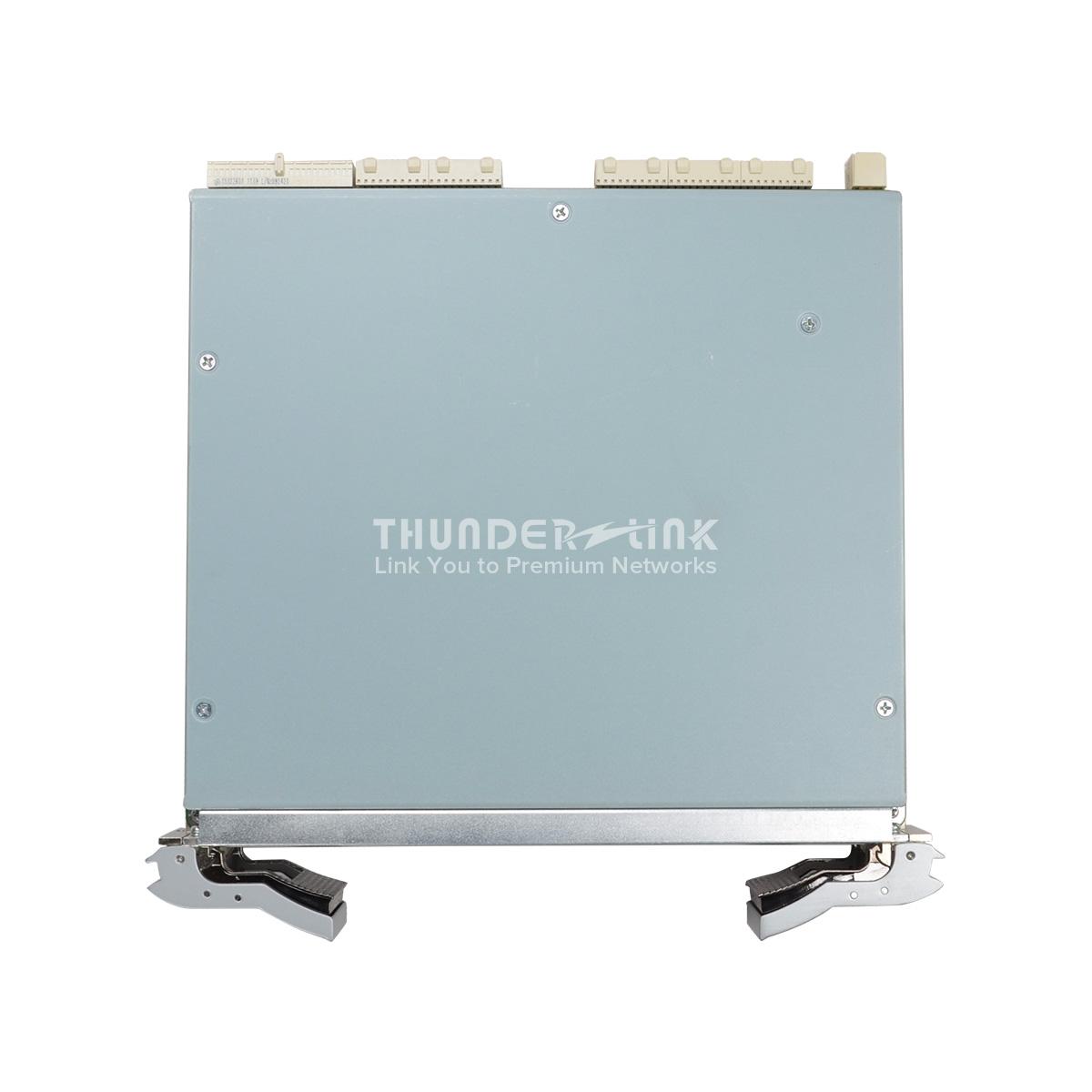

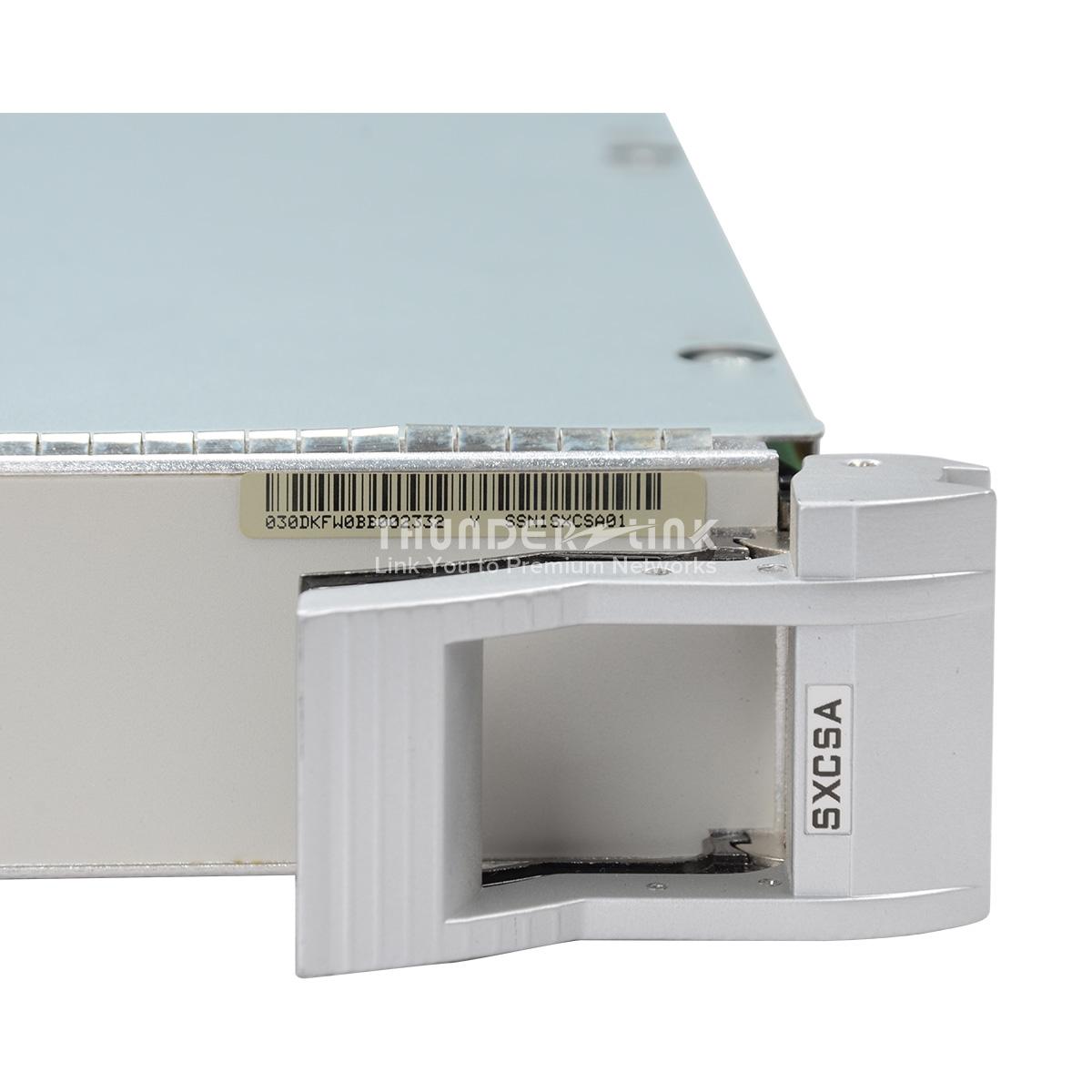

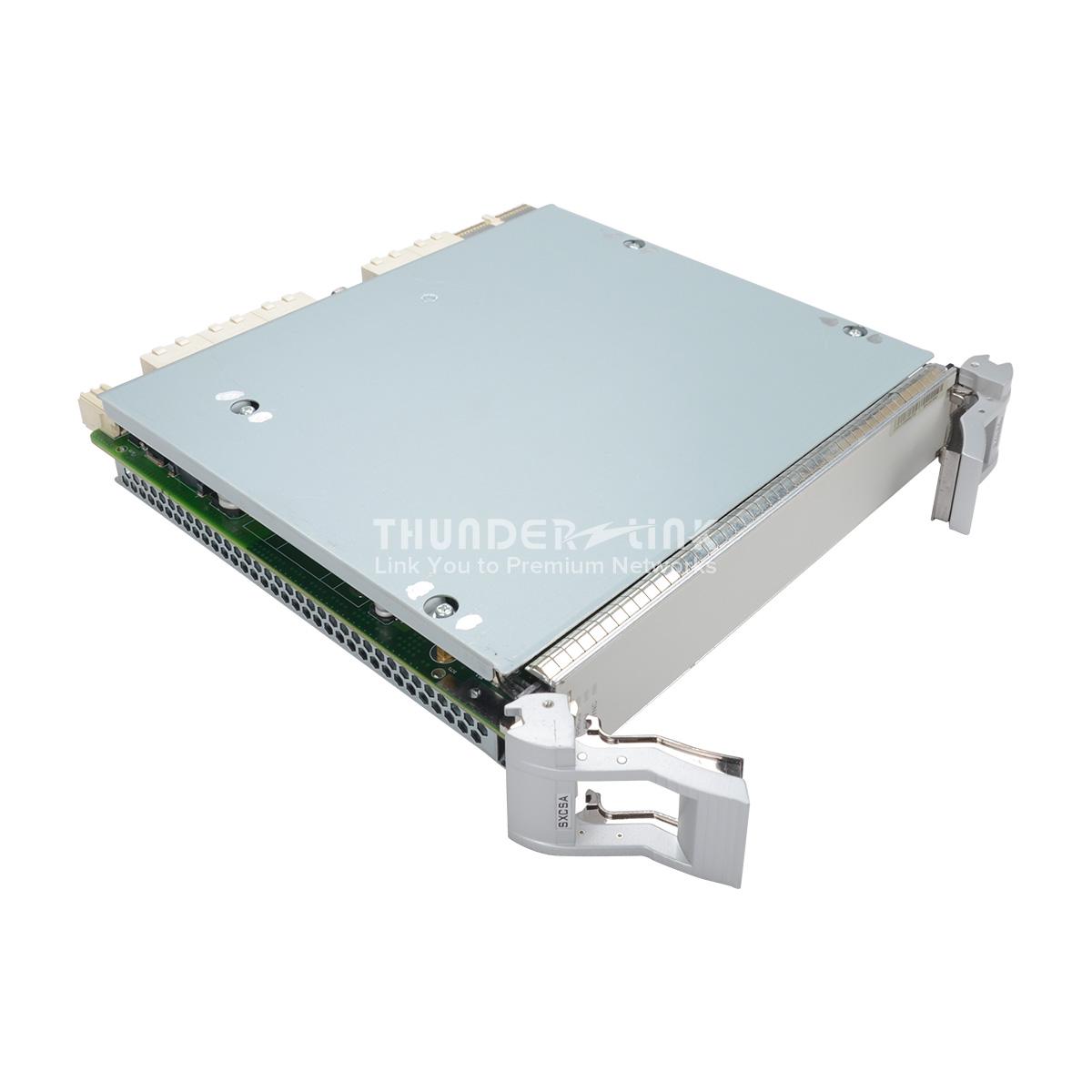

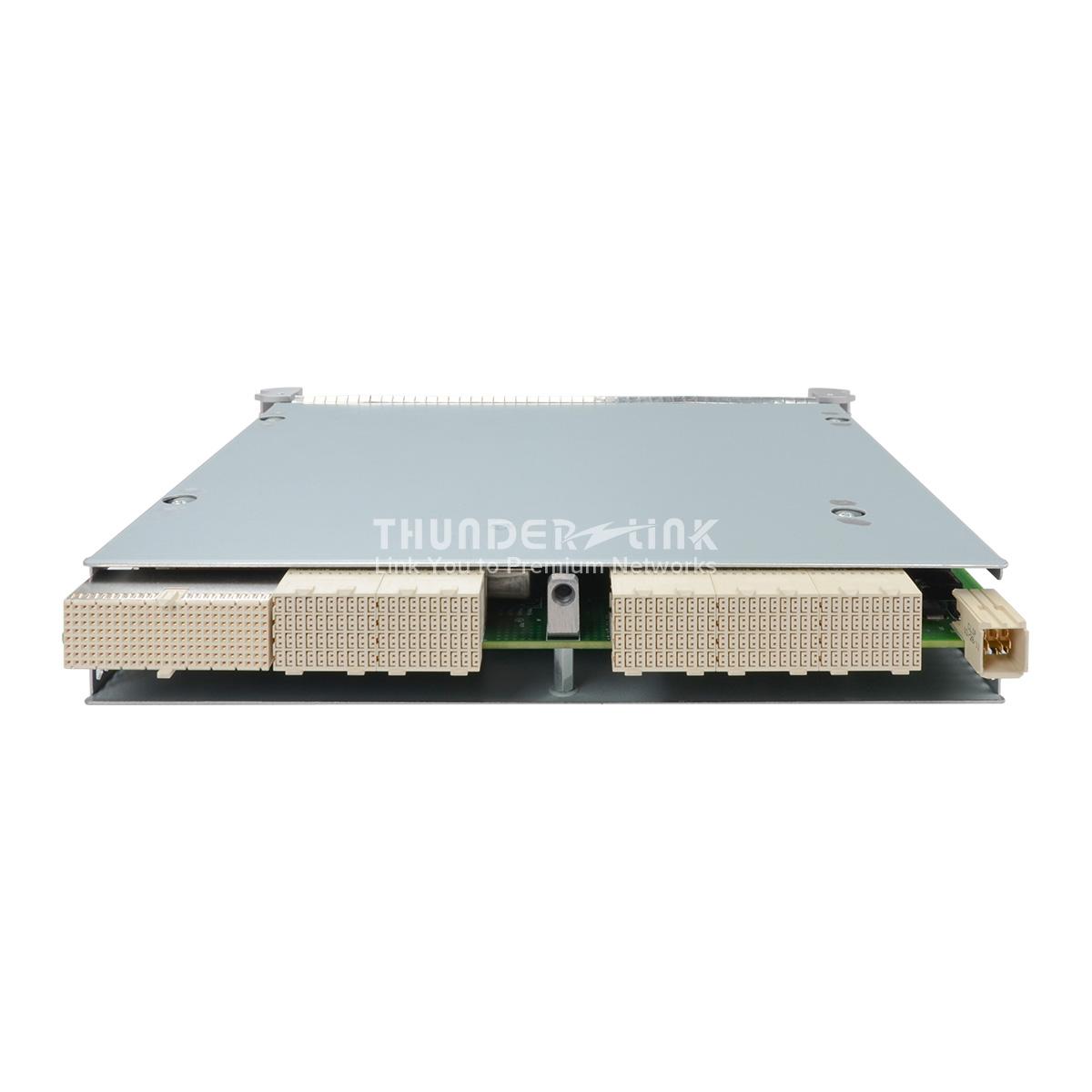

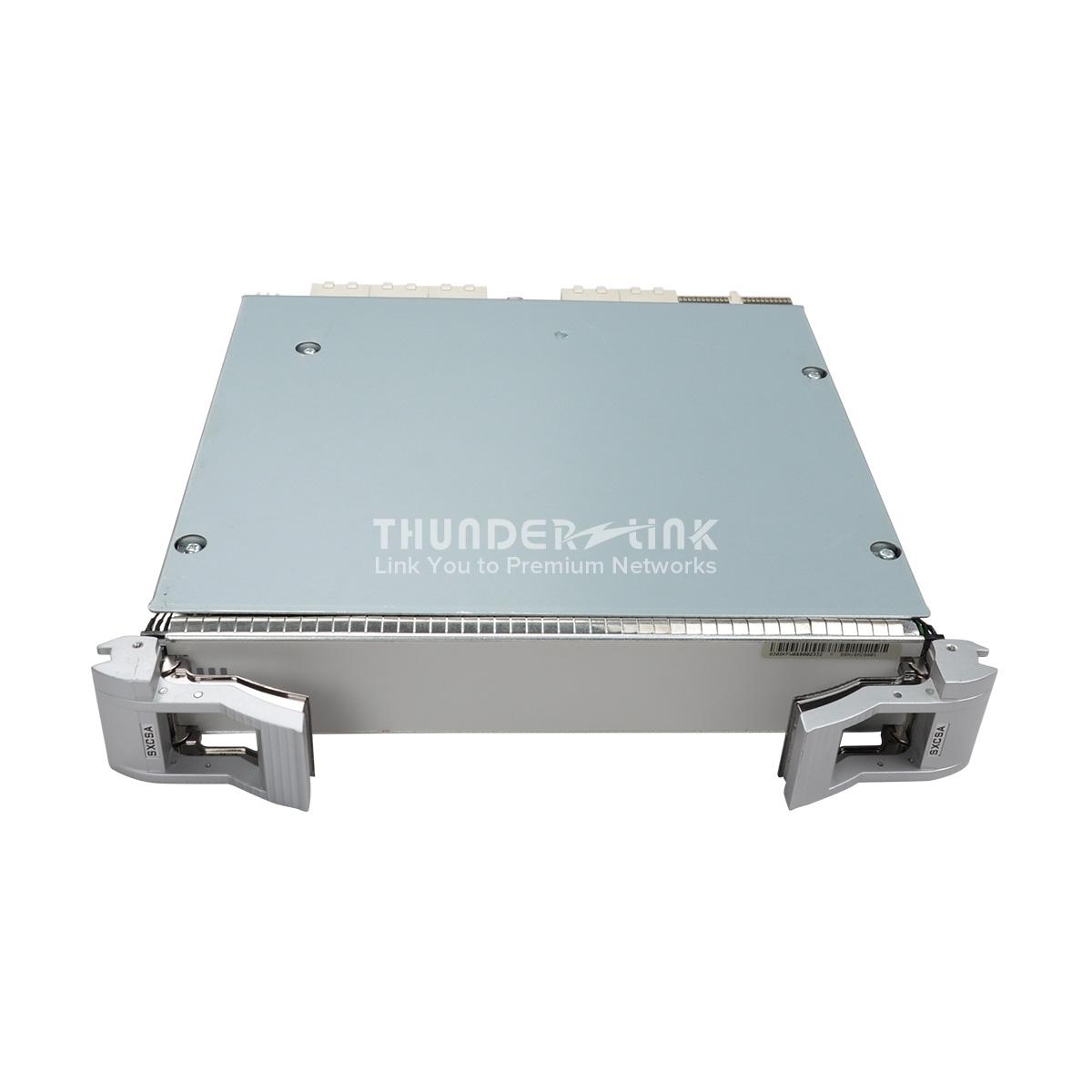

SSN1SXCSA
  • SSN1SXCSA
SSN1SXCSA
Item# SSN1SXCSA, SSN1SXCSA01
Review: Write Review

Condition: Original New

Part Number: 03030DKF

Description: Super Cross-connect and Synchronous Timing Board(Without Extension Host)

Bestsellers
1.Huawei OptiX OSN500Huawei OptiX OSN500
Price:
Request for Quote
Monthly sales:30
2.Huawei OptiX Metro100Huawei OptiX Metro100
Price:
Request for Quote
Monthly sales:15
3.SSND00EGS412SSND00EGS412
Price:  $17,252.00  $850.00
Save: 95% off

ADD TO CART
Monthly sales:8
4.SS42EFSSS42EFS
Price:
Request for Quote
Monthly sales:7
5.SSN2SLO1(S-1.1,LC)SSN2SLO1(S-1.1,LC)
Price:  $19,870.00  $670.00
Save: 97% off

ADD TO CART
Monthly sales:6
6.SSN4SLD64(S-64.2B,LC)SSN4SLD64(S-64.2B,LC)
Price:  $76,621.00  $3,000.00
Save: 96% off

ADD TO CART
Monthly sales:2
Product OverviewTechnical SpecsDocuments Delivery & PaymentsWarranty Reviews

General Info

Manufacturer

HUAWEI Technologies Co.Ltd

Product Name

SSN1SXCSA

Model Name

SSN1SXCSA01

Description

Super Cross-connect and Synchronous Timing Board(Without Extension Host) for OSN 3500

Part Number

03030DKF

Version Description

The SSN1SXCSA is available in one functional version, namely, N1.

Cross-Connect Capacity

High order: 200Gbit/s;

Low order: 20Gbit/s

Access Capacity: 155Gbit/s

Valid Slots

The SSN1SXCSA can be housed in any of slots 9 and 10 in the OSN 3500 Subrack.

Application

The SSN1SXCSA is a super cross-connect and synchronous timing board. The SSN1SXCSA provides service grooming and clock input/output functions in the OptiX OSN 3500 system.

The cross-connect and synchronous timing board provides the other boards in the system with the timing information and grooms the services between line boards or tributary boards.

Figure below shows the position of the cross-connect and synchronous timing board in the OptiX OSN 3500 system.

Function and features

Cross-Connect Unit

Function and Feature

SSN1SXCSA

Basic functions

Realizes 200 Gbit/s higher order cross-connection at the VC-4 level, 20 Gbit/s lower order cross-connection at the VC-3 or VC-12 level, and 155 Gbit/s access.

Service processing

Supports the flexible service grooming and supports the fully non-blocking cross-connect, multicast, and broadcast services.

Enables the communication between the SSN1SXCSA and the other boards.

Supports the tact switch and performs the protection switching without interrupting services.

Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.

Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.

Supports a maximum of 40 linear MSP groups.

Supports a maximum of 12 ring MSP groups.

Supports a maximum of 2016 SNCP groups.

Supports a maximum of 592 SNCMP groups.

Supports a maximum of 512 SNCTP groups.

Protection schemes

Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units (non-revertive, by default).

Maintenance features

Supports the PRBS function in the line direction.

Clock Unit

Function and Feature

SSN1SXCSA

Basic functions

Provides the standard system synchronization clock.

Other functions

Supports the processing of the S1 byte to realize the clock protection switching.

Supports the extraction, insertion, and management of the SSM and clock ID.

Provides the real-time clock (RTC).

Input and output

Through the AUX board:

Inputs/Outputs two-channel 2 MHz or 2048 kbit/s timing signals (75-ohm) and allows selection of external timing sources.

Inputs/Outputs two-channel 2 MHz or 2048 kbit/s timing signals (120-ohm) and allows selection of external timing sources.

Product Name

SSN1SXCSA

Model Name

SSN1SXCSA01

Indicators

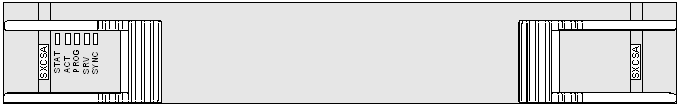

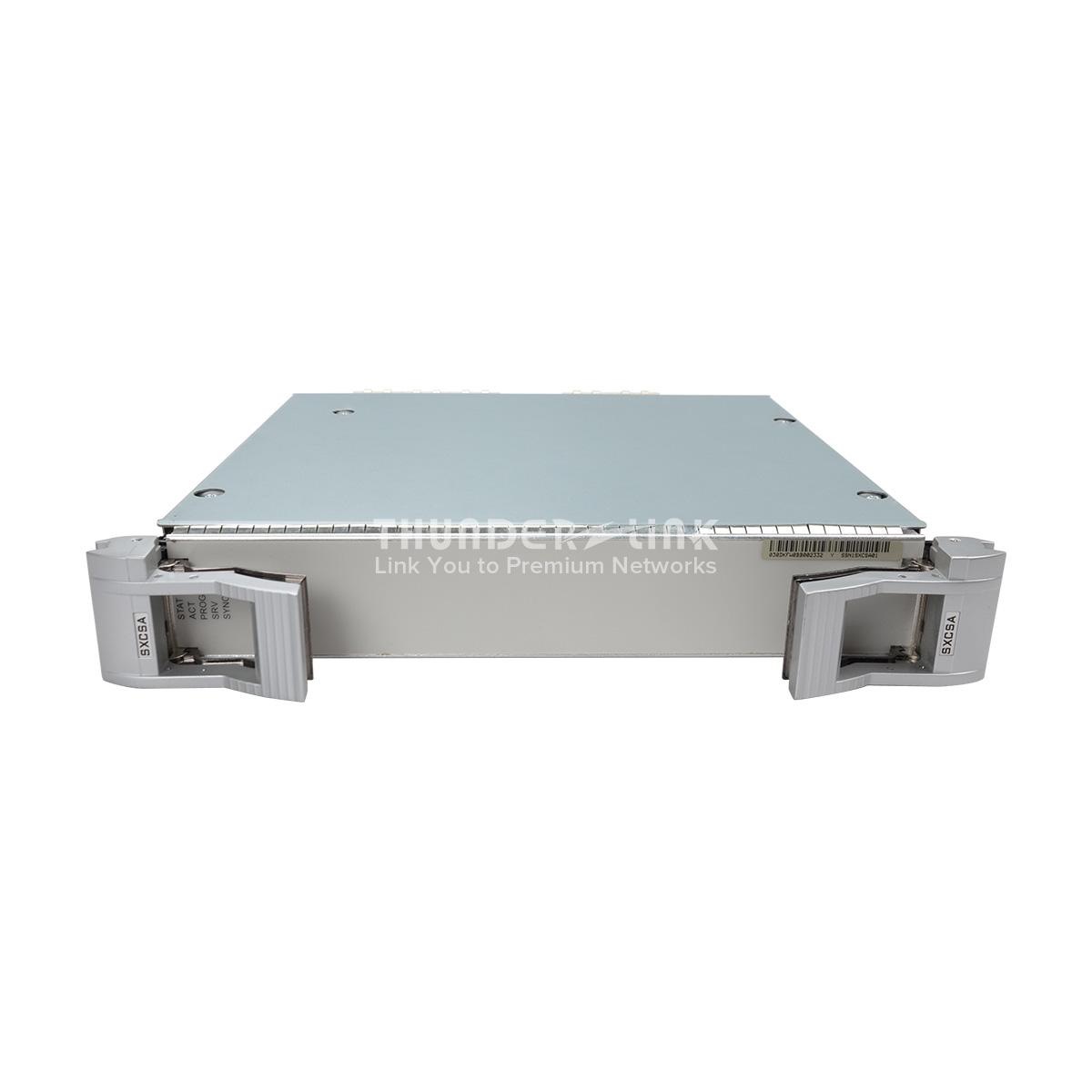

The front panel of the board has the following indicators:

The front panel of the board has the following indicators:

Board hardware status indicator (STAT) – two colors (red and green)

Service activation status indicator (ACT) – one color (green)

Board software status indicator (PROG) – two colors (red and green)

Service alarm indicator (SRV) – three colors (red, green, and yellow)

Synchronization clock status indicator (SYNC) – two colors (red and green)

Feature Code

The SSN1SXCSA does not have the feature code.

Cross-Connect Capacity

Item

SSN1SXCSA

Higher order cross-connect capacity (Gbit/s)

200Gbit/s

Lower order cross-connect capacity (Gbit/s)

20Gbit/s

Access capacity (Gbit/s)

155Gbit/s

Clock Access Capability

External input clock: two channels of 2048 kbit/s or 2048 kHz external clock signals

External output clock: two channels of 2048 kbit/s or 2048 kHz external clock signals

Mechanical Specifications

Dimensions:

40.0 (W) x 235.2 (D) x 261.4 (H)

Weight:

2.2kg

SSN1SXCSA​ Notes

Thunder Link International has been dedicated to supplying Huawei Transmission products to global customers more than three years, buying SSN1SXCSA at Thunder-Link.com, to promptly migration & expansion your Huawei OSN 3500 equipment.

Not only been a leading Huawei Transmission products supplier, but also a solution provider, our version is to build as a Huawei Transmission specialist. Thunder Link International has strong resource integration capability, with large stock and offering our customer always competitive price on Huawei Transmission products. Most of our staff are Huawei ex-employee, from pre-sale and after-sale department, we believe that we can provide you precisely quotation and professional services.

Get a quotation or buy Huawei SSN1SXCSA, buy huawei part number 03030DKF, getting Huawei SSN1SXCSA price by email us, sales@thunder-link.com, enjoy our professional sales service.



SSN1SXCSA Document

SSN1SXCSA Hardware Description



SSN1SXCSA FAQ

Q:How to Configure Lower-order Optimization?

A:Huawei products can be configured with lower-order optimization. First issue enabling command cfg-set-lxcoptmz: enable to activate the function. For the service to take effect, issue the command cfg-verify and the current service will be configured as lower-order optimization service. Besides, lower-order optimization can only be configured for the tributary boards and data boards. There should not be any broadcast, SNCP protection service.

Attention: lower-order optimization may cause instant service interruption, so do not use this command unnecessarily.



Q:What Should We Pay Attention to When Installing a Board?

A:Boards are installed logically and are not necessarily connected to physical boards in the sub rack. Major restriction in board installation is the physical slot limitation of backplane and slot bus limitation. Please refer to help information in command line mode for board installation.

Boards that can be installed include line board, tributary board, cross-connect board, SCC unit, Ethernet board, interface board and optical amplification board. PIU, FAN and AUX/SAP are automatically installed by default, and cannot be manually installed. Boards are installed in logical slots though in most cases they agree with the physical slots in sub rack. However this should be noted while installing the OSN 2500/1500 CXL board.

The active SCC unit is installed in the default mode and cannot be deleted. The backup SCC unit can be manually installed and deleted. Before installing an interface board, install its corresponding processing board. Logically installed boards have three states: ADDING, ACTIVE and DELETING. Installation and deletion of board is valid only after being successfully verified.



Q:What Should We Pay Attention to When Deleting a Board?

A:Boards cannot be deleted in any of the following cases:

  1. Boards installed by default cannot be deleted.
  2. When boards are performing service or protected, or their clocks are included in clock priority list, they cannot be deleted;
  3. Delete the corresponding interface boards before deleting processing boards. Interface boards cannot be deleted when service on the corresponding processing boards is protected.
