All products
25 in stock Ready to ship

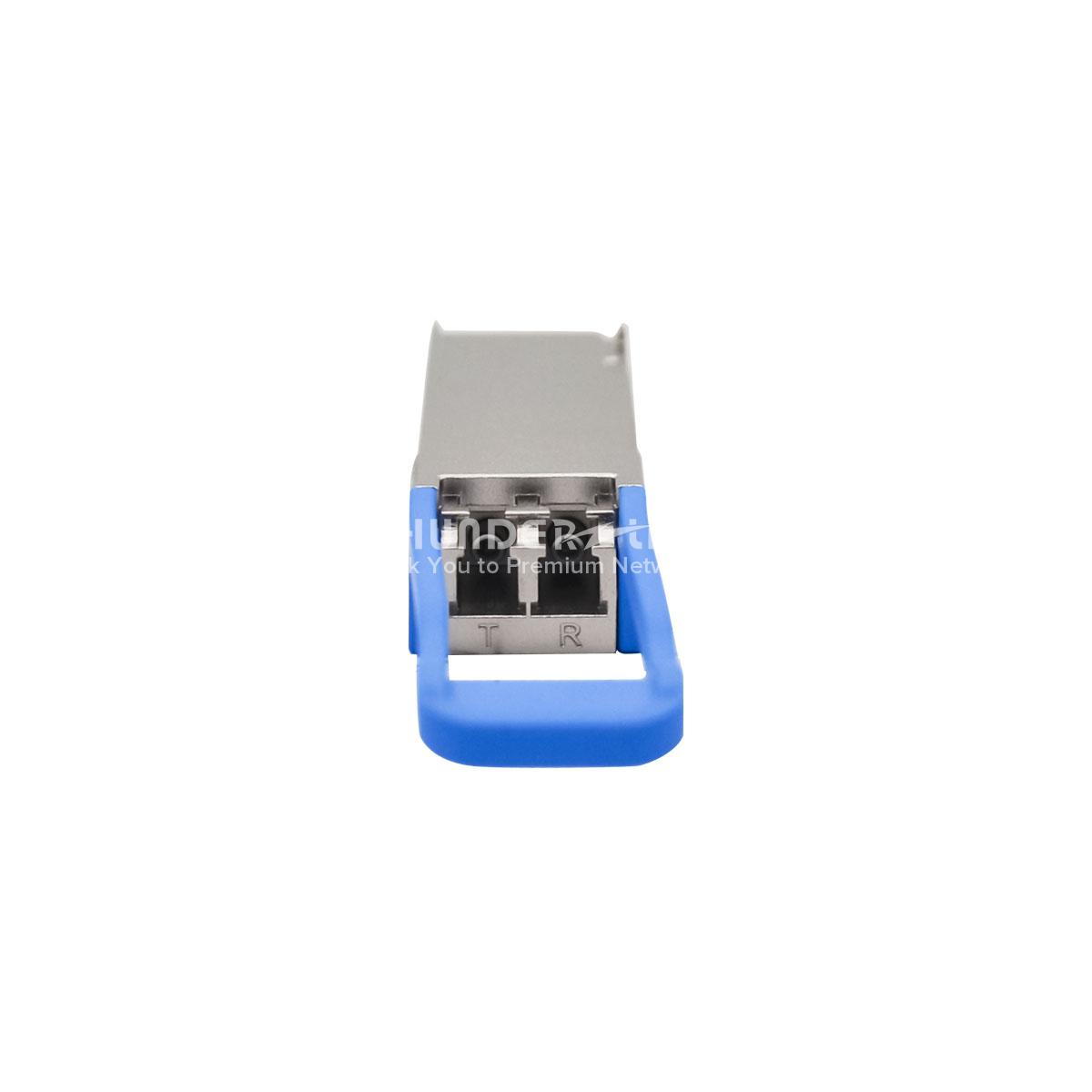

100G 10KM QSFP28/OSN010N24
Huawei original 100G 1310nm 10km QSFP28 optical transceiver, LC connector, bulk packed, apply for huawei switch, no alarm
19
People watching this product now!
DDM Test
DDM Test x
We will test each batch of optical modules and truthfully inform customers the test result if optical module has Alarm or No Alarm on different equipment to avoid compatibility problems. Learn more
TX RX Power Test
TX RX Power Test x
TX/RX power test ensures that the optical power are within the thresholds; remove the aged optical module with power loss, and the fake module with counterfeit label.
Description
100G 1310nm 10km SM QSFP28
Huawei original OSN010N24
Bulk pack
Without alarm
Apply to Huawei SX700, SX300 series campus switch CE series data center switch
Tech Specs
| 100Gigabit Ehernet Transceiver Information | |||
| Model | OSN010N24 | ||
| Encapsulation mode | QSFP28 | ||
| Interface standard | IEEE 802.3ba, 100GBASE-LR4 | ||
| Bit Error Ratio (BER) | <1x10E–12 | ||
| Working case temperature (°C) | 0 °C to 70 °C (32°F to 158°F) | ||
| Digital diagnosis | SFF-8636 | ||
| Environment standard | RoHS | ||
| Security standard | FCC class B, IEC 60825-1 Class 1 | ||
| ESD(HBM1) (V) | 500 | ||
| Transmission rate (bit/s) | 103.125G | ||
| Connector type | LC | ||
| Transmission distance (km) | 10 | ||
| Optical fiber type | SMF | ||
| Center wavelength (nm) | 1295.56; 1300.05; 1304.58; 1309.14 | ||
| Working wavelength range of the optical transmitter (nm) |
|
||
| Maximum sending optical power (AVG) (dBm) | per lane:4.5 | ||
| Maximum sending optical power (OMA) (dBm) | per lane:4.5 | ||
| Minimum sending optical power (AVG) (dBm) | per lane:-4.3 | ||
| Minimum sending optical power (OMA) (dBm) | per lane:-1.3 | ||
| Receiving sensitivity (AVG) (dBm) | – | ||
| Receiving sensitivity (OMA) (dBm) | per lane:-8.6 | ||
| Saturated optical power (dBm) | per lane:4.5 | ||
| Minimum extinction ratio (dB) | 4 | ||
| Note | The optical power calculation is based on the OMA value. | ||
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 13.5 × 7.5 × 3.3 cm |
| Brand | |
| Features | |
| Application |
Switch module |
| Distance |
10km |
Reviews (1)
1 review for 100G 10KM QSFP28/OSN010N24
Why Thunder-link.com
Fitzgerald
The packaging has been upgraded, with all modules now individually sealed in plastic bags.
