All products
20 in stock Ready to ship

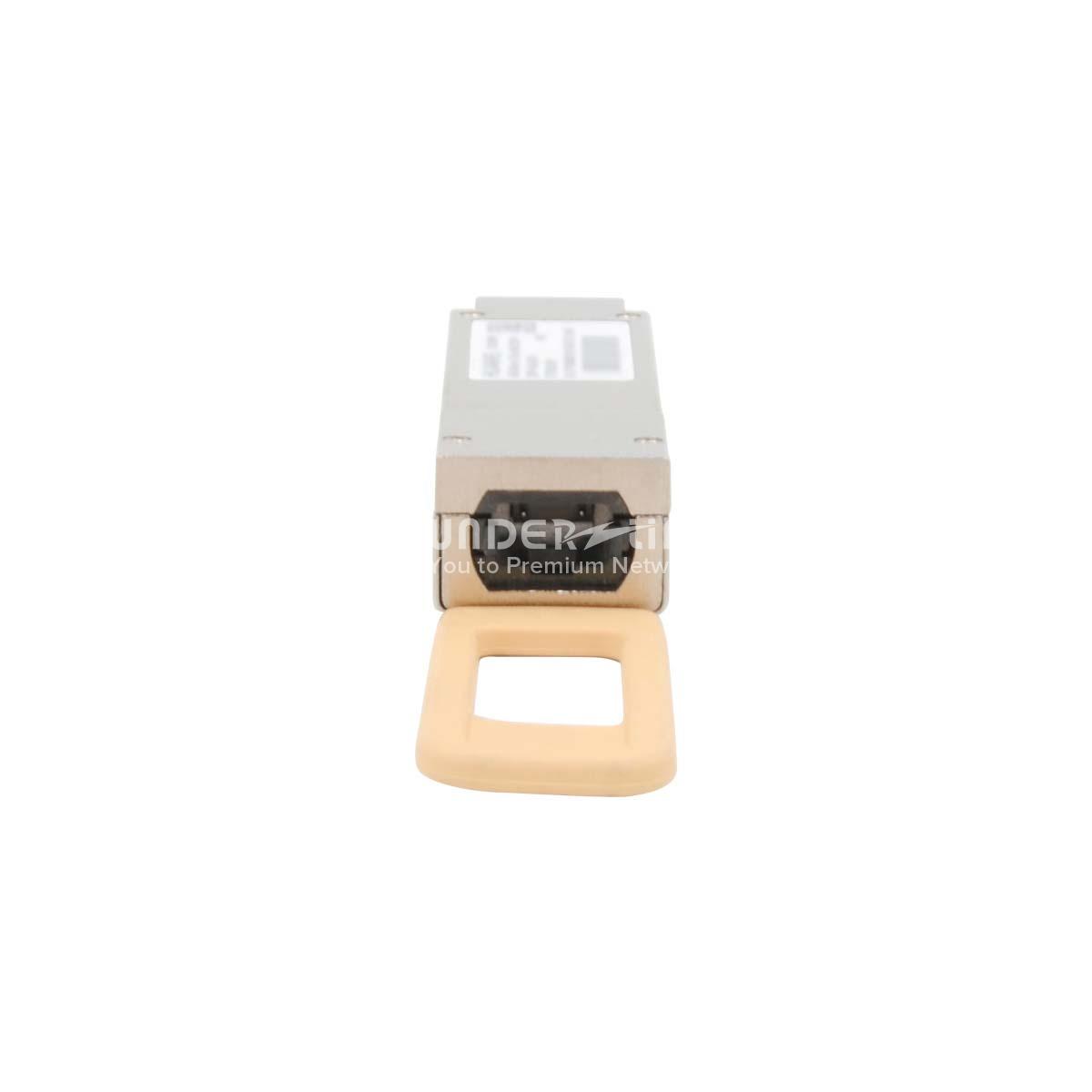

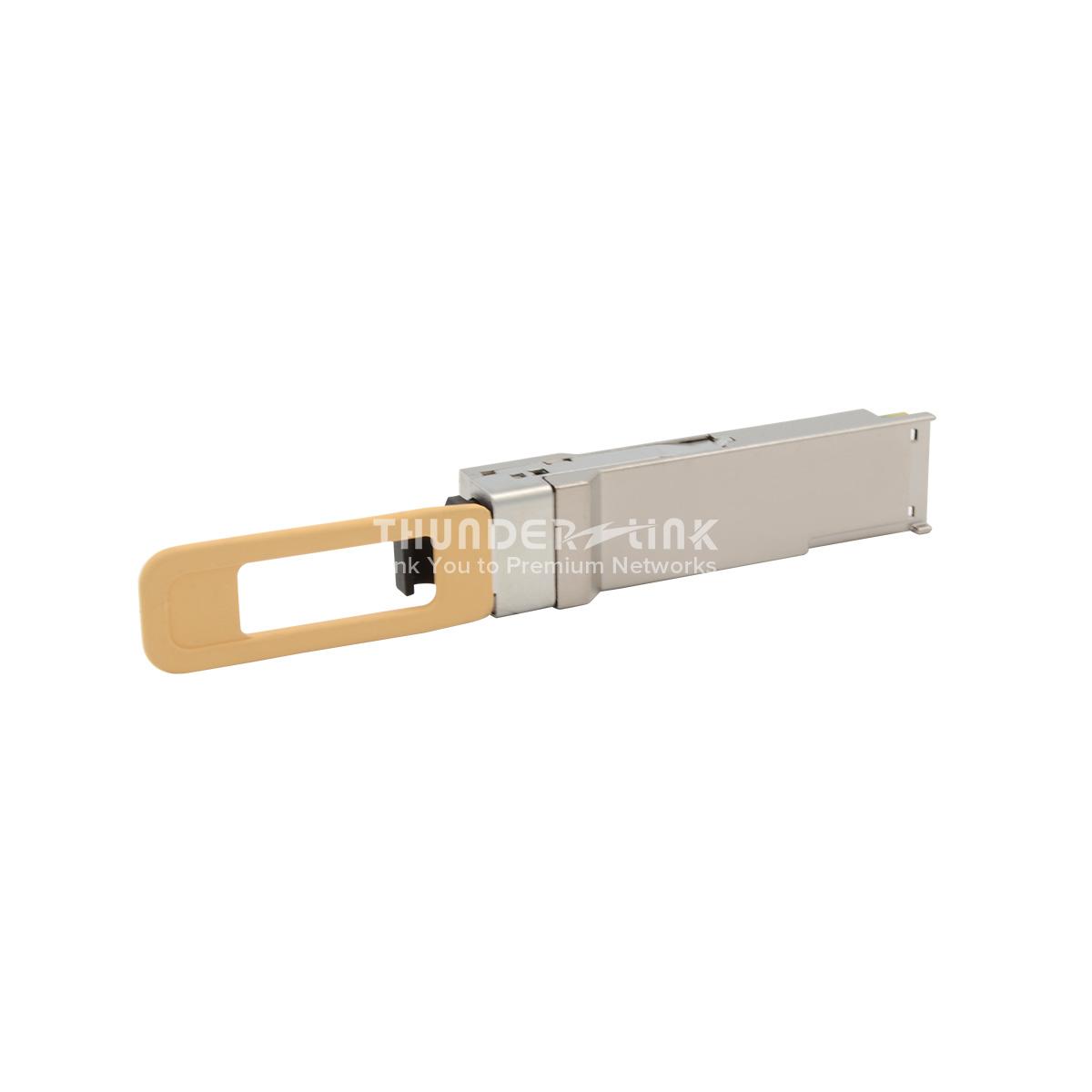

100G 0.1KM QSFP28/QSFP28-100G-SR4
Huawei original 100G 850nm 0.1km QSFP28 optical transceiver, MPO connector, bulk packed, apply for huawei switch, no alarm
15
People watching this product now!
DDM Test
DDM Test x
We will test each batch of optical modules and truthfully inform customers the test result if optical module has Alarm or No Alarm on different equipment to avoid compatibility problems. Learn more
TX RX Power Test
TX RX Power Test x
TX/RX power test ensures that the optical power are within the thresholds; remove the aged optical module with power loss, and the fake module with counterfeit label.
Optical Module quality control-Test Procedure
In order to ensure that the optical module we deliver do not have compatibility problems. We will test each batch of optical modules, to avoid compatibility problems of switch to the greatest extent.Description
100G 850nm 0.1km MM QSFP28
Huawei original QSFP28-100G-SR4
Bulk pack
Without alarm
Apply to Huawei SX700, SX300 series campus switch CE series data center switch
Tech Specs
| Gigabit Ehernet Transceiver Information | ||
| Transceiver form factor | Description | |
| Transceiver Type | QSFP28 | |
| Transmission speed | 100GE | |
| Center wavelength (nm) | 850 | |
| Standards compliance | 100GBASE-SR4 | |
| Connector type | MPO/PC (8-strand or 12-strand, type B, female connector) | |
| Applicable cable and maximum transmission distance | Multimode fiber (OM3): 70 m
Multimode fiber (OM4): 100 m |
|
| Transmit power (dBm) | -8.4 to +2.4 | |
| Maximum receiver sensitivity (dBm) | -10.3 | |
| Overload power (dBm) | 2.4 | |
| Extinction ratio (dB) | 2 | |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | |
| Part number | 0231GBW | |
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 13.5 × 7.5 × 3.3 cm |
| Brand | |
| Features | |
| Application |
Switch module |
Relevant Items…
Matching Products…
Reviews (2)
2 reviews for 100G 0.1KM QSFP28/QSFP28-100G-SR4
Why Thunder-link.com
Robert
Moldova
Same as the sales account said, no alarm when I use it on S6730 switch.
Peluffo
Uruguay
Brand-new, and well packed in individual box.
