Huawei solo packed 10G SFP+ single-module(1310nm,10km,LC) optical transceiver with alarm
288 in stock Ready to ship
DDM Test x
We will test each batch of optical modules and truthfully inform customers the test result if optical module has Alarm or No Alarm on different equipment to avoid compatibility problems. Learn more
TX RX Power Test x
TX/RX power test ensures that the optical power are within the thresholds; remove the aged optical module with power loss, and the fake module with counterfeit label.

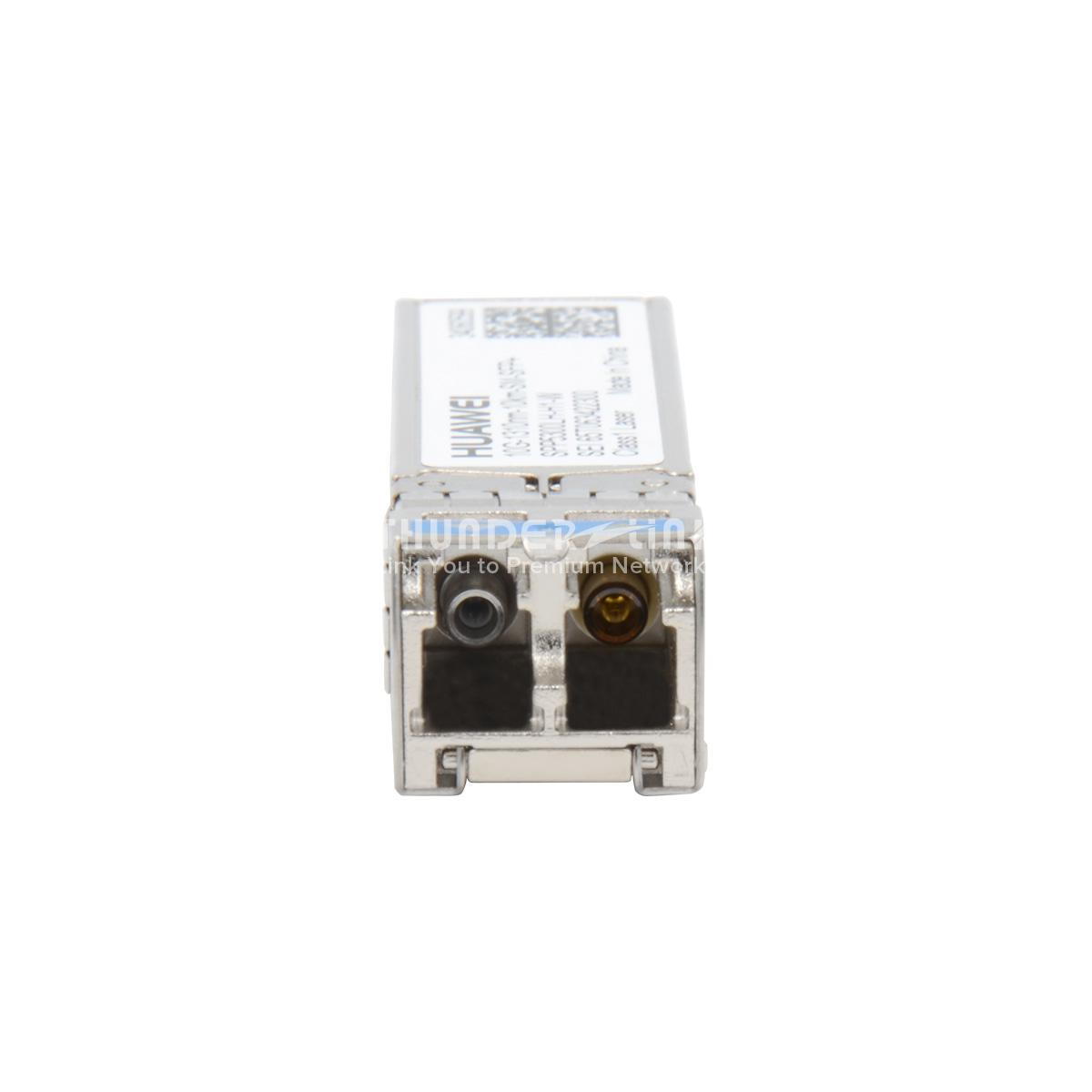

10G 1310nm 10km SM SFP+ SEI
SPP5300LH-H1-W
Sumitomo Electric Huawei compatible DDM
Solo pack
With alarm
Apply to Huawei MA5600T MA5800 GPON OLT main control and upstream board, typically SCUH, MCUD1, X2CS, MPLA, MPLB, MPSC;
Apply to Huawei SX700, SX300 series campus switch CE series data center switch
| Gigabit Ehernet Transceiver Information | ||
| Comon information: | ||
| Transceiver Type | 10GBBASE_LR_SFP | |
| Connector Type | LC | |
| Wavelength (nm) | 1310 | |
| Transfer Distance (m) | 10000 (9um) | |
| Digital Diagnostic Monitoring | Yes | |
| Vendor Name | Sumitomo Electric | |
| Diagnostic information: | ||
| Temperature (°C) | 19.05 | |
| Temp High Threshold (°C) | 95.00 | |
| Temp Low Threshold (°C) | -50.00 | |
| Voltage (V) | 3.37 | |
| Volt High Threshold (V) | 3.63 | |
| Volt Low Threshold (V) | 2.97 | |
| Bias Current (mA) | 30.59 | |
| Bias High Threshold (V) | 100.00 | |
| Bias Low Threshold (V) | 10.00 | |
| RX Power (dBM) | -40.00 | |
| RX Power High Warning (dBM) | 0.49 | |
| RX Power High Warning (dBM) | -14.40 | |
| RX Power High Threshold (dBM) | 2.50 | |
| RX Power Low Threshold (dBM) | -16.40 | |
| TX Power (dBM) | -2.57 | |
| TX Power High Warning (dBM) | 0.49 | |
| TX Power Low Warning (dBM) | -8.19 | |
|
TX Power High Threshold (dBM) |
2.50 | |
| TX Power Low Threshold (dBM) | -10.19 | |
| Weight | 0.5 kg |
|---|---|
| Dimensions | 13.5 × 7.5 × 3.3 cm |
| Brand | |
| Features | |
| Application |
OLT Uplink module, SDH module, WDM module |
| Distance |
10km |
