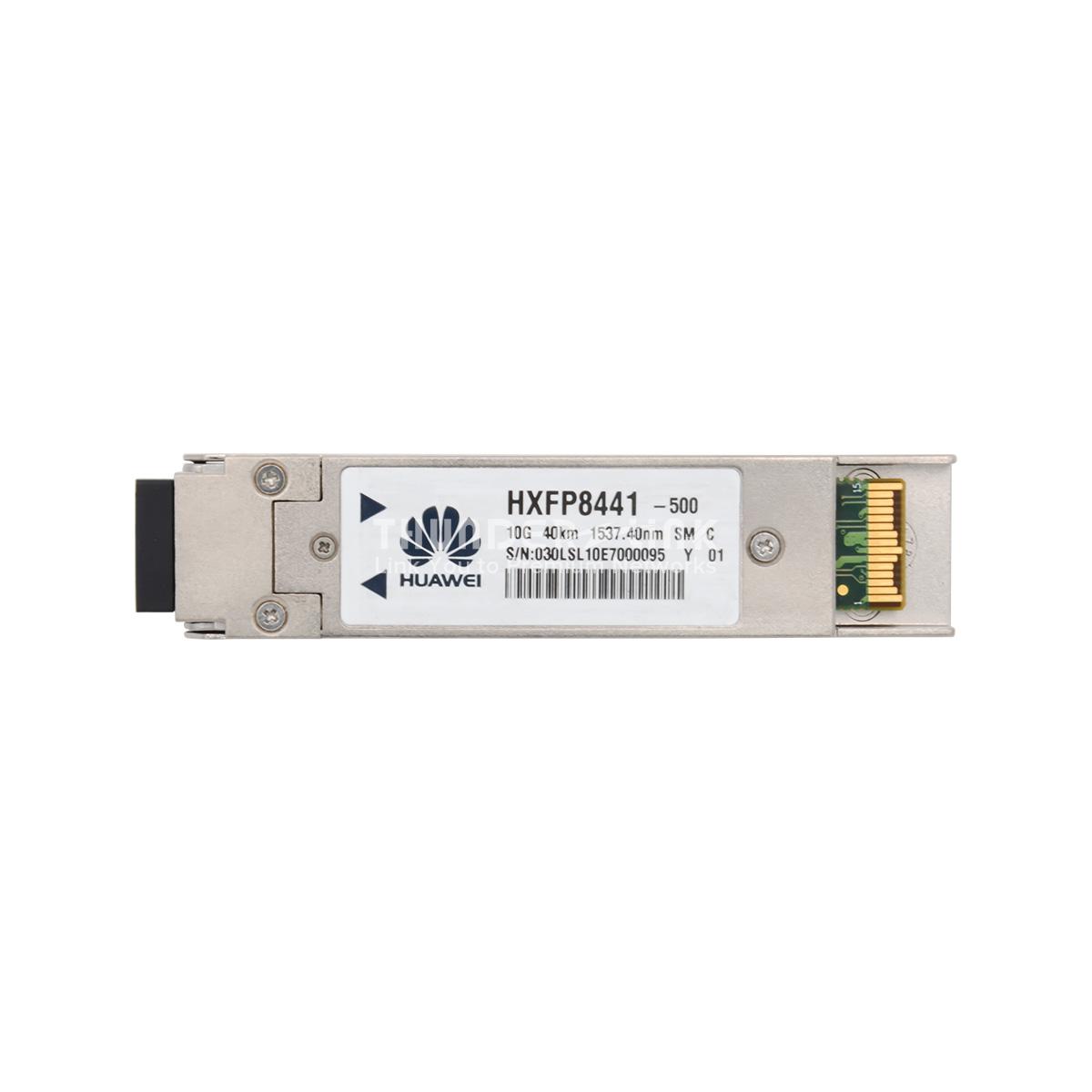

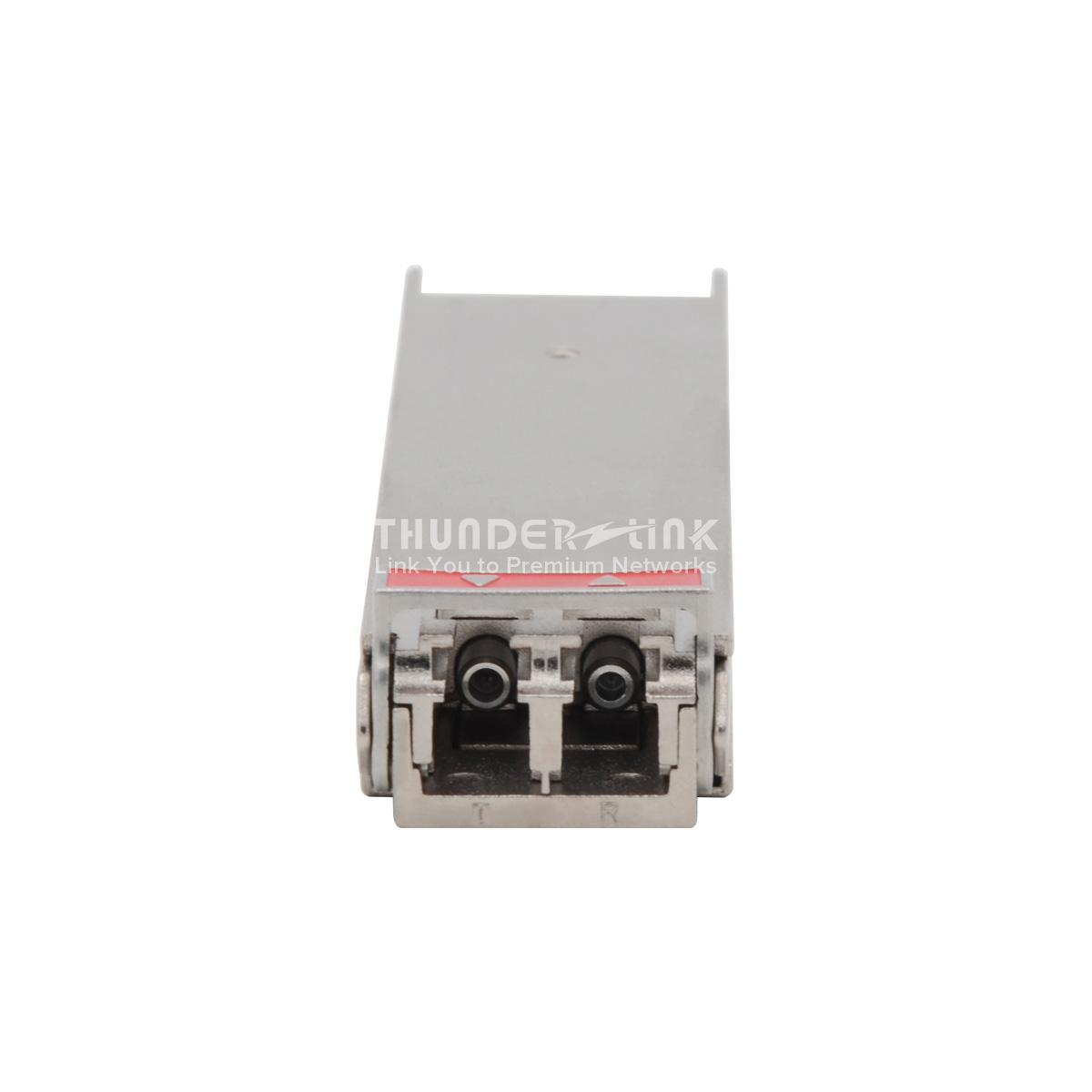

10G 40km C band XFP/HXFP8441-500

Huawei compatible 10G C Band XFP optical transceiver, fixed wavelength 1537.40nm, bulk packed, apply for huawei DWDM network

(0 reviews) | 45 sold

43 in stock      Ready to ship

16 People watching this product now!
TX RX Power Test

TX RX Power Test x

TX/RX power test ensures that the optical power are within the thresholds; remove the aged optical module with power loss, and the fake module with counterfeit label.

Optical Module quality control-Test Procedure
In order to ensure that the optical module we deliver do not have compatibility problems. We will test each batch of optical modules, to avoid compatibility problems of switch to the greatest extent.
Learn More

Description

10G DWDM C Band 40km XFP

Fixed Wavelength 1537.40nm, 195.00THz

Huawei compatible ODX045001

Bulk packed

Apply to Huawei OSN8800 series line WDM side board, typically NS2, ND2, NS2

Tech Specs
WDM-side pluggable optical module specifications (fixed wavelengths)
Parameter Value
Optical Module Type 800 ps/nm-C Band (Odd & Even Wavelengths)-Fixed Wavelength-NRZ-PIN-XFP
Line code format NRZ
Transmitter parameter specifications at point S
Maximum mean launched power(dBm) 2
Minimum mean launched power(dBm) -3
Minimum extinction ratio(dBm) 9
Center frequency(THz) 192.10 to 196.05
Center frequency deviation(GHz) ±10
Eye pattern mask G.959.1-compliant
Maximum -20 dB spectral width(nm) 0.3
Minimum side mode suppression ratio(dB) 35
Dispersion tolerance(ps/nm) 800
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(ps/nm) 1200 to 1650
Receiver sensitivity, EOL(FEC on)(dBm) -16
Minimum receiver overload(dBm) 0
Maximum reflectance(dB ) -27



Additional information
Weight 0.5 kg
Dimensions 13.5 × 7.5 × 3.3 cm
Brand

Features

Application

WDM module

Distance

40km
