EPS30-4815AF-30A

EPS30-4815AF-30A

PN: AA89E7CC
RFQ

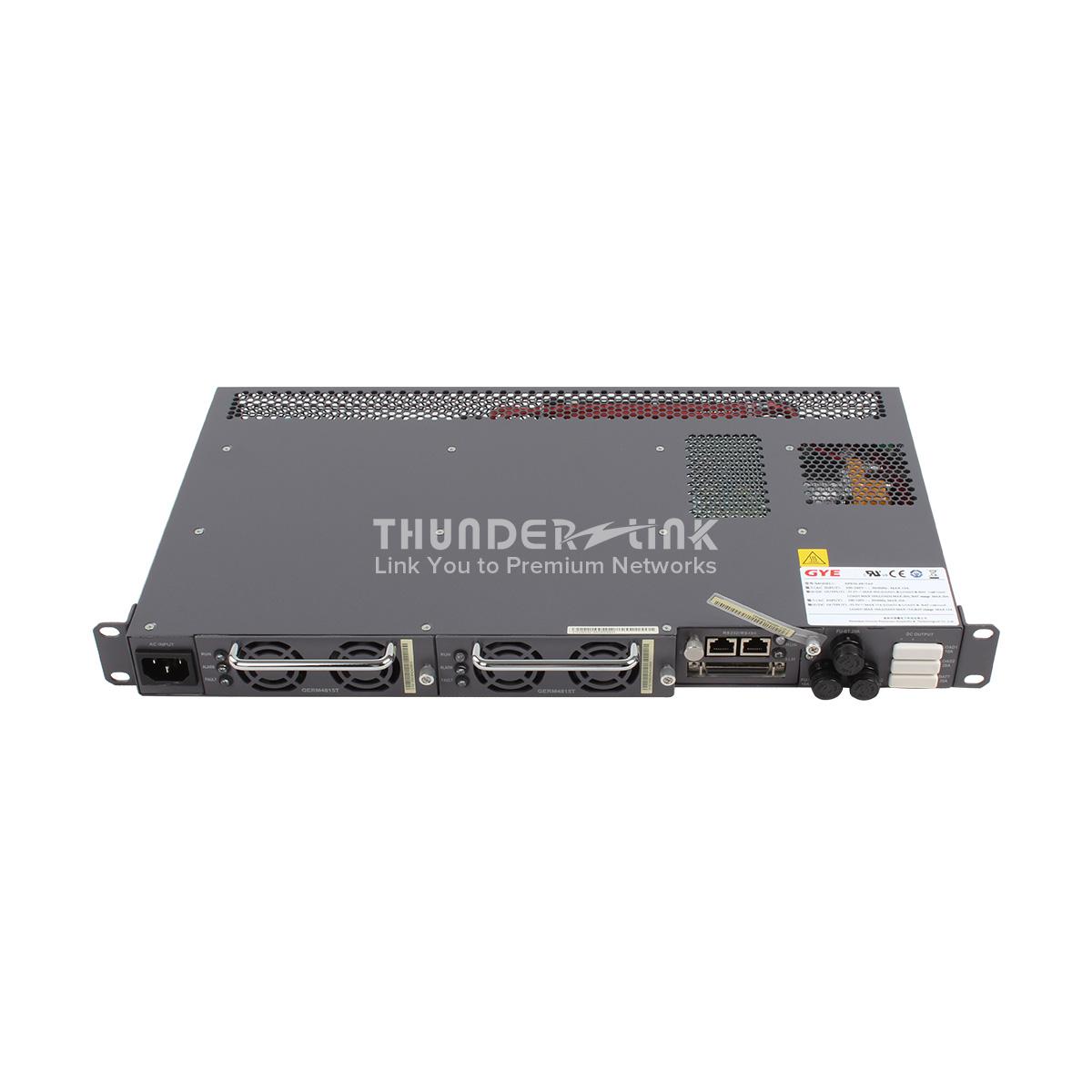

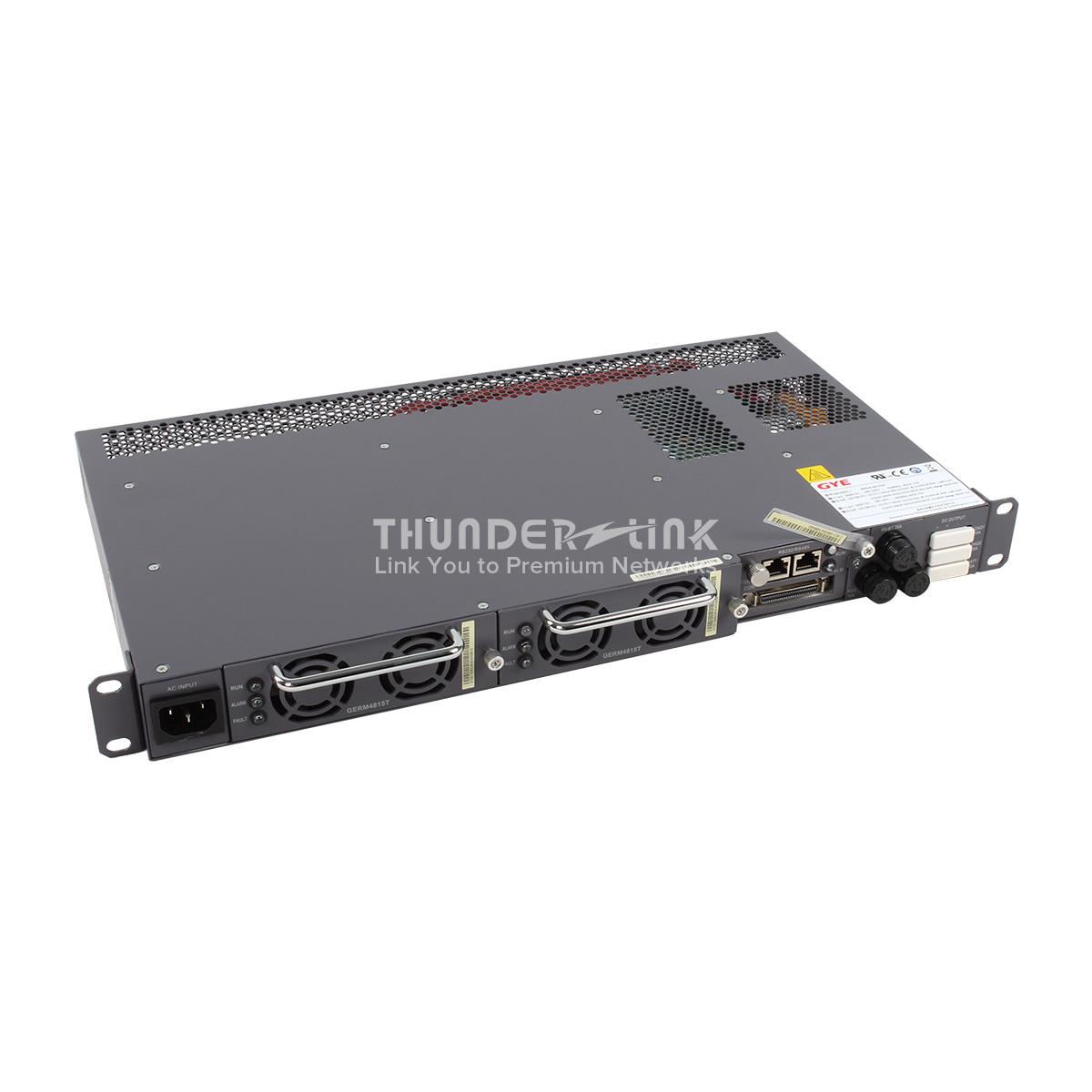

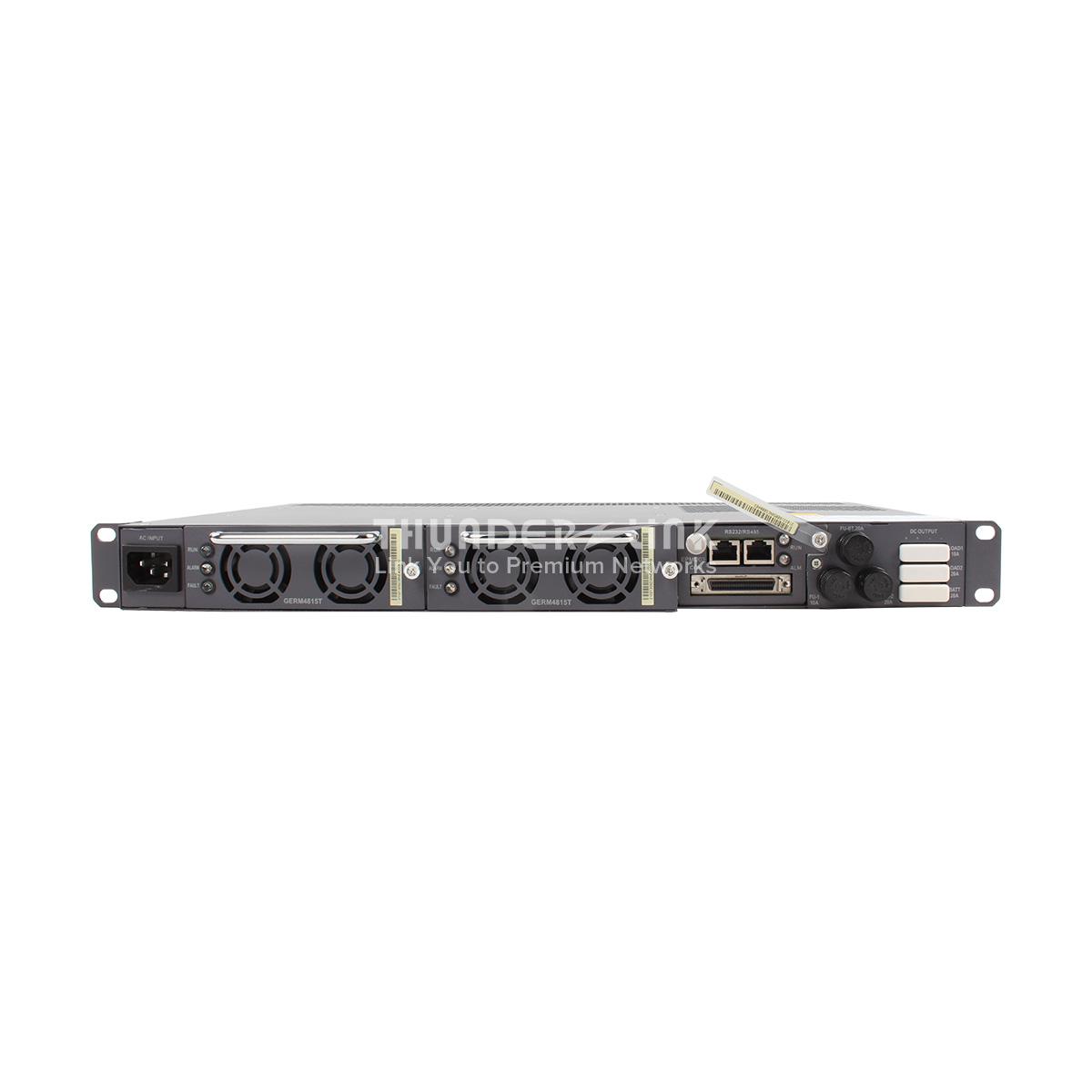

EPS30-4815AF-30A power converter with 1xDCDU-05 1xPMU 2xPSU
- +
Overview

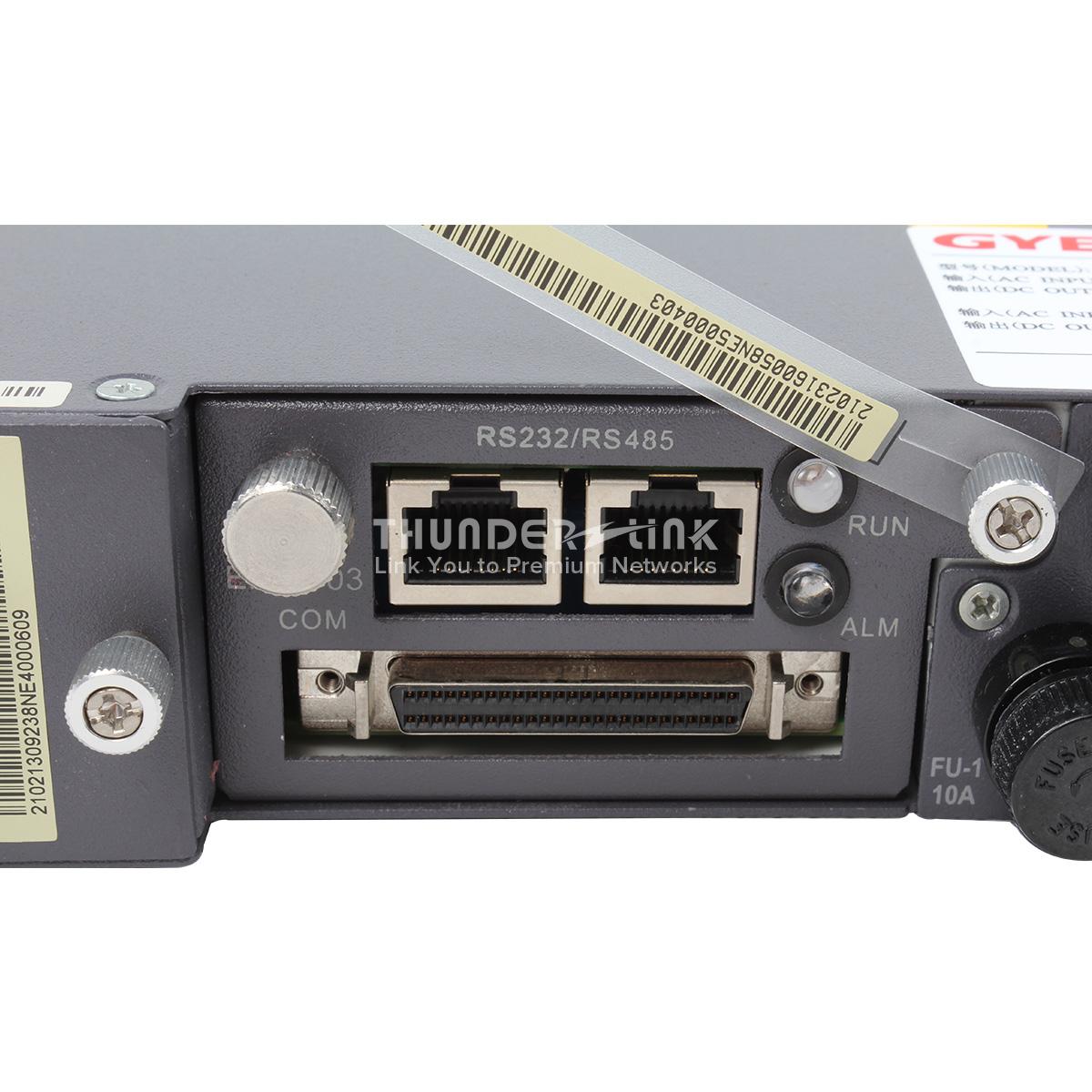

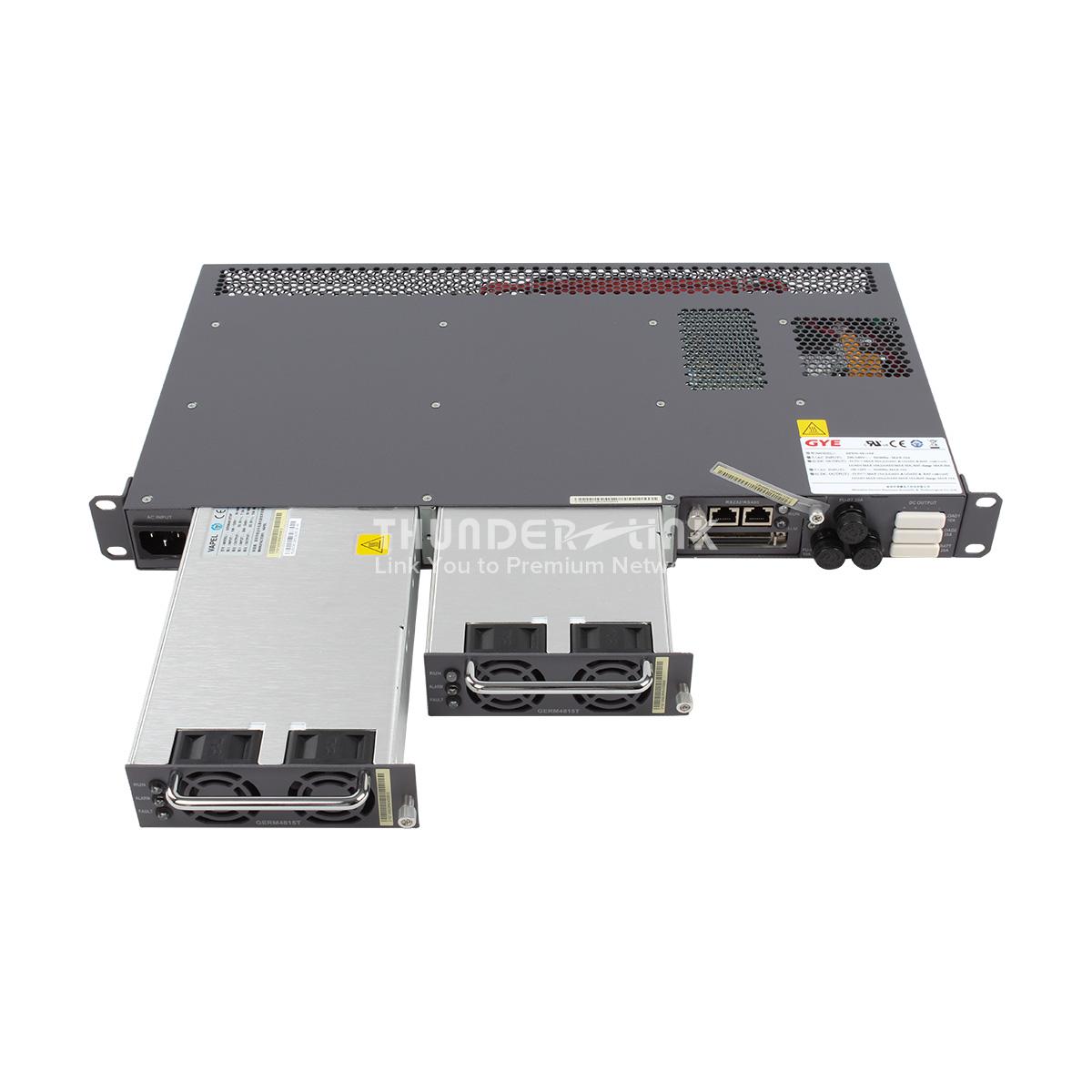

EPS30-4815AF-30A subrack composed by 1xDCDU-05, PMU(EPMU03), 2xPSU(GERM4815T), max output 30A

Maximum output power: 1600W

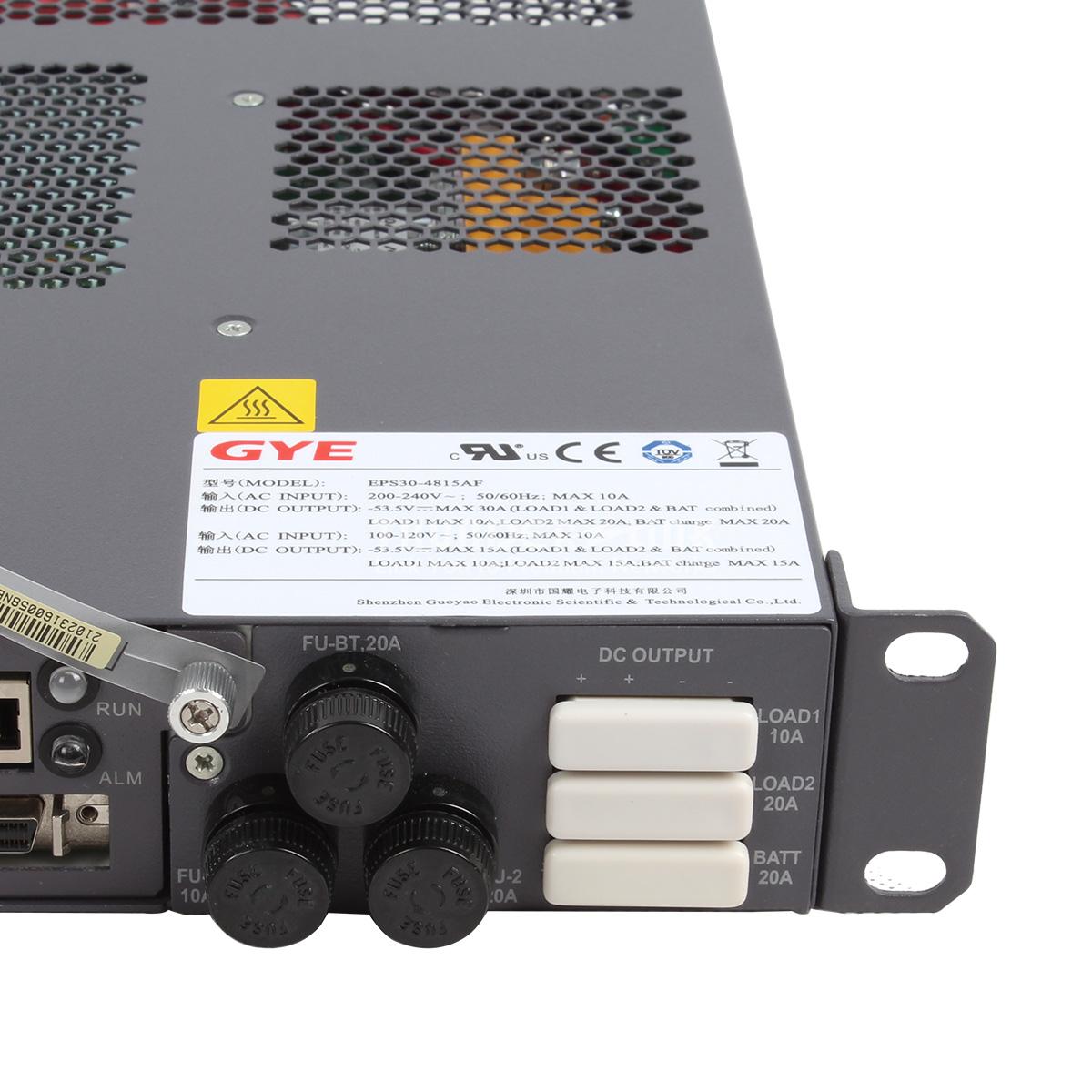

3 Power output port on EPS30-4815AF-30A subrack, Load1(10A), Load2(20A), BATT(20A)

Output power cable should connect via a XH2.54 connector

With battery port

Power supply typically to Huawei MA5683T, MA5680T



EPS30-4815AF-30A is a carrier-class AC/DC power converter, convert 220V/110V AC power to -48V DC power, MAX output 30A. EPS30-4815AF-30A have 3 output, 10A, 20A and BATT 20A. if combine output together can provide MAX 30A output.


Tech Specs
Specification
Input voltage220 V AC single-phase voltage range: 176 V AC to 290 V AC
110 V AC dual-live-wire voltage range: 90/180 V AC to 135/270 V AC
Input voltage frequency45 Hz to 65 Hz
Output voltageVoltage range: -42 V DC to -58 V DC
Output current15 A for the 220 V AC single-phase input power
7.5 A for the 110 V AC dual-live-wire input power
Maximum output power (W)1600W
Surge protection capability2 kV in differential mode
4 kV in common mode
Q&A

Q: What the different among the power converters?

A:


MAX outputQTY outputbattery
EPS30-4815A-15A15A21
EPS30-4815A-30A30A21
ETP48100-B1-50A50A40


Q: How can I choose power type for my OLT?

A: Normal condition, a EPS30-4815A-15A is enough for a OLT typical configuration; if fully configured, EPS30-4815A-30A is recommended; if several OLT in one cabinet, ETP48100-B1-50A is preferred for it more output port.


Q: The power converter is new or refurbished?

A: Yes, it is original new, not been used.


Q: What is the lead time for EPS30-4815AF-30A?

A: In normal condition is 5 days, better to confirm with our sales team before your purchase.
