S6720-32C-PWH-SI
    Share-mail Share-In Share-facebook Share-Twitter
S6720-32C-PWH-SI PN.98010720
24x100M/1G/2.5G/5G/10G BASE-T 4x10GE SFP+ without power module
0 reviews Write a Review
Price: US $--

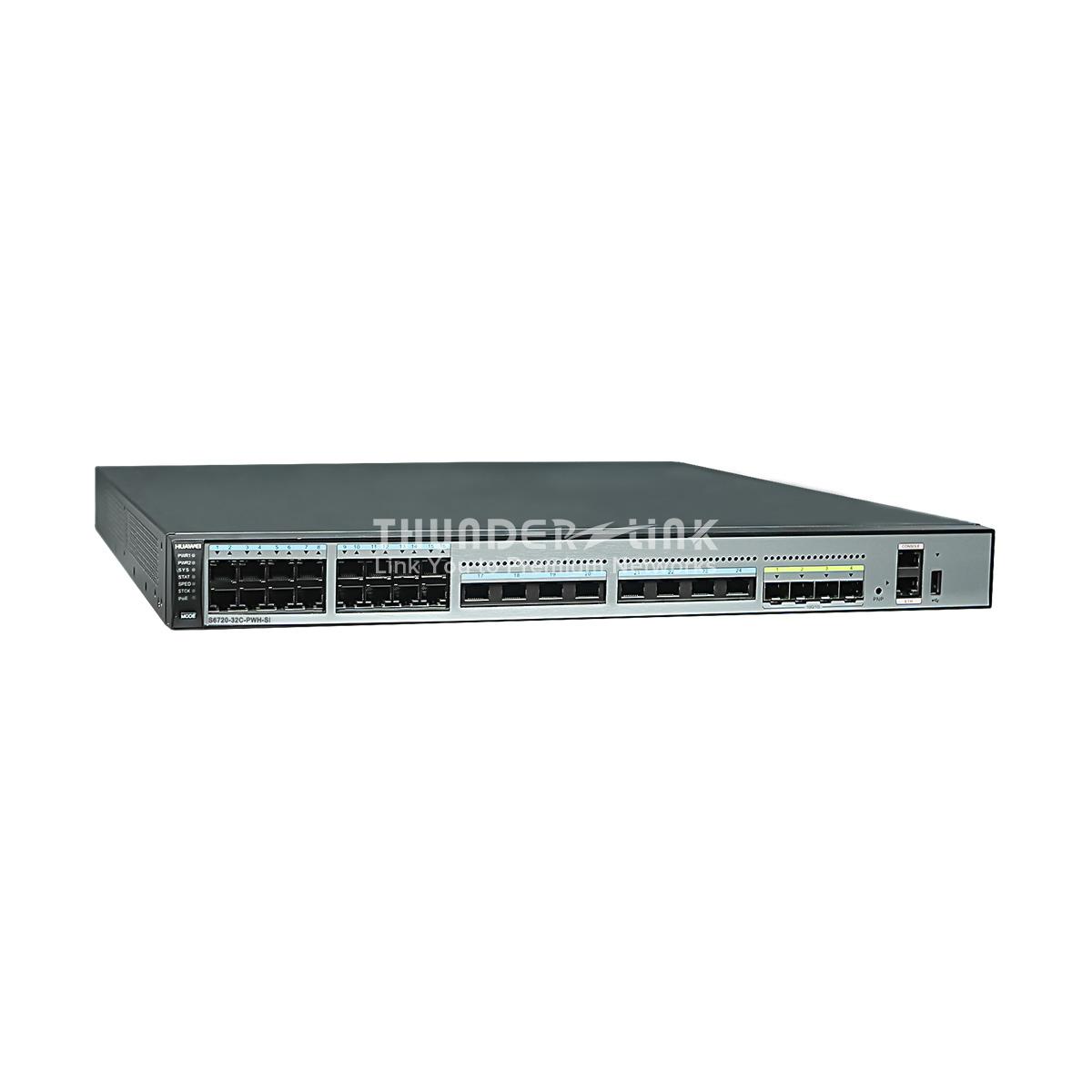

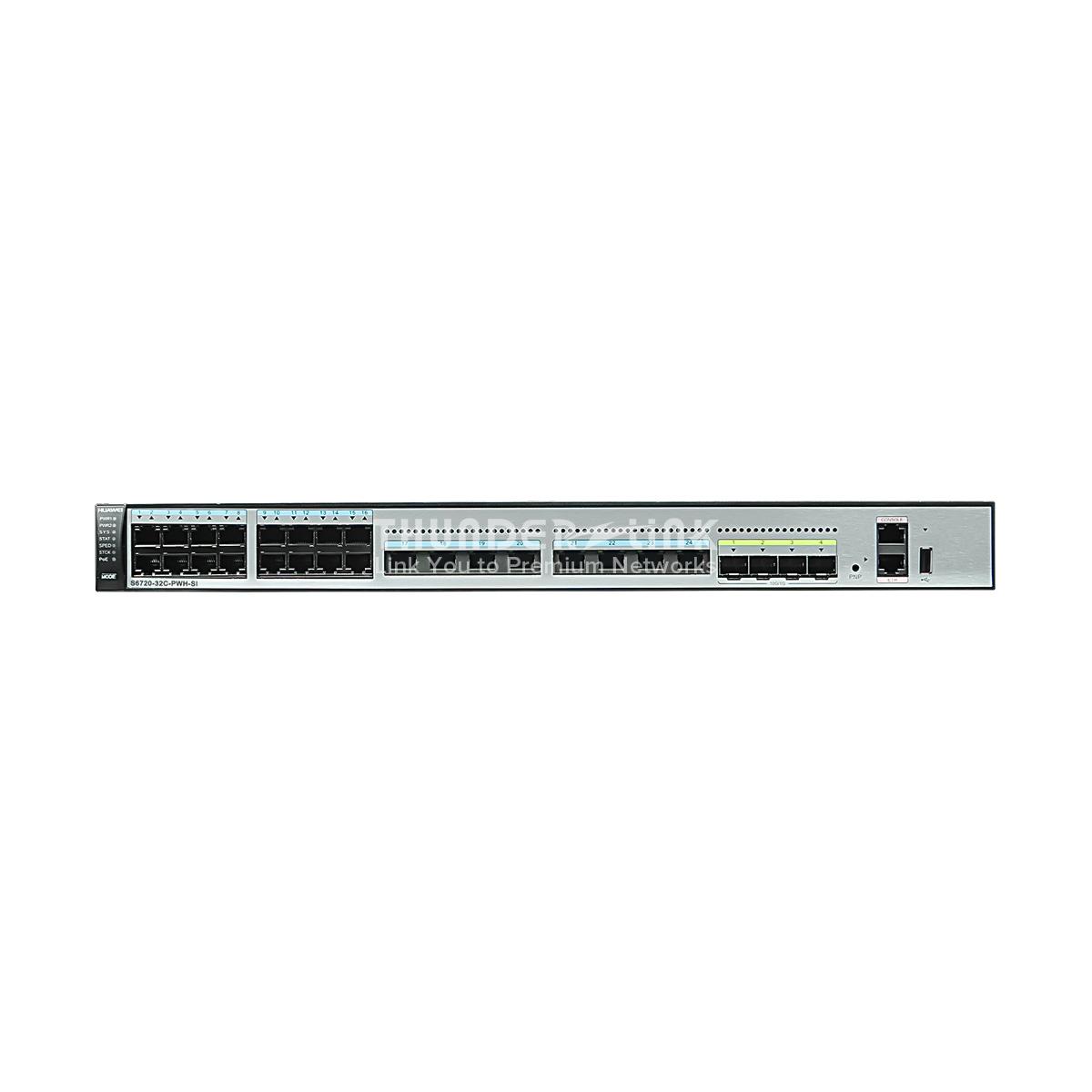

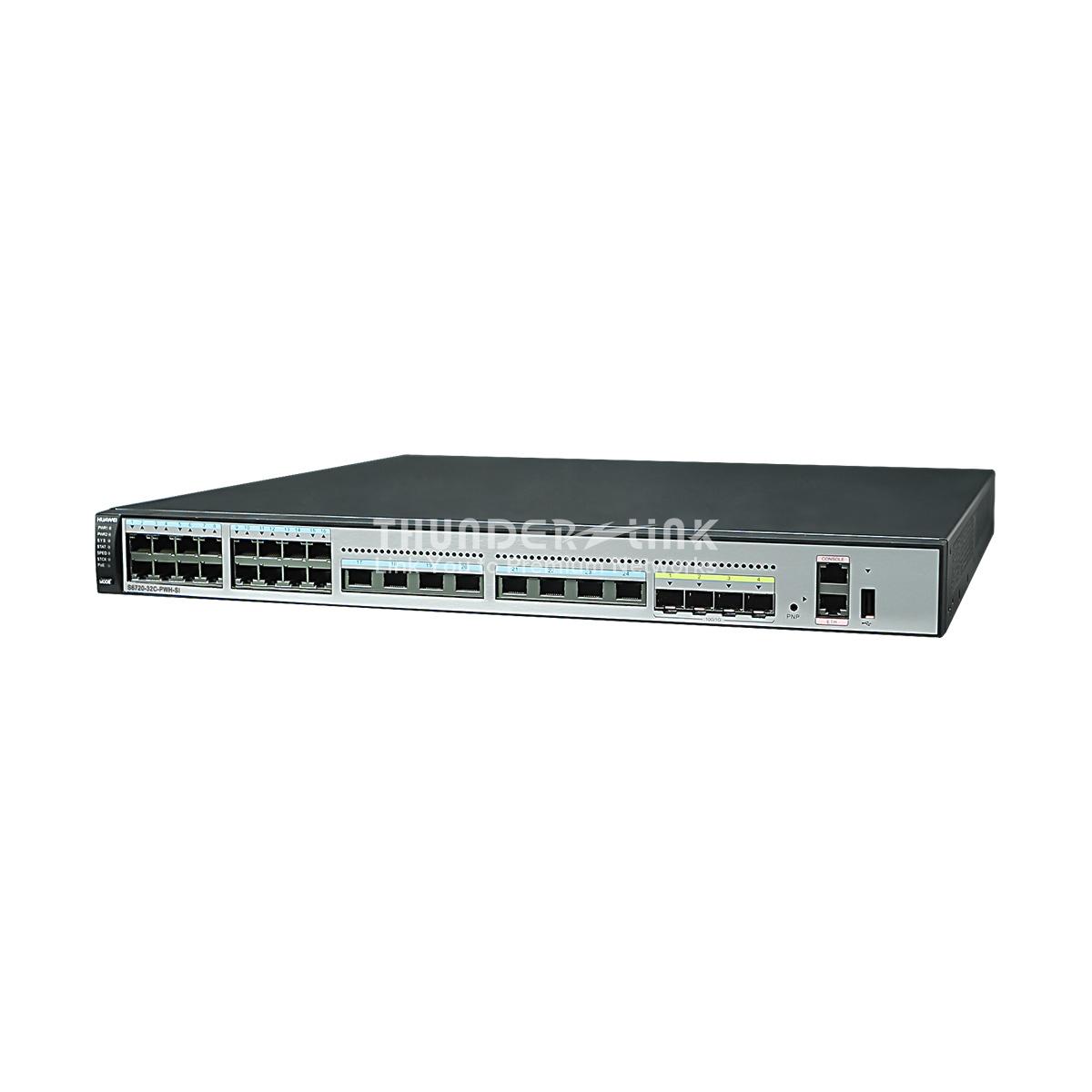

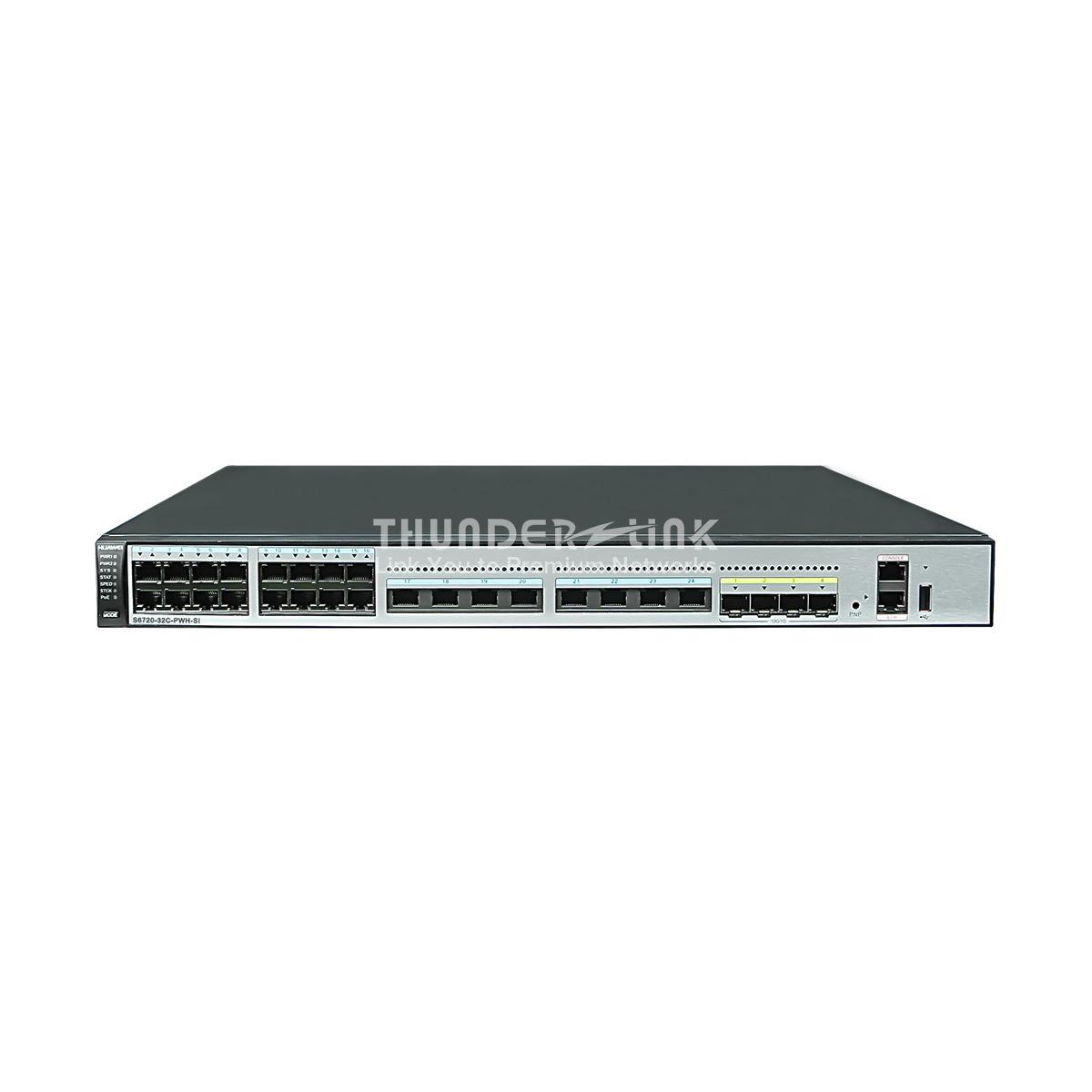

Description: Huawei S6720-32C-PWH-SI switch with 24-ports 100M/1G/2.5G/5G/10G BASE-T 4x10GE SFP+, 2 power slots, without power module equipped
Quantity: In Stock
Overview

Huawei S6720-32C-PWH-SI switch with 32-ports 10GE SFP+

With 2 power slots, without power module included

No extension slot

Forwarding perfomance: 240Mpps

Switching capacity: 2.56/23.04Tbps

32K MAC address entries

POE switch


Huawei S6720-SI series switches are Huawei-developed next-generation multigigabit 10GE fixed switches. S6720-SI can provide high-speed wireless access, and access for 10GE servers in data centers or function as access/aggregation switches on a campus network. S6720-SI provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and data center networks.





Tech Specs

Specification
Fixed port

24×100M/1G/2.5G/ 5G /10GBase-TEthernet ports, 4×10GE SFP+

Forwarding performance240 Mpps
Extended slotOne extended slot
MAC address table32K
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN features4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN Mapping, Super VLAN
Basic QinQ and selective QinQ
IPv4 routingStatic routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP
VRRP
Policy-based routing
Routing policies
IPv6 routingStatic routing
RIPng
OSPFv3, BGP4+, ISISv6
IPv6 featuresNeighbor Discovery (ND) and ND snooping
IPv6 Ping
VRRP6
DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay
MLDv1 and MLDv2
PIM-DM for IPv6, PIM-SM for IPv6
6 Over 4 tunnels
MulticastIGMPv1/v2/v3 snooping
Fast leave
IGMP snooping proxy
MLD snooping
Port-based multicast traffic suppression
Inter-VLAN multicast replication
Controllable multicast
IGMP v1/v2/v3
PIM-SM and PIM-DM
Multicast Source Discovery Protocol (MSDP)
Multicast routing policies
QoS/ACLTraffic classification based on ACLs

Traffic classification based on outer 802.1p fields, inner VLAN IDs, outer VLAN IDs, source

MAC addresses, and Ethernet types

Access control after traffic classification
Traffic policing based on traffic classifiers
Re-marking based on traffic classifiers
Class-based packet queuing
Associating traffic classifiers with traffic behaviors
Rate limiting on inbound and outbound ports
Traffic shaping based on ports and queues
Tail drop
Priority Queuing (PQ)
Deficit Round Robin (DRR)
PQ + DRR scheduling
Weighted Round Robin (WRR)
PQ + WRR scheduling
ReliabilitySTP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP)
G.8032 Ethernet Ring Protection Switching (ERPS)
BFD for OSPF, IS-IS, VRRP, and PIM protocols
Enhanced trunk (E-trunk)

Security features

Defense against DoS, ARP, and ICMP attacks
Binding of the IP address, MAC address, port number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC-Forced Forwarding (MACFF)
Limit on the number of learned MAC addresses

IEEE 802.1X authentication, MAC address authentication, Portal authentication, and hybrid

authenticatio

Authentication methods, including AAA, RADIUS, and HWTACACS
CPU defense
Super Virtual Fabric (SVF)SVF Parent and Client
Management and
maintenance
iStack (using service ports as stack ports)
Virtual Cable Test (VCT)
Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
SNMPv1/v2/v3
RMON
Web-based network management system and relevant features
System logs and multi-level alarms
GVRP
MUX VLAN
sFlow
Hypertext Transfer Protocol Secure (HTTPS)
SSH1.5/SSH2
Operating environment

Working temperature: 0–1800 m, 0–45°C; 1800–5000 m, the highest operating temperature

reduces by 1°C every time the altitude increases by 220 m.

Relative humidity: 5%–95% (noncondensing

Input AC voltage

AC:

Rated voltage range: 100 V to 240 V A C, 50/60 Hz

Maximum voltage range: 90 V to 264 V A C, 47/63Hz

DC:

Rated voltage range: –48 V to –60 V DC

Maximum voltage range: –36 V to –72 V DC

Dimensions442 (W)×420 (W)×44.4 (H)
Typical power consumption

580W without card and PD:121.6W

1150W AC without card and PD:106.9W





Q&A

Q: Do I need to buy power supply for S6720-32C-PWH-SI?

A: S6720-32C-PWH-SI supports double pluggable power supplies, by default, it configures with 1 power. If you need power redundancy, you need purchase additionally.


Q: How many slots does S6720-32C-PWH-SI support?

A: One extended slot.



Q: What is the differece between S6720-32C-PWH-SI-AC and S6720-32C-SI-AC?

A: S6720-32C-PWH-SI-AC can support Long distance PoE++, while S6720-32C-SI-AC cannot.


Q: Can I use compatible SFP/SFP+ module on Huawei S6720 switch?

A:Yes, but the switch may generate alarm, however, it will not affect normal use


Q: Can I get technical support from Thunder-link.com if we purchase S6720-32C-PWH-SI from you?

A: Yes, Thunder-link.com has experienced technical team on Huawei switches, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.
