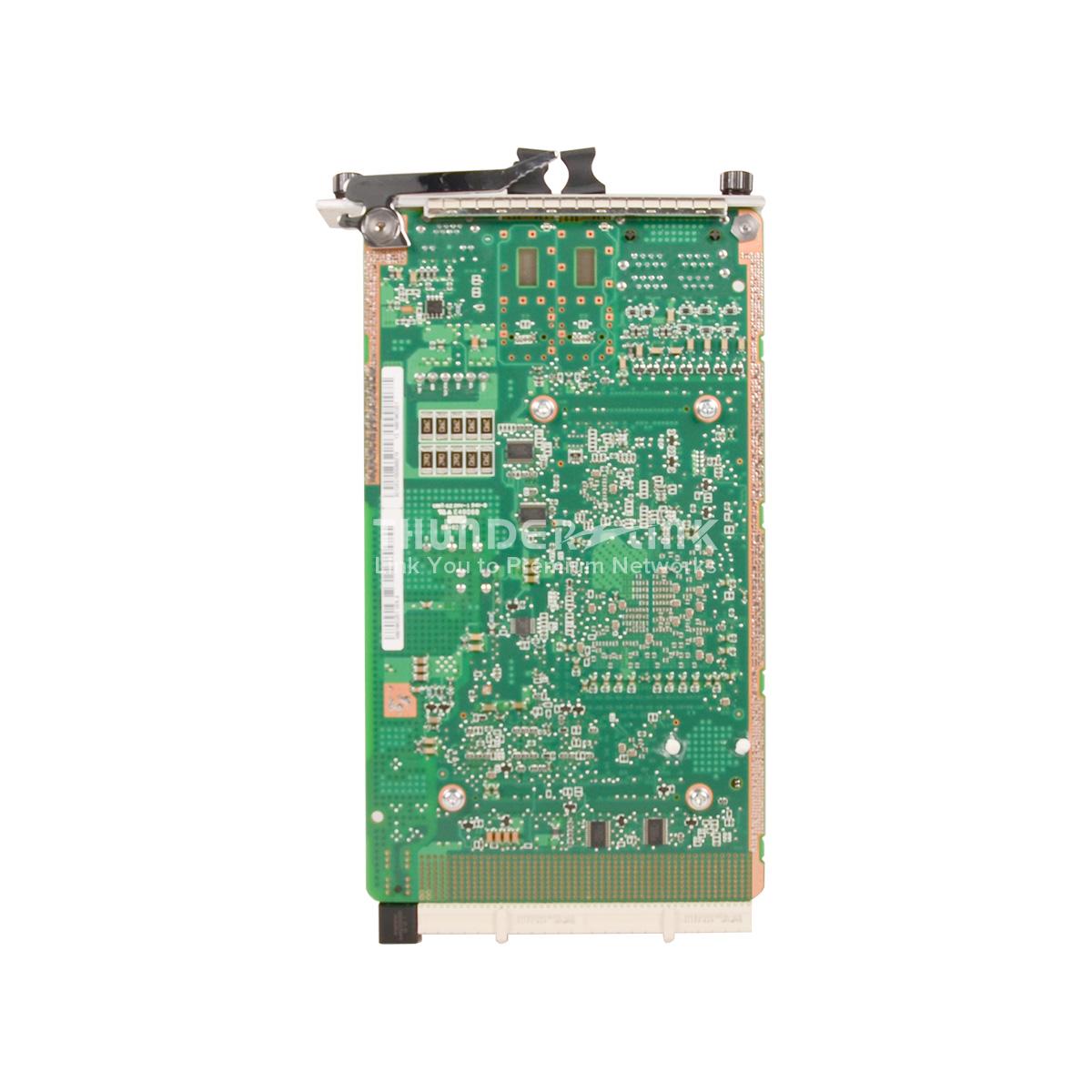

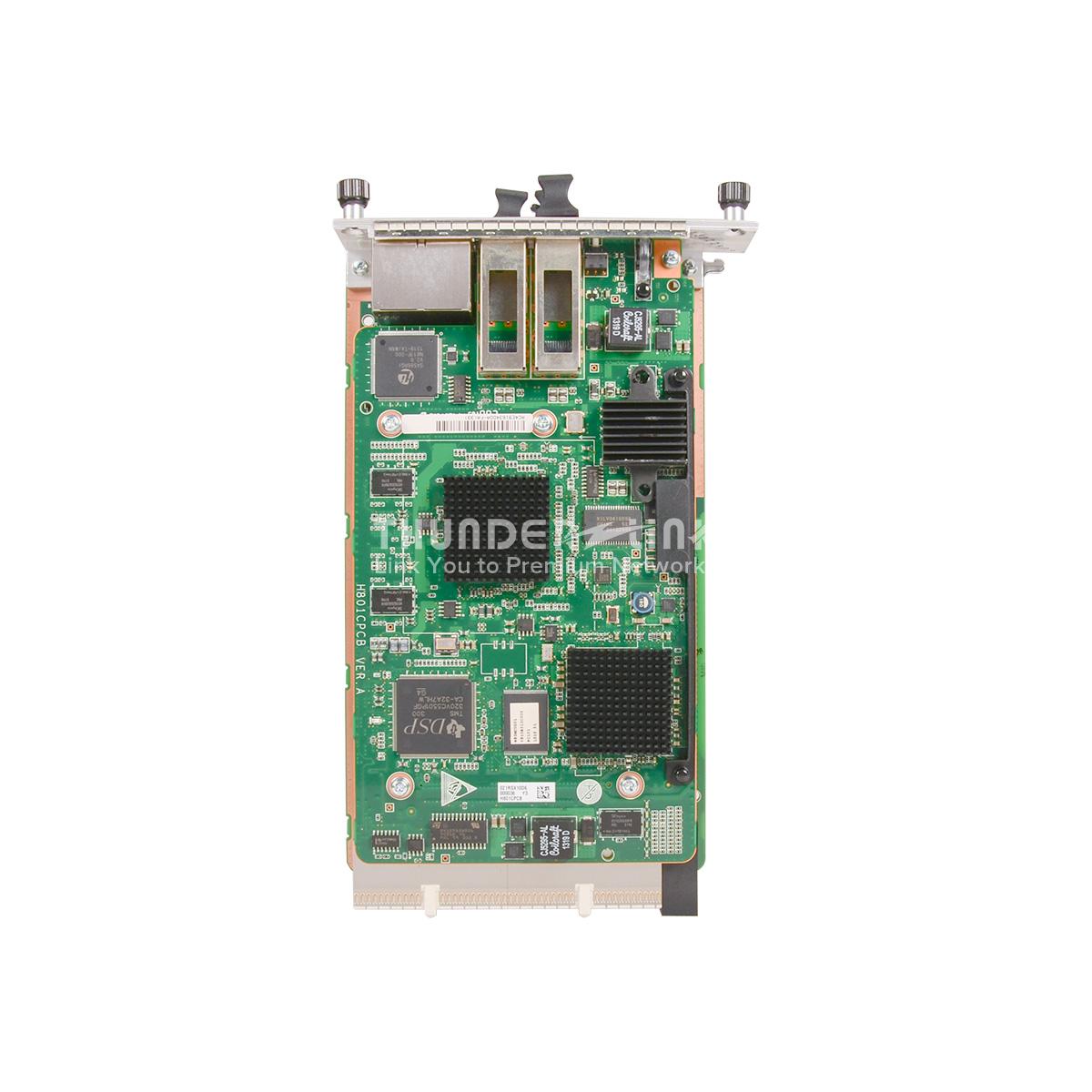

H801MCUD1

Huawei MA5608T main control board integrated with 2-port GE and 2-port GE/10GE optical uplink

(3 reviews) | 385 sold | 2 QA

92 in stock      Ready to ship

16 People watching this product now!
PN: 03021UEU Category: Tag:
Firmware Upgrades

Firmware Upgrades x

Firmware upgrades allow our customers to utilize the latest features and security enhancements that simply make the devices to operate proficiently Learn more

Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Software Compatibility

Software Compatibility x

Software compatibility test between active/standby system board, main control board and service board, mother/sub-card; system commissioning test to prevent all software conflicts.

How to Upgrade Huawei MA5600T Series OLT
We take Huawei MA5680T as an example in this article to briefly elaborates the upgrade process of Huawei MA5608T / MA5680T / MA5683T
Learn More

Description


Supports 256 Gbit/s (active/standby mode), 512 Gbit/s(active/standby mode) switching capacity.

Supports active/standby mode and load sharing mode,doubling processing performance.

Supports ISSU,saving the pgrade interruption time.

Supports synchronization Ethernet, 3-stratum clock and 1588v2.



MCUD1 is a main control card of Huawei OLT MA5608T, it provides system control and service switching and aggregation, integrates with 2 GE, 2 10GE upstream ports. Switching capacity 256G (active/standby mode) , MAX access 2048 subscribers. MCUD1 has one hardware version, H801MCUD1.

Tech Specs

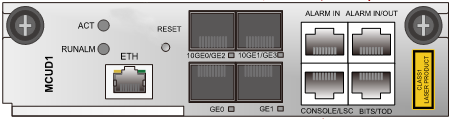

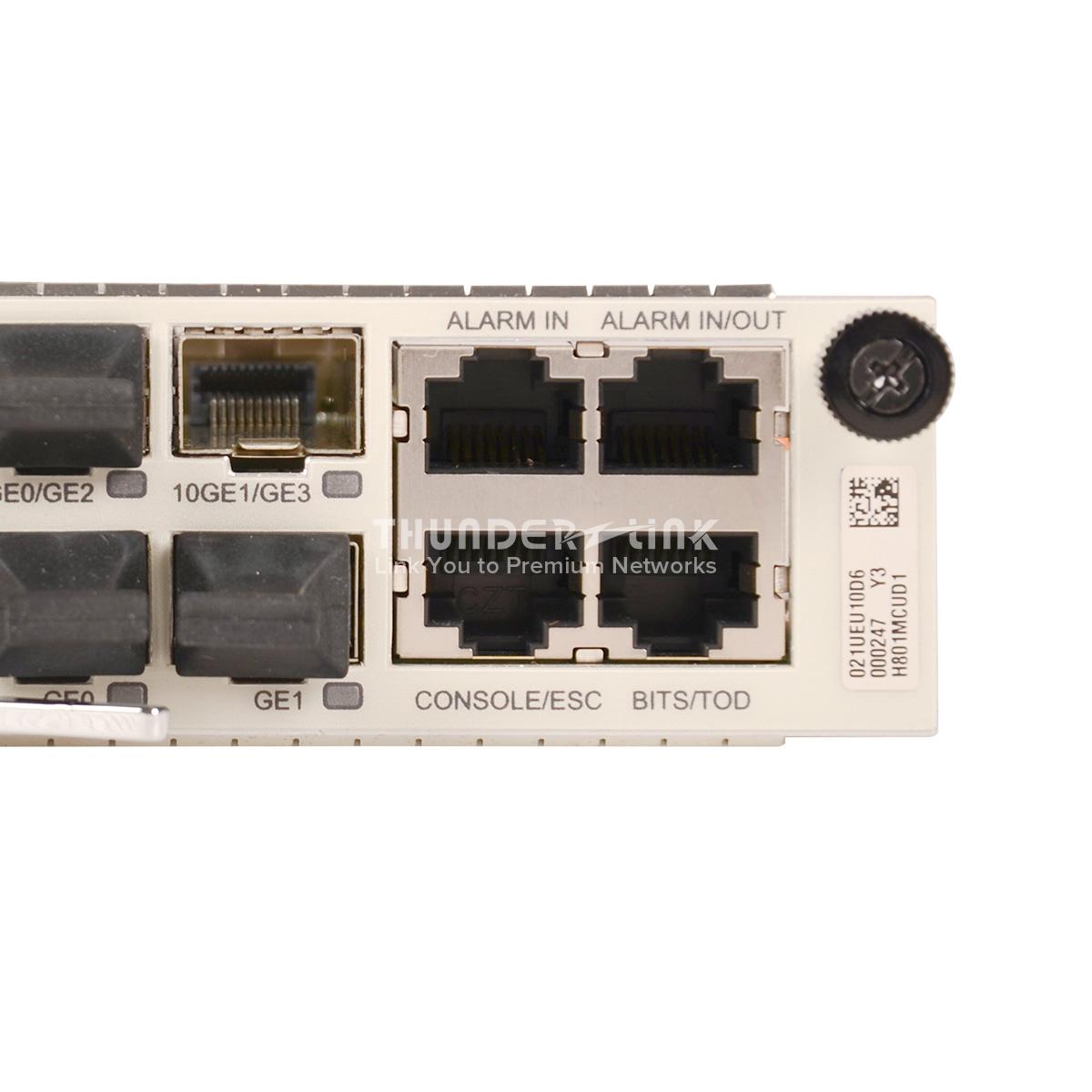

Front panel

H801 MCUD1

LAN switch 24 x GE + 4 x 10GE
Switching capacity 256 Gbit/s (active/standby mode)
512 Gbit/s (load sharing mode)
andwidth per slot 10 Gbit/s (active/standby mode)
20 Gbit/s (load sharing mode)
MAC address table 32768
Access user 2048
Multicast user 2048
Configurable multicast channel 4096
Concurrent multicast channel 2000
IPv4 routing table 5120
IPv6 routing table 5120
Service port 20480
ARP table 8192
ACL rule 896
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
VRF (L3 VPN) Supported
Operating temperature -25°C to +65°C
Power consumption Static: 29 W
Maximum: 33 W
Mechanical Specification
Dimensions(mm) 233 (W) x 134 (D) x 34 (H)
Weight(kg) 1
Additional information
Weight 2.0 kg
Dimensions 34.0 × 25.5 × 10.0 cm
Brand

Q&A

Q: What’s the difference between MCU boards?

A:

Major differences between MCU boards

Board One input of BITS clock signals and one input of BITS clock signals One input of 1PPS+TOD time signals and one output of 1PPS+TOD time signals Stratum-3 clock D-CMTS cluster management
H801MCUD No No No No
H801MCUD1 Yes Yes Yes No
H801MCUE No No No Yes

Ports of MCU boards

Board Panel ports Internal interfaces
Channel to the GIU board Channel to the standby control board
H801MCUD 4 GE ports 2 GE/10GE ports Providing one 10GE port for load sharing with the standby H801MCUD board
H801MCUD1 2 GE ports and 2 GE/10 GE ports 2 GE/10GE ports Providing one 10GE port for load sharing with the standby H801MCUD1 board
H801MCUE 4 GE ports 2 GE/10GE ports Providing one 10GE port for load sharing with the standby H801MCUE board

Q: Can I insert GE SFP modules on MCUD1?

A: Yes, you can. There are 2 GE ports and 2 GE/10 GE ports on MUCD1, so you can insert both GE SFP and 10GE SFP+ modules.
