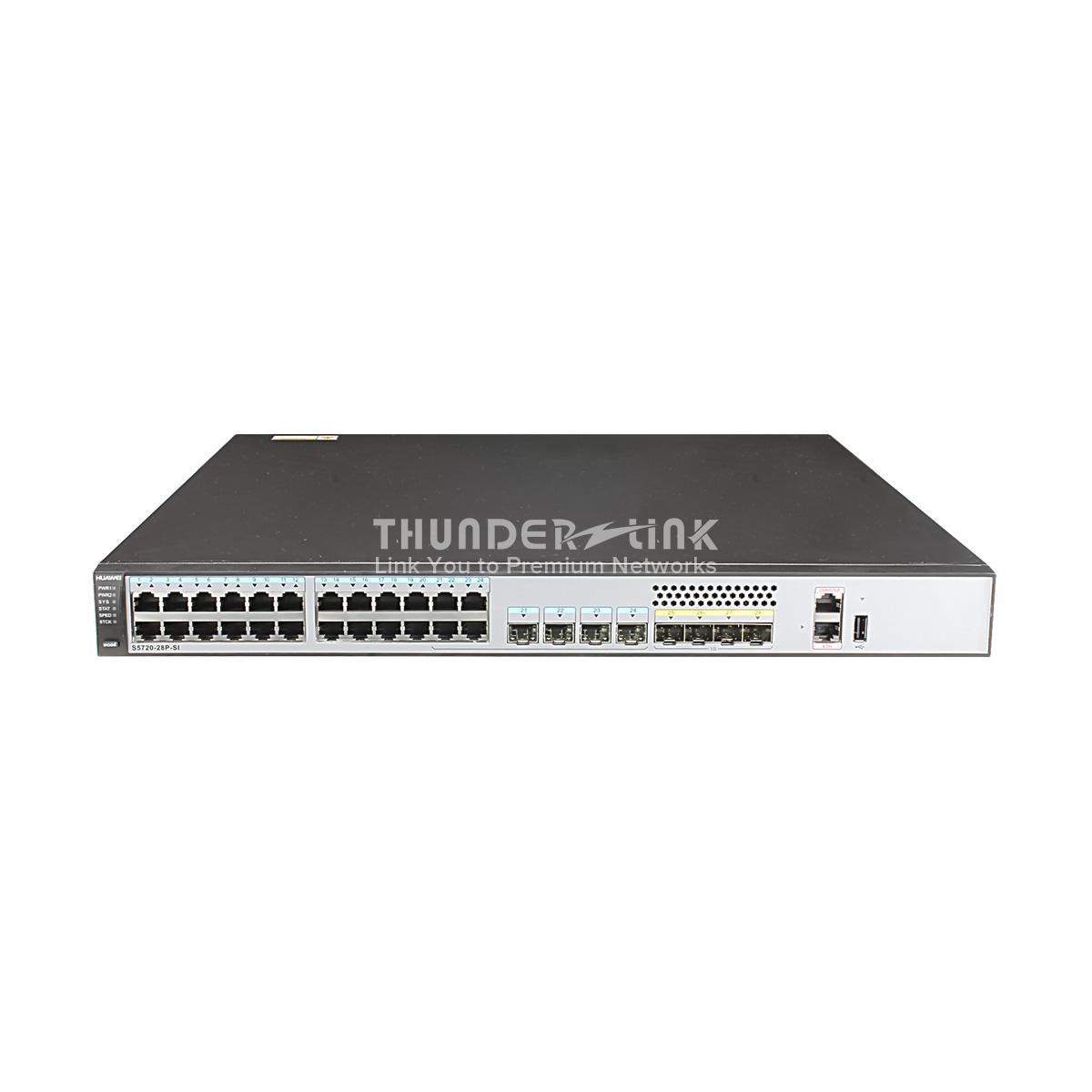

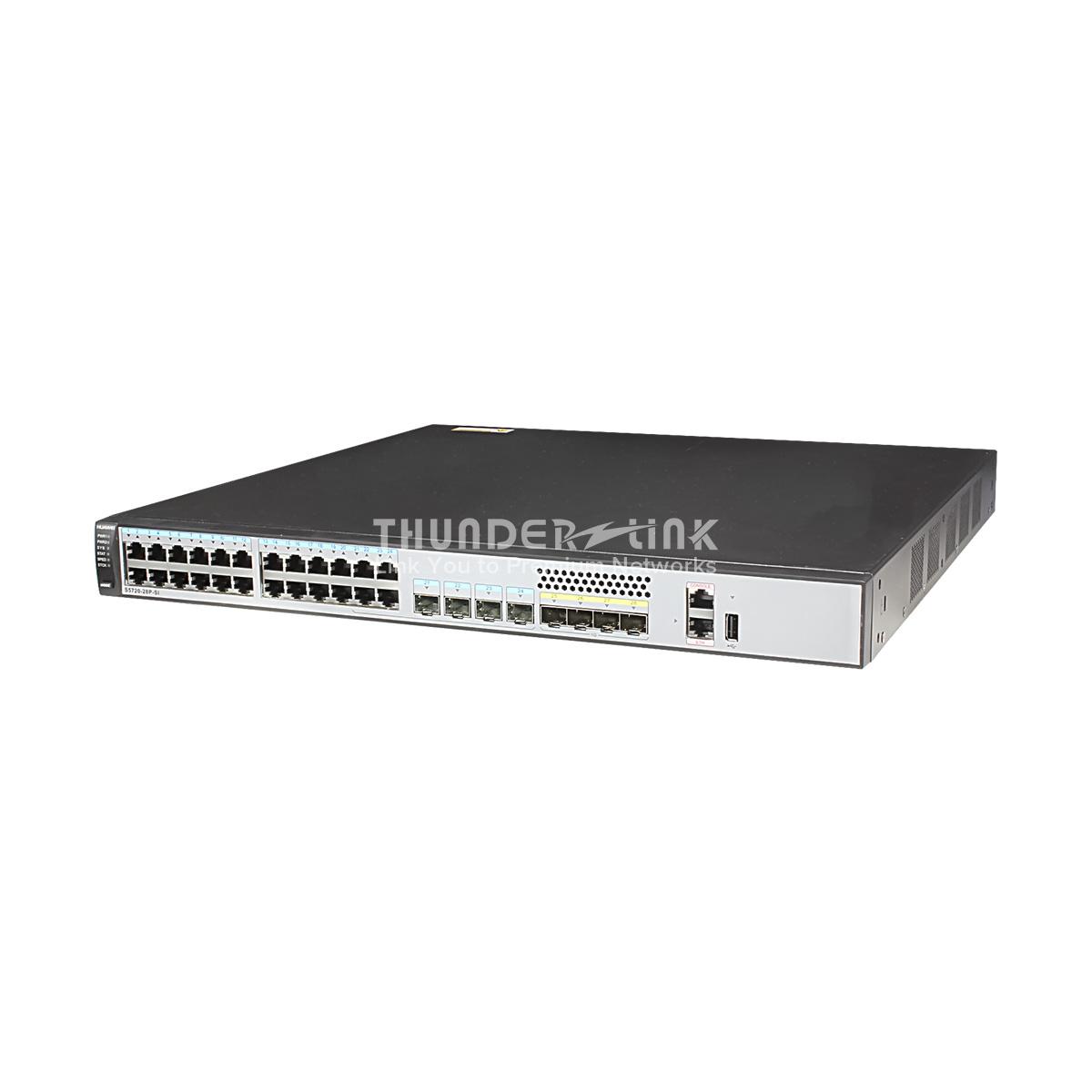

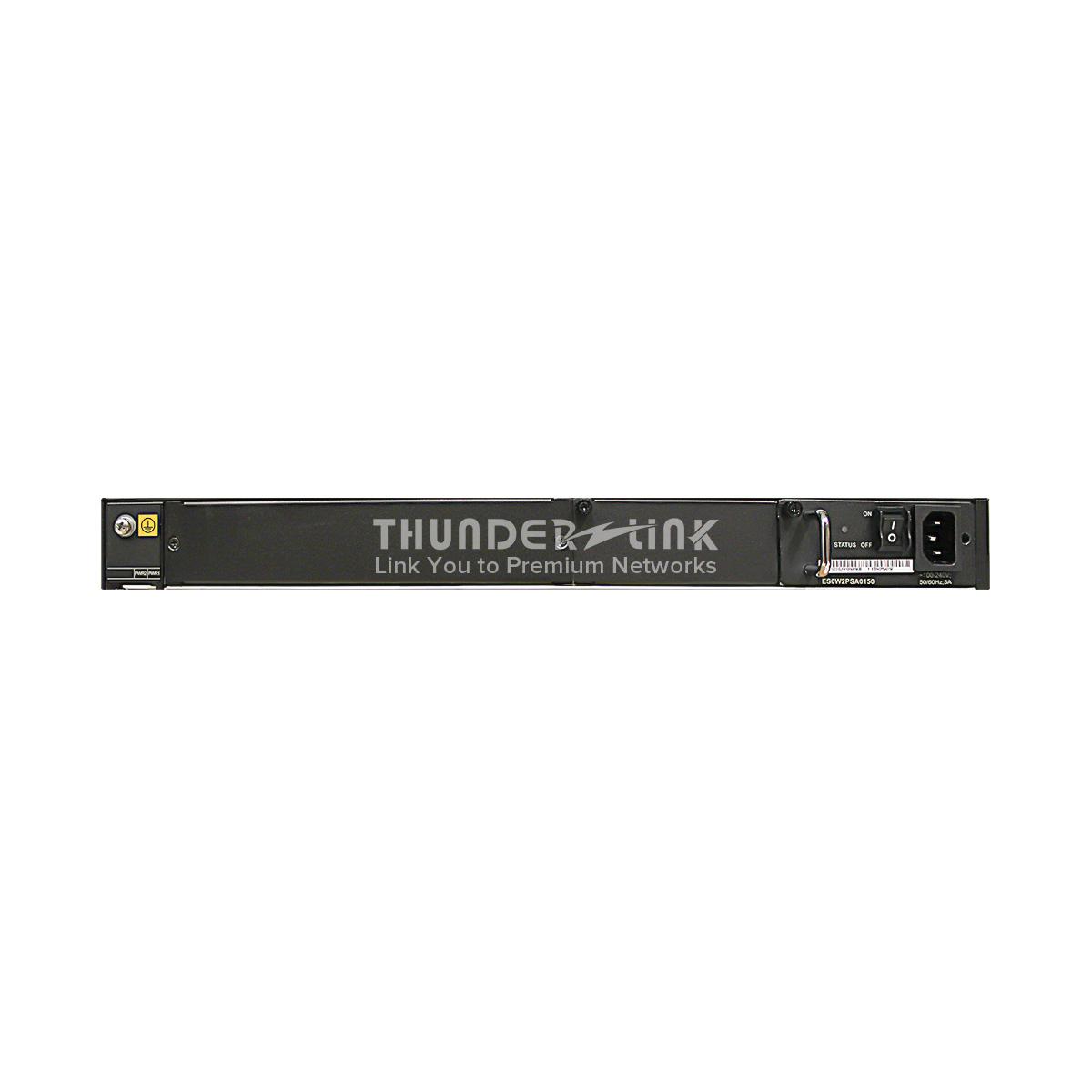

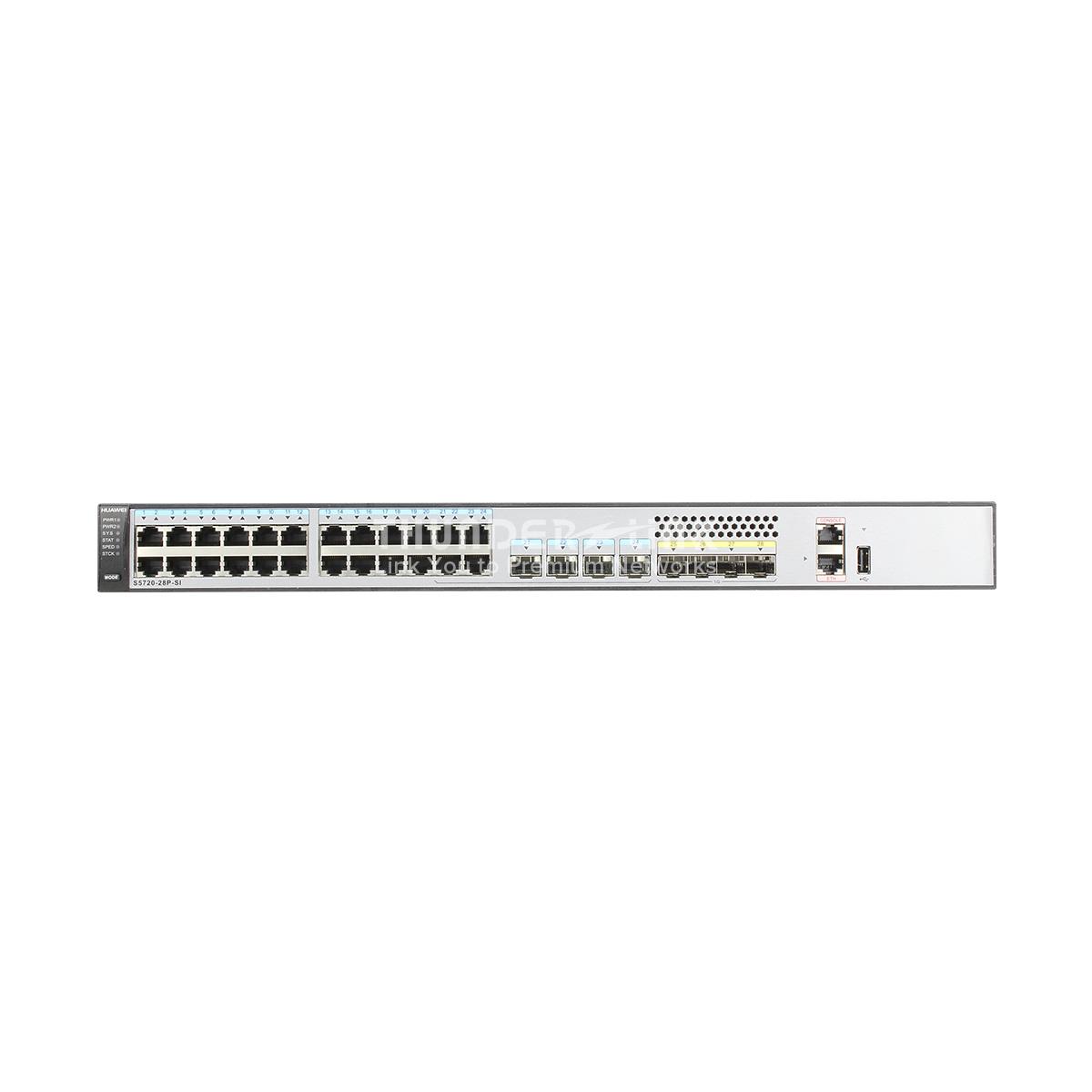

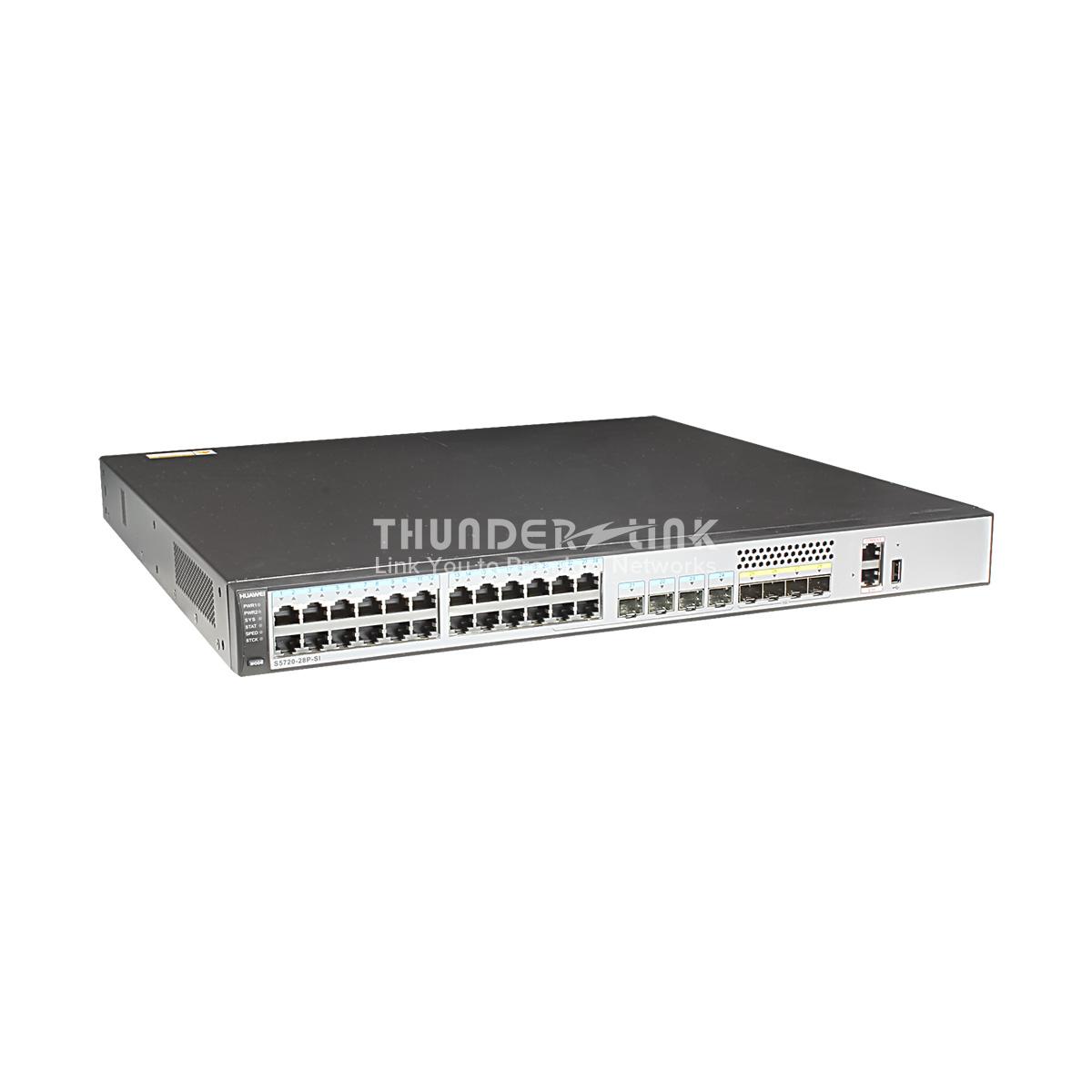

manufacturerS5720-28P-SI-AC Click to enlarge
    Share-mail Share-In Share-facebook Share-Twitter

S5720-28P-SI-AC

PN.02350DLS

24x1000BASE-T 4xGE SFP combo 4xGE SFP 1xAC power module

US $482.00

Description:

Huawei S5720-28P-SI-AC switch with 24-ports 1000BASE-T, 4-ports GE SFP combo, 4-ports GE SFP, 2 power slots, 1 AC power module

Qty:

In Stock

3-Level Quality Control x

We provide 3-Level Quality Control procedure: 1-Level inspection; 2-Level In-stock test; 3-Level 24 hour pre-delivery and 1 year warranty. Learn More

8-Year Gold Supplier x

Thunder-link.com, founded in 2011, a leading professional Huawei network hardware and solution provider, service over 100 VIP customers from 50 countries in 8 year. Learn More

Test Report Assured x

In order to avoid hardware malfunction and incompatibility, each equipment will be strictly tested before delivery, the test report will be packed inside equipment and delivery together. Learn More

Overview


Huawei S5720-28P-SI-AC switch with 24-ports 1000BASE-T, 4-ports GE SFP combo, 4-ports GE SFP

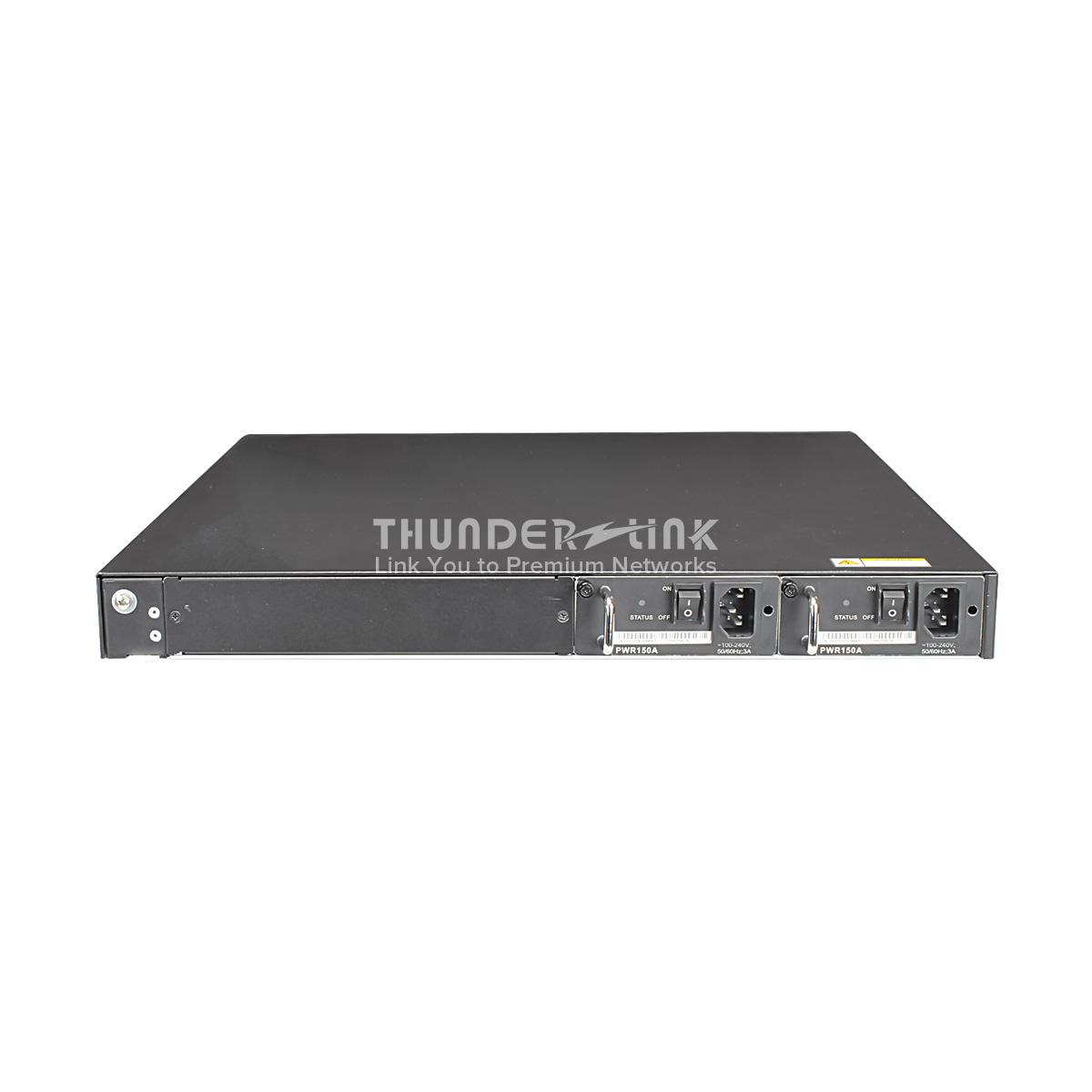

With 2 power slots, 1 AC power module

No extension slot

Forwarding perfomance: 42Mpps

Switching capacity: 336Gbps

16K MAC address entries

Non-POE


The S5720-SI series switches (S5720-SI for short) are next-generation standard gigabit Layer 3 Ethernet switches. Large switching capacity, high-density GE interfaces, and 10GE uplink interfaces and Pv6 forwarding capabilities. S5720-SI can be applicable to campus networks and data centers. S5720-SI integrates many advanced technologies in terms of reliability, security, and energy saving. Simple and convenient for installation and maintenance to reduce customers' O&M costs and help enterprise customers build a next-generation IT network.

Tech Specs


ItemDescription
Fixed port24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP
P series: 4 Gig SFP
X series: 4 10 Gig SFP+
Forwarding performance42 Mpps
Extended slotNA

MAC address table

IEEE 802.1d
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping

Wireless AC

AP access control, AP domain management, and AP configuration template
management
Radio management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame10K
IP routingStatic routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP,
routing policy
IPv6 featuresNeighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports
or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwardingIGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACLRate limitation in the inbound and outbound directions of a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP fields of packets
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
TCP/UDP source/destination port number, protocol number, or VLAN
Queue-based rate limitation and shaping on ports
HQoS
Security featuresHierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
ReliabilityRRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level
protection switchover
SEP
G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF)Working as the parent node to vertically virtualize downlink switches and APs as one
device for management
Supports a two-layer client architecture
Management and
Maintenance
Virtual cable test, SNMP v1/v2c/v3, RMON
Network management system (NMS) and Web management
System logs and multi-level alarms
802.3az EEE
GVRP
Dying Gasp upon power-off
InteroperabilityVLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
Link-type Negotiation Protocol (LNP), similar with DTP
VLAN Central Management Protocol (VCMP), similar with VTP
Operating environmentOperating temperature: 0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltageAC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
DC:Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm)442 (W) x 420 (D)x 43.6 (H)
Typical power consumption21.2W




Q&A


Q: Do I need to buy power supply for S5720-28P-SI-AC?

A: No, one AC power module is configured by default.


Q: Does S5720-28P-SI-AC support istack?

A: Yes, you just need to purchase the stack card.


Q: How many slots S5720-28P-SI-AC support?

A: Two extended slot that one port extended slot with optional subcard 4x10GE SFP+, one slot reserved for the stack card


Q: Can Thunder-link.com provide MIB for Huawei S5720 switch?

A: Yes, you may contact our sales person.


Q: Can I use compatible SFP/SFP+ module on Huawei S5720 switch?

A:Yes, but the switch may generate alarm, however, it will not affect normal use.


Q: Can I get technical support from Thunder-link.com if we purchase S5720-28P-SI-AC from you?

A: Yes, Thunder-link.com has experienced technical team on Huawei switches, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.
