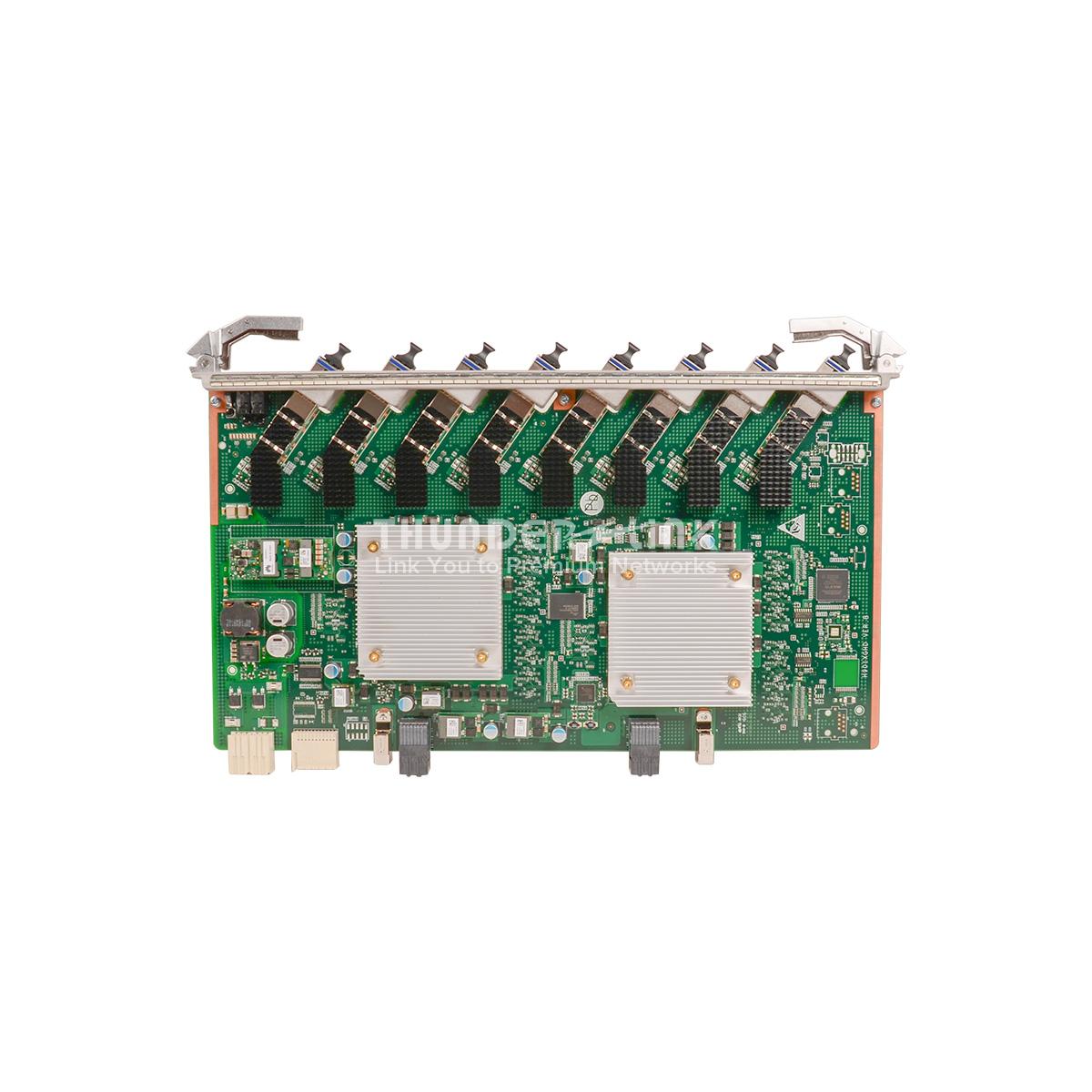

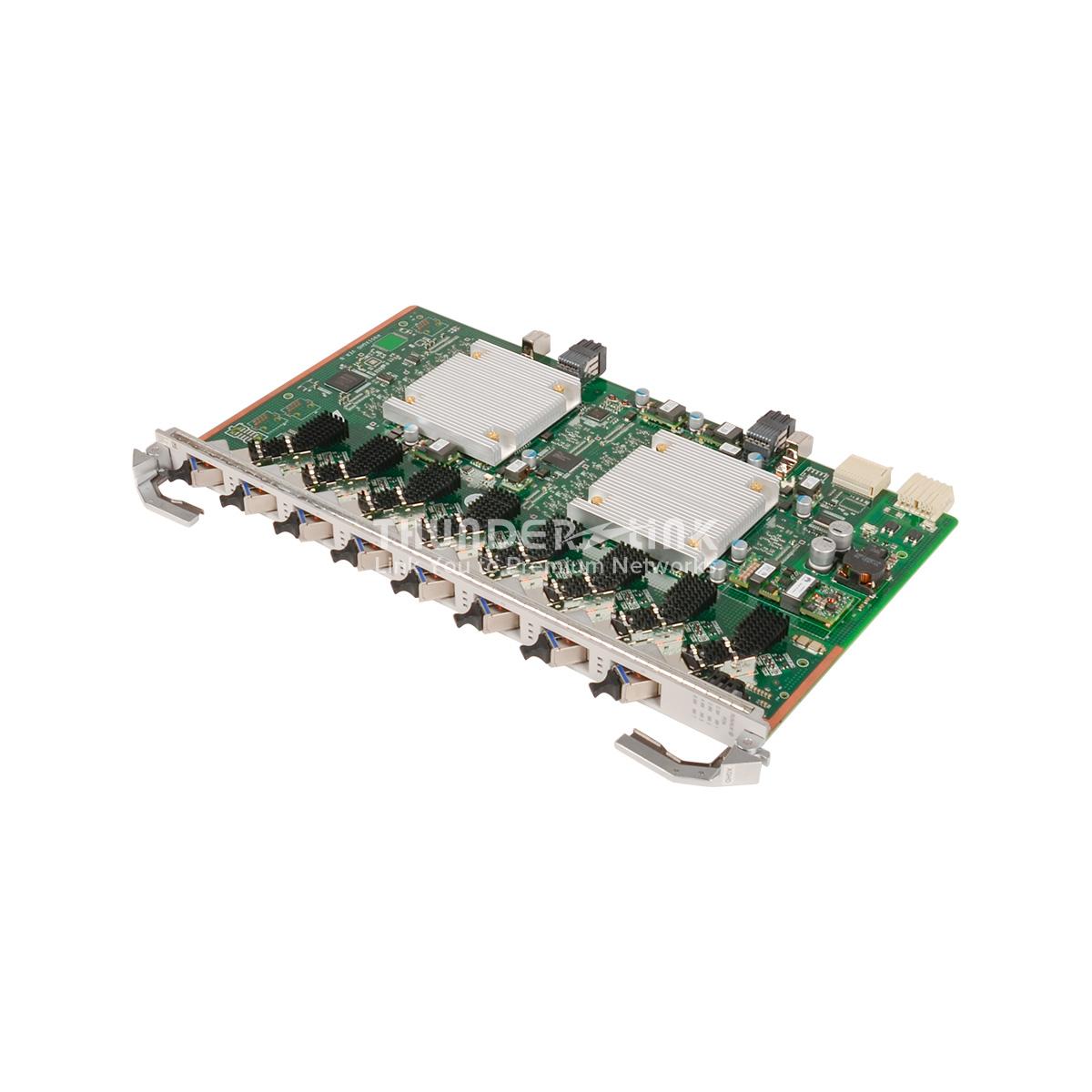

H901XGHD XGPON N1

Huawei MA5800 series 8-port 10G GPON OLT Interface Board with XGPON N1 SFP+ Optical Module

(2 reviews) | 78 sold

10 in stock      Ready to ship

13 People watching this product now!
PN: 02311DHH Category: Tag:
Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

TX RX Power Test

TX RX Power Test x

TX/RX power test ensures that the optical power are within the thresholds; remove the aged optical module with power loss, and the fake module with counterfeit label.

MA5800 System Test Procedure
To ensure the MA5800 OLT system we provided works well and customers can plug and play, we will do test of hardware malfunction, main-control boards version consistency, service boards compatibility with the system and GPON SFP modules performance. Main t
Learn More

Description

Huawei 8-port 10G GPON Port Interface Card with XGPON N1 SFP+ Optical Module

Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

Max split radio: 1:256

Transmit Speed: 9.95Gbit/s, Receive Speed: 2.49Gbit/s

Interface Type: SC/PC

Maximum transmission distance: 40 km

10G-GPON optical module Overload Optical Power: -7 dBm



XGHD is a 8-port 10G GPON interface card of Huawei OLT, provides 10G-GPON service access from ONT. XGHD can maximum access 8*128 10G GPON subscribers.

Tech Specs
Front Pannel

h901xghd

Specification
Service ports
GPON Port 8 10G GPON Port
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength Tx: 1577 nm  Rx: 1270 nm
Encapsulation Type 10G-GPON
Port Rate Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s
Minimun Output Optical Power 2 dBm
Maximum Output Optical Power 6 dBm
Maximum Receiver Sensitivity -27.5 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20 km
Overload Optical Power -7 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 42 W; Maximum: 65 W
Maximum Frame Size 2004 bytes; 9216 bytes (jumbo frame enabled)
Operating temperature -40°C to +65°C
Additional information
Weight 3.0 kg
Dimensions 50.0 × 33.0 × 8.0 cm
Brand

Q&A
Reviews (2)

2 reviews for H901XGHD XGPON N1

  1. Saeed
    Argentina

    I am interested in XGHD XGPON, but I wonder what is the difference between XGPON and XGS-PON?

  2. Guirey
    United Kingdom (UK)

    This time we ordered one XGPON for test, because operators already started to deploy; does XGHD only have one type module?
