AR161F

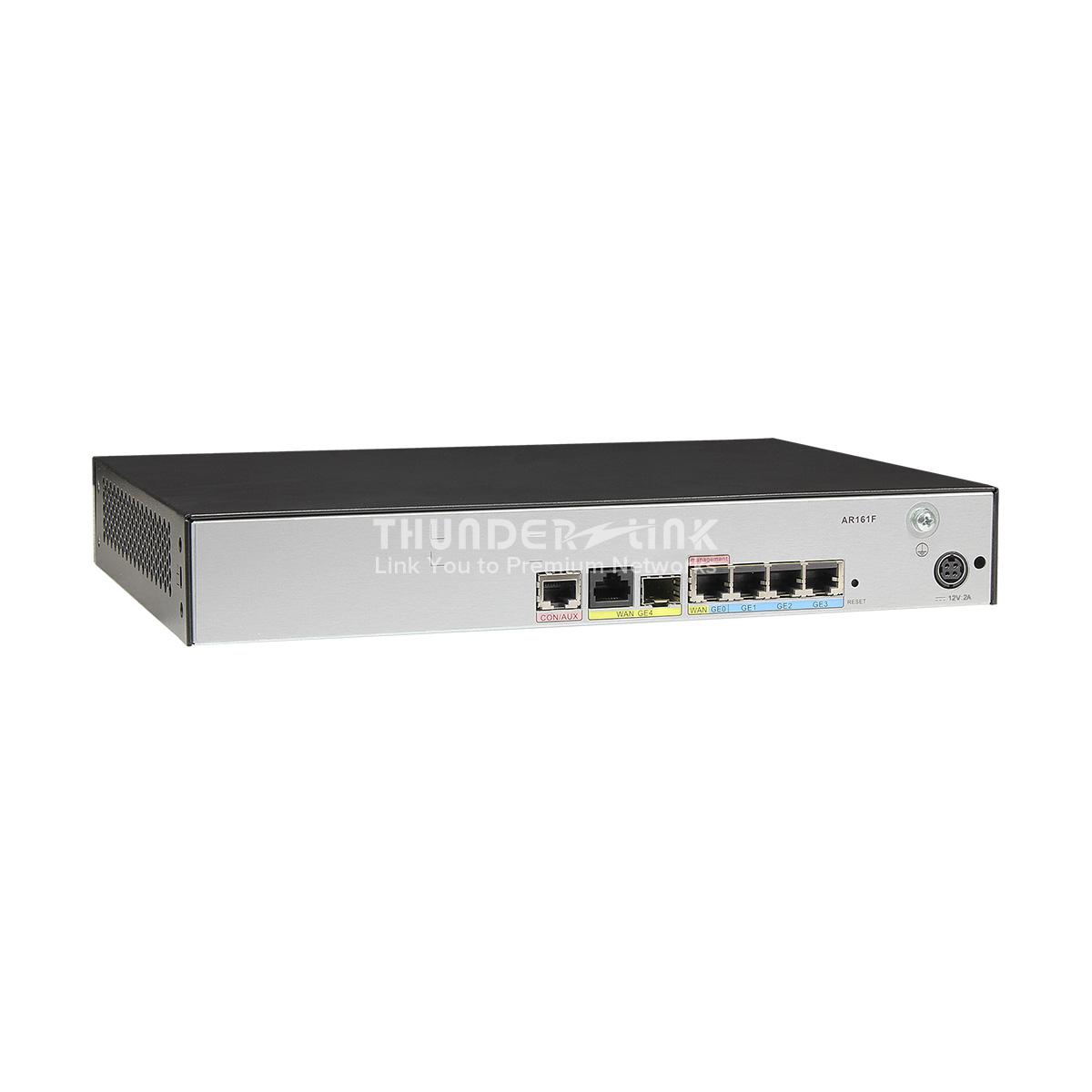

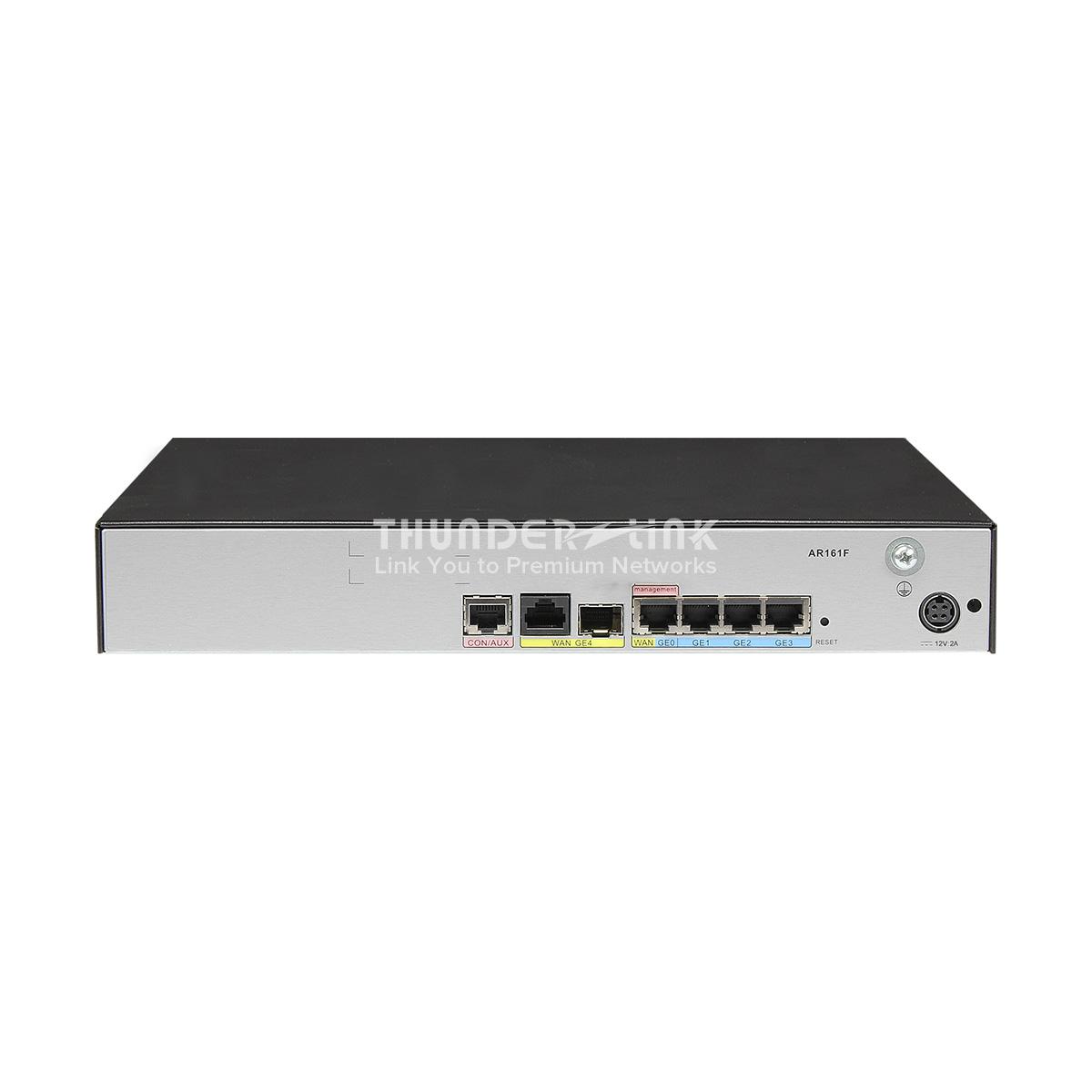

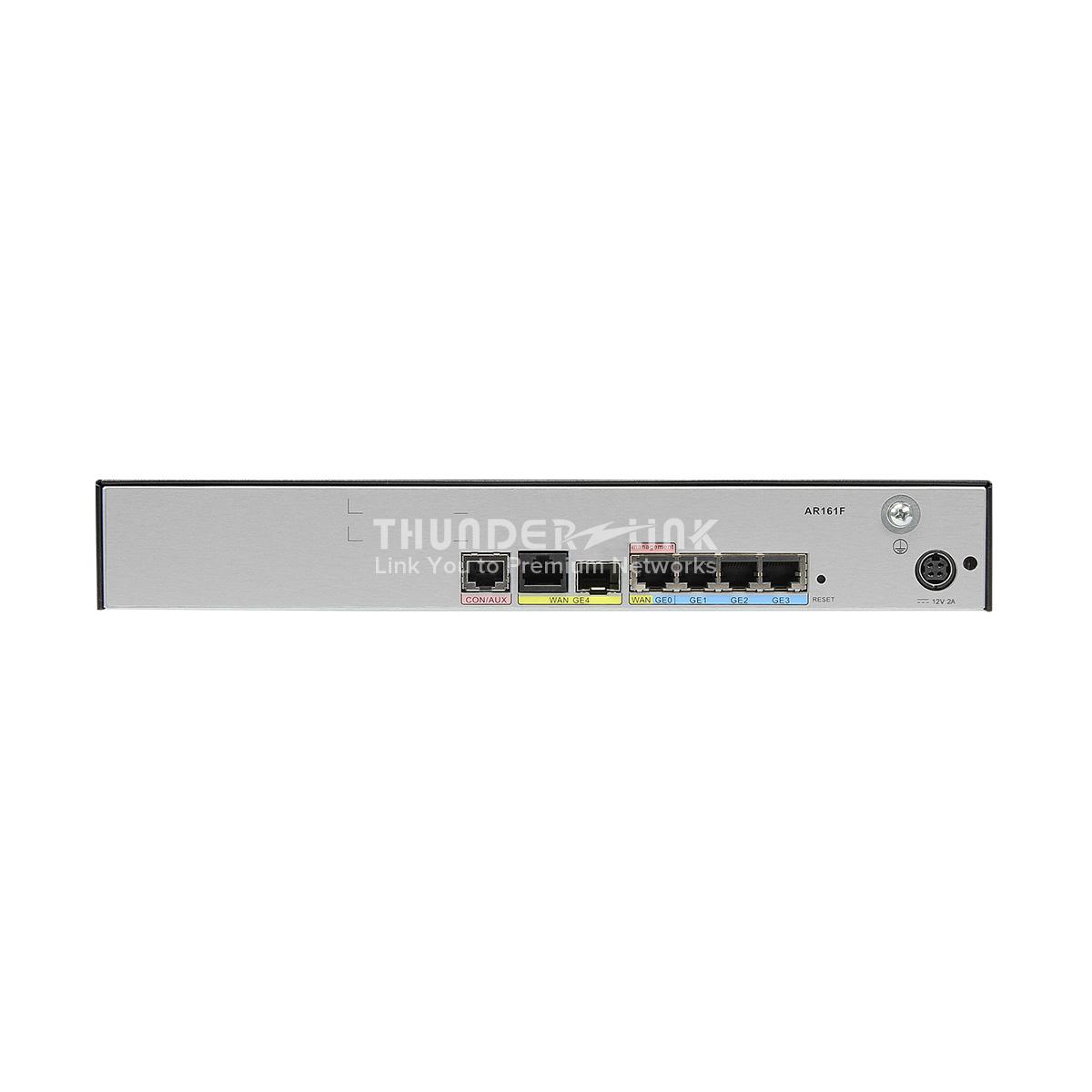

Huawei AR161F with 4-ports GE LAN, 1-port GE Combo WAN, 1 USB, AC fixed power

in stock      Ready to ship

17 People watching this product now!
PN: 50010197 Category:
Authorized Partner

Authorized Partner x

Authorized Partner guaranteed or sourced from officially recognized partner. Chassis and modules come with 1 year warranty.

Original New Sealed

Original New Sealed x

Original, new and sealed switch; original packaging with seal; won't unpack the product without permission (insert the power module or replace the power supply cable).

Huawei ME60 System Test Procedure
To ensure Huawei router system we provided works well and customers can plug and play, hardware functionality, main control board version consistency, mother board and daughter board compatibility, all these clause will be tested by Thunder-link.com, befo
Learn More

Description

Huawei AR161F with 4xGE LAN(can be configured as WAN interfaces), 1xGE Combo WAN

WAN speed with services(IMIX): 150Mbp

Number of recommended users: 50



Huawei’s next-generation routers AR160 series are designed for enterprise branch offices and small businesses, delivering a comprehensive set of services, including routing, switching, voice, security, and wireless access.



Tech Specs
Item Description
Basic feature DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, Sub interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, SBC, (Only voice models support voice features)
WLAN(AC) AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n),WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VL AN management, MAC address management, MSTP
IPv4 unicast routing Routing policy, static route, RIP, OSPF, IS-IS, BGP
IPv6 unicast routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
Multicast IGMP version1/2/3, PIM SM, PIM DM, MSDP
MPLS LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN
QoS DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion

avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/

SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy),

Hierarchical QoS, WLAN QoS, FR QoS, Smart Application Control (SAC)

Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, PKI.
Management and maintenance Upgrade management, device management, web-based GUI, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, CLI
Maximum power consumption(W) 17.8
Operating temperature 0°C to 45°C
Operating relative humidity 5% to 95%, noncondensing
Dimensions(mm) 44.5 (H) x 300 (W) x 220 (D)



Additional information
Weight 0.0 kg
Dimensions 0.0 × 0.0 × 0.0 cm
