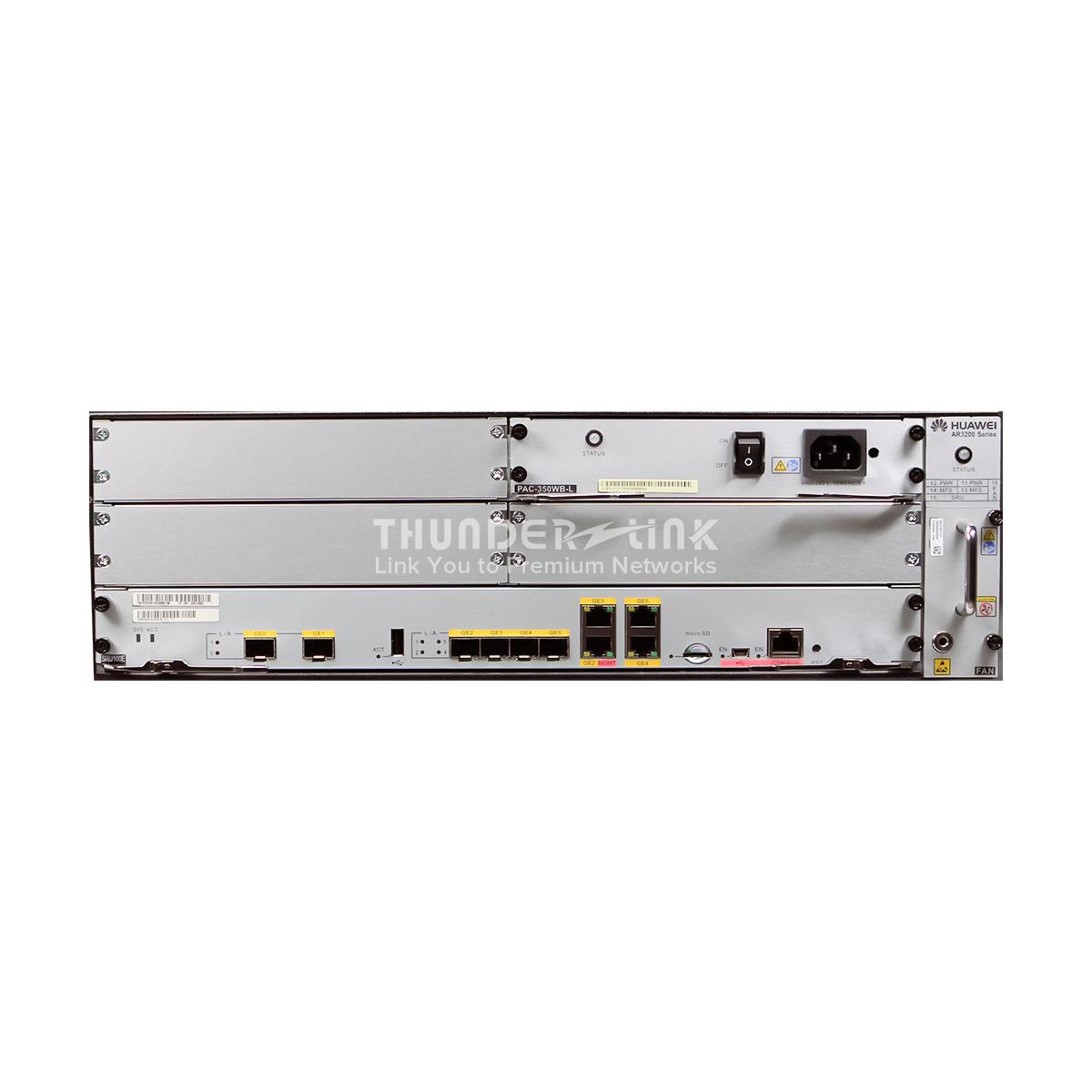

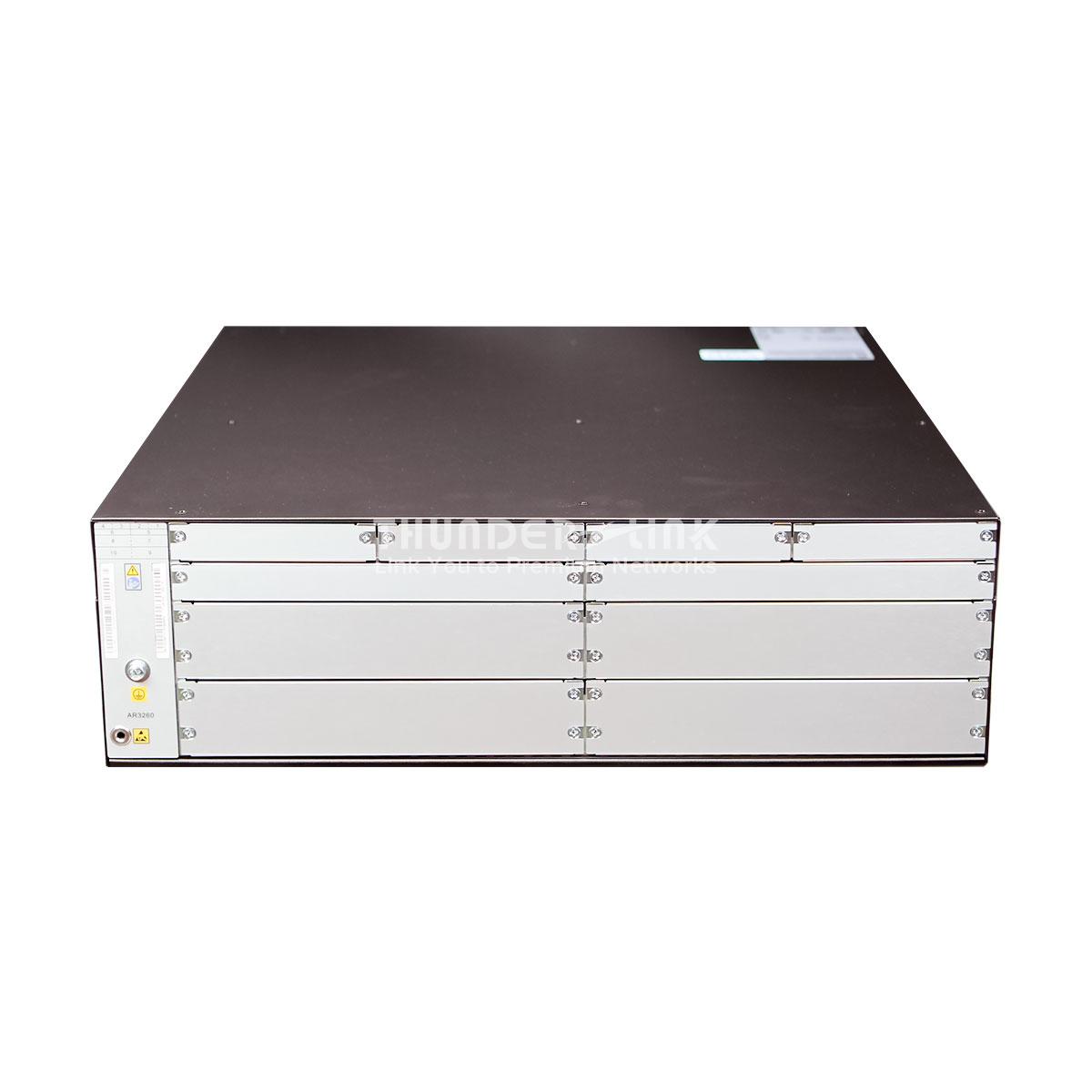

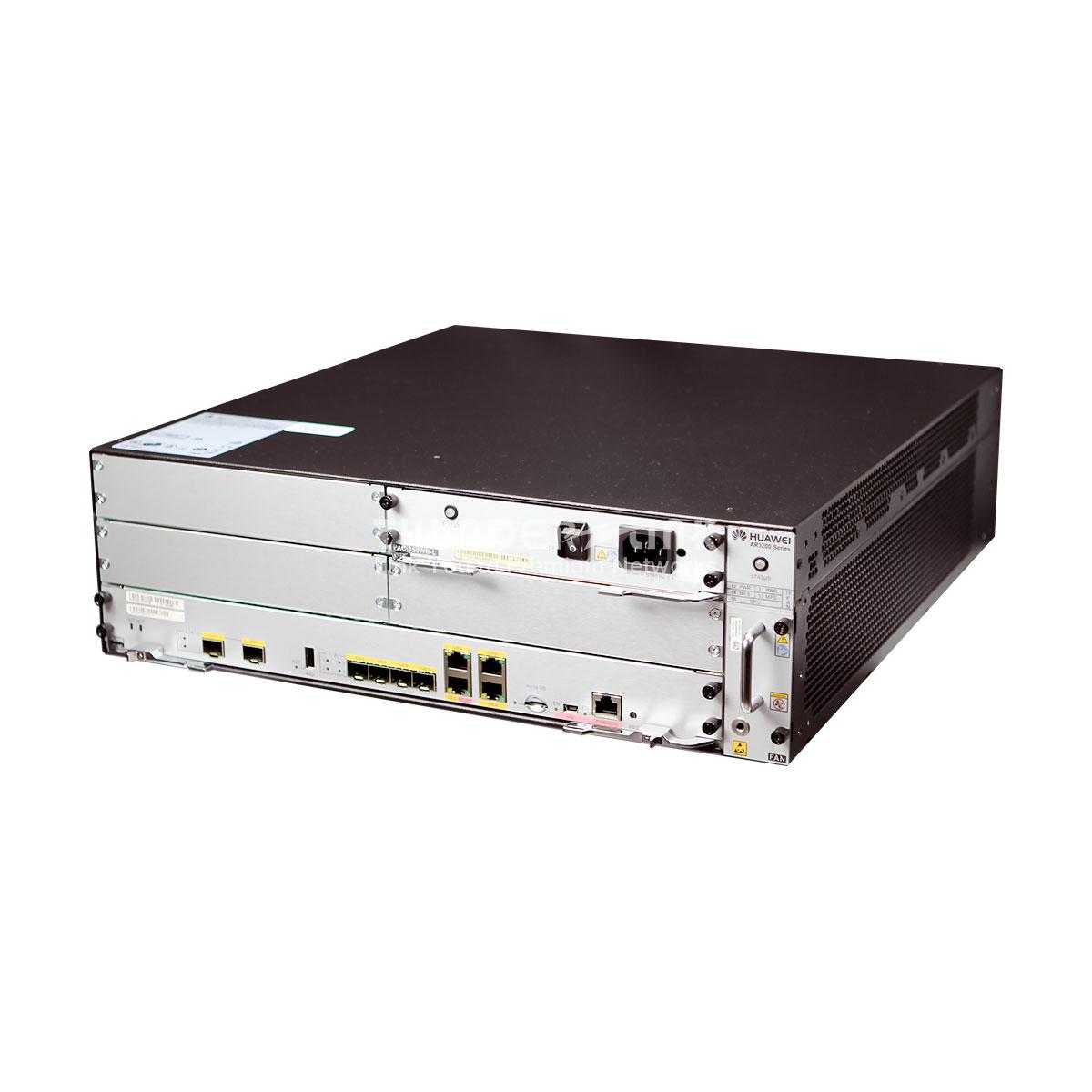

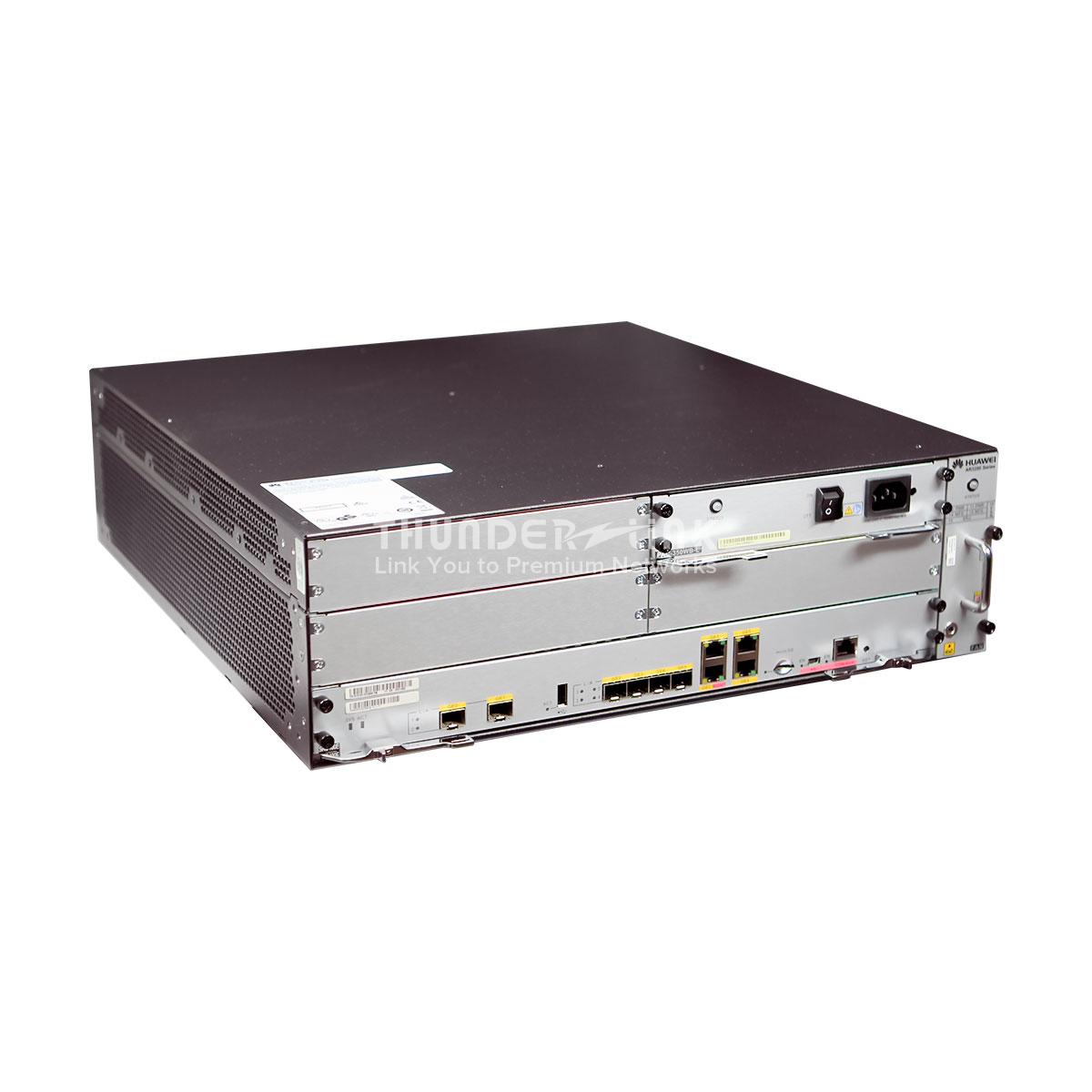

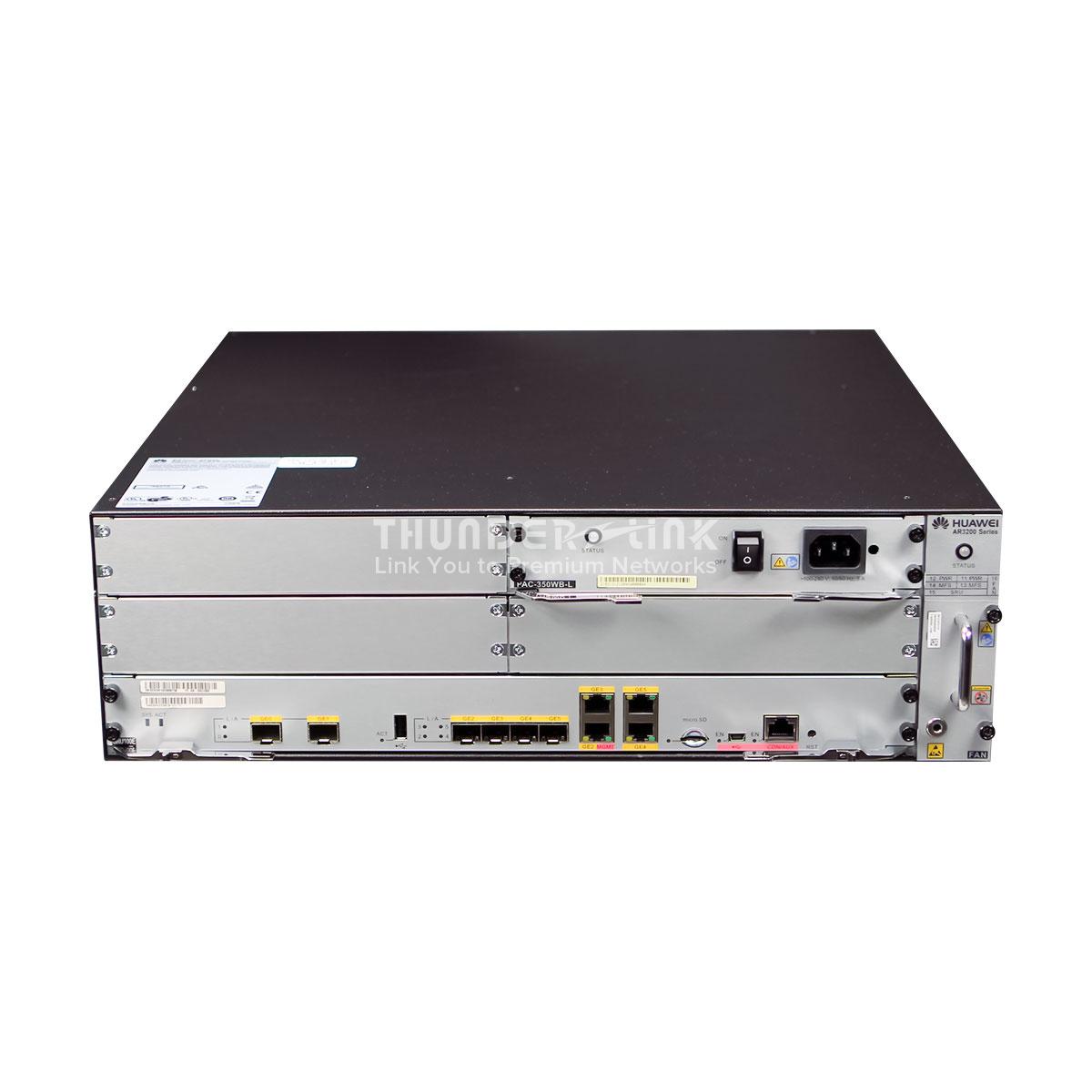

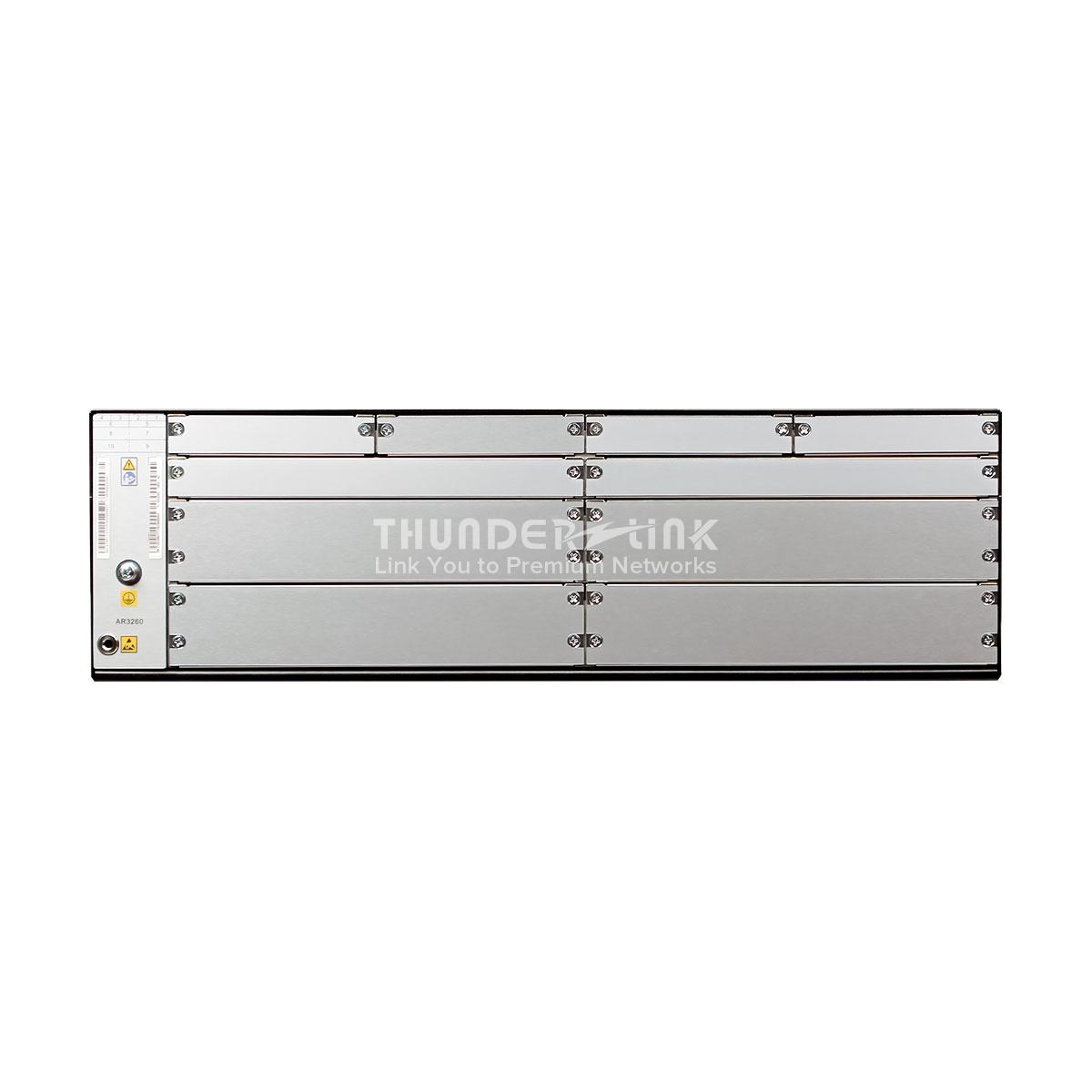

Huawei AR3260-2x200E-AC with 2 SRU200 (4-ports GE Combo, 2-ports 10GE SFP+), 4 SIC, 2 WSIC, 4 XSIC, 2 350W AC power
in stock 3-5 days lead time
Authorized Partner x
Authorized Partner guaranteed or sourced from officially recognized partner. Chassis and modules come with 1 year warranty.
Original New Sealed x
Original, new and sealed switch; original packaging with seal; won't unpack the product without permission (insert the power module or replace the power supply cable).
Huawei AR3260-200E-AC with 2xSRU200 router units, each SRU200 has 4xGE Combo and 2x10GE SFP+ ports
Slots: 4xSIC, 2xWSIC, 4xXSIC
Two power slots, two 350W AC power module equipped
Processor: 32-core
Forwarding capacity: 9 Gbps
Maximum switching capacity: 160 Gbps
Maximum firewall performance (large packet): 15Gbps
| Item | Description |
| Basic feature | DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, Sub interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, SBC |
| 3G | 3G Interface card(WCDMA) |
| LTE | LTE Interface card( FDD LTE: Uplink: 50Mbit/s Downlink: 100Mbit/s) |
| SD-WAN | Supported |
| WLAN Optimization | Tcp protocol stack optimization,multi-path packet duplicated,Fillp,FEC/ A-FEC, FTP/HTTP optimization,SaaS optimization(Office365/Salesfoece) |
| WLAN(AC) | AP management(AC discovery/AP access /AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n, WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP |
| IPv4 unicast routing | Routing policy, static route, RIP, OSPF, IS-IS, BGP |
| IPv6 unicast routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+ |
| Multicast | IGMP V1/V2/V3, IGMP-Snooping V1/V2/V3, PIM SM, PIM DM, MSDP, MBGP |
| MPLS | LDP, MPLS L3 VPN, VLL, PWE3,static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
| VPN | IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping,congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC)，Hardware QoS |
| Security | ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing, IPS/IDS, URL filtering |
| Management and maintenance | Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, CLI, SSH (v1/v2) |
| Operating temperature | 0°C to 45°C |
| Operating relative humidity | 5% to 95%, noncondensing |
| Operating altitude(m) | < 5000 |
| Typical power consumption(W) | 62 |
| Maximum power consumption(W) | 92 |
| Dimensions(mm) | 230 (H) x 590 (W) x 655 (D) |
| Weight(kg) | 11 |
| Rack height (U) | 3 |
| Weight | 0.0 kg |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Features |
