CR8DEKNBFED1

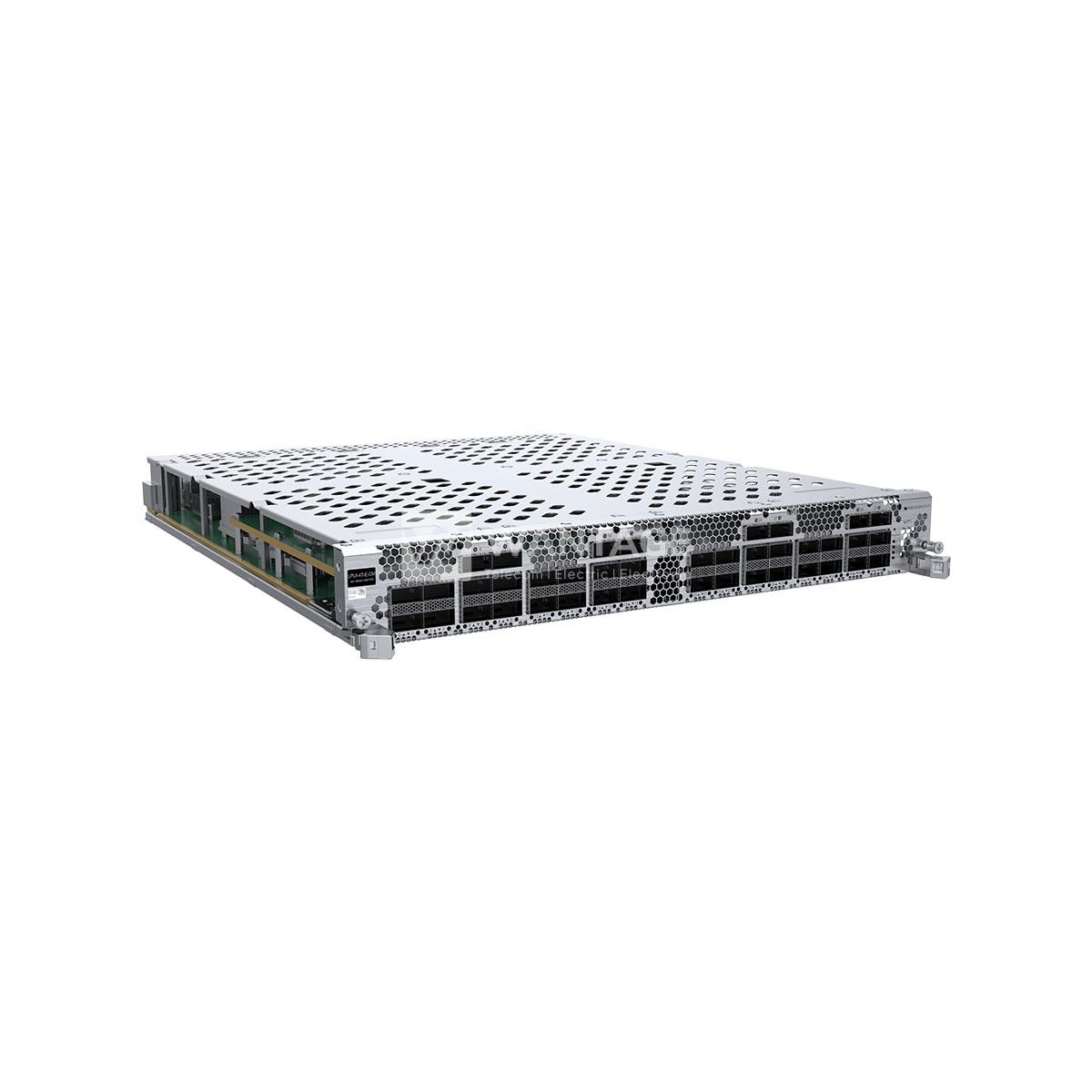

Huawei NE8000 40-Port 100GBase-QSFP28 Integrated Line Processing Unit CM(LPUI-4T-E-CM).

in stock      3-5 days lead time

16 People watching this product now!
Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Description

CR8DEKNBFED1, Huawei NetEngine 8000 40-Port 100GBase-QSFP28 Integrated Line Processing Unit CM(LPUI-4T-E-CM).

Provides forty 100GE QSFP28 interfaces. Each interface can work at 100 Gbps/50 Gbps/40 Gbps.

Applied to NE8000 X4, NE8000 X8 and NE8000 X16.

Supports 16GB SDRAM.

Supports 16-core 2.0 GHz CPU.

Supports 40Gbps QSFP+ Optical Module, 50Gbps QSFP28 Optical Module, 50Gbps QSFP28 BIDI Optical Module and 100Gbps QSFP28 Optical Module.

CR8DEKNBFED1 comes with original box, if purchase together with router, it will be will inserted into the router by default when delivery, for economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.

Tech Specs
Functions and Features Description
Basic function Provides forty 100GE QSFP28 interfaces. Each interface can work at 100 Gbps/50 Gbps/40 Gbps.
Reliability and availability Hot swappable.
Restrictions and remarks 1. Before removing or inserting a board using ejector levers, remove the optical modules close to the ejector levers (involving ports 1, 3, 6, 9, 11, 13, 16, 19, 21, 23, 26, 29, 31, 33, 36, and 39).

2. The default rate of an interface is 100 Gbps. Each interface supports 100GE/50GE/40GE/4x25GE/4x10GE/2x50G. If the interface transmission rate of the optical module in use does not match the default transmission rate, run the port split command to enable the interface breakout function.

3. Interfaces 4, 7, 14, 17, 24, 27, 34, and 37 do not support FlexE, but other interfaces support FlexE.

4. {0, 1, 2, 3}, {5, 6, 8, 9}, {10, 11, 12, 13}, {15, 16, 18, 19}, {20, 21, 22, 23}, {25, 26, 28, 29}, {30, 31, 32, 33}, {35, 36, 38, 39}: Every four 100G interfaces can be bundled into a 400G interface through FlexE.

Breakout supported Yes.

To enable the breakout function on a port, run the port split command.

Interface rate auto-sensing supported No
FlexE supported Yes

Physical ports 0, 1, 2, and 3 can be added to the same group. port-id ranges from 40 to 69 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Physical ports 5, 6, 8, and 9 can be added to the same group. port-id ranges from 70 to 99 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Physical ports 10, 11, 12, and 13 can be added to the same group. port-id ranges from 100 to 129 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Physical ports 15, 16, 18, and 19 can be added to the same group. port-id ranges from 130 to 159 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Physical ports 20, 21, 22, and 23 can be added to the same group. port-id ranges from 160 to 189 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Physical ports 25, 26, 28, and 29 can be added to the same group. port-id ranges from 190 to 219 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Physical ports 30, 31, 32, and 33 can be added to the same group. port-id ranges from 220 to 249 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Physical ports 35, 36, 38, and 39 can be added to the same group. port-id ranges from 250 to 279 and from 1000 to 3000. A maximum of 30 FlexE clients can be created.

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] 55.4 mm x 433 mm x 523.2 mm

(2.18 in. x 17.05 in. x 20.59 in.)

Weight without packaging [kg(lb)] 13.2 kg (29.10 lb)
Weight with packaging [kg(lb)] 18.1 kg (39.90 lb)
Typical power consumption [W] 1093 W
Typical heat dissipation [BTU/hour] 3546.2 BTU/hour
Long-term operating temperature [°C(°F)] 0 °C to 40°C (32°F to 104°F)
Short-term operating temperature [°C(°F)] –5°C to +50°C (23°F to 122°F)
Additional information
Weight 18.1 kg
Dimensions 65 × 86 × 28.5 cm
Port

24-40

Features

,

Rate

100G
