| Specifications |
| Basic function |

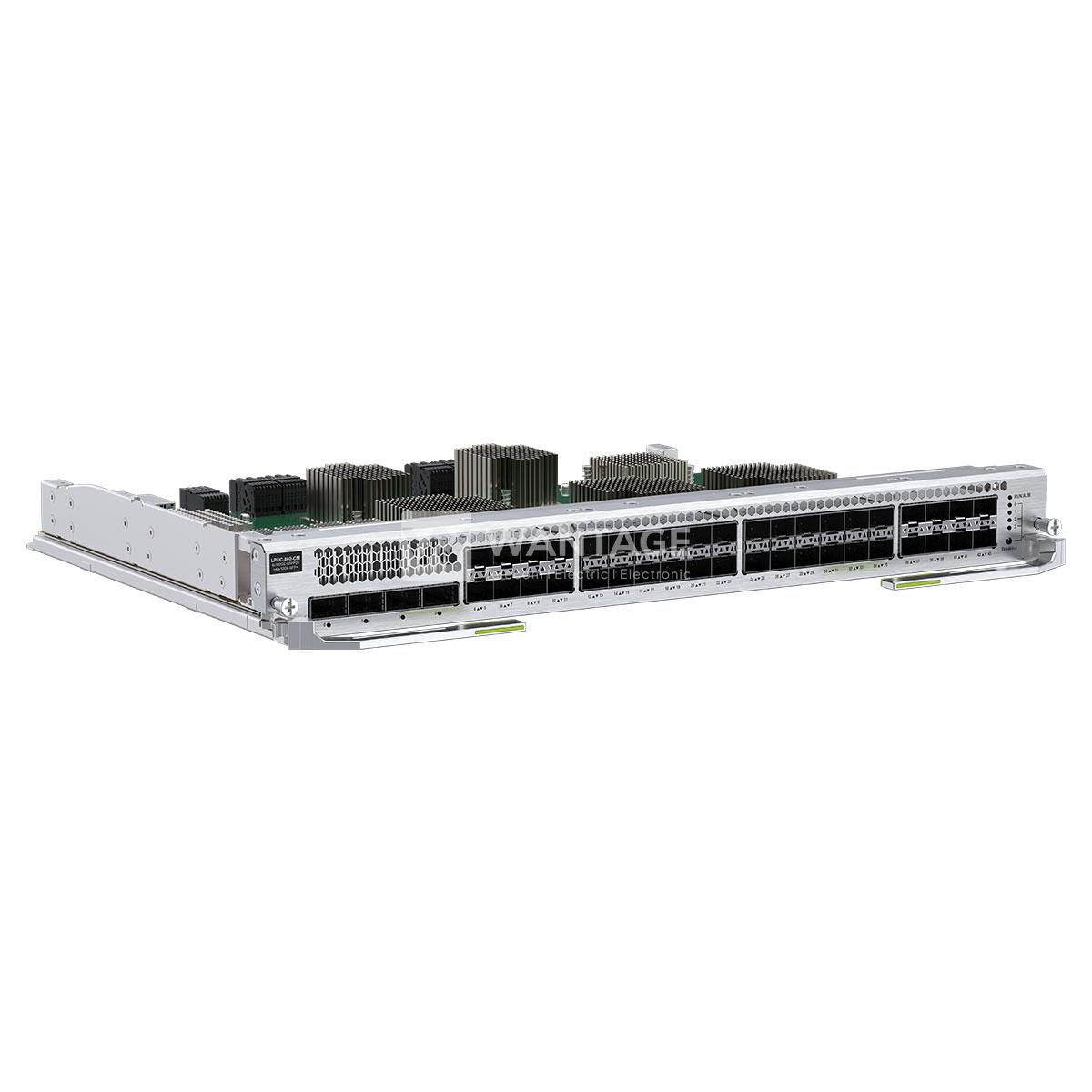

On the line side, the board provides four 100GE/50GE/40GE interfaces for line-rate forwarding, and supports QSFP28 optical modules. The board provides forty 10GE/GE interfaces for line-rate forwarding, supports SFP+/SFP optical modules, and supports MACsec. |
| Reliability and availability |
Hot swappable |
| Restrictions and remarks |
10G ports from port 4 to port 43 are divided into 11 groups in sequence. The number of ports in each group is 4, 4, 2, 4, 4, 4, 3, 3, 4, 4, and 4. The ports of each group need to be switched between LAN and WAN at the same time. |
| Breakout supported |
In V800R023C10SPC500, the 6T4-B SRU supports interface splitting. |
| Interface rate auto-sensing supported |
SFP+ ports support GE/10GE auto-sensing, and QSFP28 ports support 40GE/50GE/100GE auto-sensing. |
| FlexE supported |
Yes |
| When this fixed board works with the CR8D0SFUT6D0 SRU and is installed in slot 3, 4, 5, or 6, it supports FlexE and the FlexE specifications are as follows: |
| Physical ports 0, 1, 2, and 3 can be added to one group. port-id ranges from 1000 to 3000. A maximum of 56 FlexE clients can be created. |
| When this fixed board works with the 6T4-B SRU and is installed in a slot numbered 1 to 8, it supports FlexE and the FlexE specifications are as follows: |
| Physical ports 0 to 3 can be added to the same group. port-id ranges from 1000 to 3000. A maximum of 80 FlexE clients can be created. |
| Physical specifications |
| Dimensions (mm) |
190 (H)x 590 (W) x 470 (D) |
| Weight with packaging [kg] |
6.2 kg |
| Typical power consumption [W] |
169 W |
| Typical heat dissipation [BTU/hour] |
548.3 BTU/hour |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] |
–5°C to +55°C (23°F to 131°F) |
