G2TMD20

Huawei OSN 9800 M05/M12/M24 dual 20-port wavelength selective multiplexing and demultiplexing board

0 in stock      Ready to ship

10 People watching this product now!
PN: AA257366 Category:
Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Description

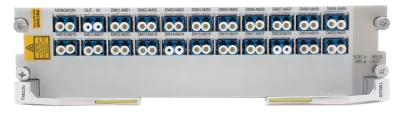

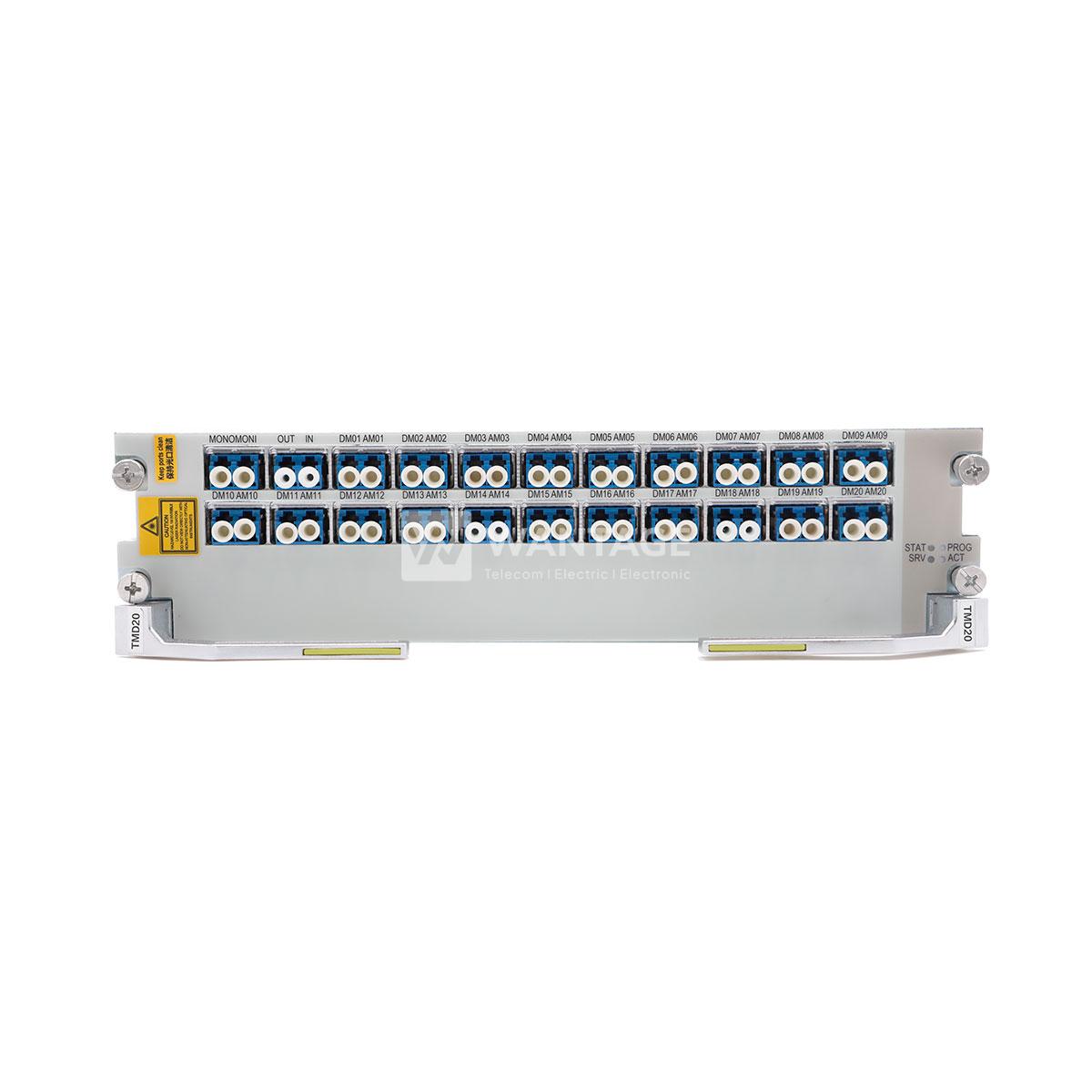

G2TMD20 dual 20-Ports wavelength selective multiplexing and demultiplexing board

Apply to OSN 9800 M05, OSN 9800 M12 and OSN 9800 M24, it dynamic wavelength grooming, and in-service monitoring of performance parameters, performance events, and alarms

G2TMD20 supports optical-layer ASON and Optical-layer loopback functions

G2TMD20 supports Alarm and performance event monitoring and Optical power adjustment

G2TMD20 is an optical multiplexer/demultiplexer board. It adds/drops 20 channels of optical signals over different wavelengths in colorless mode.

Tech Specs

G2TMD20

Front Panel
Valid Slots
OptiX OSN 9800 M05 Subrack: IU1-IU4
OptiX OSN 9800 M12 Subrack:IU1-IU12
OptiX OSN 9800 M24 Subrack:In 1:1 mode: IU1-IU5, IU7-IU11, IU13-IU17, IU19-IU23;In 1:3 mode: IU1-IU4, IU8-IU11, IU13-IU16, IU20-IU23
Initial Version of Different Subrack
M05: V100R019C10SPC600
M24/M12: V100R019C10SPC300
Function and Feature Description
Basic function The TMD20 board can be used only in the local degree.
Implements optical-layer service grooming for multiple wavelengths.
Wavelength adding: adds any wavelengths from any directions through ports AM01 to AM20 and outputs the wavelengths through the OUT port.
Wavelength dropping: receives optical signals from the main path through the IN port, drops wavelengths to any directions, and outputs them through ports DM01 to DM20.
WDM specification Supports the DWDM specification.
Spectrum application Supports super C-band.
Supports signals with a 50 GHz/75 GHz channel spacing.
Supports flexible grid wavelength signals.
The signals have continuous n x slice GHz spectrums (one slice is equal to 6.25 GHz, and n is an integer ranging from 6 to 64) to meet the bandwidth requirements of high-rate services. When multi-rate services are transmitted together, the board flexibly allocates bandwidth to improve the bandwidth utilization efficiency.
Online optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Mechanical Specifications
Dimensions (W x H x D, mm) 237.1 x 61.0 x 220.0
Weight (kg) 2.7
Typical Power Consumption (W) 31
Maximum Power Consumption (W) 38
