Huawei MA5608T MA5683T MA5680T 16-port GPON OLT interface board with C+ SFP module
75 in stock Ready to ship
Firmware Upgrades x
Firmware upgrades allow our customers to utilize the latest features and security enhancements that simply make the devices to operate proficiently Learn more
Hardware Compatibility x
Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.
Hardware Tested x
In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more
Software Compatibility x
Software compatibility test between active/standby system board, main control board and service board, mother/sub-card; system commissioning test to prevent all software conflicts.

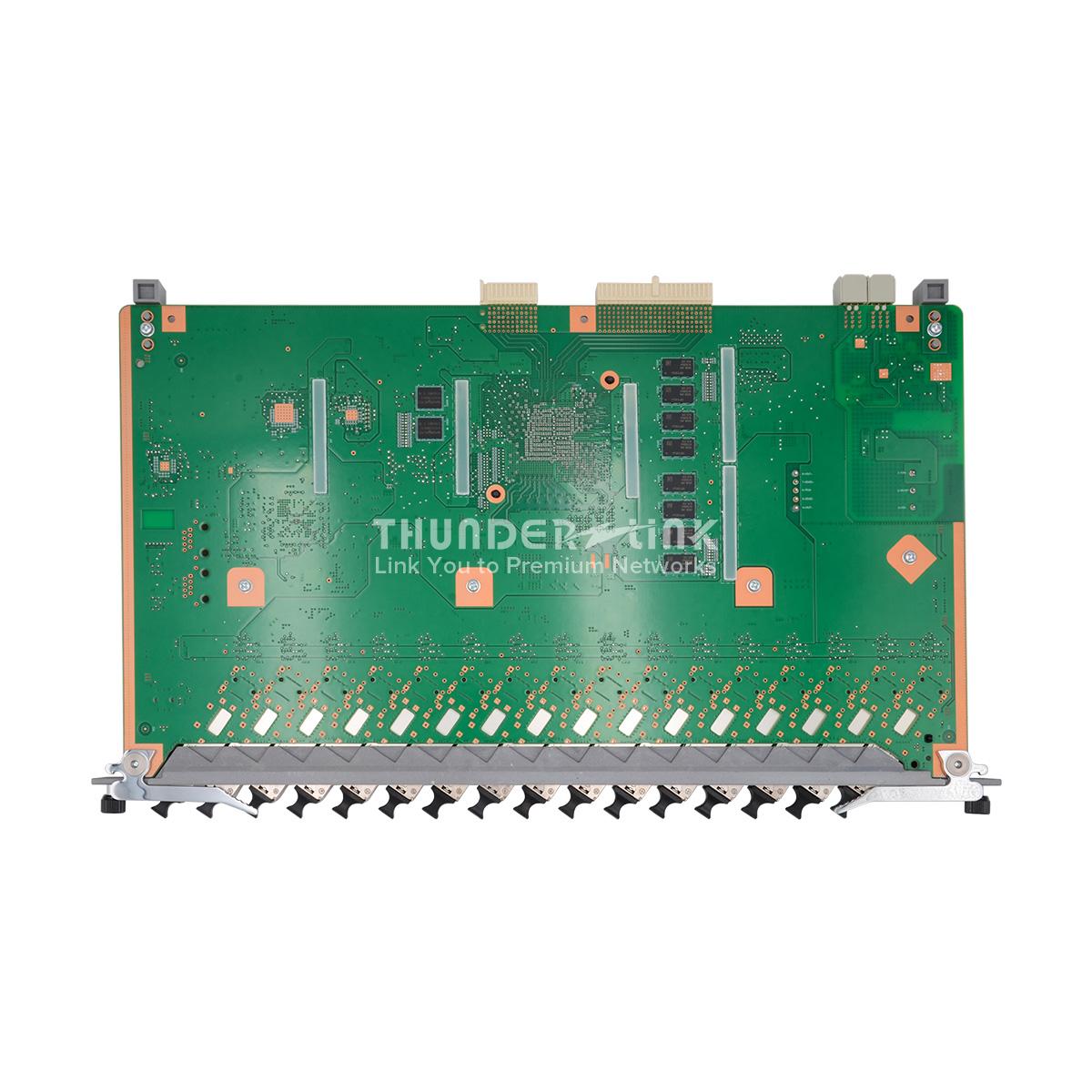

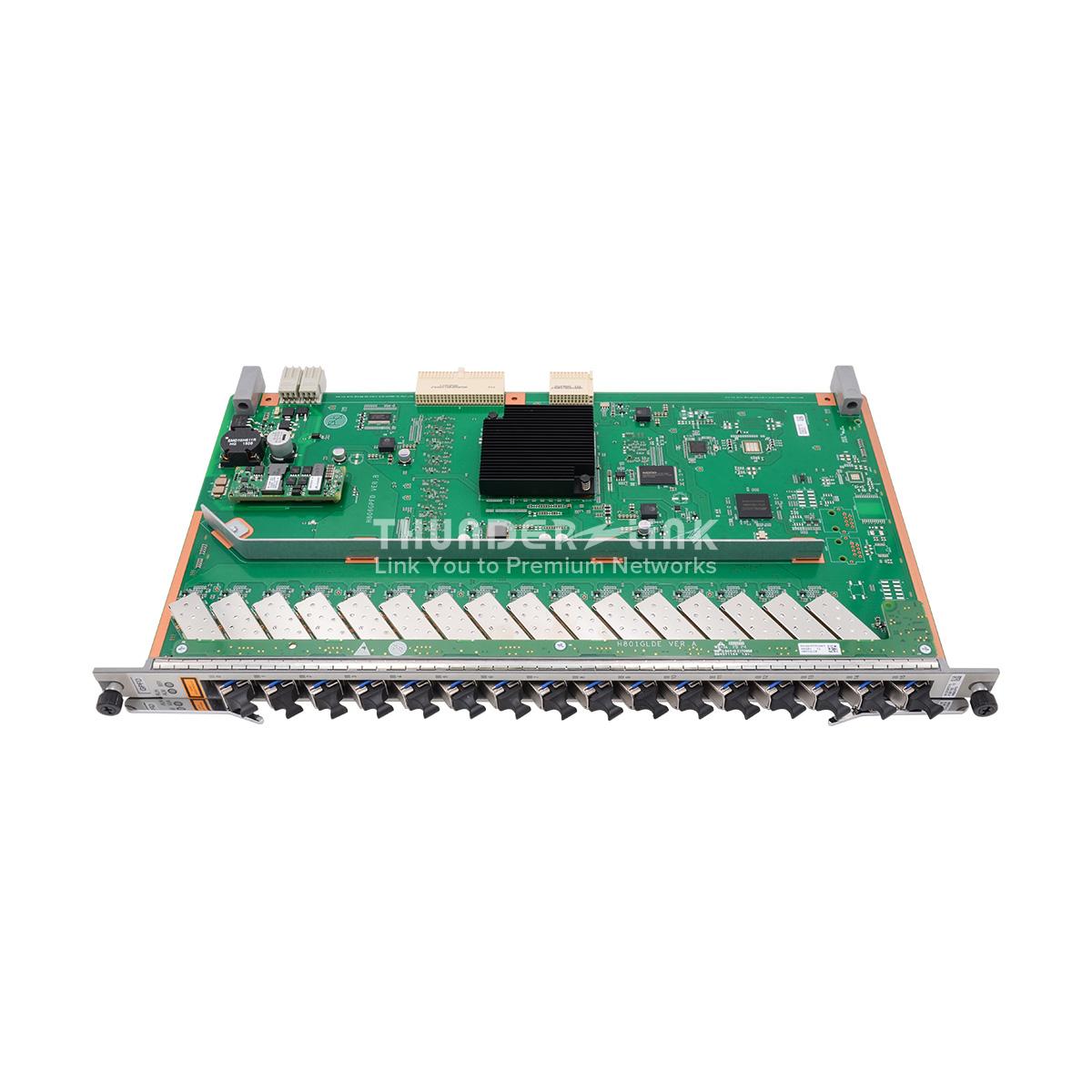

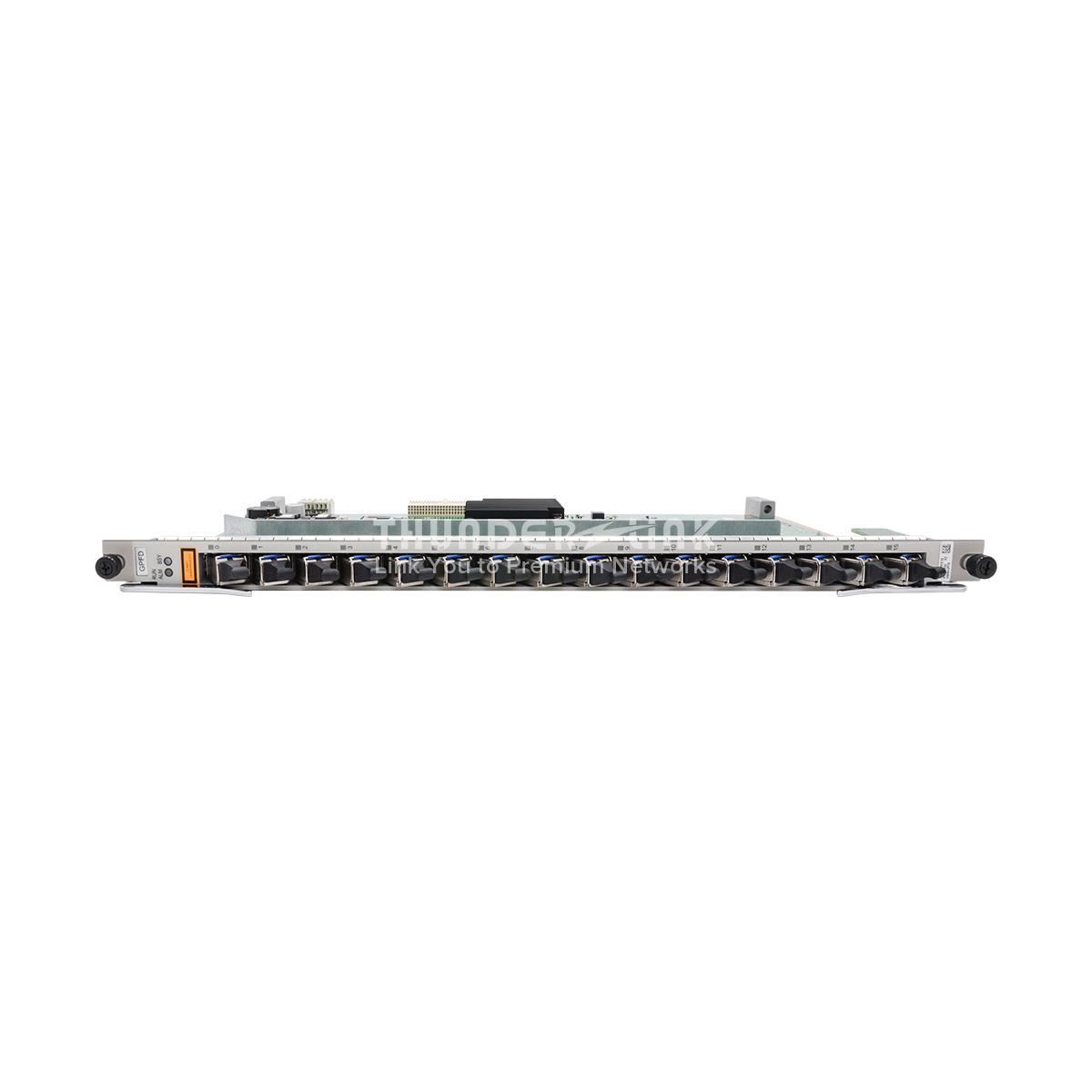

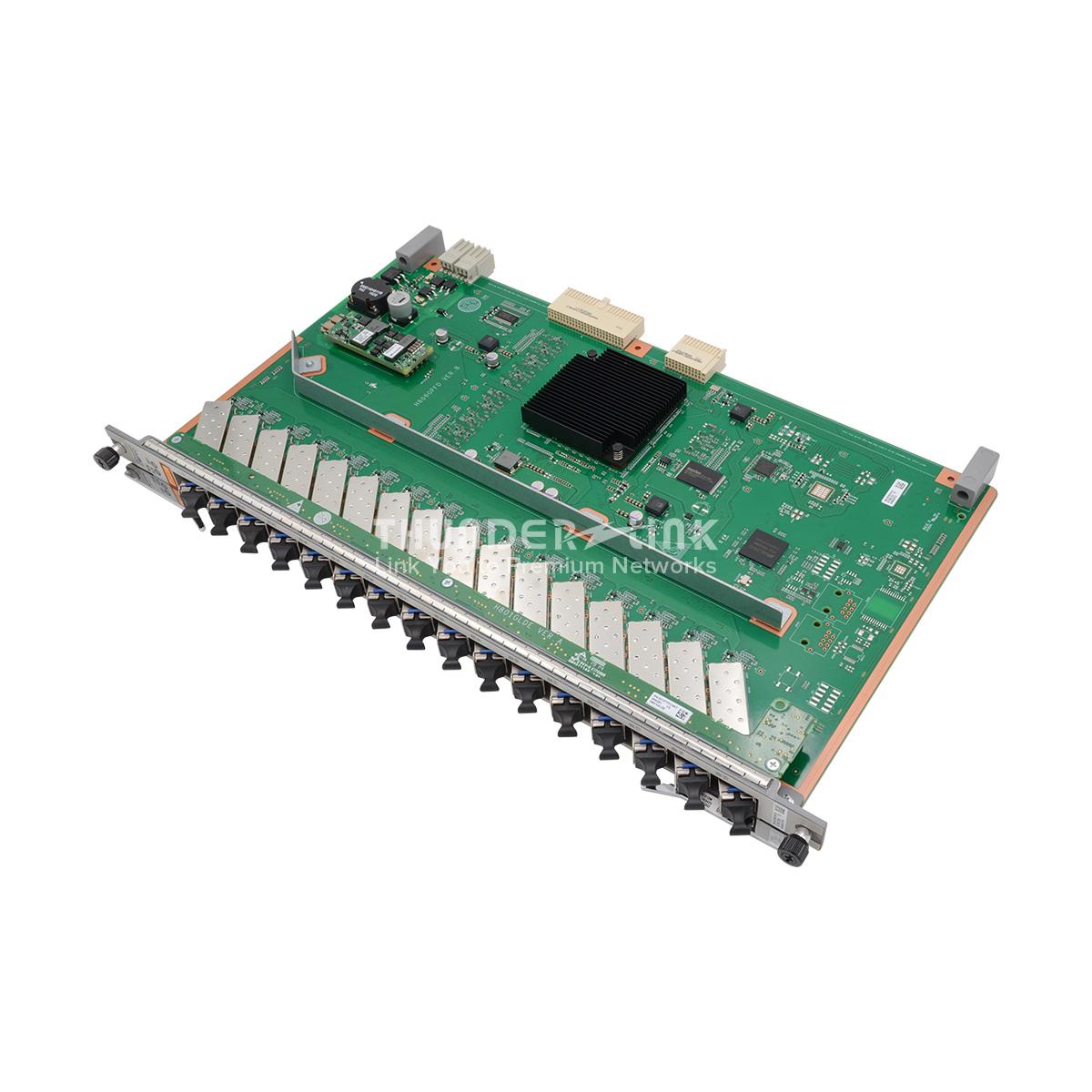

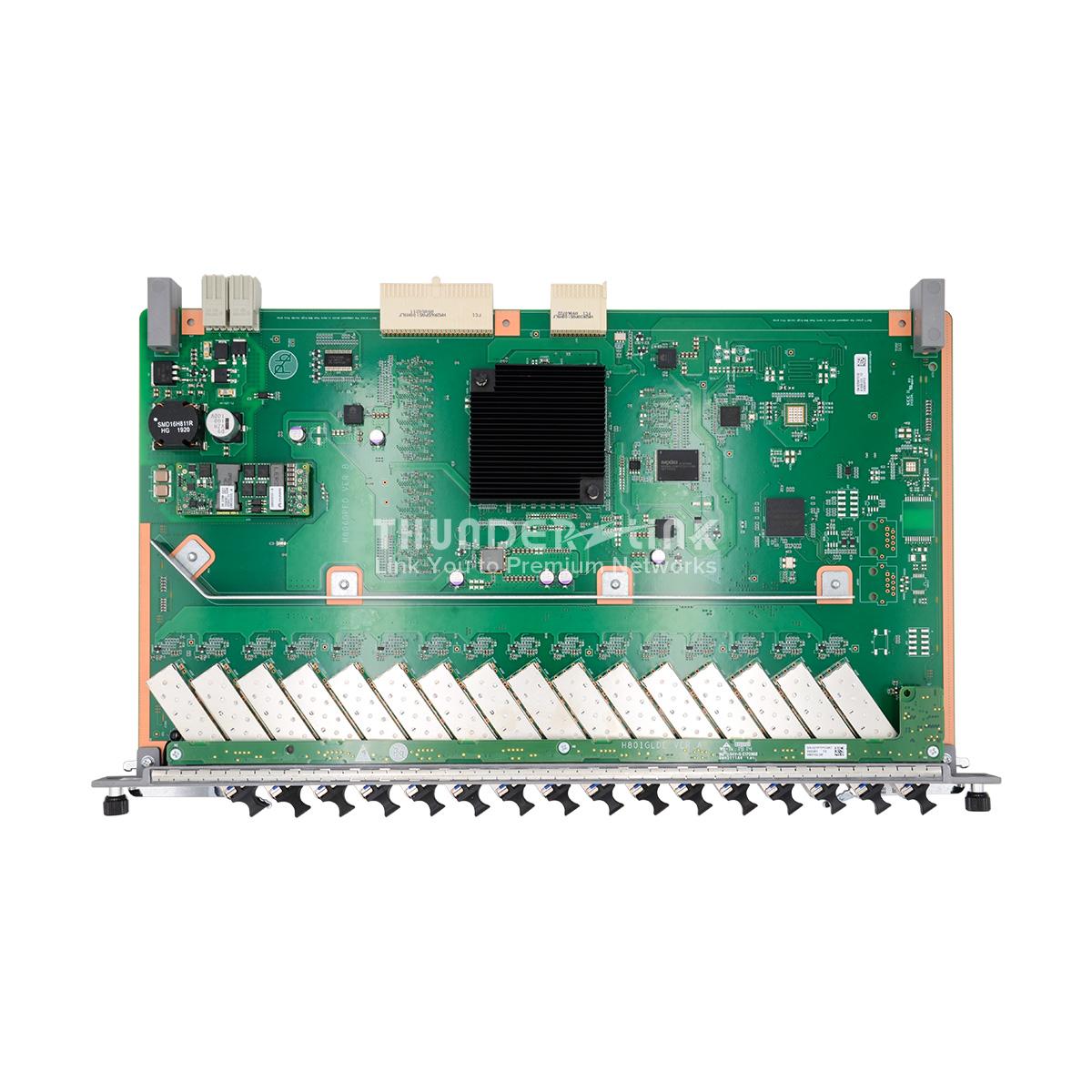

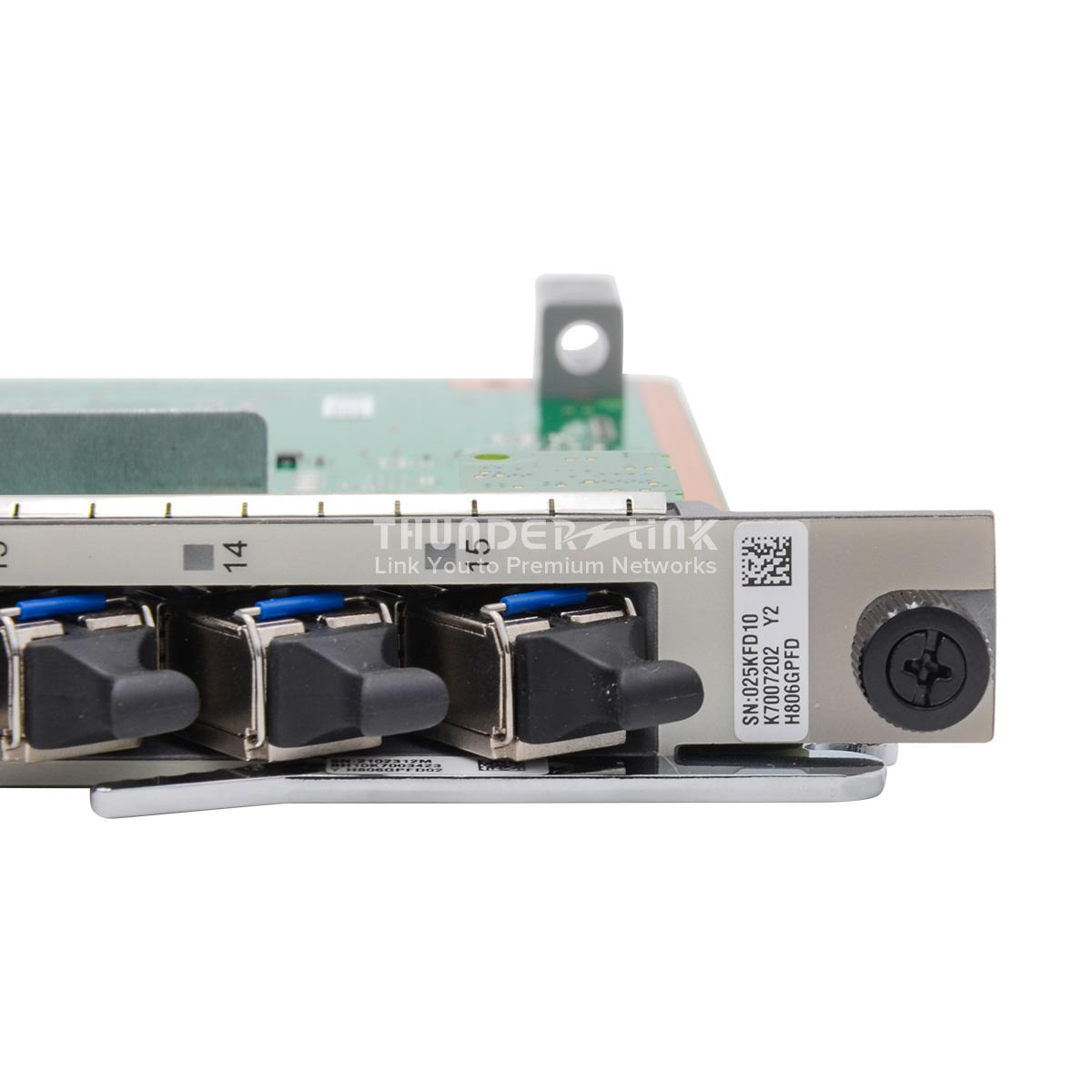

Huawei 16-GPON Port Interface Card with C+ SFP module
Apply to Huawei MA5683T, MA5680T, MA5608T OLT system
Support split ratio 1:128
Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
Interface Type: SC/PC
Max Transmit Distance: 20KM
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
GPFD is a 16 port GPON interface card of Huawei OLT, provide GPON service access from ONT. GPFD can maximum access 16*128 GPON subscribers. GPFD has different part number like H80D00GPFD01, H80D00GPFD02 etc, but basically you only need to identity H802GPFD, H803GPFD, H805GPFD, H806GPFD version, and with B+ or C+/C++ SFP module.
Specification | |
Service ports | |
GPON Port | 16-GPON Port |
GPON SFP Module Specification | |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
Minimun Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC/PC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
Power Consumption and Maximum Frame Size | |
Maximum Frame Size | 2004 bytes |
Operating temperature | -25°C to +65°C |
Weight | 3.0 kg |
---|---|
Dimensions | 50.0 × 33.0 × 8.0 cm |
Brand |
Q: What is the difference between GPFD and GPBD board?
A: The main difference is capacity, GPFD is 16-GPON Port board, GPBD is 8-GPON Port board.
Q: What is the difference between different GPON board?
A:
Board | GPON Type | Port Quantity | Optical Module | Maximum Split Ratio | ONU based shaping |
H807GPBD | 1G-GPON | 8 | SFP (Class B+, Class C+ and Class C++) |
1:128 | No |
H805GPBD H806GPBD |
1G-GPON | 8 | SFP (Class B+, Class C+ and Class C++) |
1:128 | Yes |
H805GPFD H806GPFD |
1G-GPON | 16 | SFP (Class B+, Class C+ and Class C++) |
1:128 | Yes |
H806GPBH H807GPBH |
1G-GPON | 8 | SFP (Class B+, Class C+ and Class C++) |
1:128 | Yes |
H802XGBC | 10G-GPON | 4 | XFP | 1:128 | Yes |
Q:What is the difference between different Huawei H80D00GPFD01, H80D00GPFD02?
A: We don’t suggest you order according to this BOM, this BOM is mostly used for manufacturer producing purpose. Basically choosing GPFD card, we just need to know:
1. H802GPFD, H803GPFD, H805GPFD or H806GPFD?
2. with B+, C+/C++ SFP?
Q: What is the difference among GPON B+, GPON C+ and GPON C++ transceiver?
A:
B+ Module | C+ Module | C++ Module | |
Type | One-fiber bi-directional optical module, class B+ | One-fiber bi-directional optical module, class C+ | One-fiber bi-directional optical module, class C++ |
Operating Wavelength | Tx: 1490 nm Rx: 1310 nm |
||
Encapsulation Type | SFP | ||
Port Rate | Tx:2.49Gbit/s
Rx:1.24Gbit/s |
Tx:2.488Gb/s
Rx:1.244Gb/s |
|
Minimum Output Optical Power | 1.50 dBm | 3.00 dBm | 6.00 dBm |
Maximum Output Optical Power | 5.00 dBm | 7.00 dBm | 10.00 dBm |
Maximum Receiver Sensitivity | -28.00 dBm | -32.00 dBm | -35.00 dBm |
Optical Connector Type | SC/PC | SC/UPC | |
Optical Fiber Type | Single-mode | ||
Reach | 20.00km | ||
Overload Optical Power | -8.0 dBm | -12.0 dBm | -15.0 dBm |
Extinction Ratio | 8.2 dB |
Q: Does GPFD has any version requirement of OLT software?
A: Yes, most of common version like V8R11, V8R13 and V8R15 support GPFD, but please make sure your OLT software included the packet of your GPFD board version, for example, H803GPFD and H806GPFD IO-packet is different.
Q: Can I get technical support from thunder-link.com if we purchase GPFD from you?
A: We will able to provide technical support service for customers whose OLT and GPON card are both from us, kindly note we will charge for the technical support service. We suggests customers purchase the OLT and GPFD card from the same professional supplier so as to avoid compatible and technical issues.
Q: Does the GPON SFP Module included in GPFD?
A: Yes, 16 C+ SFP Module are included for free.
Q: Can I do twice splitting with GPFD?
A: Yes, you can, just make sure the optical power is within the receive side range.
Q: Can I use a 3rd party ONT with GPFD?
A: We don’t suggest so, as the understanding of TR069/OMCI protocol may different between different vendors.
Q: What is the power consumption of GPFD board?
A: Between 45~73W.
Q: How can I check my H806GPFD status by command on MA5683T?
A: The most common status checking command is “display board 0”, for details you can refer to GPON board common command guide.
