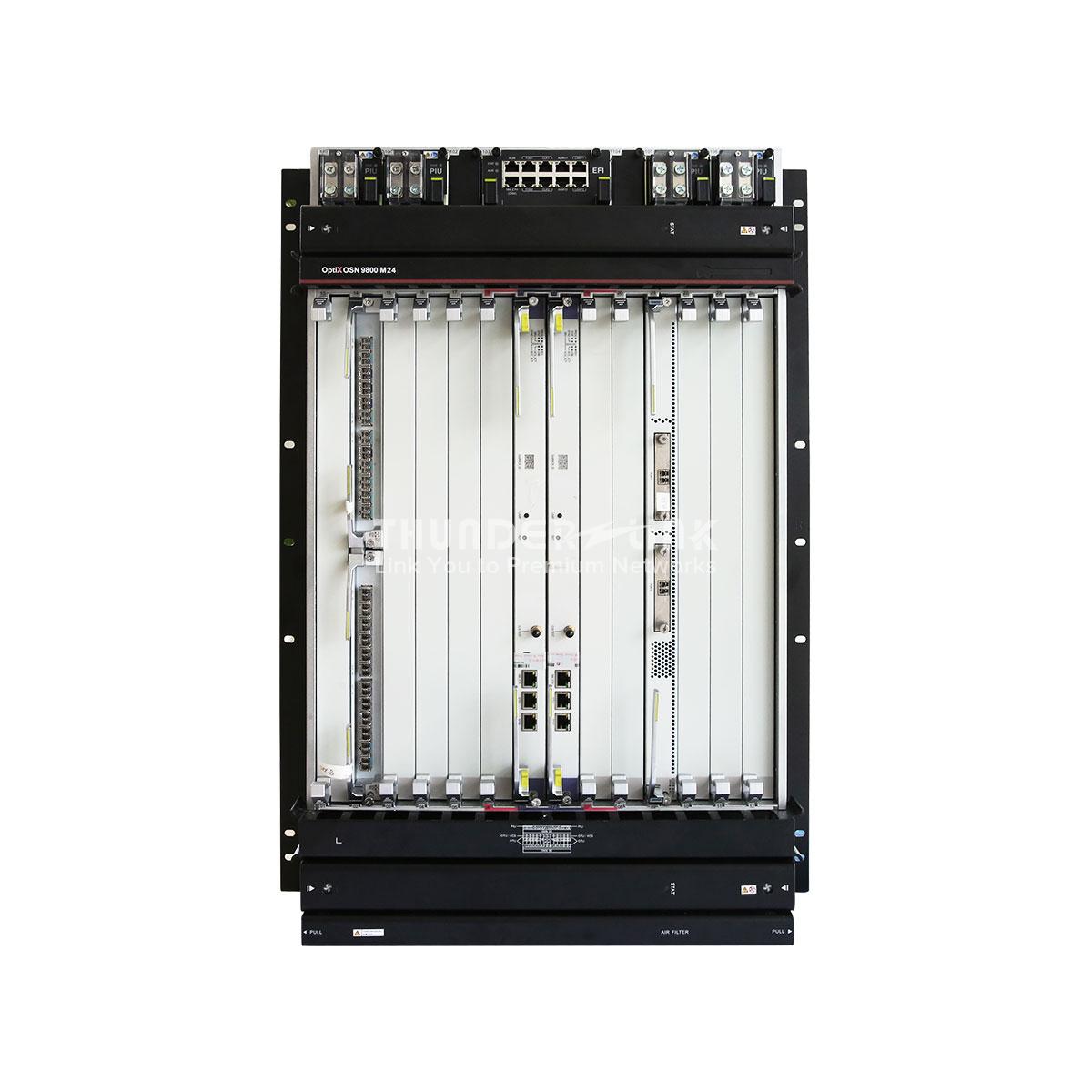

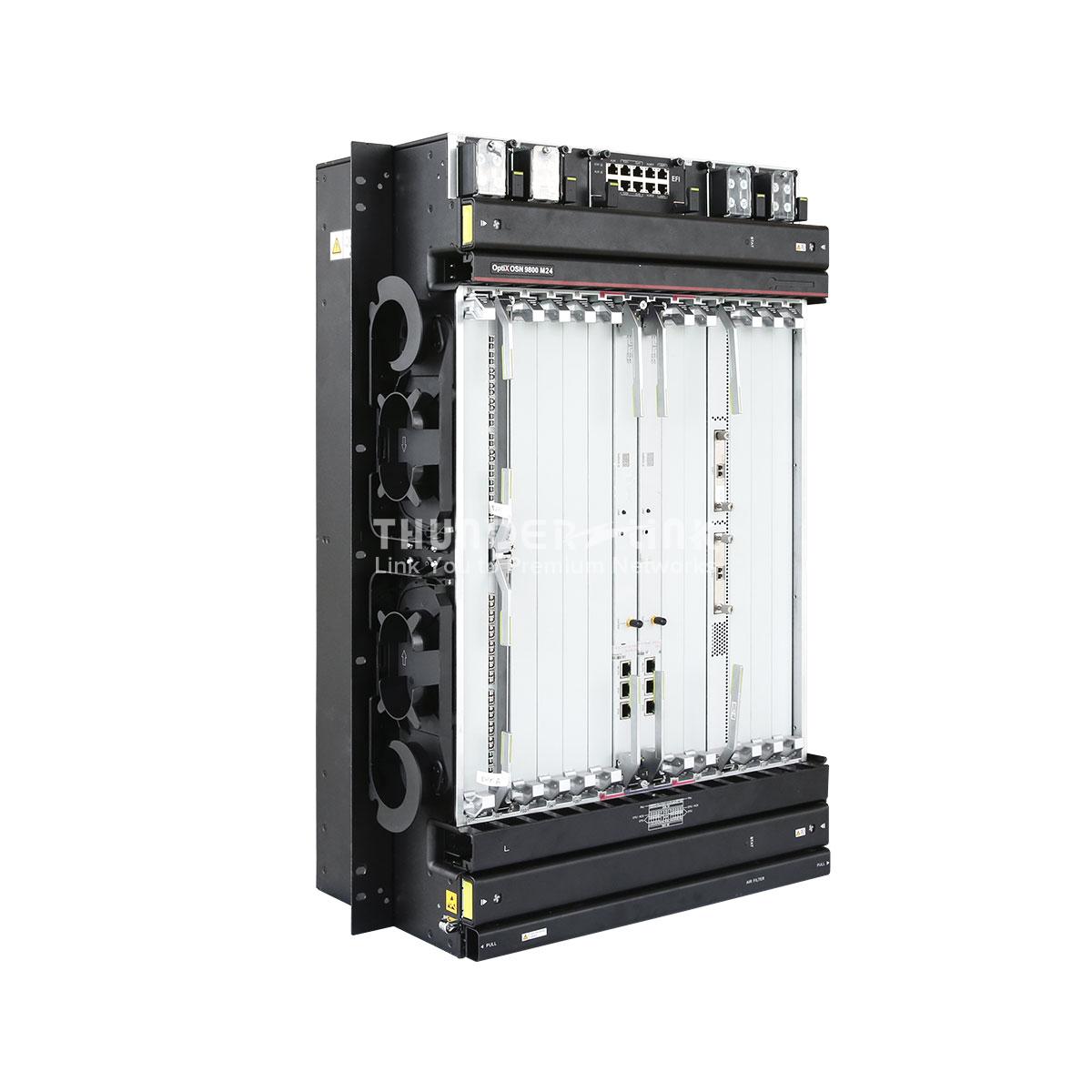

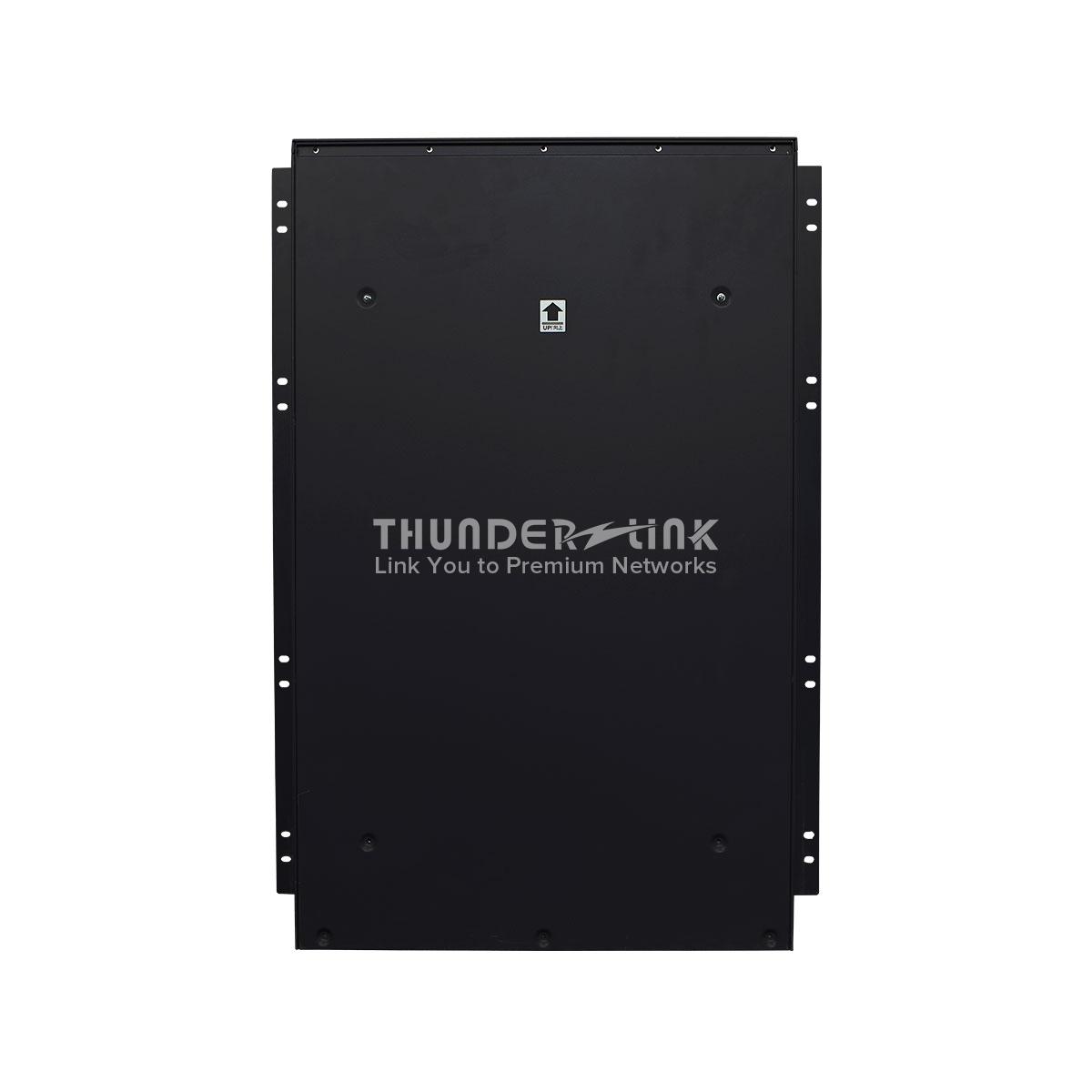

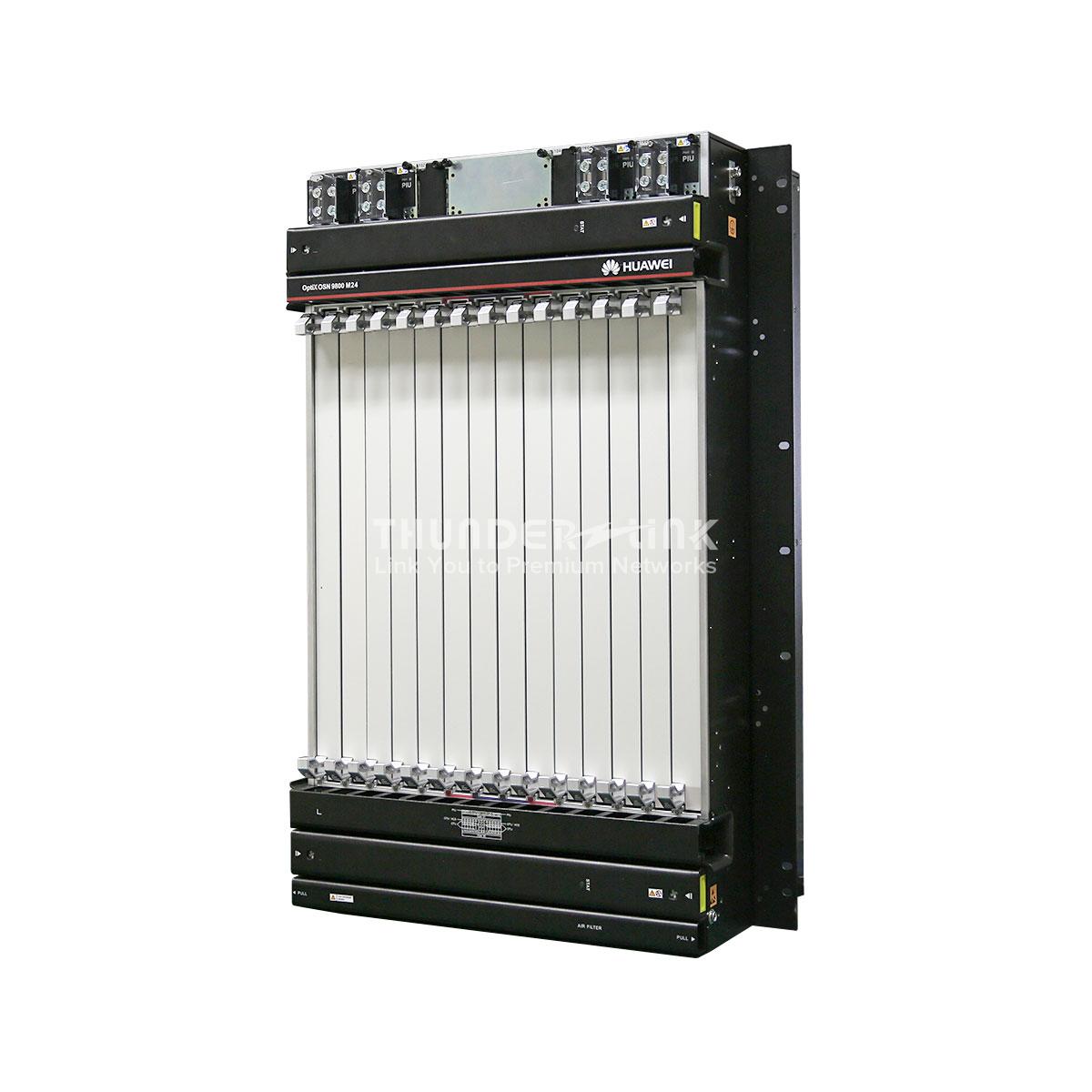

Huawei OSN 9800 M24, with 4xPIU 1xEFI, 24 service slots
0 in stock Ready to ship
Firmware Upgrades x
Firmware upgrades allow our customers to utilize the latest features and security enhancements that simply make the devices to operate proficiently Learn more
Hardware Compatibility x
Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.
Hardware Tested x
In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more
Software Compatibility x
Software compatibility test between active/standby system board, main control board and service board, mother/sub-card; system commissioning test to prevent all software conflicts.
Huawei OSN 9800 M24 is an optical subrack product that meets the requirements of miniaturized OLA sites and line degree optical subracks of ROADM
Supports 24 x 5.5 U service boards, and 12 x 11 U service boards
Highlights:
Supports Synchronous Ethernet IEEE 1588v2 ITU-T G.8275.1/G.8273.2
Supports Optical-Layer ASON Electrical-Layer ASON
Supports Online Service Provisioning Survivability Analysis BOD IP and Optical Collaboration
Supports application of extended C band in submarine scenarios.
OptiX OSN 9800 M24 is designed to meet the requirements for flexible networking and comprehensive service bearing on backbone and metro networks. It is a next-generation optical transmission platform in the beyond 100G era. It integrates multi-function applications and features ultra-high rate, powerful grooming, optical-electrical convergence, flexible configuration, and energy saving, providing the optimal transmission solution for backbone and metro networks.
Specifications | |
Number of Slots for Service Boards | 1:1 cross-connect mode: 12 large slots or 24 small slots
1:3 cross-connect mode: 10 large slots or 20 small slots |
Optical Switching Capability | 1 to 20-degree ROADM |
Max. Number of Wavelengths | DWDM:
|
Wavelength Range | DWDM: 1524.50 nm to 1572.06 nm (super C-band)
CWDM: 1471 nm to 1611 nm (S+C+L Band) |
Max. Rate Per Channel | 400 Gbit/s (OTUC4) |
Service Type | SDH/SONET Ethernet SAN OTN Video |
Line Rate | 2.5 Gbit/s 10 Gbit/s 100 Gbit/s 200 Gbit/s 400 Gbit/s |
Supported Pluggable Optical Modules | eSFP SFP+ TSFP+ CFP CFP2 QSFP28 SFP28 QSFP+ QSFP-DD |
Max. Rate Per Channel | 800 Gbit/s (OTUC8) |
Line Rate | 2.5 Gbit/s 10 Gbit/s 100 Gbit/s 200 Gbit/s 400 Gbit/s 800 Gbit/s |
Working environment | |
Nominal Working Voltage | -48 V/-60 V DC |
Temperature | Long-term operation: 0°C (32 °F) to 45°C (113 °F)
Short-term operation: -5°C (23 °F) to 50°C (122 °F) |
Humidity | Long-term operation: 5% to 85%
Short-term operation: 5% to 90% |
Mechanical Specifications | |
Dimensions(mm) | 747.2 (L) × 442(W) × 295 (D) |
Cabinet | ETSI 300/600 cabinets, such as A63B
19-Inch Cabinet |
Weight(kg) | 26.49 kg (58.4 lb.) |
Q: What service types, service rates, and corresponding service boards supported by OSN 9800 M24Subrack?
A: Below table shows boards and service type that OSN 9800 M24 supported.
Service Category | Service Type | Service Rate | Board |
SDH | STM-1 | 155.52 Mbit/s | M210D, M520SM |
STM-4 | 622.08 Mbit/s | ||
STM-16 | 2.5 Gbit/s | ||
STM-64 | 9.95 Gbit/s | ||
SONET | OC-3 | 155.52 Mbit/s | M210D, M520SM |
OC-12 | 622.08 Mbit/s | ||
OC-48 | 2.5 Gbit/s | ||
OC-192 | 9.95 Gbit/s | ||
Ethernet service | FE (optical signal) | Interface rate: 125 Mbit/s | M210D, M520SM |
Service rate: 100 Mbit/s | |||
GE (optical signal) | Interface rate: 1.25 Gbit/s | ||
Service rate: 1 Gbit/s | |||
GE (electrical signal) | Interface rate: 1.25 Gbit/s | ||
Service rate: 1 Gbit/s | |||
10GE WAN | 9.95 Gbit/s | ||
10GE LAN | 10.31 Gbit/s | M210D, M404DM, M502DM, M504DM, M520SM | |
25GE | 25.78 Gbit/s | M520SM | |
40GE | 41.25 Gbit/s | M404DM, M504DM, M520SM, M604SM | |
50GE | 51.5625 Gbit/s | M520SM | |
100GE | 103.125 Gbit/s | M402, M502DM, M504DM, M520SM, M604SM | |
SAN service | FDDI | 125 Mbit/s | M210D, M520SM |
ESCON | 200 Mbit/s | ||
FC100/FICON | 1.06 Gbit/s | ||
FC200/FICON Express | 2.12 Gbit/s | ||
FC400/FICON4G | 4.25 Gbit/s | ||
FC800/FICON8G | 8.5 Gbit/s | ||
FC1200/FICON10G | 10.51 Gbit/s | ||
FC1600 | 14.025 Gbit/s | M520SM | |
FC3200 | 28.05 Gbit/s | ||
OTN service | OTU1 | 2.67 Gbit/s | M210D, M520SM |
OTU2 | 10.71 Gbit/s | ||
OTU2e | 11.10 Gbit/s | ||
OTU4 | 111.81 Gbit/s | M402, M502DM, M504DM, M520SM, M604SM | |
Video service | DVB-ASI | 270 Mbit/s | M210D, M520SM |
SD-SDI | 270 Mbit/s | ||
HD-SDIa | 1.49 Gbit/s | ||
HD-SDIRBR | 1.49/1.001 Gbit/s | ||
3G-SDIa | 2.97 Gbit/s | ||
3G-SDIRBR | 2.97/1.001 Gbit/s |
Q: What are service capabilities supported by the OSN 9800 M24/M12/M05 Subrack?
A: Below table lists the service capabilities:
Service Category | Service Type | Max. Number of Service Inputs Supported by 9800 M24 | Max. Number of Service Inputs Supported by 9800 M12 | Max. Number of Service Inputs Supported by 9800 M05 |
SDH | STM-1 | 360 | 130 | 50 |
STM-4 | 360 | 130 | 50 | |
STM-16 | 360 | 104 | 40 | |
STM-64 | 300 | 26 | 10 | |
SONET | OC-3 | 360 | 130 | 50 |
OC-12 | 360 | 130 | 50 | |
OC-48 | 360 | 104 | 40 | |
OC-192 | 300 | 26 | 10 | |
Ethernet service | FE (optical signal) | 360 | 130 | 50 |
GE (optical signal) | 360 | 130 | 50 | |
GE (electrical signal) | 360 | 130 | 50 | |
10GE WAN | 300 | 26 | 10 | |
10GE LAN | 384 | 208 | 80 | |
25GE | 192 | 104 | 40 | |
40GE | 96 | 52 | 20 | |
50GE | 48 | 26 | 10 | |
100GE | 100 | 52 | 20 | |
200GE | 24 | N/A | N/A | |
400GE | 10 | N/A | N/A | |
Flexible Ethernet service (FlexE) | FlexE Unaware (50G) | 24 | N/A | N/A |
FlexE Unaware (100G) | 48 | N/A | N/A | |
FlexE Aware (200G) | 24 | N/A | N/A | |
SAN service | FDDI | 360 | 130 | 50 |
ESCON | 360 | 130 | 50 | |
FC100/FICON | 360 | 130 | 50 | |
FC200/FICON Express | 360 | 130 | 50 | |
FC400/FICON4G | 360 | 52 | 20 | |
FC800/FICON8G | 300 | 26 | 10 | |
FC1200/FICON 10G | 300 | 13 | 5 | |
FC1600 | 192 | 104 | 40 | |
FC3200 | 96 | 52 | 20 | |
OTN service | OTU1 | 360 | 104 | 40 |
OTU2 | 300 | 26 | 10 | |
OTU2e | 300 | 26 | 10 | |
OTU4 | 96 | 52 | 20 | |
Video service | DVB-ASI | 360 | 130 | 50 |
SD-SDI | 360 | 130 | 50 | |
HD-SDIa | 360 | 104 | 40 | |
HD-SDIRBR | 360 | 104 | 40 | |
3G-SDIa | 360 | 78 | 30 | |
3G-SDIRBR | 360 | 78 | 30 |
