ME0DVSUF8070 Click to enlarge
    Share-mail Share-In Share-facebook Share-Twitter

ME0DVSUF8070

PN.03054496

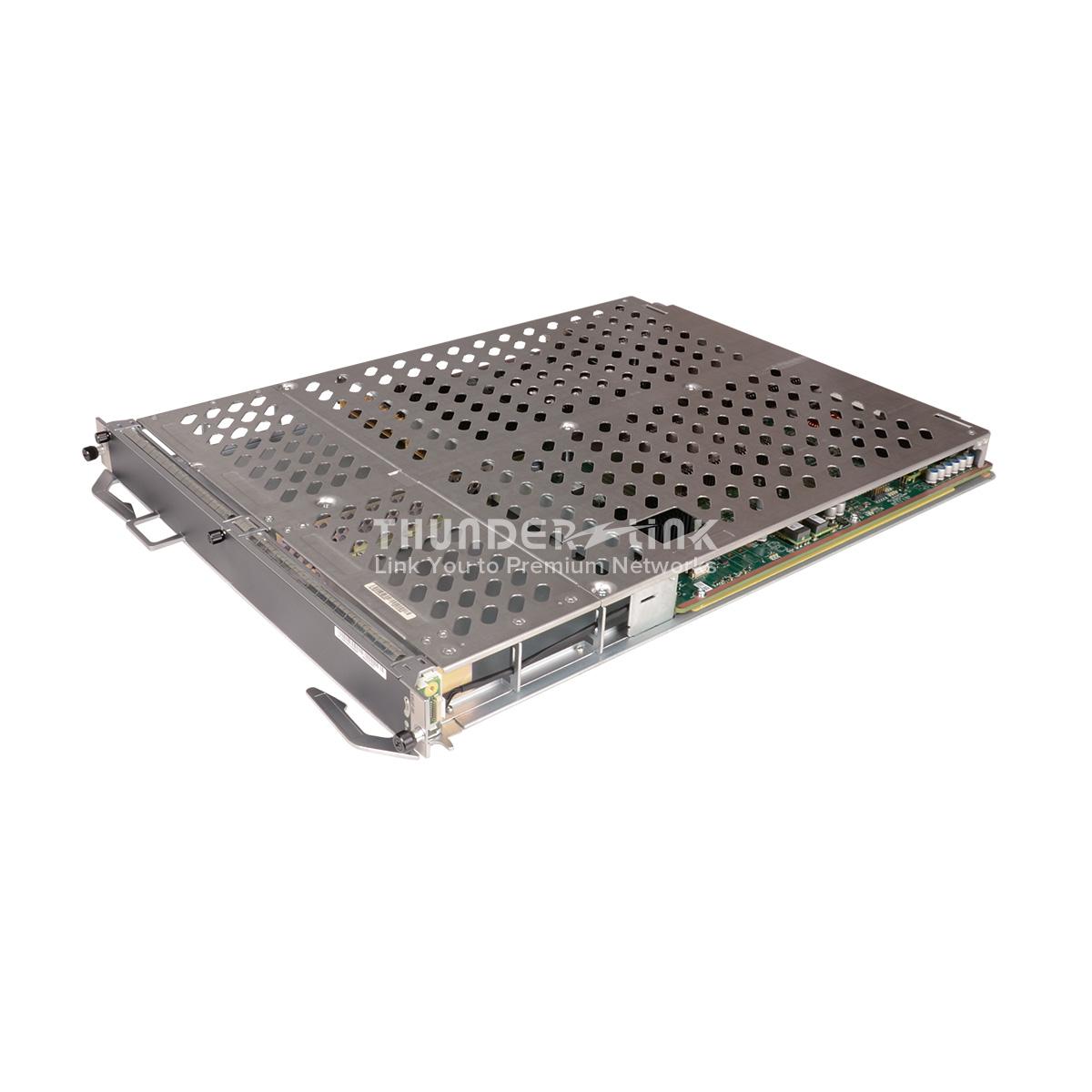

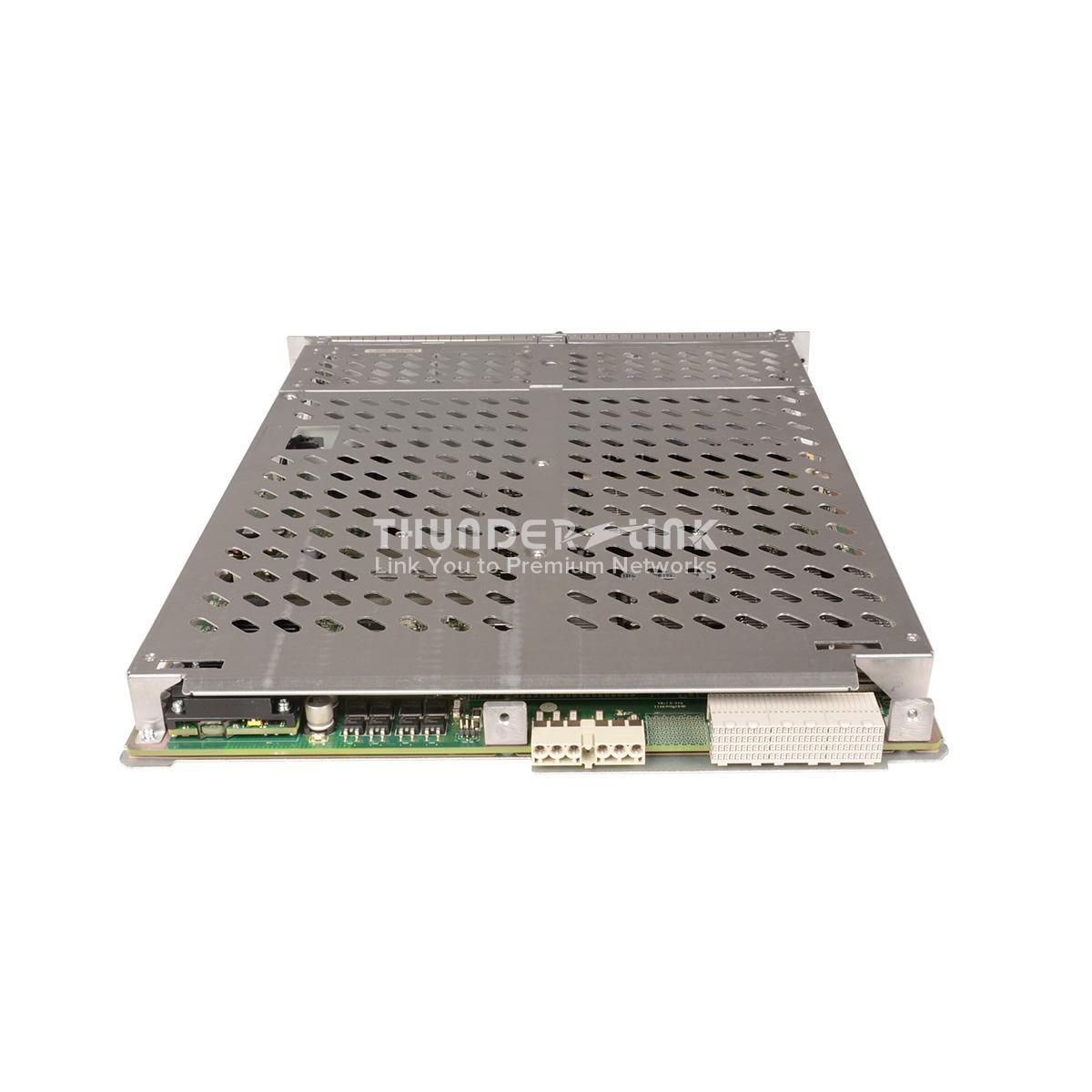

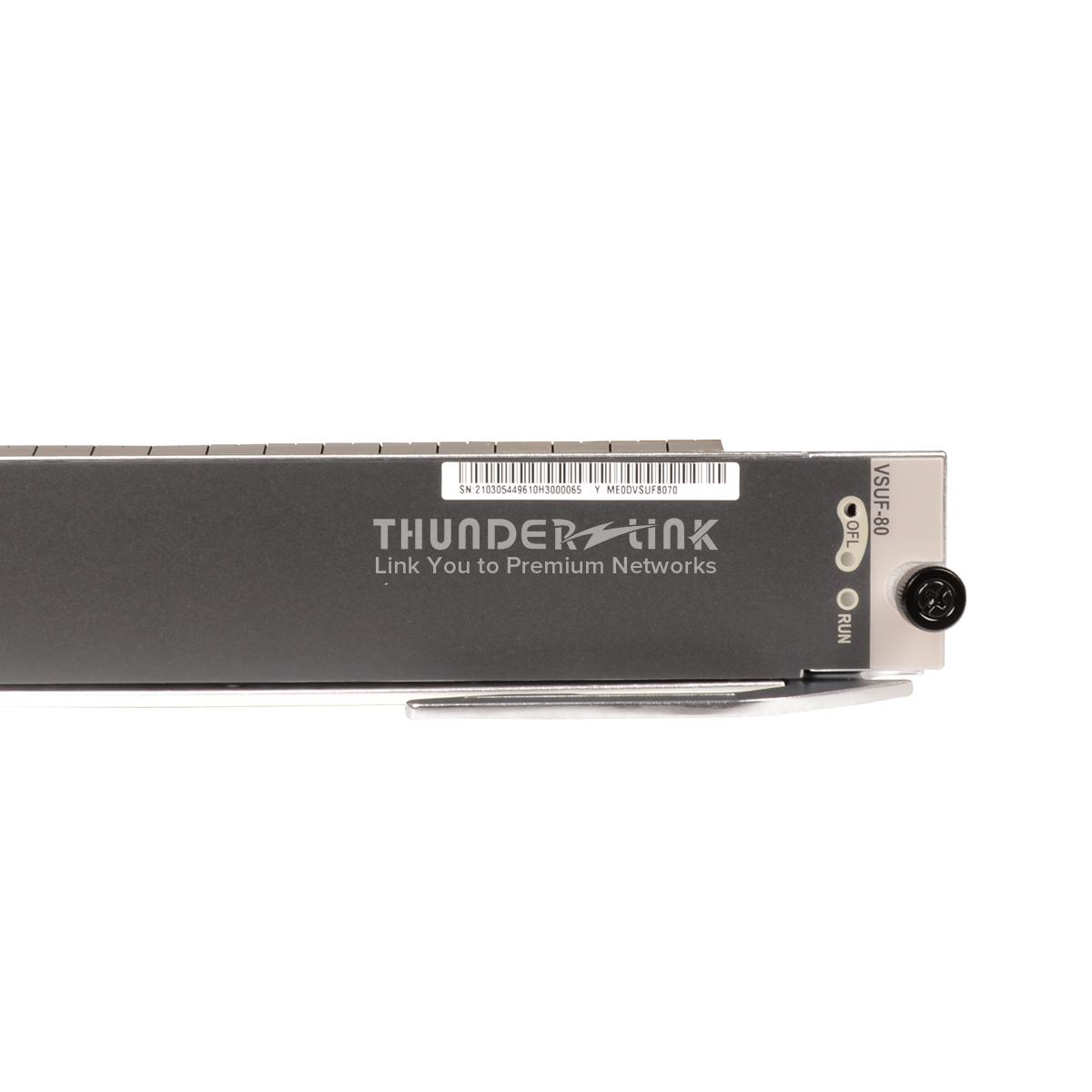

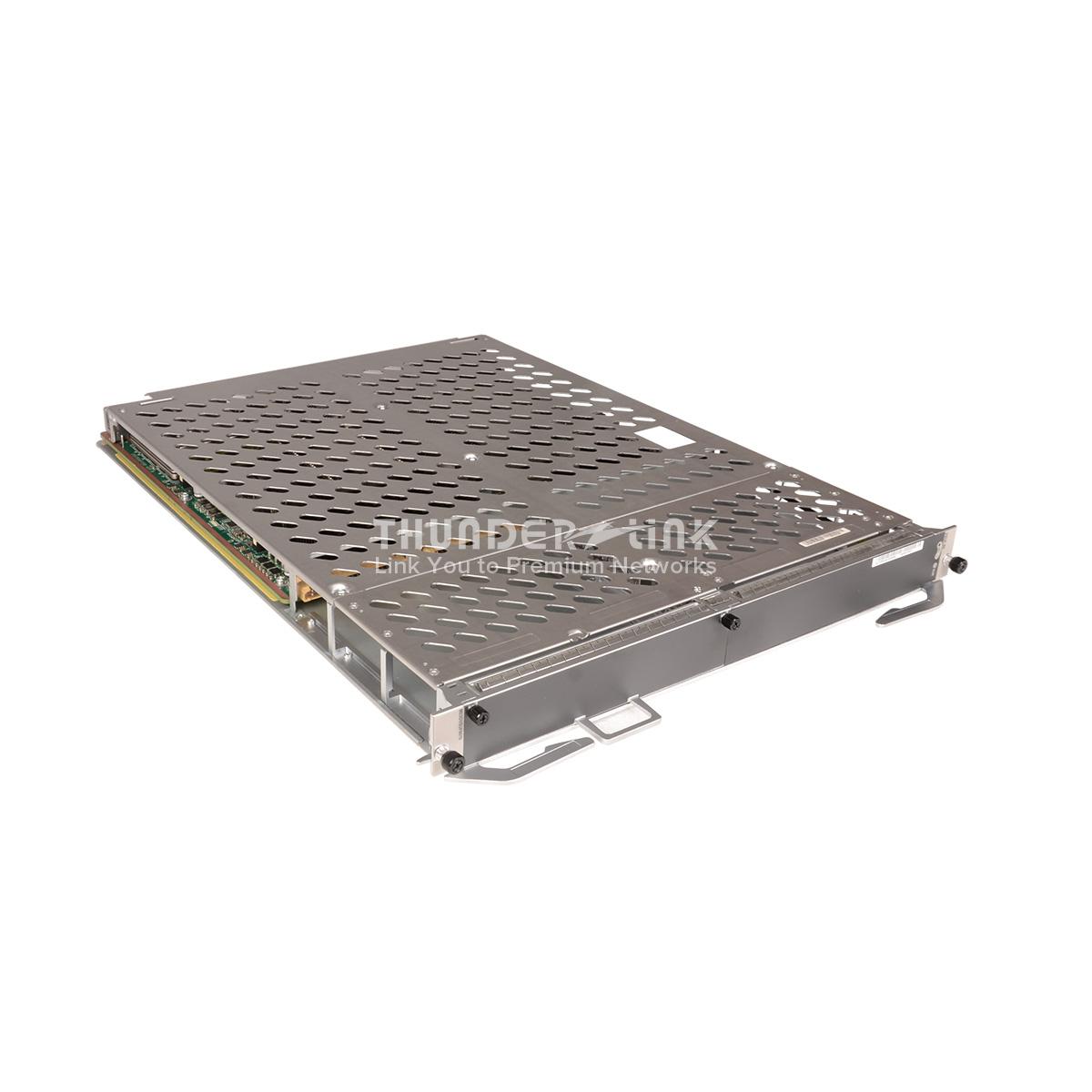

VSUF-80 Versatile Service Board

US $--

Description:

Huawei ME60 Flexible Card Value-Added Service Processing Unit(VSUF-80)


Qty:

In Stock

3-Level Quality Control x

We provide 3-Level Quality Control procedure: 1-Level inspection; 2-Level In-stock test; 3-Level 24 hour pre-delivery and 1 year warranty. Learn More

8-Year Gold Supplier x

Thunder-link.com, founded in 2011, a leading professional Huawei network hardware and solution provider, service over 100 VIP customers from 50 countries in 8 year. Learn More

Test Report Assured x

In order to avoid hardware malfunction and compatibility, each equipment will be strictly tested before delivery, the test report will be packed inside equipment and delivery together. Learn More

Huawei ME60 System Test Procedure

Huawei ME60 Test Compatibility Guaranteed

Overview


Flexible card value-added service processing unit(VSUF-80) on Huawei ME60.

A ME0DVSUF8070/VSUF-80 itself provides 20 Gbit/s forwarding capability.

Supports one SP80 subcard (40Gbit/s forwarding capability) and one 20G license, and realizes total 80G forwarding capability.

Supports NAT44, DS-Lite and L2-Aware NAT function.


ME0DVSUF8070 is a versatile service board applied to Huawei ME60, provides total 80Gbit/s forwarding capability by configuring one subcard SP80 and 20G license.

ME0DVSUF8070 comes with original box, if purchase together with router, it will be will inserted into the router by default when delivery, to economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.


Tech Specs


Specifications
Reliability and availability

Software features:

NAT, including integrated NAT444, integrated NAT44, distributed NAT444, distributed NAT44, and distributed L2-Aware NAT, which provides the following functions:

Port pre-allocation

NAT policy template

Port forwarding

Inter-board hot backup for NAT

Limitation on the number of NAT ports

NAT alarm notification

PCP

DS-Lite

NAT64

Hardware features:

Board hot swap

FPIC hot swap

Inter-board hot backup and inter-chassis hot backup

NMS

Enhanced command-line interface

Support for SNMP and MIBs

Operating conditions

Long-term ambient temperature: 0°C to 45°C (32°F to 113°F)

Short-term ambient temperature: -5°C to +55°C (23°F to 131°F)

Long-term relative humidity: 5% to 85%

Short-term relative humidity: 5% to 95%

Storage conditions

Storage temperature: -40°C to +70°C (-40°F to 158°F)

Storage humidity: 5% to 100%

Physical specifications
Dimensions(mm)40.1(H)x 399.2(W) x 535.6(D)
Weight(kg)7.15
Power consumption (typical value)(W)182



Q&A


Q: Can ME0DVSUF8070/VSUF-80 be installed in only slots on ME60?

A: On ME60-8 and ME60-X8, installing the VSUF-80s in slots 3, 4, 5, and 6 is recommended.

On the ME60-X16, installing the VSUF-80s in slots 3, 4, 5, 10, 11, 12, 13, and 14 is recommended.

On the ME60-16, installing the VSUF-80s in the lower slots in the middle is recommended.


Q: How many subslots does ME0DVSUF8070/VSUF-80 have?

A: A VSUF-80 has one subslot and can have one SP80 installed.


Q: What is the forwarding capability of a ME0DVSUF8070/VSUF-80?

A: It provides 20 Gbit/s forwarding capability.


Q: How can I increase the forwarding capability of a ME0DVSUF8070/VSUF-80?

A:

1, 20G license

A 20G license expands the forwarding capability of a VSUF-80 by 20 Gbit/s. A VSUF-80 can be configured with only one 20G license.

2, SP80

An SP80 provides a forwarding capability of 40 Gbit/s. A VSUF-80 can have only one SP80 installed.

To enable a VSUF-80 to provide a forwarding capability of 80 Gbit/s, install one 20G license and one SP80 on the VSUF-80.


Q: How to realize NAT44, DS-Lite or L2NAT function on ME60?

A: Installing a VSUF-80 on ME60 and configure the following licenses:

  • NAT session license

    NAT session licenses are classified as 2M NAT session licenses and 16M NAT session licenses. If you want a VSUF-80 to support 10M NAT sessions, configure five 2M NAT session licenses. If you want a VSUF-80 to support more than 16M NAT sessions, use the 16M NAT session license in preference.

  • DS-Lite license

    One VSUF-80 requires one DS-Lite license. A VSUF-80 can provide the DS-Lite function only after this license is configured.

  • L2-Aware NAT license

    One VSUF-80 requires one L2-Aware NAT license. A VSUF-80 can provide the L2-Aware NAT function only after this license is configured.
