S5720-28X-PWR-SI-AC

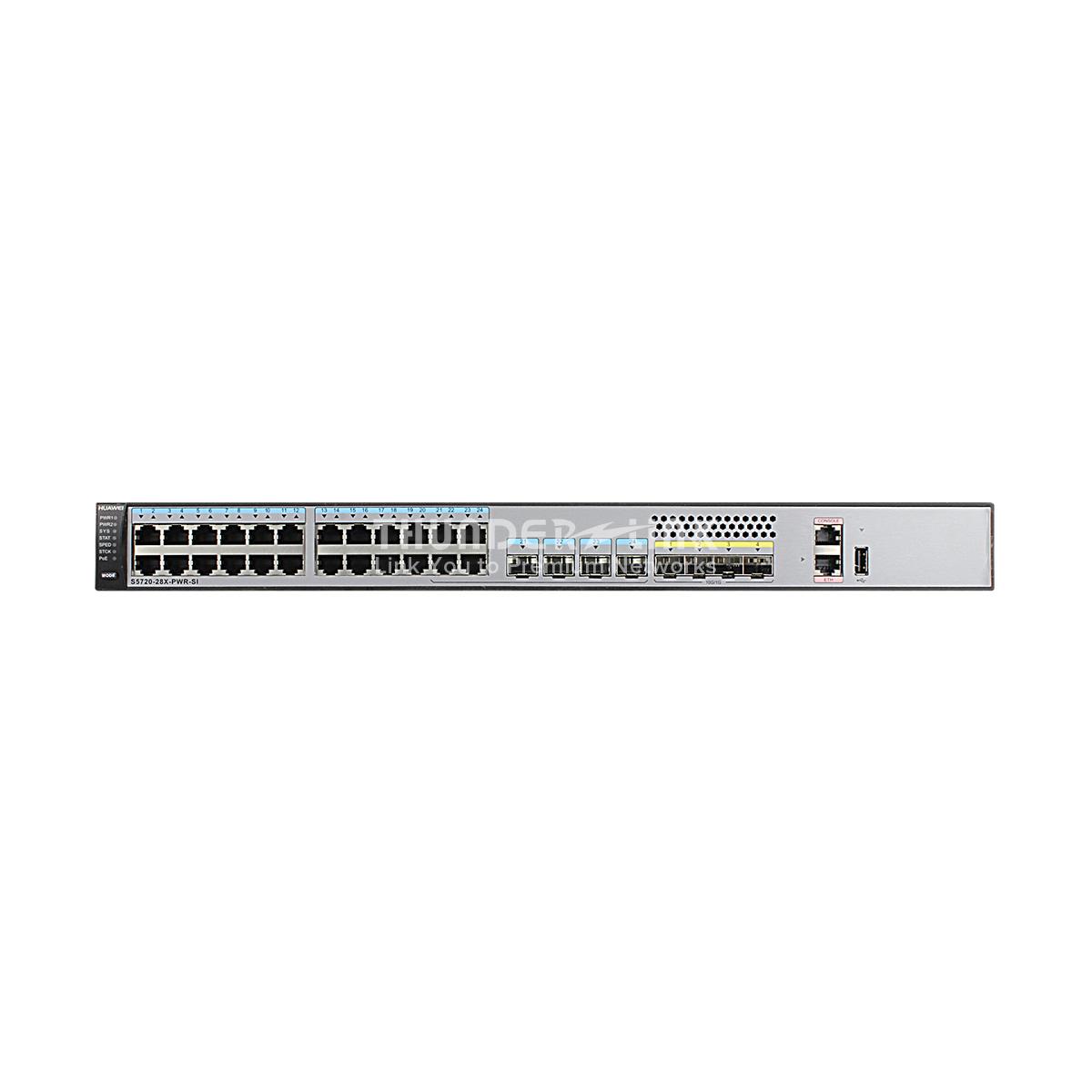

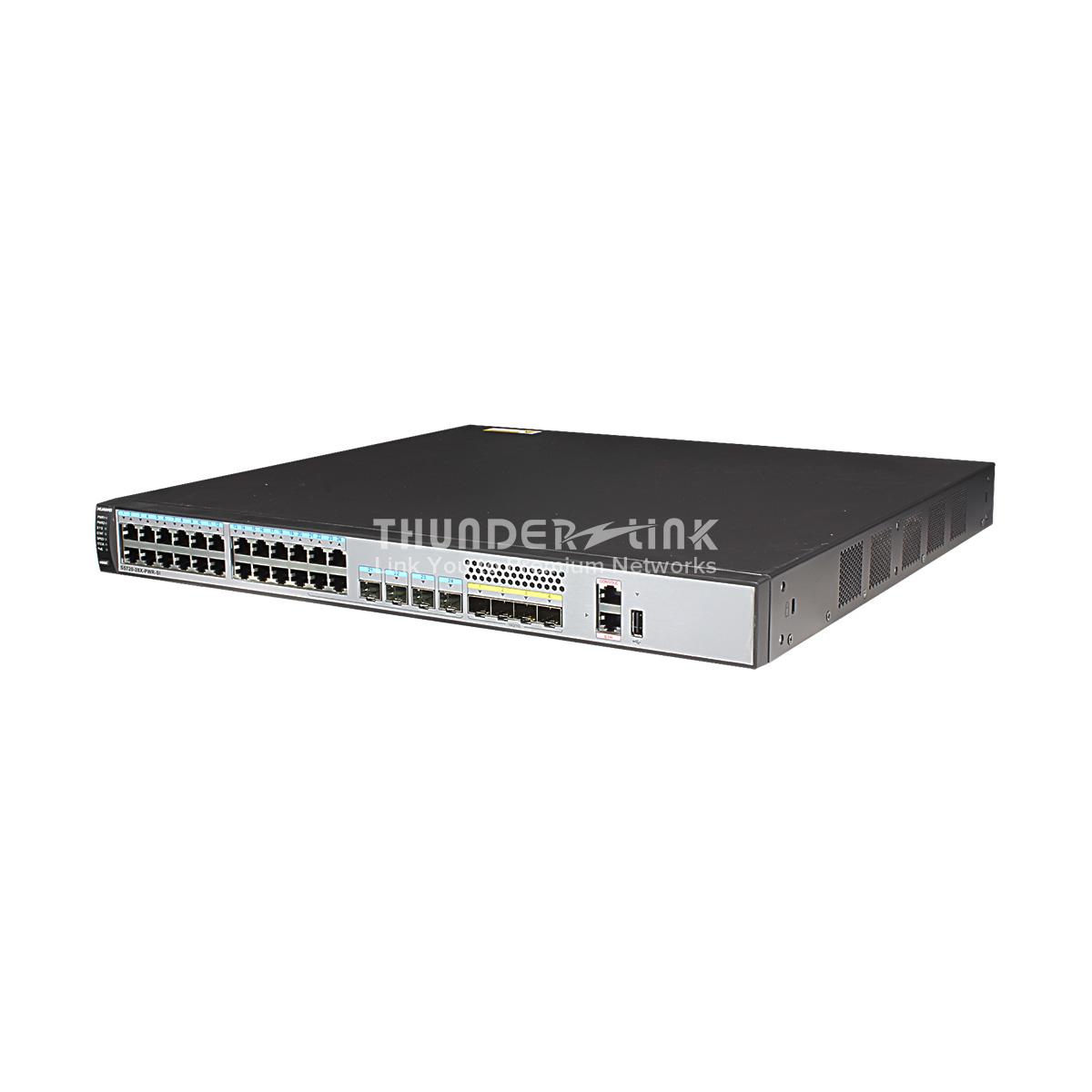

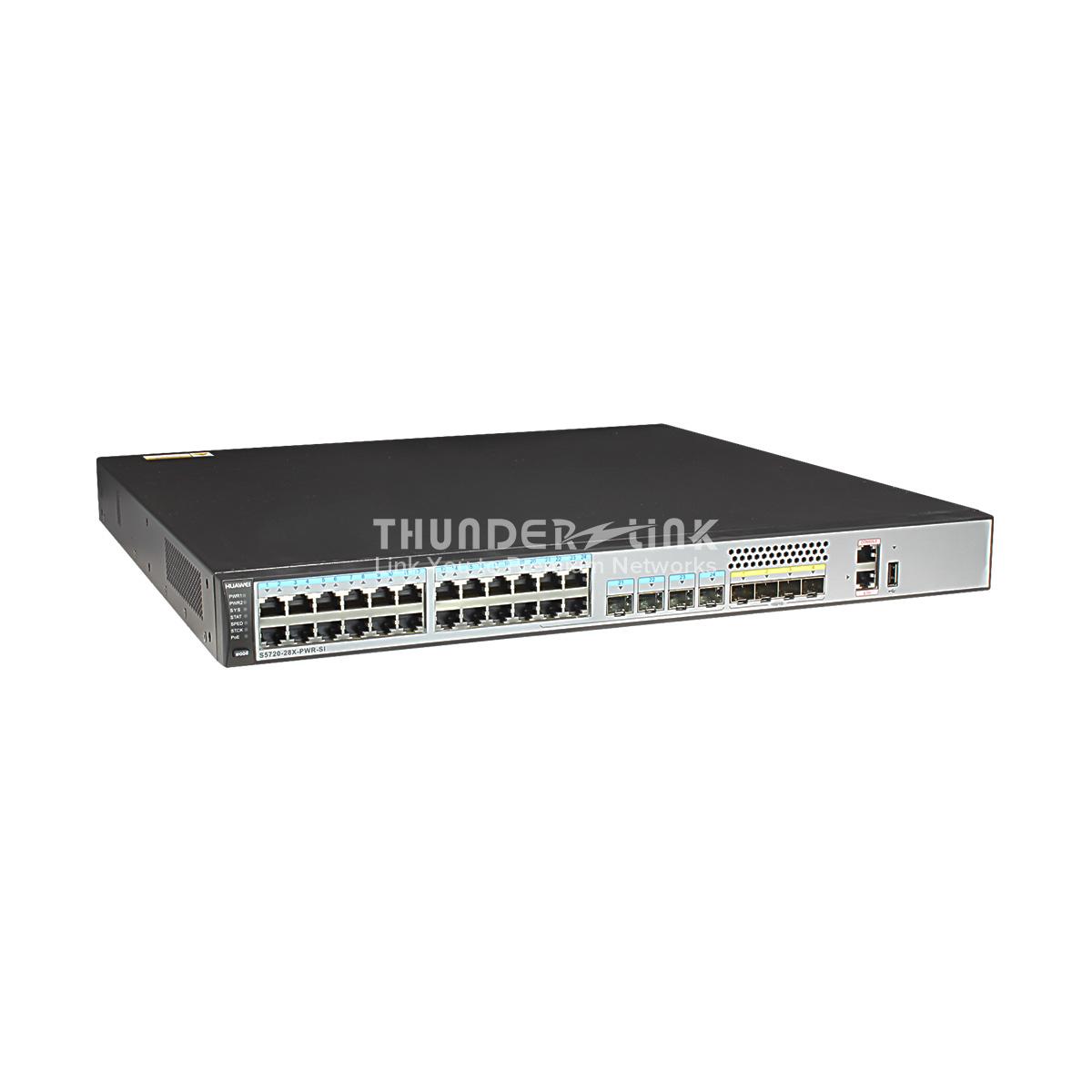

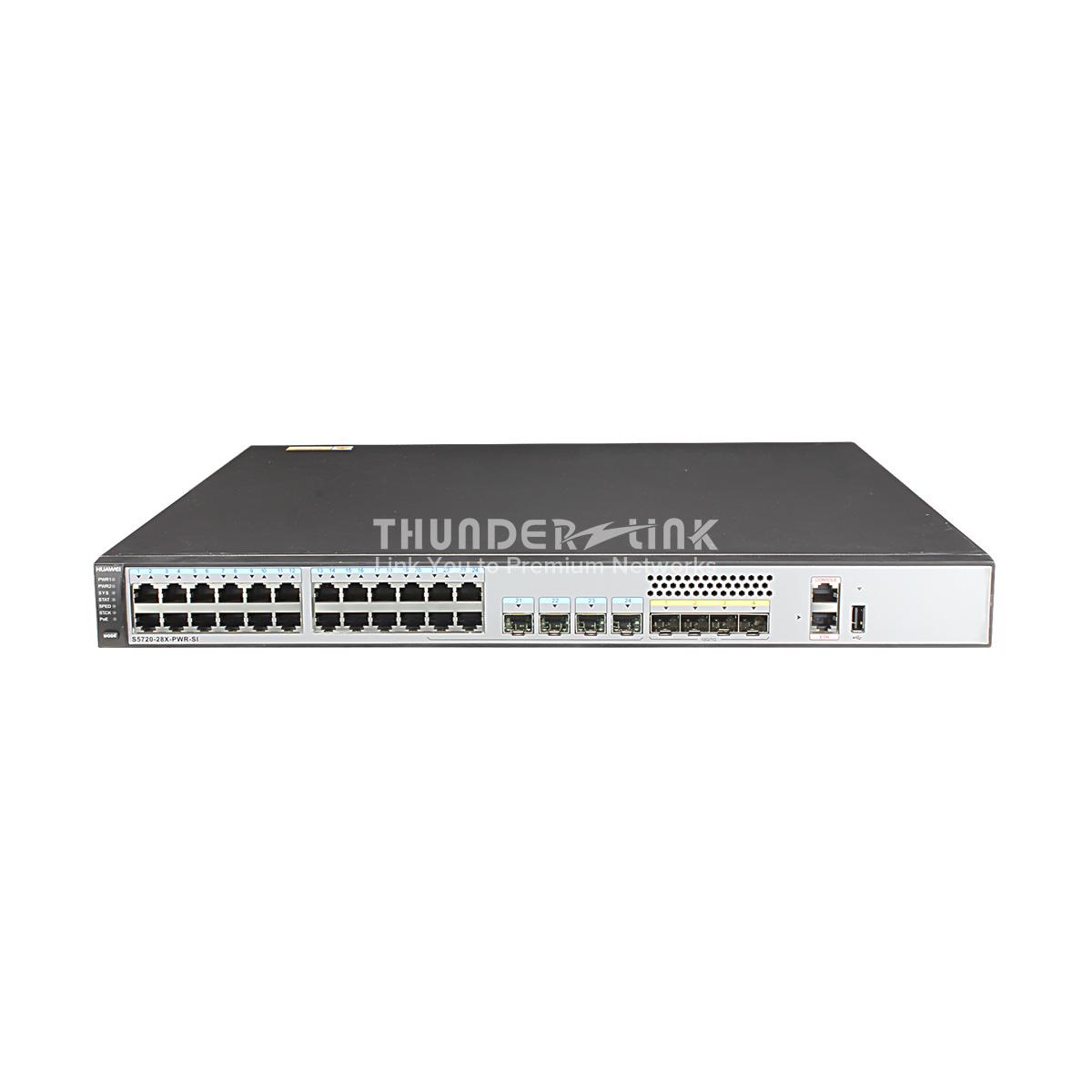

Huawei S5720-28X-PWR-SI-AC switch with 24-ports 1000BASE-T POE+, including 4-ports GE SFP combo, 4-ports 10GE SFP+, 2 power slots, 1 AC power module

(2 reviews) | 7 QA

in stock      3-5 days lead time

17 People watching this product now!
PN: 02350DLW Category: Tags: , ,
Authorized Partner

Authorized Partner x

Authorized Partner guaranteed or sourced from officially recognized partner. Chassis and modules come with 1 year warranty.

Original New Sealed

Original New Sealed x

Original, new and sealed switch; original packaging with seal; won't unpack the product without permission (insert the power module or replace the power supply cable).

Optical Module quality control-Test Procedure
In order to ensure that the optical module we deliver do not have compatibility problems. We will test each batch of optical modules, to avoid compatibility problems of switch to the greatest extent.
Learn More

Description

Huawei S5720-28X-PWR-SI-AC switch with 24-ports 1000BASE-T POE+, including 4-ports GE SFP combo, 4-ports 10GE SFP+

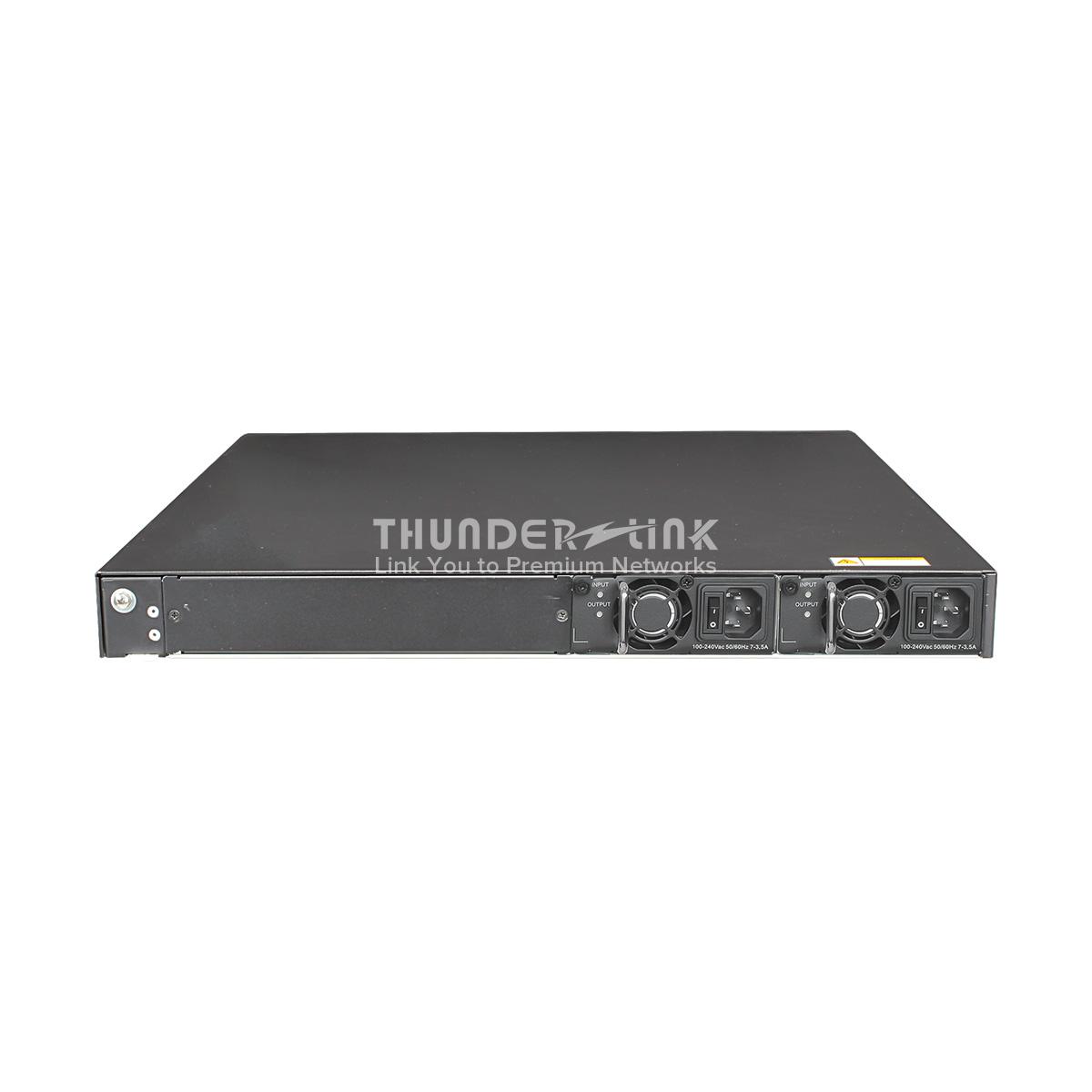

With 2 power slots, 1 AC power module

No extension slot

Forwarding perfomance: 96Mpps

Switching capacity: 336Gbps

16K MAC address entries

POE switch

The S5720-SI series switches (S5720-SI for short) are next-generation standard gigabit Layer 3 Ethernet switches. Large switching capacity, high-density GE interfaces, and 10GE uplink interfaces and Pv6 forwarding capabilities. S5720-SI can be applicable to campus networks and data centers. S5720-SI integrates many advanced technologies in terms of reliability, security, and energy saving. Simple and convenient for installation and maintenance to reduce customers’ O&M costs and help enterprise customers build a next-generation IT network.

Tech Specs
Item Description
Fixed port 24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP
P series: 4 Gig SFP
X series: 4 10 Gig SFP+
Forwarding performance 96 Mpps
Extended slot NA
MAC address table IEEE 802.1d
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Wireless AC AP access control, AP domain management, and AP configuration template
management, Radio management, unified static configuration, and dynamic centralized management, WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame 10K
IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP,
routing policy
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports
or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACL Rate limitation in the inbound and outbound directions of a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP fields of packets
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
TCP/UDP source/destination port number, protocol number, or VLAN
Queue-based rate limitation and shaping on ports
HQoS
Security features Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-
protection switchover
SEP
G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF) Working as the parent node to vertically virtualize downlink switches and APs as one
device for management
Supports a two-layer client architecture
Management and
Maintenance
Virtual cable test, SNMP v1/v2c/v3, RMON
Network management system (NMS) and Web management
System logs and multi-level alarms
802.3az EEE
GVRP
Dying Gasp upon power-off
Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
Link-type Negotiation Protocol (LNP), similar with DTP
VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment Operating temperature:0-1800m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
Dimensions (mm) 442 (W) x 420 (D)x 43.6 (H)
Typical power consumption without PD: 31.8W;
with PD: <913W(PoE:740W)



Additional information
Weight 14.0 kg
Dimensions 71.0 × 55.0 × 17.5 cm
PoE Type

PoE+

Features

,

Port

12-24

Rate

10G, GE

Q&A

Q: What are differences among S5735-L48P4X-A, S5720-52X-PWR-LI-AC, S5735-S24P4X, S5720-28X-PWR-SI-AC switch?

A: S5735-L48P4X-A switch is corresponding old model S5720-52X-PWR-LI-AC switch; S5735-S24P4X switch is corresponding old model S5720-28X-PWR-SI-AC switch.

Product Name S5735-L48P4X-A S5720-52X-PWR-LI-AC S5735-S24P4X S5720-28X-PWR-SI-AC
Series S5735-L S5720-LI S5735-S S5720-SI
Fixed ports 48xPoE+ 10/100/1000BASET, 4x10GE SFP+ 48xPoE+ 10/100/1000BASE-T, 4x10GE SFP+ 24xPoE+ 10/100/1000BASE-T, 4x10GE SFP+ 24xPoE+ 10/100/1000BASE-T, 4xcombo, 4x 10GE SFP+
Forwarding Performance 132 Mpps 144 Mpps 96 Mpps 96 Mpps
Switching Capacity 176 Gbit/s/432 Gbit/s 336 Gbit/s 128 Gbps/336 Gbps 336 Gbit/s
Power module slot 1 1 AC power fixed 2 2
PoE Supported Supported Supported Supported
Memory (RAM) 1 GB 512 MB 1 GB 512 MB
Flash 512 MB in total 512 MB in total 512 MB in total. 512 MB in total.
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 420.0 mm 43.6 mm x 442.0 mm x 310.0 mm 43.6 mm x 442.0 mm x 420.0 mm 44.4 mm x 442.0 mm x 420.0 mm
Weight (with packaging) 8.7 kg 5.6 kg 7.39 kg 9.3 kg
Part number 98010944 98010619 98010940 02350DLW

Q: Do I need to buy power supply for S5720-28X-PWR-SI-AC?

A: No, one AC power module is configured by default.

Q: Does S5720-28X-PWR-SI-AC support istack?

A: Yes, you just need to purchase the stack card.

Q: How many slots S5720-28X-PWR-SI-AC support?

A: Two extended slot that one port extended slot with optional subcard 4x10GE SFP+, one slot reserved for the stack card

Q: Can Thunder-link.com provide MIB for Huawei S5720 switch?

A: Yes, you may contact our sales person.

Q: Can I use compatible SFP/SFP+ module on Huawei S5720 switch?

A:Yes, but the switch may generate alarm, however, it will not affect normal use.

Q: Can I get technical support from Thunder-link.com if we purchase S5720-28X-PWR-SI-AC from you?

A: Yes, Thunder-link.com has experienced technical team on Huawei switches, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.
