S5720-56C-PWR-EI-DC

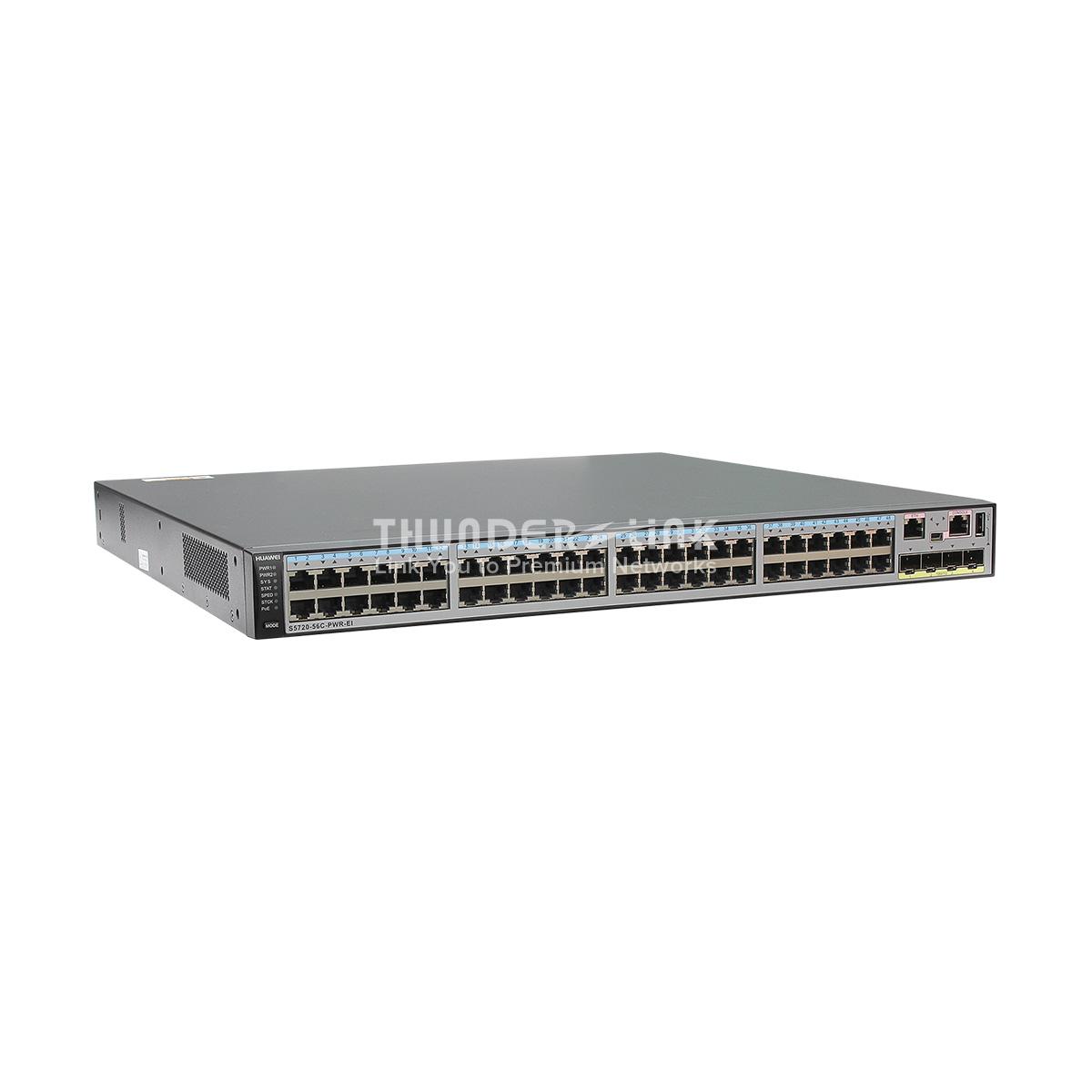

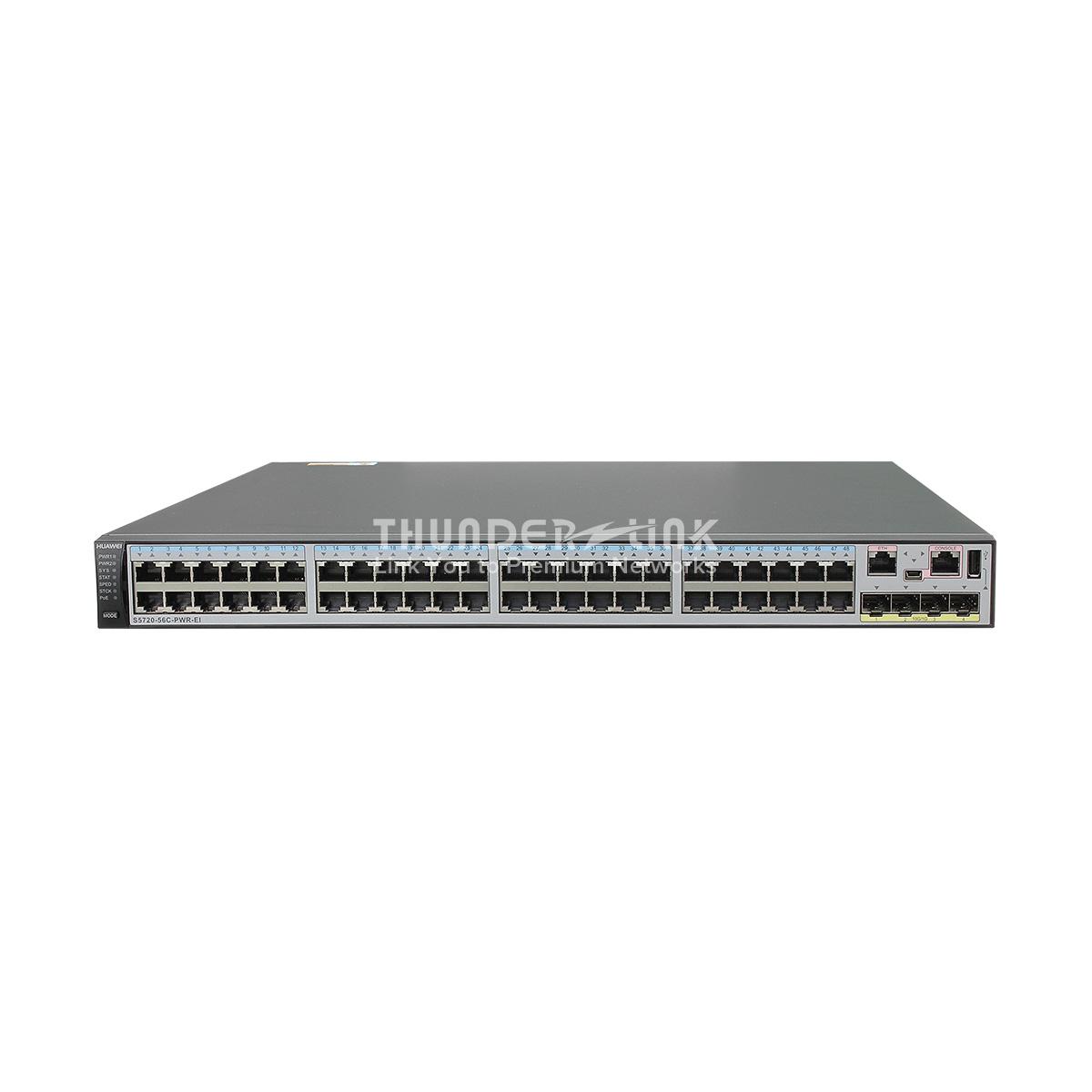

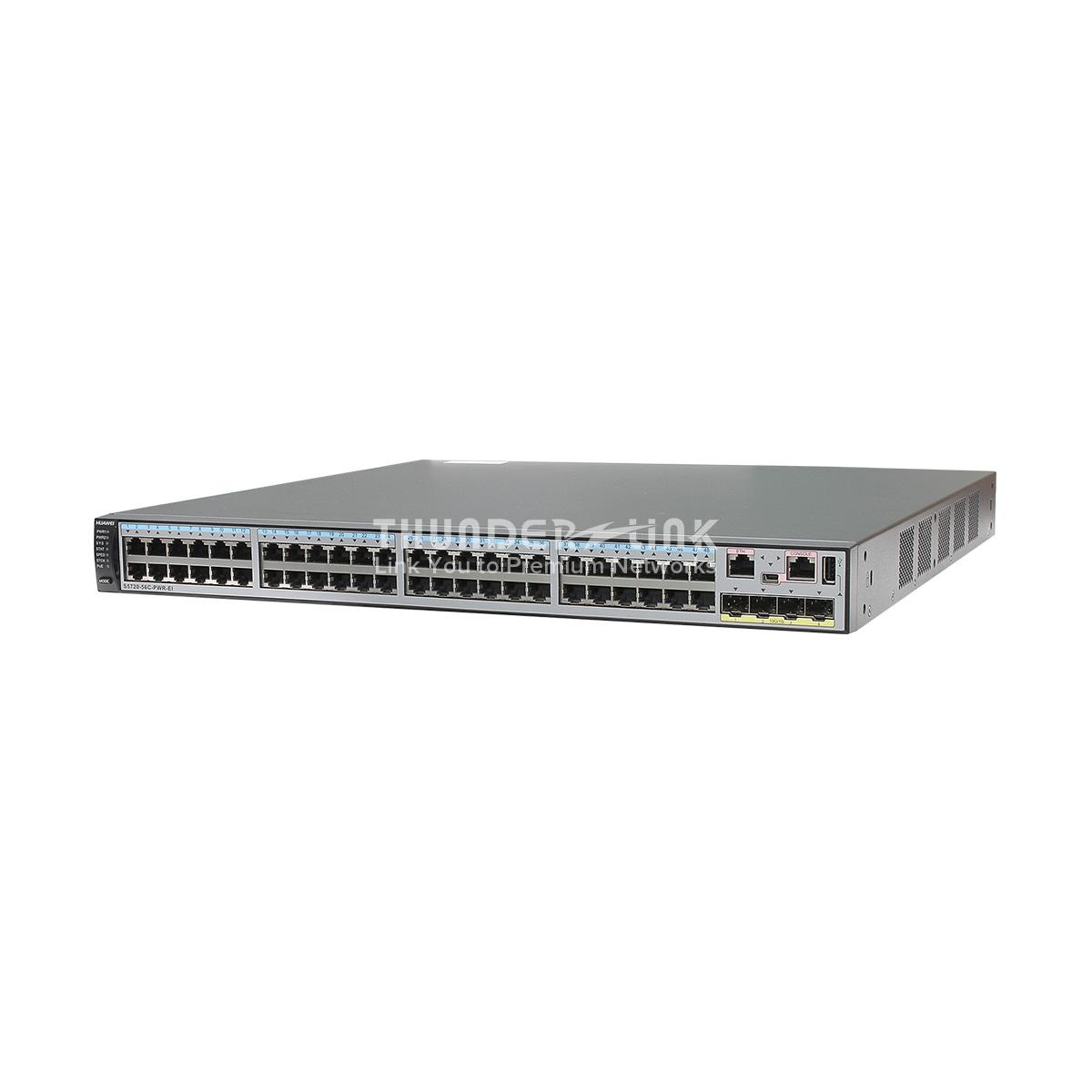

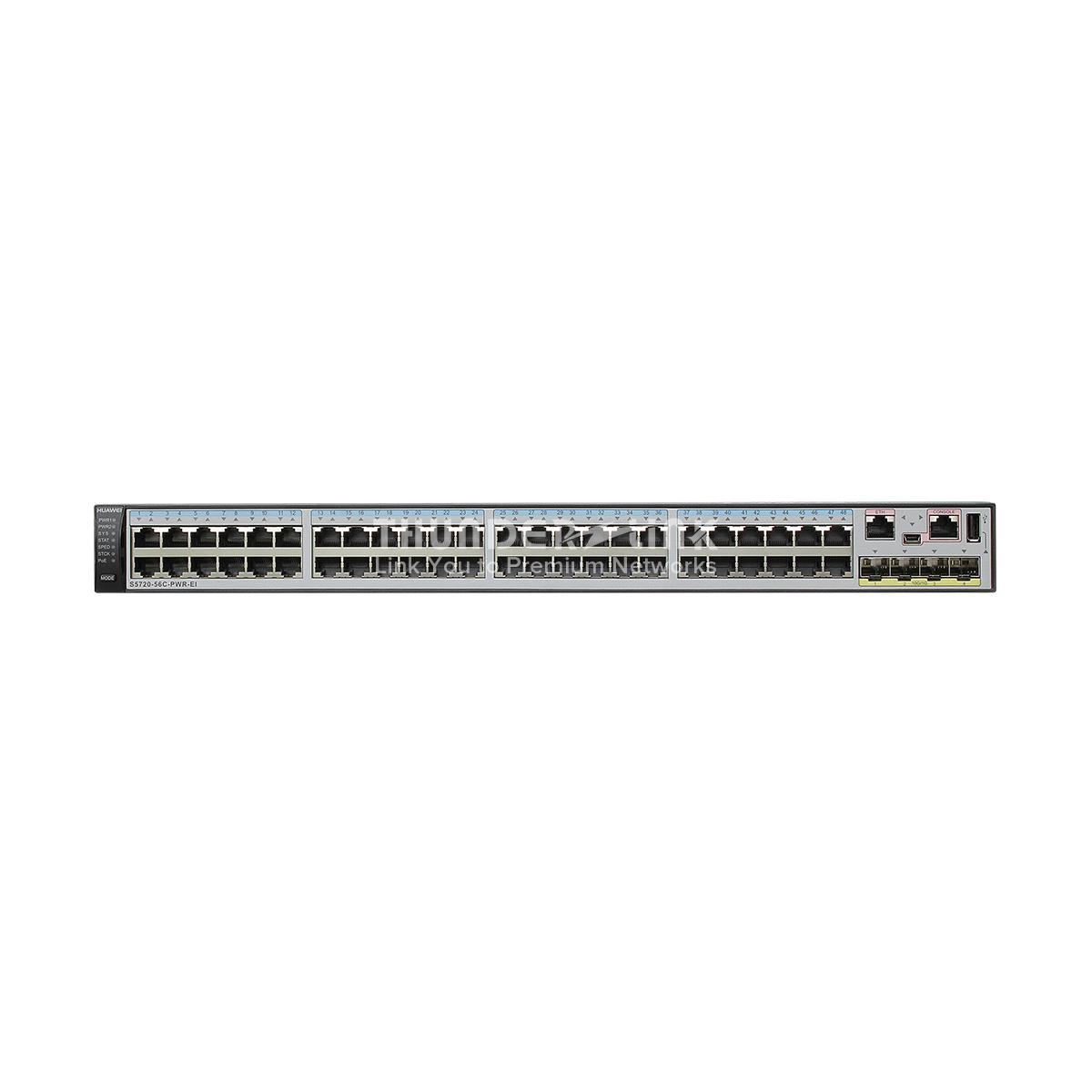

Huawei S5720-56C-PWR-EI-DC switch with 48-ports PoE+ 10/100/1000BASE-T, 4-ports 10GE SFP+, with 1 DC power module equipped

(1 customer review) | 4 QA

0 in stock      3-5 days lead time

Facebook Twitter Linkedin Tumblr
18 People watching this product now!
PN: 02350NHM Category: Tags: , ,
Authorized Partner

Authorized Partner x

Authorized Partner guaranteed or sourced from officially recognized partner. Chassis and modules come with 1 year warranty.

Original New Sealed

Original New Sealed x

Original, new and sealed switch; original packaging with seal; won't unpack the product without permission (insert the power module or replace the power supply cable).

Description

Huawei S5720-56C-PWR-EI-DC switch with 48-ports PoE+ 10/100/1000BASE-T, 4-ports 10GE SFP+

2 power slots, with 1 DC power module equipped

PoE switch

1 extension slot

The S5720-EI series enhanced Gigabit Ethernet switches are switches that provide flexible GE access ports (including optical, electrical, and combo ports) and 10GE uplink ports. Built on next-generation high-performance processors and Huawei Versatile Routing Platform (VRP), the S5720-EI provides larger table sizes and higher hardware processing capabilities than equivalent
switches. Besides, it provides comprehensive service processing capabilities, enhanced security control, and mature IPv6 features, and supports MACsec, intelligent stack (iStack), flexible Ethernet networking, and easy operations and maintenance (O&M). With all these advantages, the S5720-EI is widely used for access/aggregation in enterprise campus networks or gigabit access in data center networks

Tech Specs
Item Specification
Service port surge protection Service ports on front panel: ±6 kV in common mode
Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode
Power supply surge protection Using 500 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time to repair (MTTR) 2hours
Stack ports Ports on the 2-port 10GE SFP+ rear interface card
Ports on the 2-port 10GE RJ45 rear interface card
Ports on the 2-port QSFP+ rear stack card
Availability > 0.99999
RTC Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
-38.4 V DC to -72 V DC
Operating altitude 0-5000 m (0-16404 ft.)
Relative humidity 5% to 95%, noncondensing
Maximum power consumption Not providing the PoE function: 98 W
100% PoE loads: 913 W (system power consumption: 173 W, PoE: 740 W)
Dimensions without packaging (H x W x D) Basic dimensions: 44.4 mm x 442.0 mm x 424.7 mm
Maximum dimensions: 44.4 mm x 442.0 mm x 451.8 mm
Additional information
PoE Type

PoE+
Features

,

Port

48+
Rate

10G
Q&A

Q: Does S5720-56C-PWR-EI-DC has extension slot?

A: Yes, it has one extension slot

Q: Does S5720-56C-PWR-EI-DC support pluggable power modules?

A:It has two power module slots, each of which can have a 500 W or 650 W power module installed. A power module can provide 369.6 W of PoE power for powered devices (PDs). A 500 W AC power module and a 650 W DC power module can be used together in the switch

Q: Can I use compatible SFP/SFP+ module on Huawei S5720-EI series switch?

A:Yes, but the switch may generate alarm, however, it will not affect normal use.

Q: Can I get technical support from Thunder-link.com if we purchase S5720-56C-PWR-EI-DC from you?

A: Yes, Thunder-link.com has experienced technical team on Huawei switches, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.
