S5731-S48T4X

Name: Buy Huawei CloudEngine S5731-S48T4X switch online at thunder-link.com
SKU: 02353AJB

(0 reviews) | 4 QA

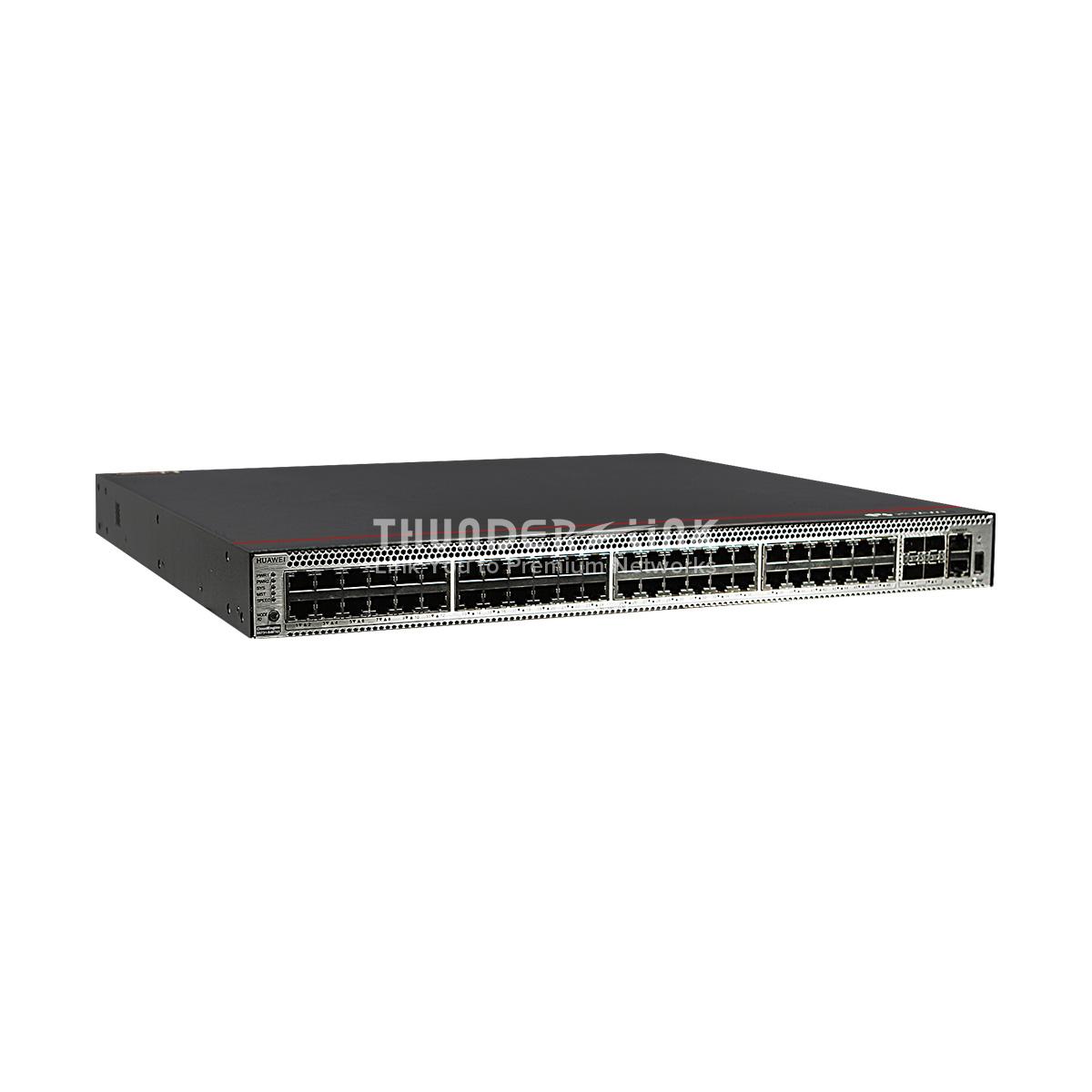

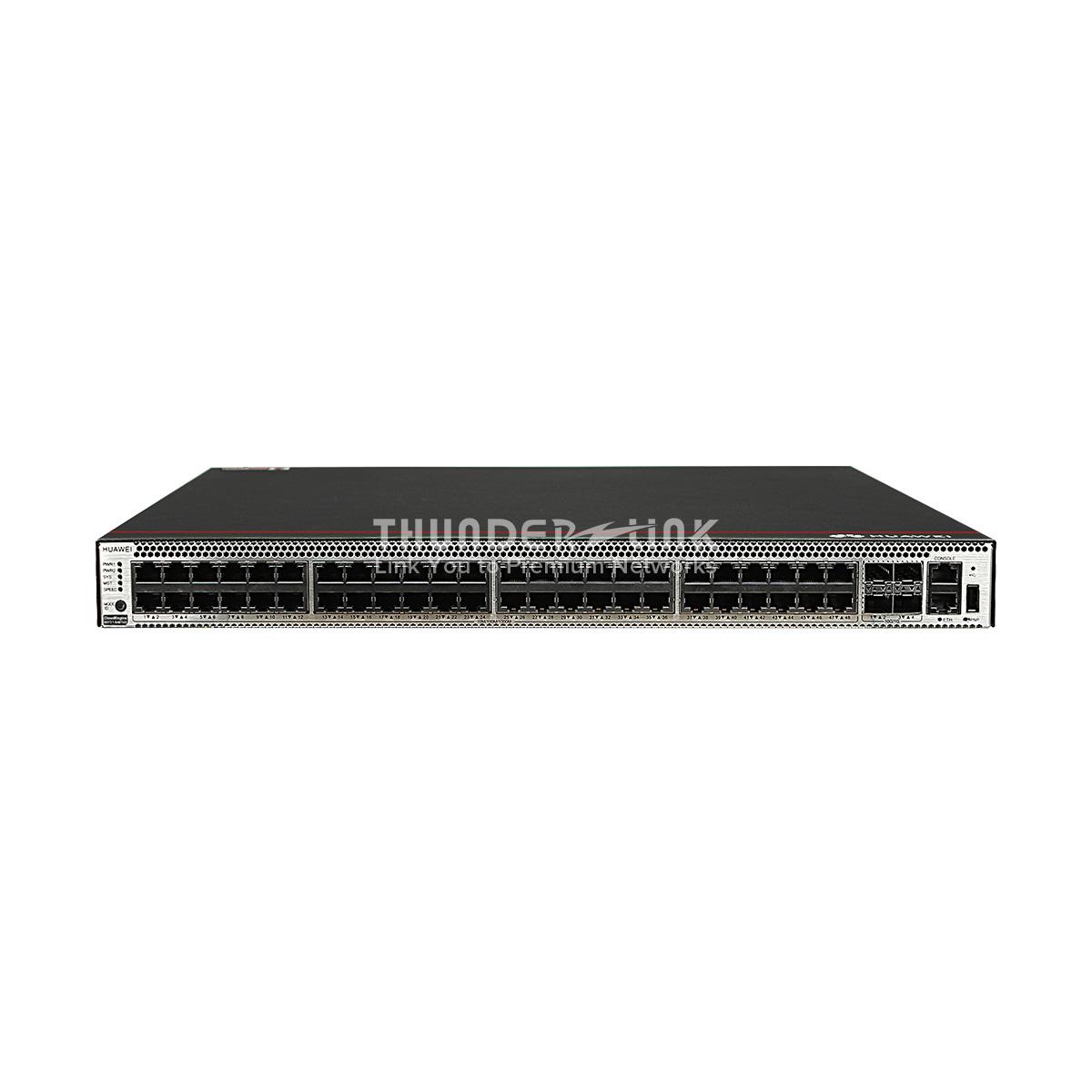

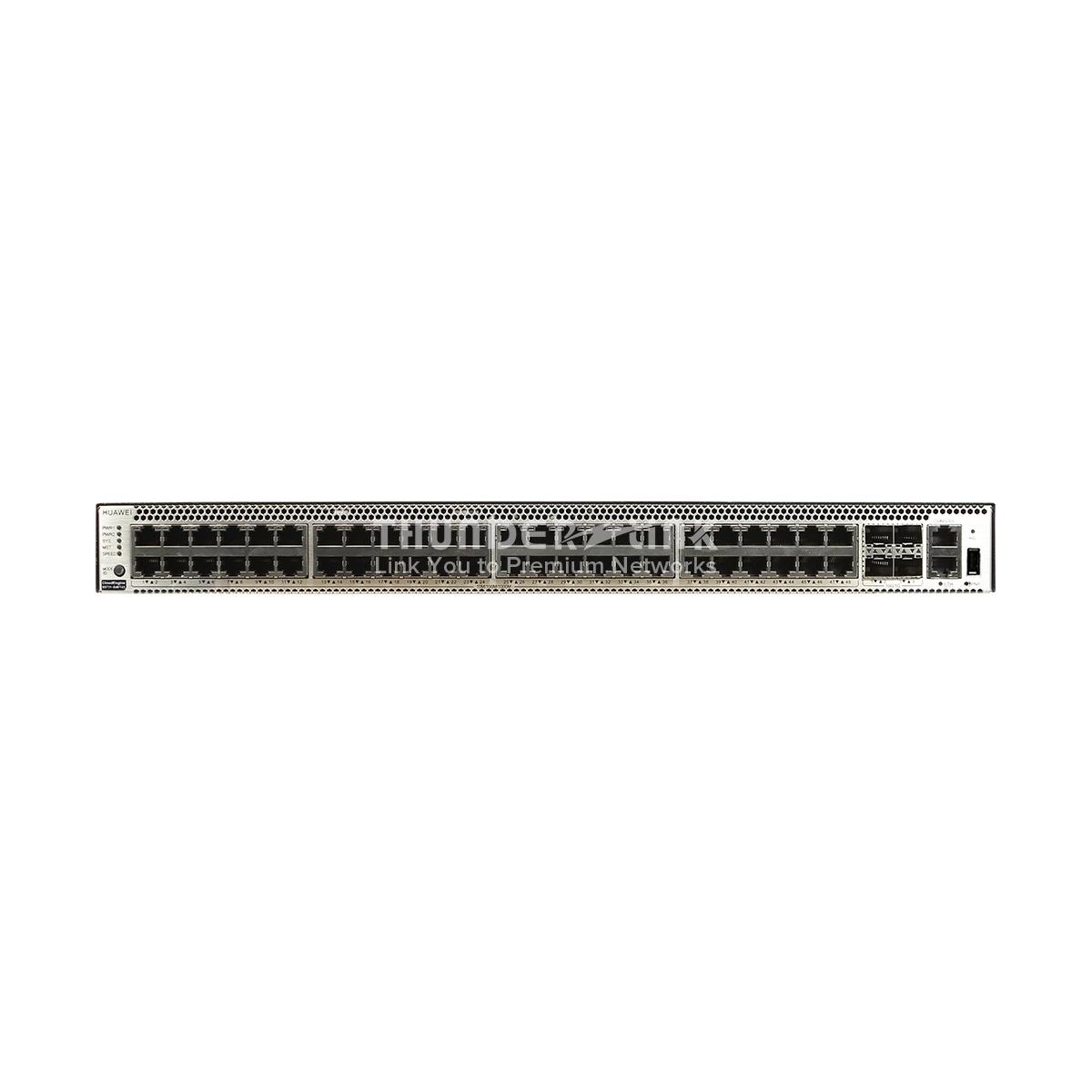

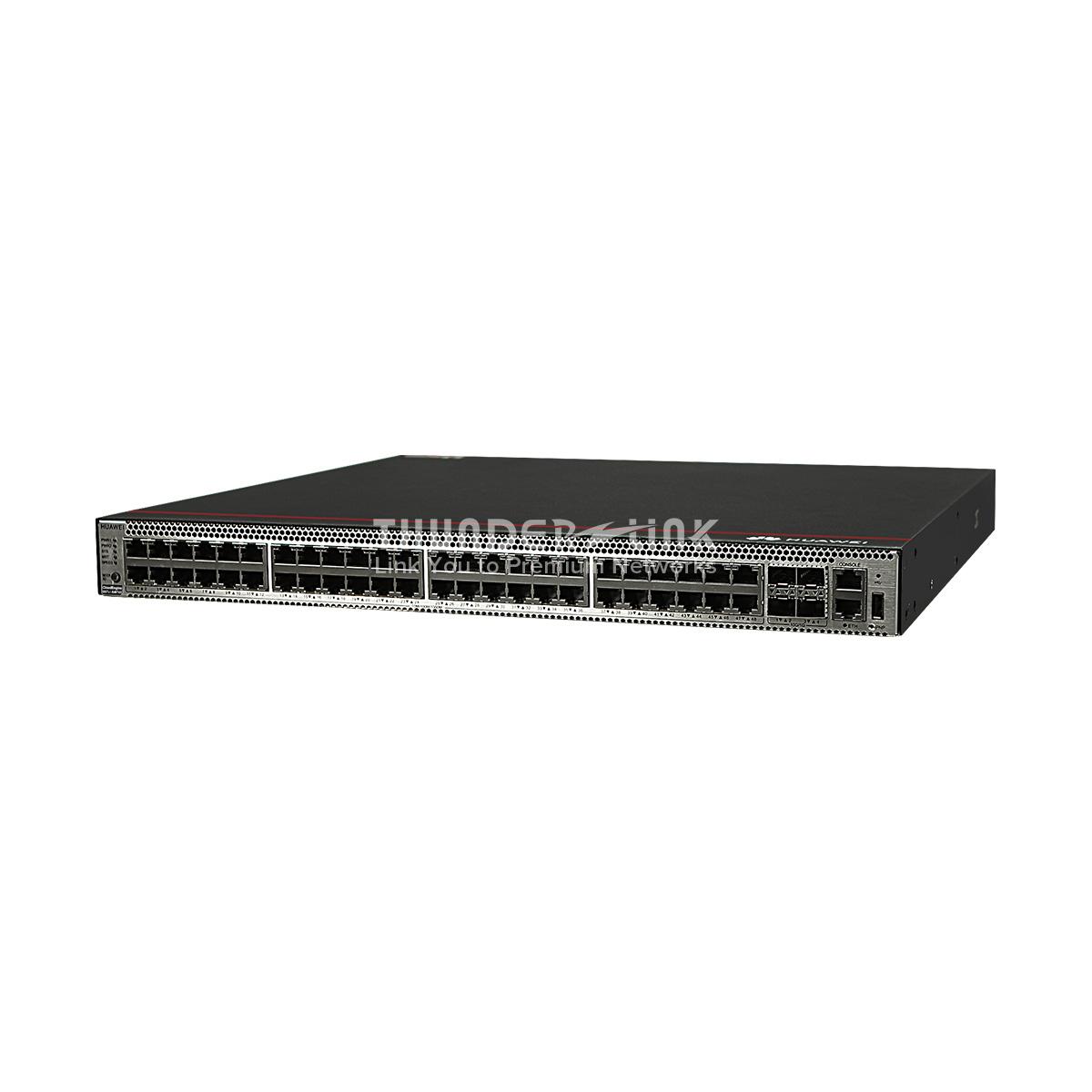

Huawei CloudEngine S5731-S48T4X switch with 48-ports 1000BASE-T, 4-ports 10GE SFP+, without power module

96 in stock Ready to ship

PN: 02353AJB Category: S5731 Series Tags: 10GE Switch, 48 Port Switch

Authorized Partner

Authorized Partner x

Authorized Partner guaranteed or sourced from officially recognized partner. Chassis and modules come with 1 year warranty.

Original New Sealed

Original New Sealed x

Original, new and sealed switch; original packaging with seal; won't unpack the product without permission (insert the power module or replace the power supply cable).

Description

Huawei CloudEngine S5731-S48T4X switch with 48-ports 4x10GE SFP+

With 1+1 power backup

Forwarding performance: 125 Mpps

Switching capacity: 176 Gbps/672 Gbps

The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

Tech Specs

Specification
Fixed Port	48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports
Power supply type	150 W AC (pluggable); 600 W AC (pluggable); 1000 W DC (pluggable)
Rated voltage range	AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to – 60 V DC
Maximum voltage range	AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption	124 W
Noise	Under normal temperature (sound power): 57.5dB (A) Under high temperature (sound power): 70.9dB (A) Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature	0-1800 m altitude: -5°C to +45°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature	-40℃ to +70℃
Relative humidity	5% to 95% (non condensing)
Surge protection specification (service port)	Common mode: ±6 kV
Surge protection specification (power port)	AC power port: ±6 kV in differential mode, ±6 kV in common mode DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation	Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Dimensions (H x W xD)	442 mm x 420 mm x 43.6 mm
Chassis height	1 U
Chassis weight (including packaging)	8.55 kg

Additional information

Weight	8.6 kg
Dimensions	43.6 × 44.2 × 42.0 cm
PoE Type	Non-PoE
Features	Authorized Partner, Original New Sealed
Port	48+
Rate	10G

Q&A

Q: Can S5731-S series switches support GE electrical ports?

A: Yes, CloudEngine S5731-S series switches can provide GE electrical downlink ports and 10GE uplink ports.

Q: Does CloudEngine S5731-S48T4X support intelligent stack (iStack) ?

A: Yes, the CloudEngine S5731-S series switch support the iStack function that combines multiple switches into a logical switch. You just need to purchase the stack card.

Q: Do I need to buy SFP Modules for S5731-S series switch?

A:Yes, as S5731-S48T4X is an optical switch, the optical ports will not able to work without SFP module, if you don’t have SFP module, you will need to purchase additional SFP Module.

Q: Can I get technical support from Thunder-link.com if we purchase Huawei CloudEngine S5731-S48T4X from you?

A: Yes, Thunder-link.com has experienced technical team on Huawei switches, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.
