S5735S-L24P4X-A

PN: 98010928
100 100 1
1 Review
RFQ

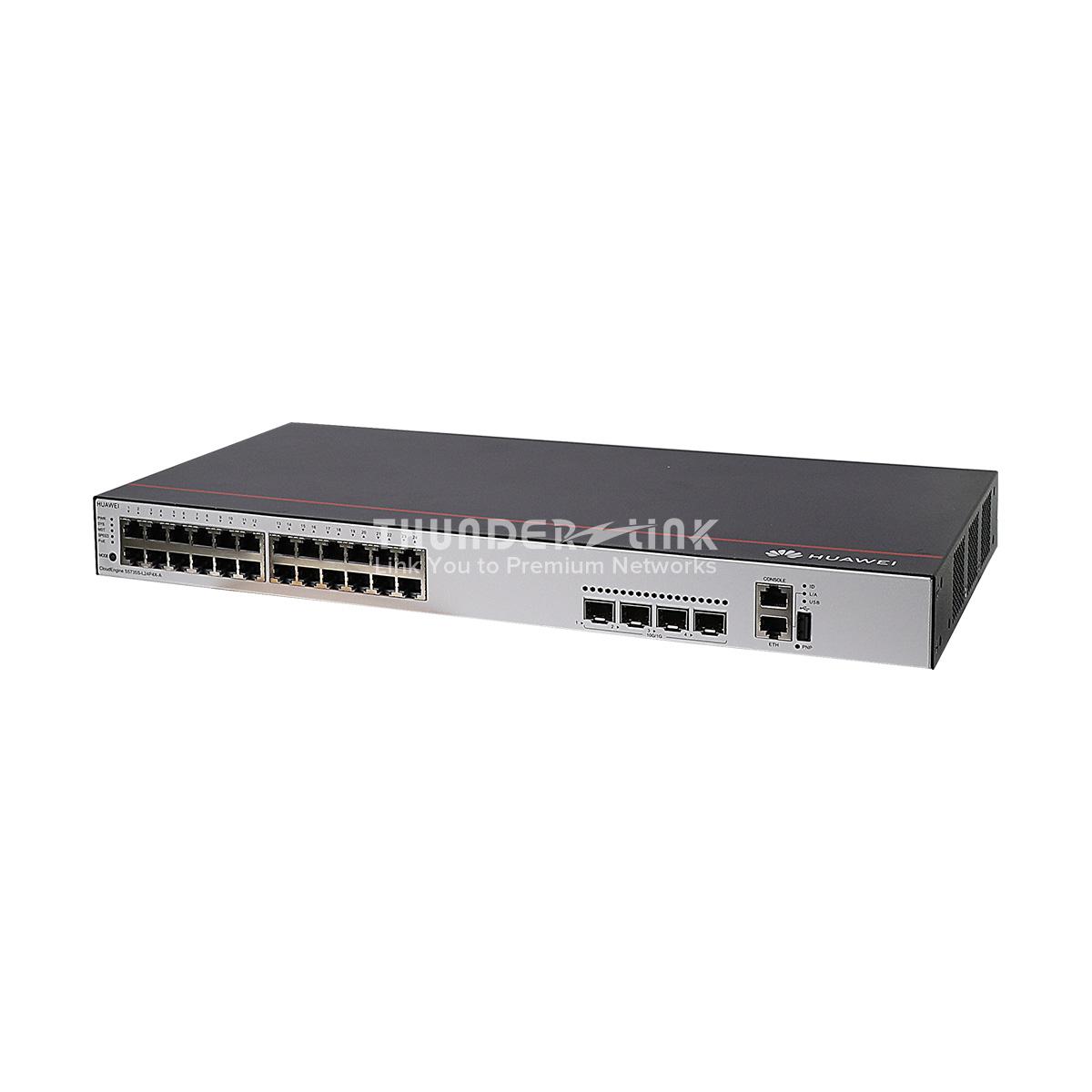

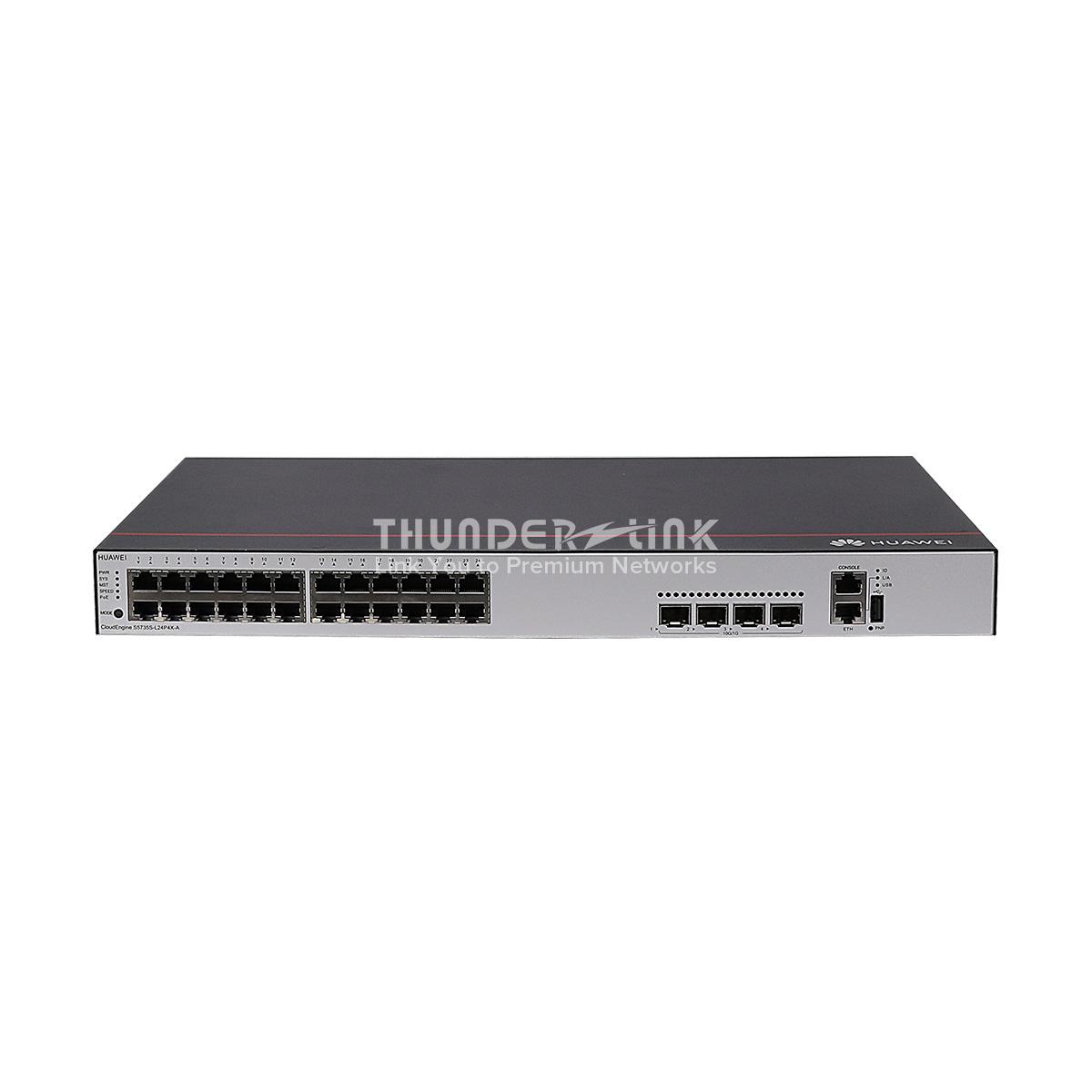

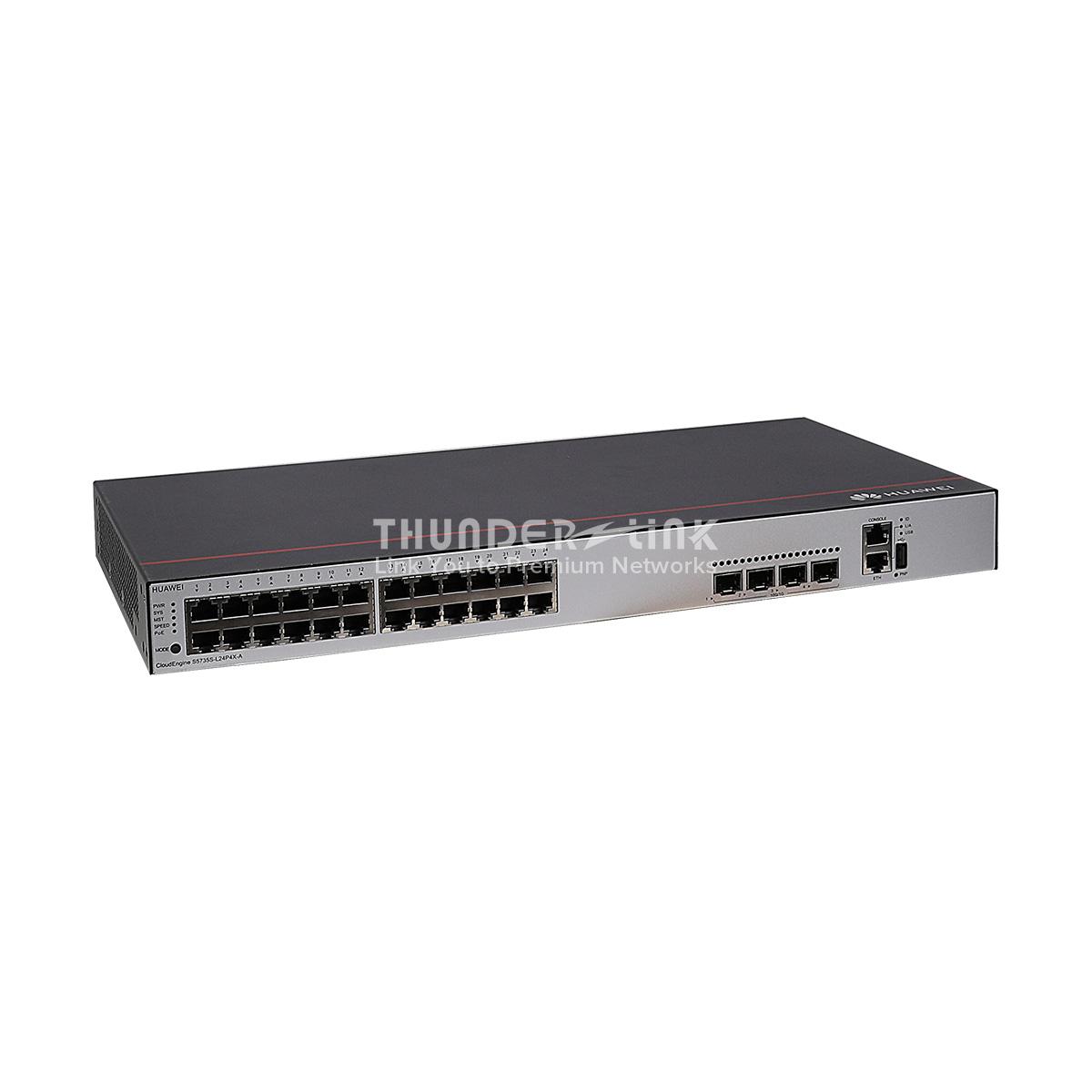

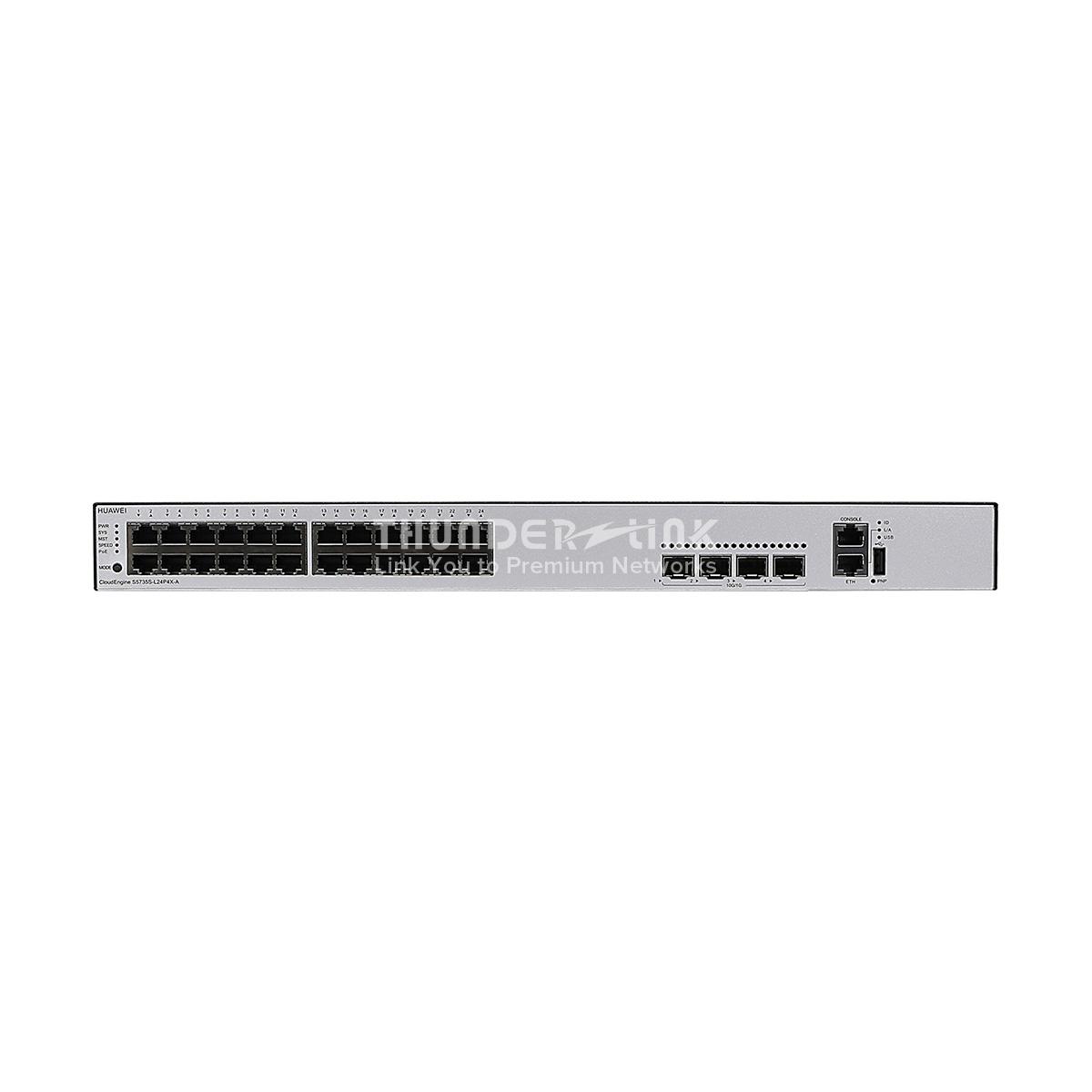

Huawei CloudEngine S5735S-L24P4X-A switch with 24-ports PoE+ 1000BASE-T, 4-ports 10GE SFP+, with 1 AC power fixed
- +
Authorized Partner

Authorized Partner x

Authorized Partner guaranteed or sourced from officially recognized partner. Chassis and modules come with 1 year warranty.

Original New Sealed

Original New Sealed x

Original, new and sealed switch; original packaging with seal; won't unpack the product without permission (insert the power module or replace the power supply cable).


Overview

Huawei CloudEngine S5735S-L24P4X-A switch with 24-ports PoE+ 1000BASE-T, 4-ports 10GE SFP+

With 1 AC power fixed

PoE+ supported

1 GB Memory, 512 MB in total


Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei's Versatile Routing Platform (VRP), CloudEngine S5735S-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Tech Specs
Specification
Fixed portTwenty-four PoE+ 10/100/1000BASE-T ports Four 10GE SFP+ ports
Memory (RAM)1 GB
Flash512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)57.07 years
Mean time to repair (MTTR)2 hours
Availability> 0.99999
Service port surge protectionCommon mode: ±7 kV
Power supply surge protection±6 kV in differential mode, ±6 kV in common mode
Stack ports

Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)

Rated voltage range

AC input: 100 V AC to 240 V AC, 50/60 Hz

High-Voltage DC input: 240 V DC

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-Voltage DC input: 190 V DC to 290 V DC

Maximum power consumption

(100% throughput)

Not providing the PoE function: 56 W

100% PoE loads: 458 W (PoE: 380 W)

Typical power consumption

 (30% of traffic load)

43 W

Certification

EMC certification

Safety certification

Manufacturing certification

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm

Weight (with packaging)

4.31 kg


Q&A

Q: Can S5735S-L24P4X-A support PoE?

A: Yes, S5735S-L series switch S5735S-L24P4X-A and S5735S-L24P4S-A both support PoE.



Q: Does Huawei CloudEngine S5735S-L24P4X-A support RPS (redundant power system)?

A: No, S5735S-L24P4X-A doesn't support RPS; for switch supporting RPS, you may contact our sales person.



Q: Can I get technical support from Thunder-link.com if we purchase Huawei CloudEngine S5735S-L24P4X-A from you?

A: Yes, Thunder-link.com has experienced technical team on Huawei switches, however, you may need to purchase technical support service from us as by default we only provide one year hardware warranty.

Reviews(1)

1 review

5.0

100.0%
5 start 5 1
4 start 4 0
3 start 3 0
2 start 2 0
1 start 1 0
  1. Lao People's Democratic Republic
    Value
    100%
    We received cargo of switch and I get activation password for that switch, how can I activate the license easily on the CLI?
    Comments (0) Helpful? Like () Dislike (0)
