Huawei OSN 9800 M12 System Auxiliary Communication Board
0 in stock Ready to ship
Hardware Compatibility x
Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.
Hardware Tested x
In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more
TMF2AUX System Auxiliary Communication Board
Applied to Huawei OSN 9800 M12, it locks the reference clock source and provides clock signals and frame signals to the system
TMF2AUX board supports 1+1 hot backup scheme, two AUXs serve as mutual backups
TMF2AUX board supports Physical Clocks
The TMF2AUX board is a system auxiliary communication board with the clock function. It implements clock and time synchronization for the entire NE, and can provide system clock signals and frame header signals for each service board. The clock signals comply with ITU-T G.813 and ITU-T G.823.

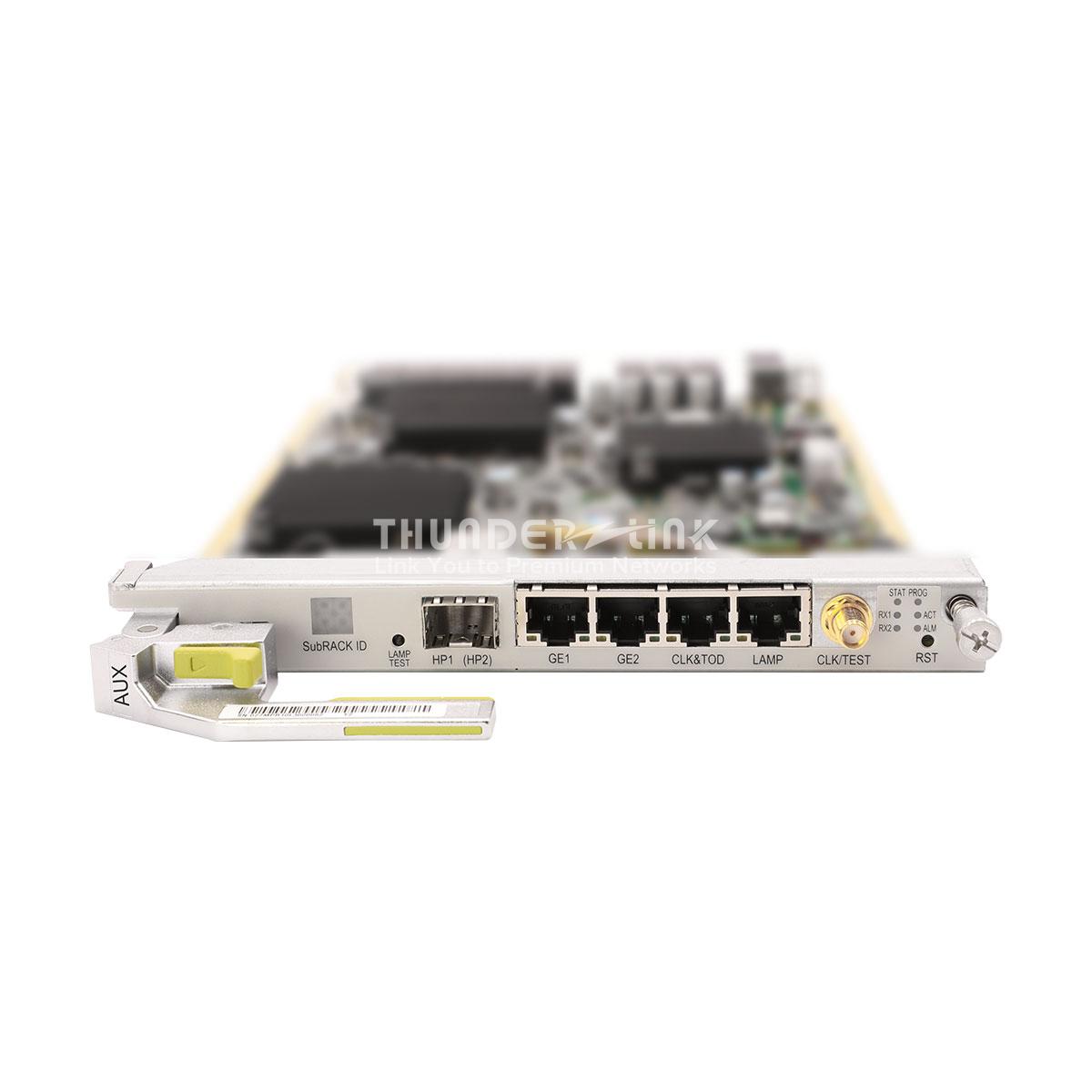

Front Panel | |
Valid Slots | |
OptiX OSN 9800 M12 Subrack: IU73, IU74 | |
Initial Version of Different Subrack | |
V100R019C10SPC600 | |
Function and Feature | Description |
Basic functions | The AUX board implements inter-board and inter-subrack communication and intra-subrack management. |
The AUX board collects overheads of other boards and sends the overheads to the SCC board. Then, the SCC board processes the overheads and sends the processed overheads to the AUX board. Subsequently, the AUX board sends the processed overheads back to the other boards. | |
Clock Function | |
Traces the external clock source, service clock source, or local clock source, to provide the synchronization clock source for itself and the system. | |
Locks the reference clock source. Synchronizes the time of an NE with the time of the upstream system. | |
DCN communication | Supports inter-NE communication through IP over DCC or HWECC. |
Interface | Provides Ethernet communication. |
Provides common and emergency inter-subrack communication interfaces. | |
Provides clock and time signal input and output interface. | |
IEEE 1588v2 | Supported |
ITU-T G.8275.1/ITU-T G.8273.2 | Supported |
Pluggable Optical Module Supported | |
CSFP,Tx1490/Rx1310 nm,125M to 1.25Gbps,-9dBm,-3dBm,-24dBm,LC,SM,10km,-40 to 85degC CSFP,1310(Tx)/1490(Rx)nm,1.25Gb/s,-9dBm,-3dBm,-24dBm,LC,SMF,10km |
|
Mechanical Specifications | |
Dimensions (W x H x D, mm) | 176 x 20.3 x 267.35 |
Weight (kg) | 0.9 |
Typical Power Consumption (W) | 41 |
Maximum Power Consumption (W) | 49 |
