TN11DAS1

Huawei OSN6800 OSN8800 Dual C-BAND Optical Amplifiers Unit With Optical Supervisory Channel(MAX 0dBm IN and 20dBm OUT, Gain 20 to 31dB)

(1 customer review) | 6 QA

0 in stock      3-5 days lead time

14 People watching this product now!
PN: 03030MJB Category:
Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Software Compatibility

Software Compatibility x

Software compatibility test between active/standby system board, main control board and service board, mother/sub-card; system commissioning test to prevent all software conflicts.

Huawei WDM-OTN Equipment Test Procedure
In this topic, we take Huawei OSN 8800 as example to show you how to test the WDM/OTN equipment (Huawei OSN 6800 etc)
Learn More

Description

Dual C-BAND optical amplifiers unit with optical supervisory channel board (MAX 0dBm IN and 20dBm OUT, Gain 20 to 31dB), can apply to Huawei OSN6800 and OSN8800.

TN11DAS1 cannot be used at an OLA station.

TN11DAS1 cannot be used together with the SFIU board.

The total wavelengths range from 1529 nm to 1561 nm.

Supports the system to transmit services over different fiber spans without electrical regeneration.

Multiplexes and demultiplexes signals transmitted along the main path and optical supervisory channel.

Processes one channel of optical supervisory signals.

Supports transparent transmission of one channel of FE electrical signals.

Provides the online monitoring interface.

Supports the gain locking and power locking modes.

The EDFA inside board has transient control function.

Detects and reports the optical power.

Monitors the temperature of the pump laser.

Detects current of pump driving, back facet and pump cooling; temperature of pump laser and ambient temperature of board.

Transmits signals from section to section. It also has the 3R function.

Supports Optical-layer ASON.

The RX/TX optical port supports pluggable optical modules.

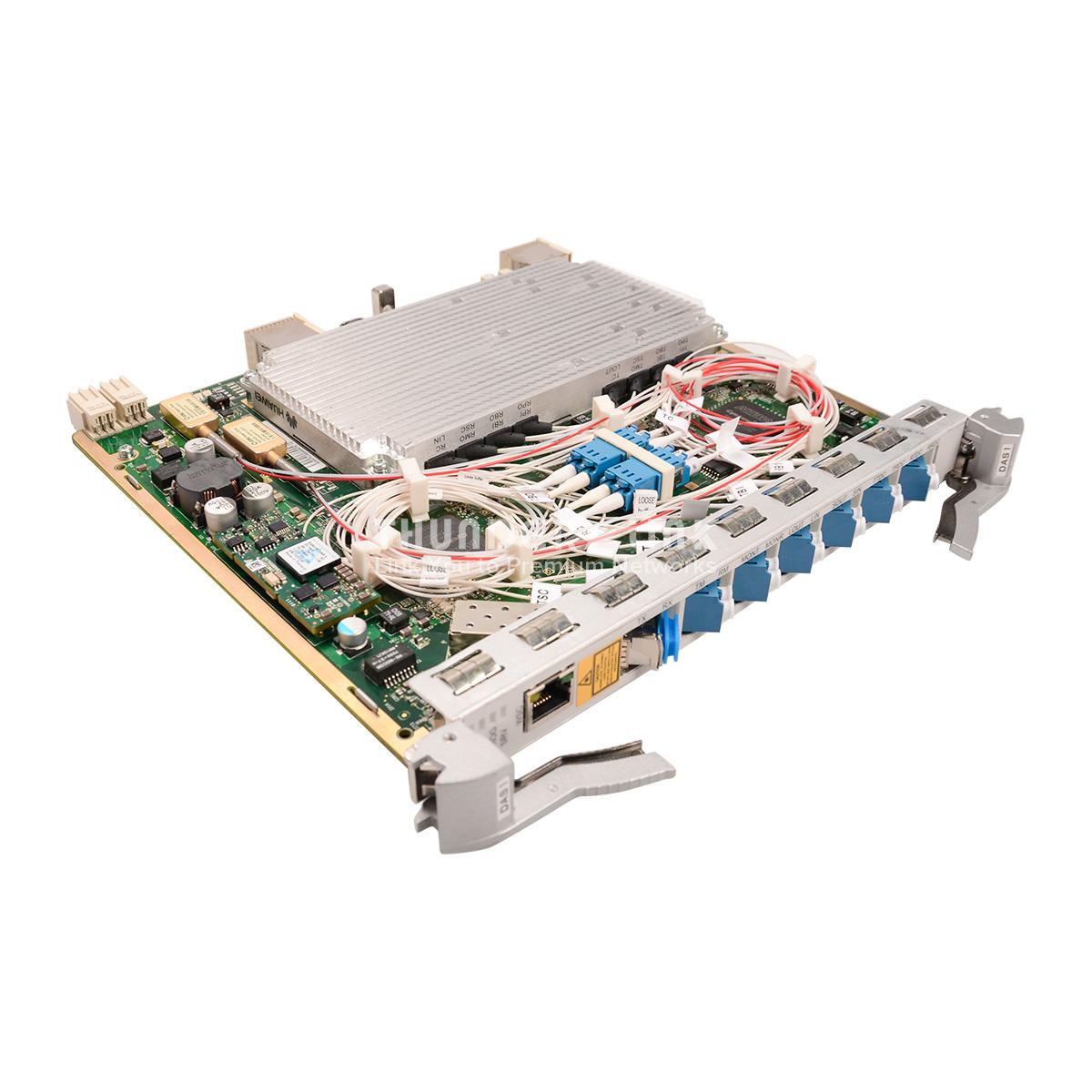

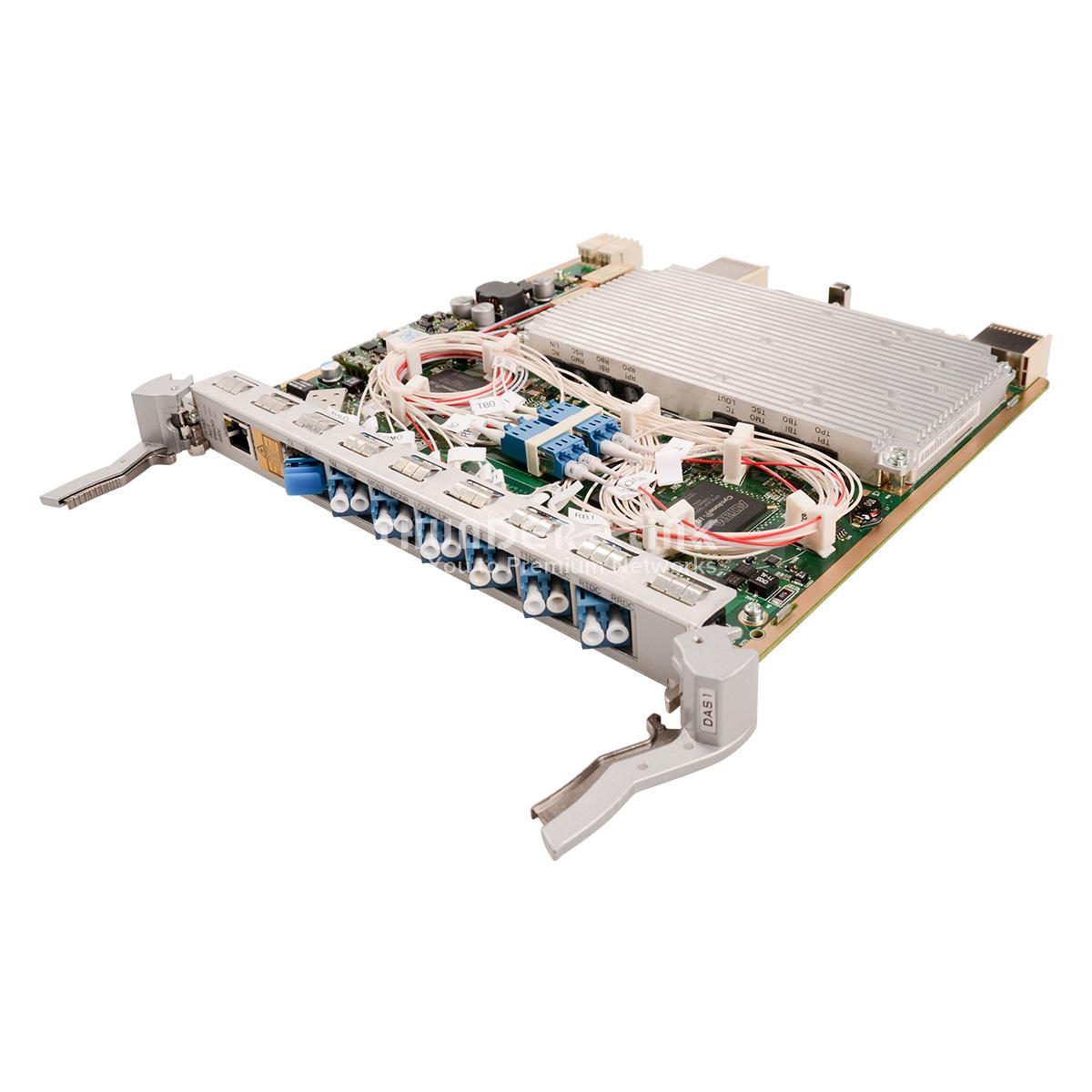

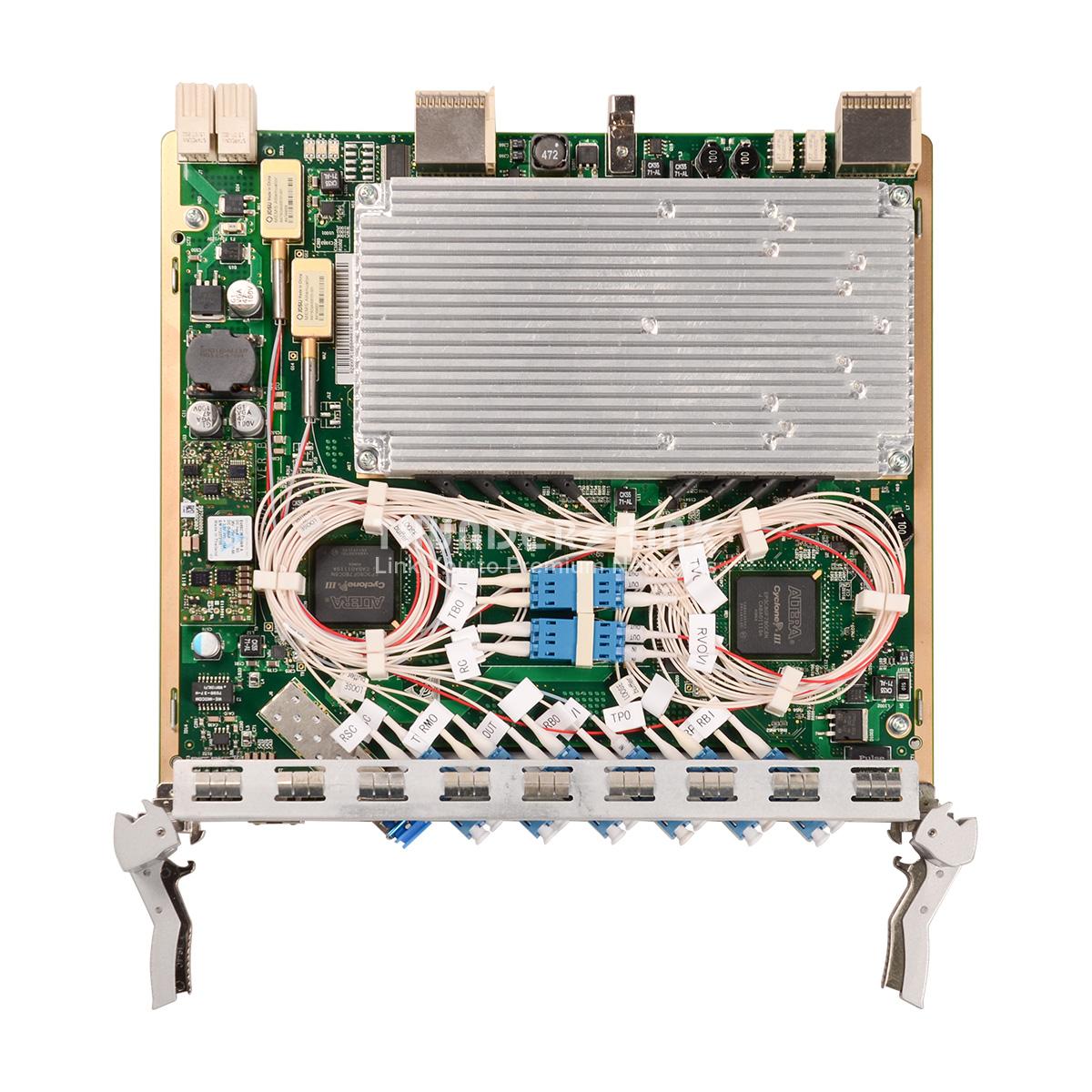

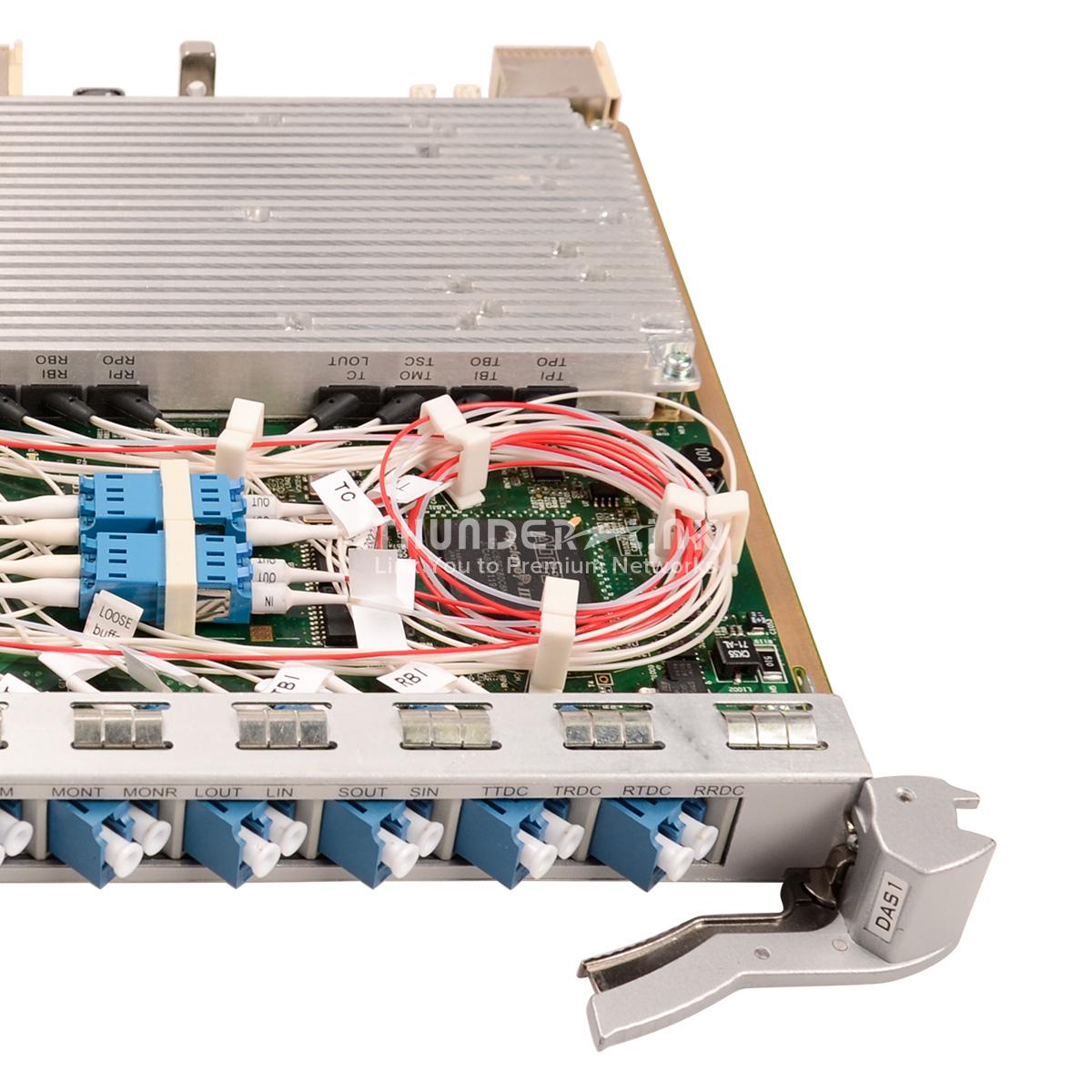

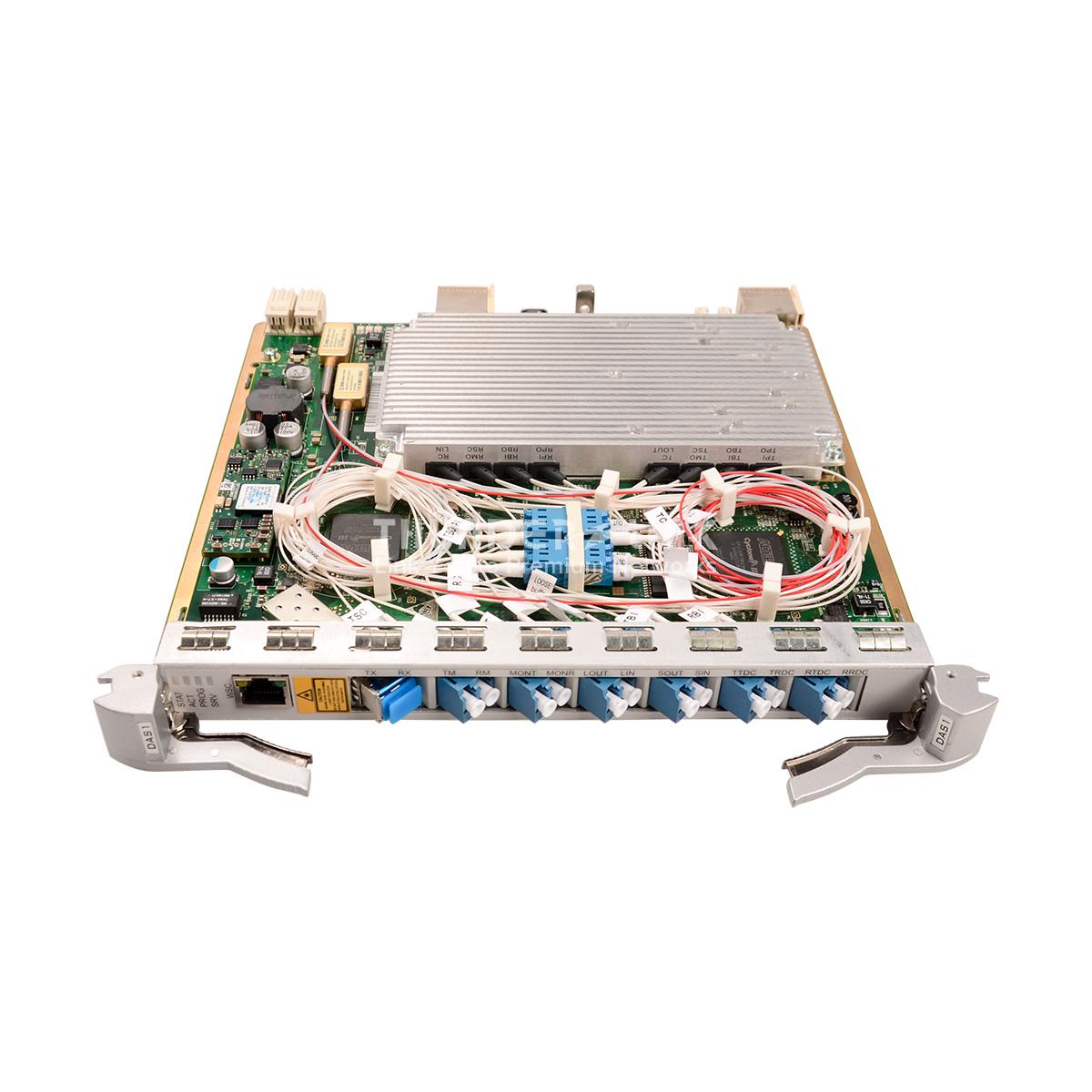

TN11DAS1 is a WDM optical amplifier board applied to Huawei OSN6800 and OSN8800, to amplify dual C-band optical signals at Gain Range 20dB to 31dB. It can apply to Huawei OSN6800 and OSN8800, cannot be used at an OLA station or cannot be used together with the SFIU board. TN11DAS1 part number is 03030MJB, it has only one version TN11.

Tech Specs
Front Panel

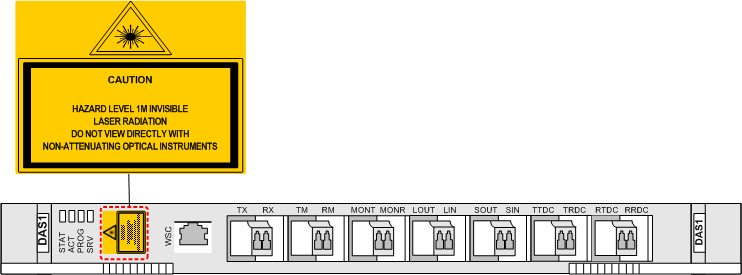

The front panel of the TN11DAS1 has indicators, interfaces, and laser hazard level label.

Valid Slot
OSN 8800 T64 subrack: IU1-IU8, IU11-IU42, IU45-IU68

OSN 8800 T32 subrack: IU1-IU8, IU12-IU27, IU29-IU36

OSN 8800 T16 subrack: IU1-IU8, IU11-IU18

OSN 8800 universal platform subrack: IU3-IU16

OSN 6800 subrack: IU1-IU8, IU11-IU16

OSN 3800 chassis: IU2-IU5

Optical Specifications
Specifications of OA Item Value
Operating wavelength range(nm) 1529-1561 1529-1561 1529-1561
Nominal gain(dB) 20 26 31
Nominal input power range(dBm) -32 to 0 -32 to -6 -32 to -11
Input power range per channel(dBm) 40 channels -32 to -16 -32 to -22 -31 to -27
80 channels -32 to -19 -32 to -25 -32 to -30
Nominal single-wavelength input optical power(dBm) 40 channels -16 -22 -27
80 channels -19 -25 -30
Nominal single-wavelength output optical power(dBm) 40 channels 4 4 4
80 channels 1 1 1
Noise figure (NF)a(dB) <= 8.5 <= 5.5 <= 5.5
Gain response time on adding/dropping of channels(ms) < 10 < 10 < 10
Channel gain(dB) 20 to 31
Gain flatness(dB) <= 2.0 <= 2.0 <= 2.0
Multi-channel gain slope(dB) <= 2.0 <= 2.0 <= 2.0
Input reflectance(dB) < -40 < -40 < -40
Output reflectance(dB) < -40 < -40 < -40
Pump leakage at input(dBm) < -30 < -30 < -30
Maximum reflectance tolerance at input(dB) -27 -27 -27
Maximum reflectance tolerance at output(dB) -27 -27 -27
Maximum total output optical power(dBm) 20 20 20
Polarization dependent loss(dB) <= 0.5 <= 0.5 <= 0.5
Input VOA inherent insertion loss(dB) <= 1.5
Input VOA dynamic attenuation range(dB) 20
Input VOA adjustment accuracy(dB) 1
Specifications of demultiplexer and multiplexer Operating wavelength range of optical supervisory channel(nm) 1480 to 1520
Optical return loss(dB) > 40
Insert loss of optical supervisory channel(dB) LIN-TM <= 1.5
RM-LOUT
Insert loss of C-band(dB) <= 1
Polarization dependent loss(dB) < 0.2
Specifications of OSC optical module Operating wavelength range(nm) 1504.5 to 1517.5
Signal rate(Mbit/s) 155.52
Launched optical power(dBm) 0.5 to 5
Receiver sensitivity(dBm) <= -41
Receiver overload(dBm) -10
Power consumption(W) Typical Power Consumption 22
Maximum Power Consumptiona 28.6
Mechanical Specifications
Dimensions(mm) 264.6(H) x 25.4(W) x 220(D)
Weight(kg) 1.4
Additional information
Weight 3.0 kg
Dimensions 37.5 × 34.0 × 7.5 cm
Features

, ,

Q&A

Q: How many hardware versions does DAS1 have?

A: DAS1 is available in TN11.

Board General 8800 T64 Subrack Enhanced 8800 T64 Subrack General 8800 T32 Subrack Enhanced 8800 T32 Subrack 8800 T16 Subrack 8800 Universal Platform Subrack 6800 Subrack 3800 Chassis
TN11DAS1 Y Y Y Y Y Y Y Y

Q: What’s the relationship between OAU, DAS1 and ST2?

A: OAU is only for amplifying the input optical signals in C band and ST2 only supports optical supervisory, while DAS1 both supports amplifier and optical supervisory.

Q: Does the TN11DAS1 board can interwork with a ST2 board for OSC interconnection?

A: Yes, but DAS1 board only can interwork with a TN11ST2 or TN13ST2 board for OSC interconnection, cannot interwork with TN12ST2 board.

Q: Can I return/exchange board if not compatible with my system?

A: Yes, please tell our sales team your system and main control board version, before purchase.

Q: The board is new or refurbished?

A: It is original new, not been used.

Q: What is the lead time for DAS1 board?

A: In normal condition is 5 days, better to confirm with our sales team before your purchase.

Reviews (1)

1 review for TN11DAS1

  1. Arora
    Qatar

    TN11DAS1 supports to amplify the input optical signals in C band, the total wavelengths range from 1529 nm to 1561 nm, and supports to process one channel of optical supervisory signals. Great Features.
