TNG1SXCL

Huawei OSN 9800 M24 80G VC3/VC12 Low Order Universal Cross-Connect Board

0 in stock      Ready to ship

19 People watching this product now!
PN: AAC274D0 Category:
Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Description

TNG1SXCL 80G VC3/VC12 Low Order Universal Cross-Connect Board

Applied to Huawei OSN 9800 M24, it supports centralized cross-connections of electrical signals

TNG1SXCL board Performs centralized cross-connections of VC-3/VC-12 service inside the subrack

TNG1SXCL board supports 1+1 Backup mode

The TNG1SXCL board is a 80G VC3/VC12 Low Order Universal Cross-Connect Board. The S216 is a cross-connect board that cross-connects and protects VC-3 and VC-12 signals inside a subrack.

Tech Specs

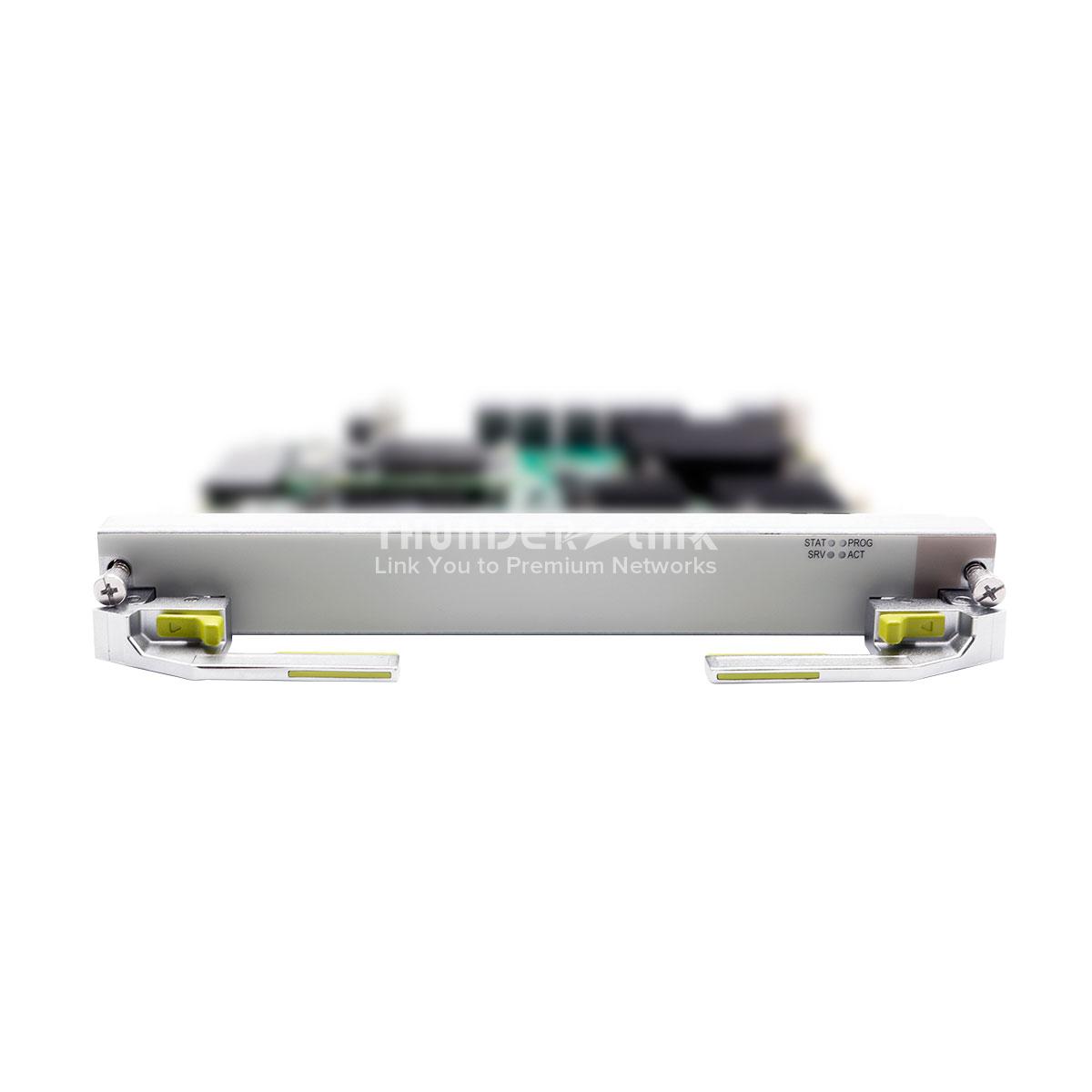

Front Panel
TNG1SXCL
Valid Slots
OptiX OSN 9800 M24 subrack: In 1:1 mode: IU1-IU24; In 1:3 mode: IU1-IU5, IU8-IU17, IU20-IU24
Initial Version of Different Subrack
V100R019C10SPC300
Function and Feature Description
Configuration and cross-connect capacity TNG1SXCL: Cross-connects a maximum of 80 Gbit/s VC-3/VC-12 signals.
Switching mode Automatic switching, manual switching, and forced switching by turning on micro switches are supported.
Non-revertive switching is supported.
NOTE: When a board works in active state, do not perform a cold reset on the board. Do not remove a board in active state. You must switch the board to the standby state before removing it. You can use Manual Switching on the NMS to configure the board as the standby board or turn on the two micro switches on the front panel to switch the board to the standby state.
Mechanical Specifications
Dimensions (W x H x D, mm) 237.1 x 30.5 x 220
Weight (kg) 1.51
Typical Power Consumption (W) 80
Maximum Power Consumption (W) 85
