TNG2UM4002

Name: TNG2UM4002 40-channel multiplexing board Price Specs, Huawei OSN 9800 M- Thunder-link.com
SKU: AAC0C6EC

(0 reviews)

Huawei OSN 9800 M05/M12/M24 40-channel multiplexing board

in stock Ready to ship

PN: AAC0C6EC Category: Multiplexer Board

Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Description

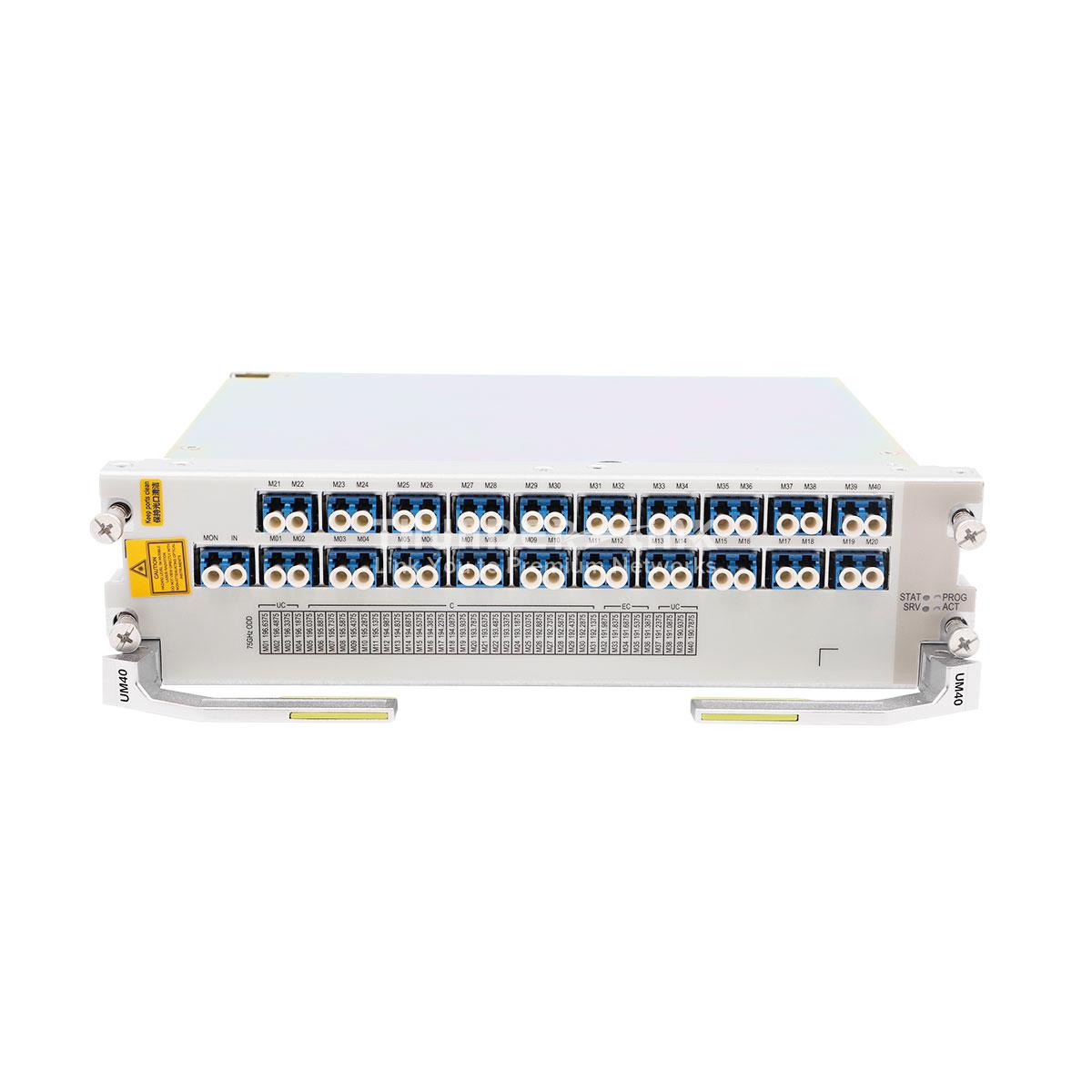

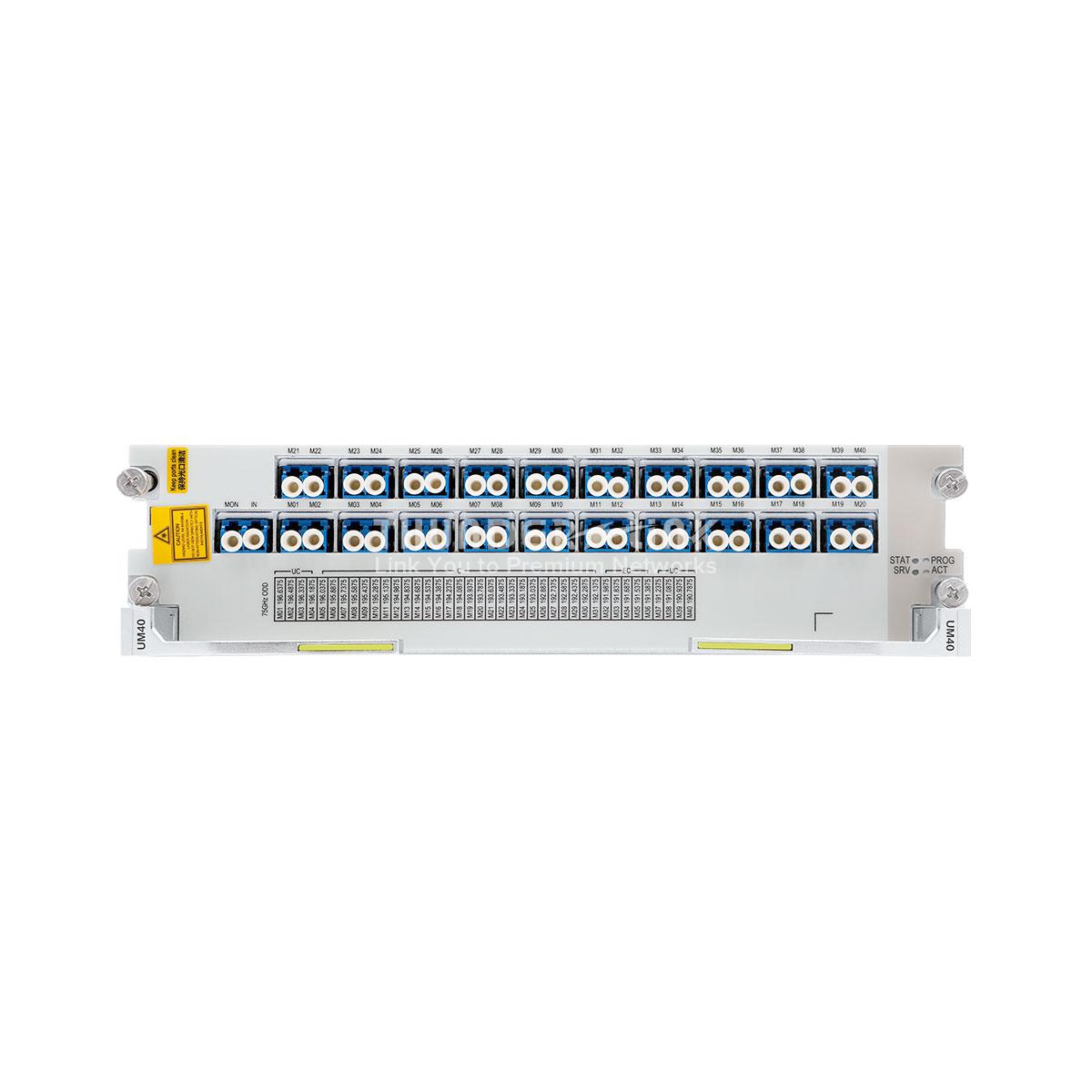

TNG2UM4002 40-channel multiplexing board

The UM40 board has one functional version: TNG2

Apply to OSN 9800 M05, OSN 9800 M12 and OSN 9800 M24.

The UM40 board performs wavelength multiplexing and supports in-service optical performance monitoring, and alarms and performance events monitoring

As an optical multiplexer board, the UM40 board multiplexes a maximum of 40 channels of optical signals with a 150 GHz channel spacing into one optical signal; TNG2UM40 have feature code 01 and 02, TNG2UM4001 multiplexes 40 C_EVEN wavelength signals, while TNG2UM4002 multiplexes 40 C_ODD wavelength signals

Tech Specs

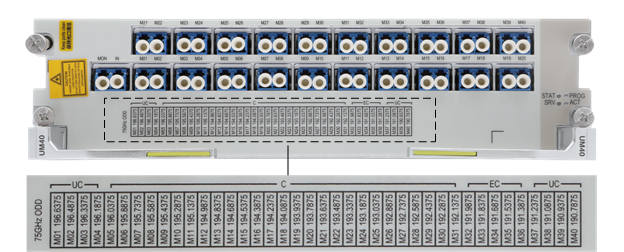

Front Panel

Valid Slots
9800 M24 Subrack: In 1:1 mode: IU1-IU5, IU7-IU11, IU13-IU17, IU19-IU23; In 1:3 mode: IU1-IU4, IU8-IU11, IU13-IU16, IU20-IU23 9800 M12 Subrack:IU1-IU12 9800 M05 Subrack:IU1-IU4
Initial version of different subrack:
M24/M12/M05: V100R019C10SPC600
Functions and features
Basic functions	Multiplexes a maximum of 40 wavelength signals into one multi-wavelength signal
Basic functions	UM4001: multiplexes 40 C_EVEN wavelength signals with a 150 GHz channel spacing into one multi-wavelength signal UM4002: multiplexes 40 C_ODD wavelength signals with a 150 GHz channel spacing into one multi-wavelength signal
Spectrum application	Supports super C-band
In-service optical performance monitoring	Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic
Alarms and performance events monitoring	Detects the optical power and reports the alarms and performance events for the board
Optical-layer ASON	Supported
Optical specifications
Adjacent channel spacing	100GHz
Insertion loss	<6.5db
Reflectance	<-40db
Operating wavelength range	UM4001: 190.7125 to 196.5625 UM4002: 190.7875 to 196.6375
Adjacent channel isolation	≥22db
Non-adjacent channel isolation	≥25db
Polarization dependent loss	≤0.5db
Maximum channel insertion loss difference	≤3db
Mechanical Specifications
Dimensions (W x H x D)	237.1x61x 220mm
Weight	1.9kg
Typical Power Consumption	26w
Maximum Power Consumption	30w

Additional information

Features	Hardware Compatibility, Hardware Tested
