TNG2WSMD9
Huawei OSN 9800 M05/M12/M24 9-Port wavelength selective multiplexing and demultiplexing board
20
People watching this product now!
Hardware Compatibility
Hardware Compatibility x
Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.
Hardware Tested
Hardware Tested x
In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more
Description

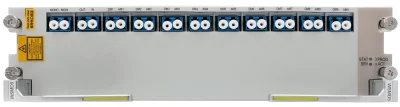

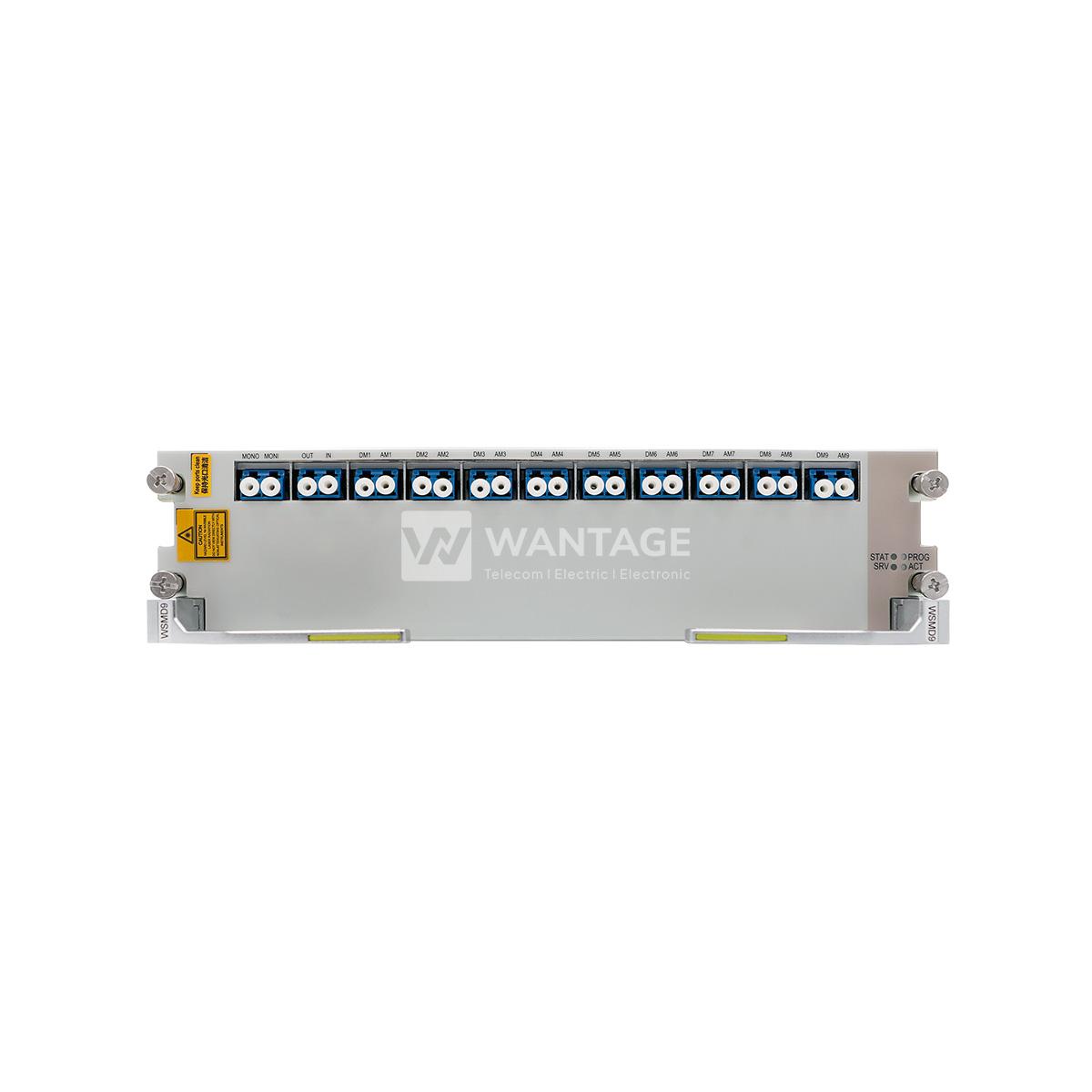

TNG2WSMD9 9-Port wavelength selective multiplexing and demultiplexing board
Apply to OSN 9800 M05, OSN 9800 M12 and OSN 9800 M24, it supports wavelength broadcast, dynamic wavelength grooming, resizable channel bandwidths, in-service monitoring of optical performance, and alarms and performance events monitoring
TNG2WSMD9 supports optical-layer ASON and Optical-layer loopback functions
TNG2WSMD9 supports Alarm and performance event monitoring and Optical power adjustment
TNG2WSMD9 as a ROADM unit, the WSMD9 board is used with optical multiplexer boards, optical demultiplexer boards, or other OADM boards to perform wavelength grooming at DWDM network nodes
Tech Specs
| Front Panel | |
| Valid Slots | |
| OptiX OSN 9800 M05 Subrack: IU1-IU4 OptiX OSN 9800 M12 Subrack: IU1-IU12 OptiX OSN 800 M24 Subrack: In 1:1 mode: IU1-IU5, IU7-IU11, IU13-IU17, IU19-IU23, In 1:3 mode: IU1-IU4, IU8-IU11, IU13-IU16, IU20-IU23 |
|
| Initial Version of Different Subrack | |
| M05: V100R019C10SPC600 M24/M12: V100R019C10SPC300 |
|
| Function and Feature | Description |
| Basic function | Implements optical-layer service grooming for multiple wavelengths. |
| Wavelength adding: adds any wavelengths from any directions through ports AM1 to AM9 and outputs the wavelengths through the OUT port. | |
| Wavelength dropping: broadcasts the main optical channel signals received through the IN port to ports DM1 to DM9. | |
| WDM specification | Supports the DWDM specification. |
| Spectrum application | Supports super C-band. |
| Supports signals with a 50 GHz/75 GHz channel spacing. | |
| Supports flexible grid wavelength signals. | |
| The signals have continuous n x slice GHz spectrums (one slice is equal to 6.25 GHz, and n is an integer ranging from 6 to 64) to meet the bandwidth requirements of high-rate services. When multi-rate services are transmitted together, bandwidth can be flexibly allocated to improve bandwidth usage. | |
| In-service optical performance monitoring | Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services. |
| Optical Specifications | |
| Item | Value |
| Operating Frequency Range | 190.65 to 196.675 (THz) |
| Slice width | 6.25 (GHz) |
| Total slice number (m) | 964 |
| Centre frequency of every slice | 190.653125+(m-1)*0.00625; m=1 to 964 (THz) |
| Number of slices on each wavelength (n) | 6 to 64 |
| Spectral width of each wavelength | n x 6.25; n = 6 to 64 (GHz） |
| Maximum difference among insertion losses of channels | 1.5 (dB) |
| -1 dB spectrum width | > 6.25n-25; n = 6 to 64 (GHz) |
| Port isolation | ≥ 25 (dB) |
| Extinction Ratio | ≥ 35 (dB) |
| Reconfiguration time | ≤ 3 (second) |
| Maximum reflectance | -40 (dB) |
| Directivity | 30 (dB) |
| Polarization dependent loss | ≤ 1.5 (dB) |
| Attenuation range per add wavelength | 0 to 15 (dB) |
| Attenuation accuracy per add wavelength | ≤ 1 (0 dB to 10 dB) |
| ≤ 1.5 (> 10 dB) | |
| Dimension | 9 |
| Mechanical Specifications | |
| Dimensions (W x H x D, mm) | 237.1 x 61.0 x 220.0 |
| Weight (kg) | 2.7 |
| Typical Power Consumption (W) | 31 |
| Maximum Power Consumption (W) | 41 |
