TNG3DAPXF

Huawei OSN 9800 M05/M12/M24 Extended C-band optical amplifier board

(1 customer review)

0 in stock      Ready to ship

13 People watching this product now!
PN: AA618E11 Category:
Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Description

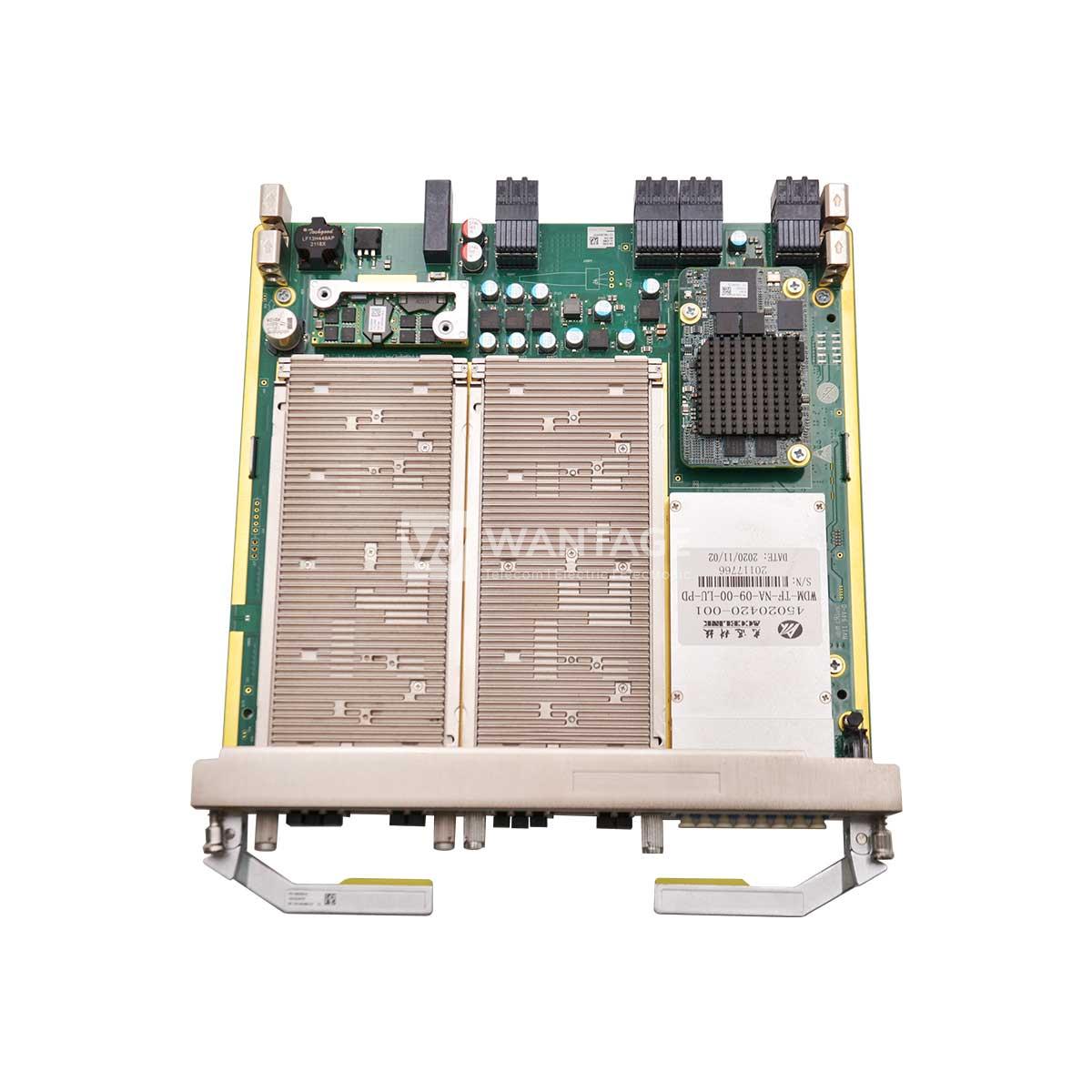

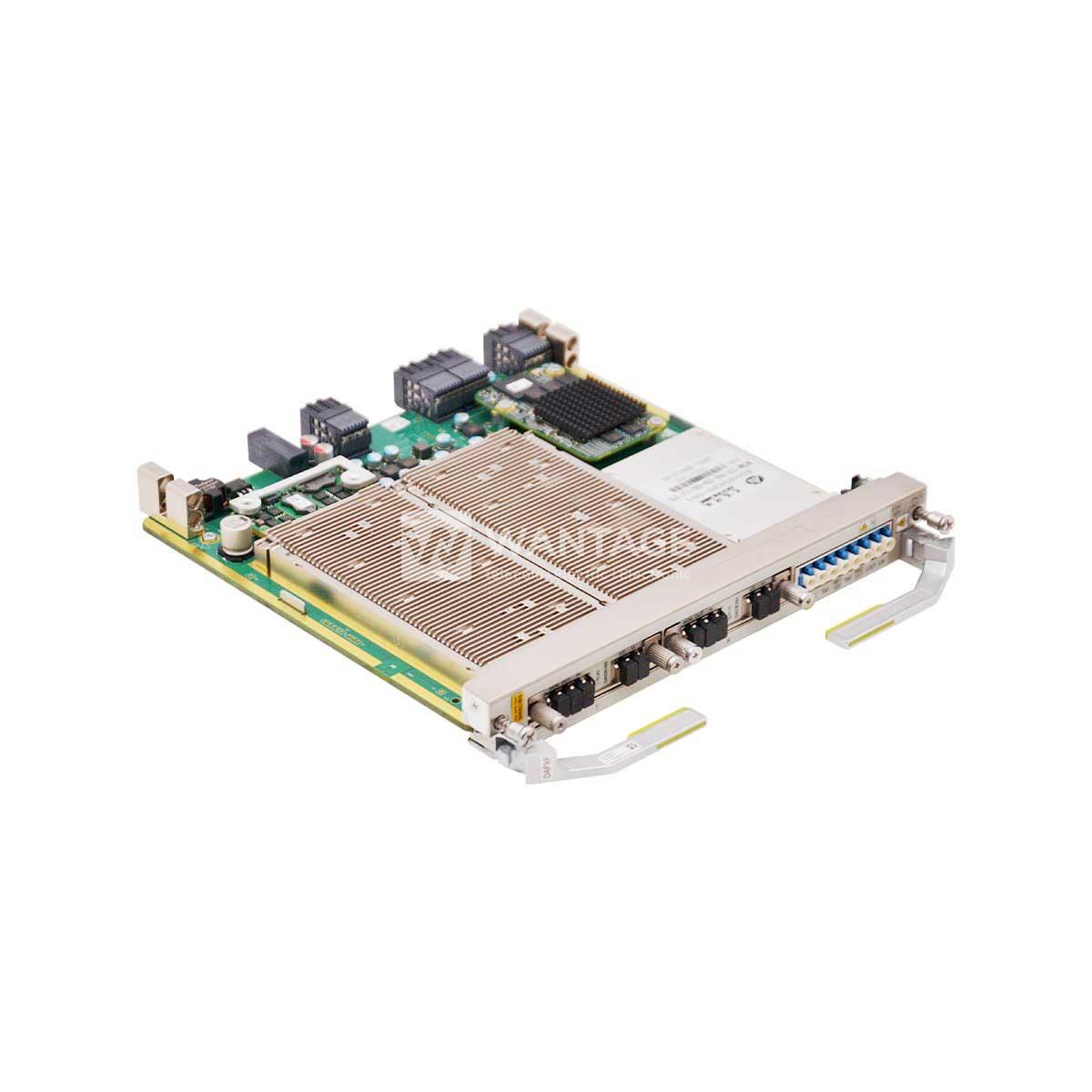

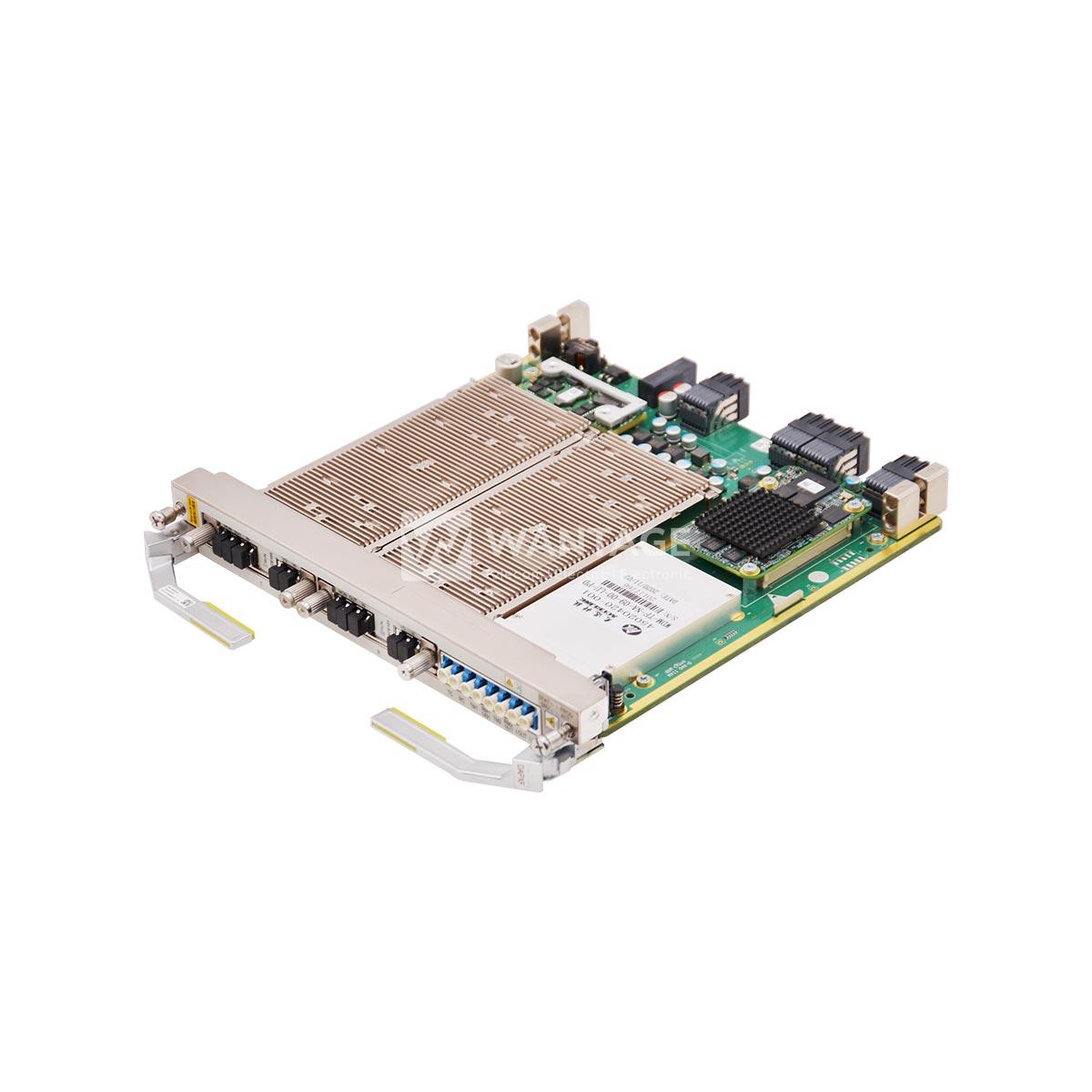

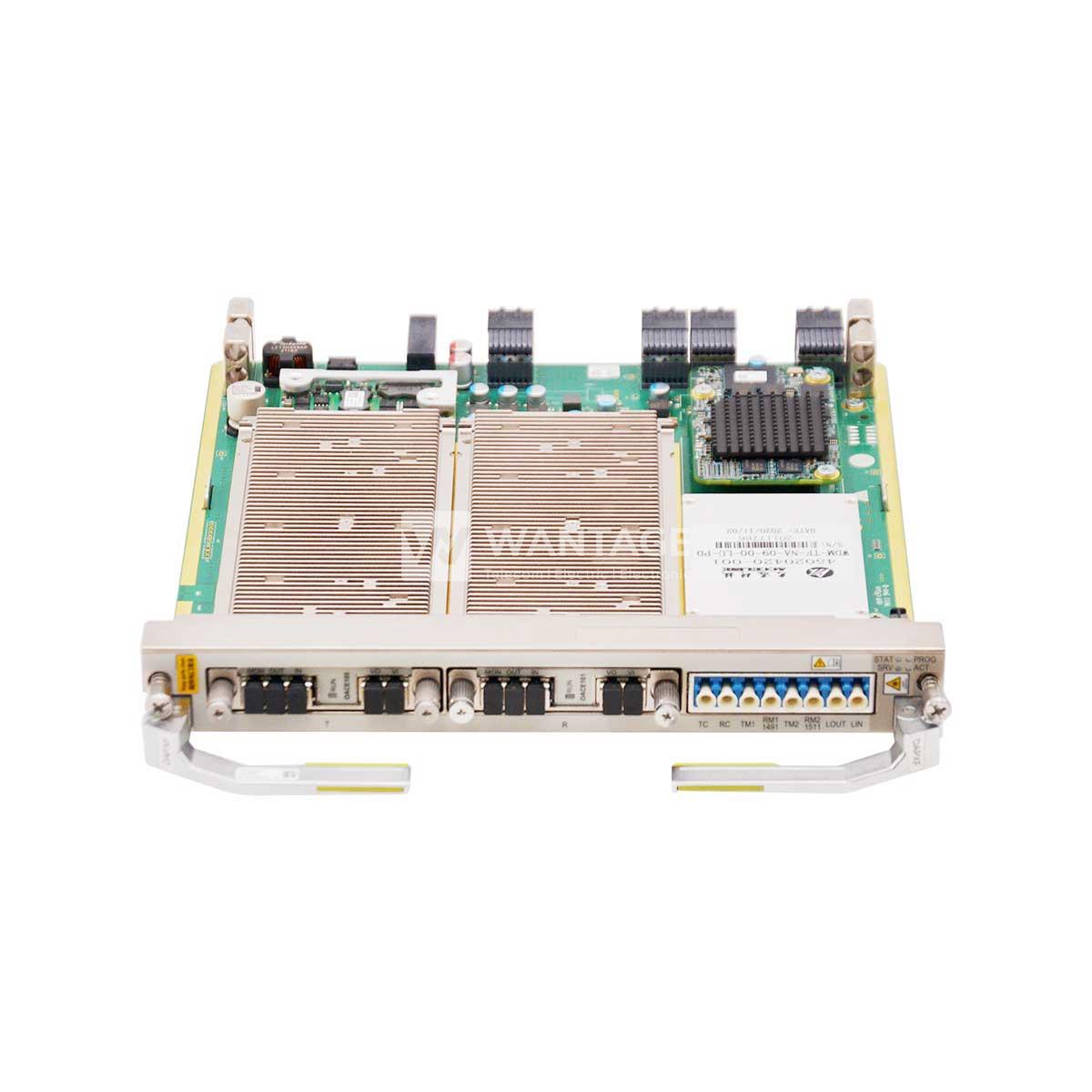

TNG3DAPXF Extended C-band optical amplifier board

Apply to OSN 9800 M05, OSN 9800 M12 and OSN 9800 M24, it supports gain adjustment, in-service monitoring of optical performance, gain locking, and transient state control

TNG3DAPXF supports Optical-layer ASON in single-fiber bidirectional (dual-OSC configuration) OSC scenario and two-fiber bidirectional (single-OSC configuration) OSC scenario

TNG3DAPXF supports Gain locking and Alarms and performance events monitoring functions

TNG3DAPXF is a Super C-band optical amplifier board. DAPXF board is used to amplify optical signals, multiplex and demultiplex the optical supervisory channel and main optical channel. The DAPXF board can be used at either the transmit end or the receive end. DAPXF board provides the optical amplification function, the FIU board function (main channel and OSC channel multiplexing and demultiplexing). The DAPXF board supports gain adjustment, in-service monitoring of optical performance, gain locking, and transient state control.

Tech Specs

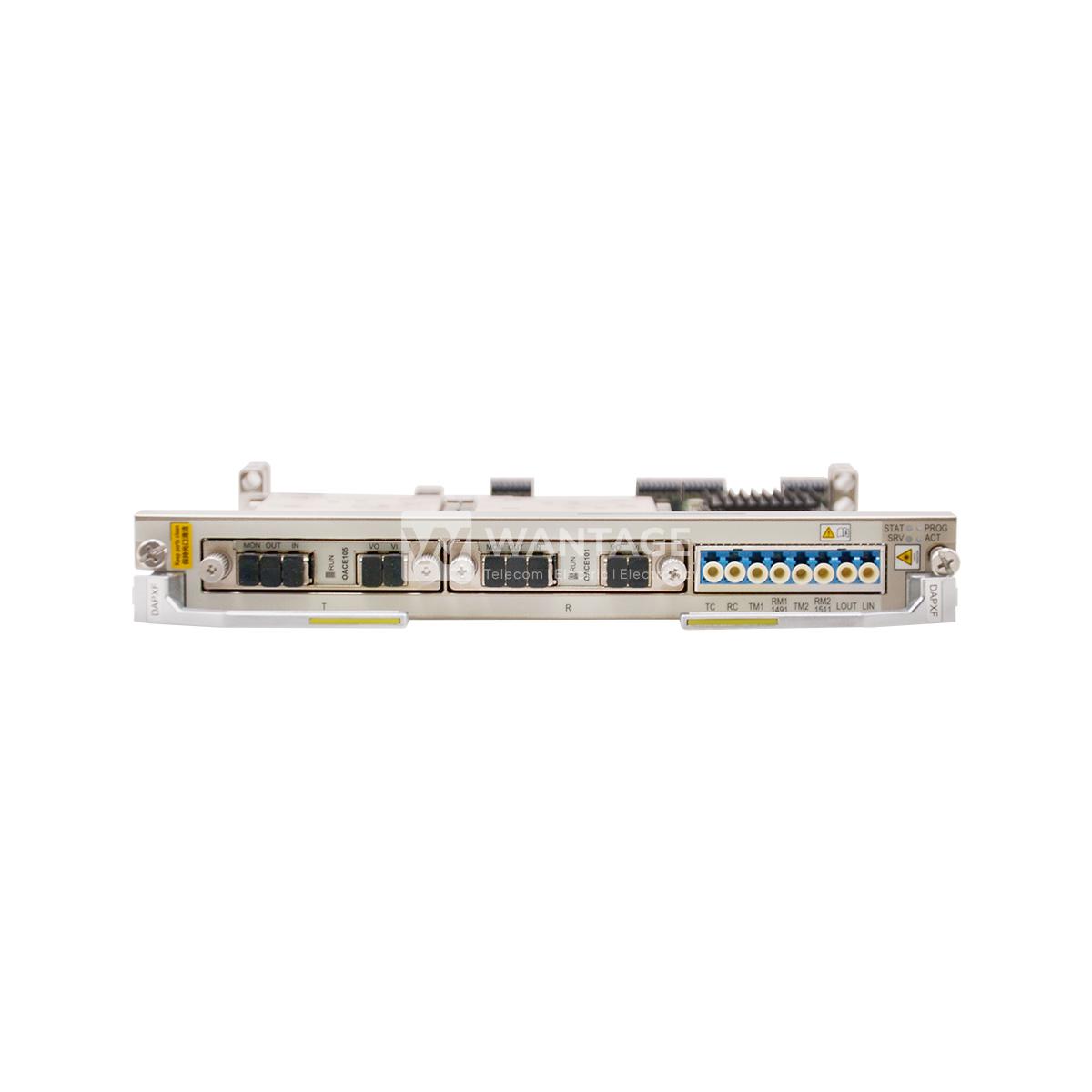

Front Panel
G3DAPXF
Valid Slots
OptiX OSN 9800 M05 Subrack: IU1-IU5
OptiX OSN 9800 M12 Subrack: IU1-IU13
OptiX OSN 9800 M24 Subrack: In 1:1 mode: IU1-IU24; In 1:3 mode: IU1-IU5, IU8-IU17, IU20-IU24
Initial Version of Different Subrack
M05: V100R019C10SPC600
M24/M12: V100R019C10SPC300
Function and Feature Description
Basic functions Amplifies the power of the received optical signals in the extended C-band. This board supports wavelengths within the range of 1528.8 nm to 1567.6 nm.
Supports service transmission with varying fiber spans without using electrical regeneration.
Multiplexes the OSC signal and main channel signal into the line path and performs the reverse process.
In single-fiber bidirectional (single-OSC configuration) OSC scenario and single-fiber bidirectional (dual-OSC configuration) OSC scenario, neither commissioning nor delay compensation is required for IEEE 1588V2 clocks.
Optical Amplifier Module Supports dual pluggable optical amplifier modules TN52OACE101/TN52OACE105/TN52OACE106/TN52OACE107/TN52OACE108/TNG3OACE101/TNG3OACE105/TNG3OACE106/TNG3OACE107/TNG3OACE108.
Gain adjustment TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power.
TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power.
TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power.
TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
In-service optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Line fiber quality monitoring Working with the AST2 board, the line fiber quality monitoring function can be used on the NMS, and the NMS will display monitoring figures and data. The online and offline applications of line fiber quality monitoring are supported.
The Fiber Doctor Management System Software Fee License needs to be purchased for this function.
Working mode Supports the gain locking, power locking and APC modes.
In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default.
The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present.
Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Transient state control The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Operating wavelength of the OSC channel TM1/RM2: 1504.5nm to 1520nm
TM2/RM1: 1478nm to 1497.5nm
Mechanical Specifications
Dimensions (W x H x D, mm) 237.1 x 30.5 x 220.0
Weight (kg) 1.96
Typical Power Consumption (W) 21
Maximum Power Consumption (W) 22
