TNS8N402

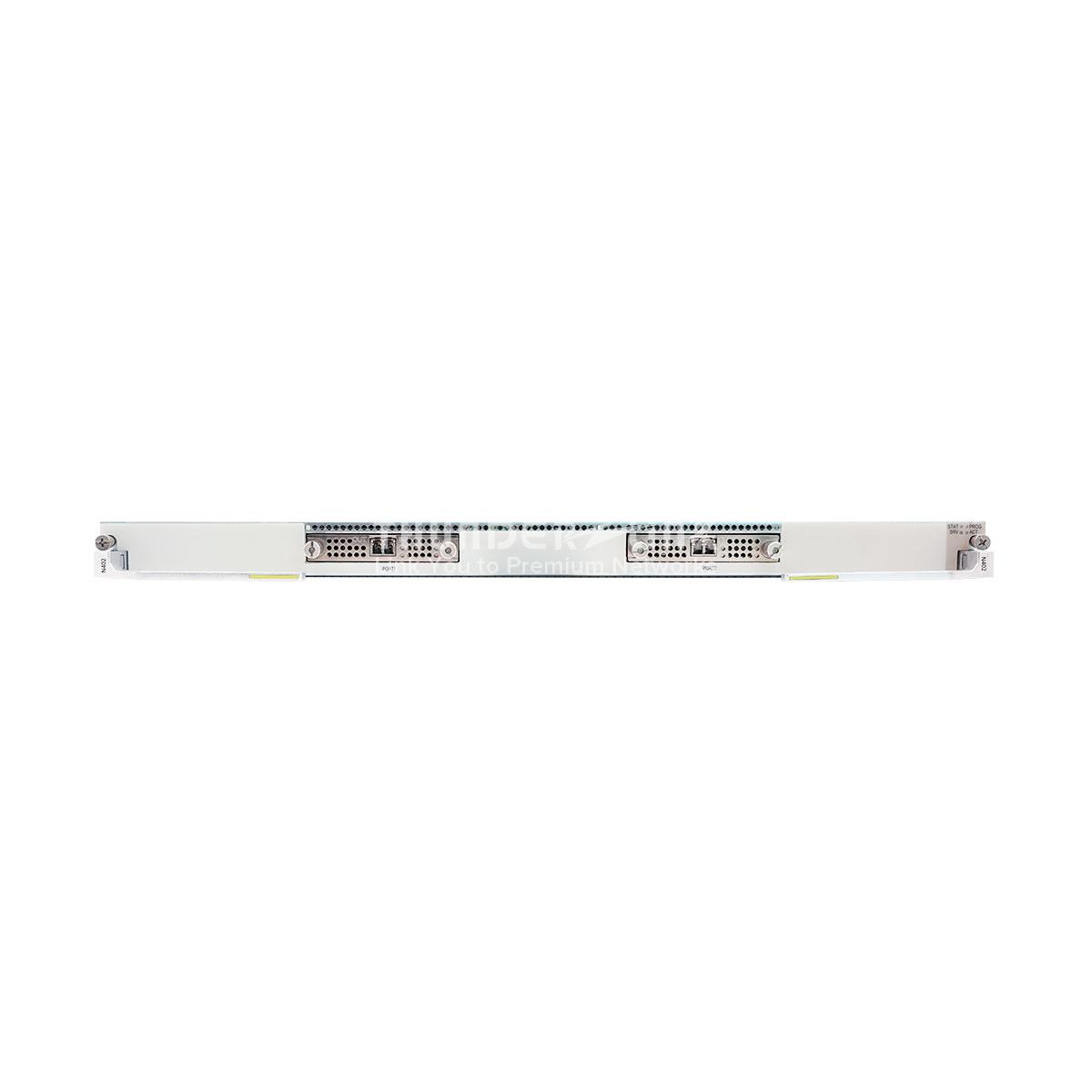

Huawei OSN 9800 M24/U32/U64 2-port 100G Line Service Processing Board
20
People watching this product now!
Hardware Compatibility
Hardware Compatibility x
Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.
Hardware Tested
Hardware Tested x
In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more
Description
TNS8N402 2-port 100G Line Service Processing Board
Applied to Huawei OSN 9800 M24, U32 and U64, it supports relay mode and line mode
TNS8N402 board supports Optical-layer ASON
TNS8N402 board supports physical clock, Loopback and Protection scheme of ODUk SNCP, OSUflex SNCP, tributary SNCP protection, intra-board 1+1 protection (when working with the QCP or OLP or DCP board) only working in line mode
The TNS8N402 board is an Hybrid Line board. TNS8N402 board processes and converts the received service signals into two OTU4 signals, which are carried over ITU-T G.694. 1-compliant DWDM wavelengths. The TNS8N402 board uses coherent receiving technologies and applies to coherent systems.
Tech Specs

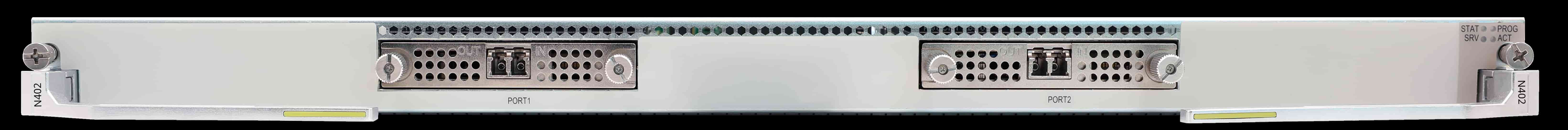

| Front Panel | ||||
 |
||||
| Valid Slots | ||||
| OptiX OSN 9800 U32 Standard/Enhanced subrack: IU1-IU32 OptiX OSN 9800 U64 Standard/Enhanced subrack: IU1-IU64 |
||||
| Initial version of different subrack | ||||
| V100R019C10SPC600 | ||||
| Functions and features (line mode) | ||||
| Basic function | 160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4 (1 to 2k) x OSUflex <->160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex<->2 x ODU4<->2 x OTU4 |
|||
| Cross-connect capabilities | Implements service grooming when working with cross-connect boards. 2000 x OSUflex/160 x ODU0/80 x ODU1/20 x ODU2/20 x ODU2e/4 x ODU3/2 x ODU4/160 x ODUflex |
|||
| OTN functions | Supports OTU4 interfaces on the WDM side. Uses the frame formats and overhead processing methods defined in ITU-T G.709. ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. OSUflex layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. OTU4 layer: Supports SM overhead processing. |
|||
| WDM specification | Supports DWDM specifications. | |||
| Tunable wavelength function | supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm). | |||
| PRBS test function | Supports the PRBS function on the WDM side. | |||
| FEC coding | SDFEC2 | |||
| Physical clock | Supported | |||
| ESC | Supported | |||
| Optical-layer ASON | Supported | |||
| Electrical-layer ASON | Supported | |||
| Protection schemes | Supports ODUk SNCP. Supports OSUflex SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the QCP or OLP or DCP board). |
|||
| Latency measurement | The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels. The board supports latency measurement at the OSUflex layer. |
|||
| Loopback | Supports WDM-Side Loopback Supports OSUflex Channel Loopback Supports Channel Loopback: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks |
|||
| Alarm and performance event monitoring | Monitors BIP8 bytes (Bursty mode) to help locate line failures. | |||
| Monitors parameters such as the bias current, temperature, and optical power of the laser. | ||||
| Monitors OTN alarms and performance events. | ||||
| Functions and features (relay mode) | ||||
| Basic function | The N402 board applies to electrical regeneration sites to provide the electrical regeneration function for optical signals using port 1 and port 2. | |||
| Supported service rate | OTU4: OTN service at a rate of 111.81 Gbit/s | |||
| WDM specification | Supports DWDM specifications. | |||
| Tunable wavelength function | The N402 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm). | |||
| ESC function | Supported | |||
| FEC coding | Supports SDFEC2 encoding. | |||
| ALS function | Only the TNS2N404 board supports the ALS function. | |||
| Optical-layer ASON | Supported | |||
| Alarms and performance events monitoring | Monitors BIP8 bytes (Bursty mode) to help locate line failures. | |||
| Monitors parameters such as the bias current, temperature, and optical power of the laser. | ||||
| Monitors OTN alarms and performance events. | ||||
| WDM-Side Pluggable Optical Module Supported | ||||
| 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP 55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP 16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP 55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP 40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP 16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP 100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP 100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN |
||||
| Mechanical Specifications | ||||
| Dimensions(W x H x D) | 477.3mm x 30.5mm x 220.0mm | |||
| Weight (kg) | 3.0 | |||
| Typical Power Consumption (W) | 173 | |||
| Maximum Power Consumption(W) | 183 | |||
