TNV3S216

Huawei OSN 9800 U32/U64 16-port STM-N (N=1,4,16,64; aggregation capacity <= 160G) optical interface board

0 in stock      Ready to ship

10 People watching this product now!
PN: AA7AE7DE Category:
Hardware Compatibility

Hardware Compatibility x

Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.

Hardware Tested

Hardware Tested x

In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more

Description

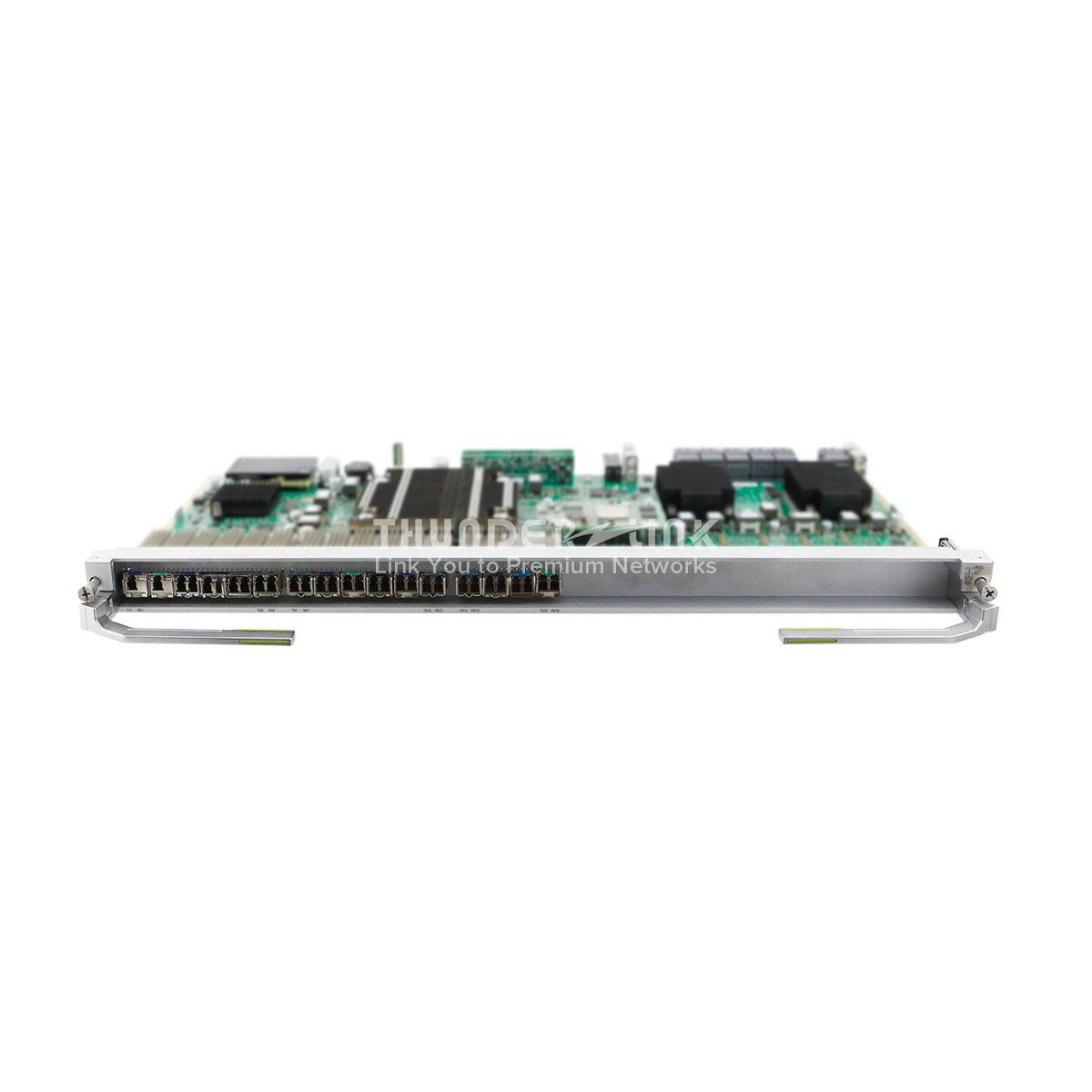

TNV3S216 16-port STM-N (N=1,4,16,64; aggregation capacity <= 160G) optical interface board

Applied to Huawei OSN 9800 U32, U64, it supports receiving and transmitting STM-n (n = 1, 4, 16, or 64) and OTU1 optical signals, and implement overhead processing

TNV3S216 board supports Protection schemes of SNCP, 1+1 single-ended linear MSP, ring MSP

TNV3S216 board supports ALS, SDH Clock Synchronization and Alarms and performance events

The TNV3S216 board is a 16-port STM-N (N=1,4,16,64; aggregation capacity <= 160G) optical interface board. The S216 board can be used on the OptiX OSN 9800 equipment to transmit and receive STM-n (n=1, 4, 16, or 64) optical signals. It supports 1.25G, 2.5G, 10G, etc. modules and can be configured according to needs.

Tech Specs
Front Panel
TNV3S216
Valid Slots
OptiX OSN 9800 U32 Standard subrack: IU1 to IU32
OptiX OSN 9800 U32 Enhanced subrack: IU1 to IU32
OptiX OSN 9800 U64 Standard subrack: IU1 to IU64
OptiX OSN 9800 U64 Enhanced subrack: IU1 to IU64
Initial Version of Different Subrack
V100R007C00SPC300
Function Description
Basic function The maximum SDH capacity is 160 Gbit/s.
STM-n (n = 1, 4, or 16)/STM-64 optical signals
3 x AU-3 -> 3 x VC-3 -> 3 x TU3 -> VC-4 -> AU-4
OTU1 -> STM-16 -> VC-4
NOTE: The S216 board supports the intra-board grooming of AU-3 signals.
Specifications of the optical module Supports eSFP/SFP+ pluggable optical modules.
Supports the detection and query of information about the optical module.
Provides the ALS function. The optical interface supports the setting of the on/off state of a laser.
Service processing Supports VC-12, VC-3, VC-4 and VC-4-Xc (X=4/16/64) concatenation services.
NOTE: When being installed in a U series subrack, the lower-order cross-connect board must be used to support VC-12 and VC-3 service granularities.
Overhead processing Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709.
OTU1 layer: supports SM overhead processing.
ODU1 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Processes the section overheads of the STM-n (n=1, 4, 16, 64) signals.
Supports the transparent transmission and termination of the path overheads.
Supports the setting and query of the J0, J1, and C2 bytes.
Supports ECC communication.
Supports DCC transparent transmission for a maximum of any sixteen ports. The bytes that are transparently transmitted are D1–D3 and D4–D12.
Maintenance features Supports inloops and outloops at optical interfaces.
Supports loopbacks on VC paths.
Supports warm resets and cold resets. The warm reset does not affect services.
Supports the query of the manufacturer information of the board.
Supports the in-service loading of the FPGA.
Supports the upgrade of the board software without affecting services.
Supports the PRBS function.
Mechanical Specifications
Dimensions (W x H x D, mm) 477.3 x 30.5 x 220.0
Weight (kg) 3. 0
Typical Power Consumption (W) 180
Maximum Power Consumption (W) 190
