TNZ7EG10
Huawei OSN1800V 10-port GE(SFP) Ethernet Processing Board
12
People watching this product now!
Hardware Compatibility
Hardware Compatibility x
Backed up by our experienced pre-sales support team, and volume documentation, to avoid purchasing incompatible hardware.
Hardware Tested
Hardware Tested x
In order to avoid hardware malfunction, each equipment will be strictly tested before delivery and the test report will be packed inside equipment and delivered together. Learn more
Software Compatibility
Software Compatibility x
Software compatibility test between active/standby system board, main control board and service board, mother/sub-card; system commissioning test to prevent all software conflicts.
Huawei WDM-OTN Equipment Test Procedure
In this topic, we take Huawei OSN 8800 as example to show you how to test the WDM/OTN equipment (Huawei OSN 6800 etc)Description

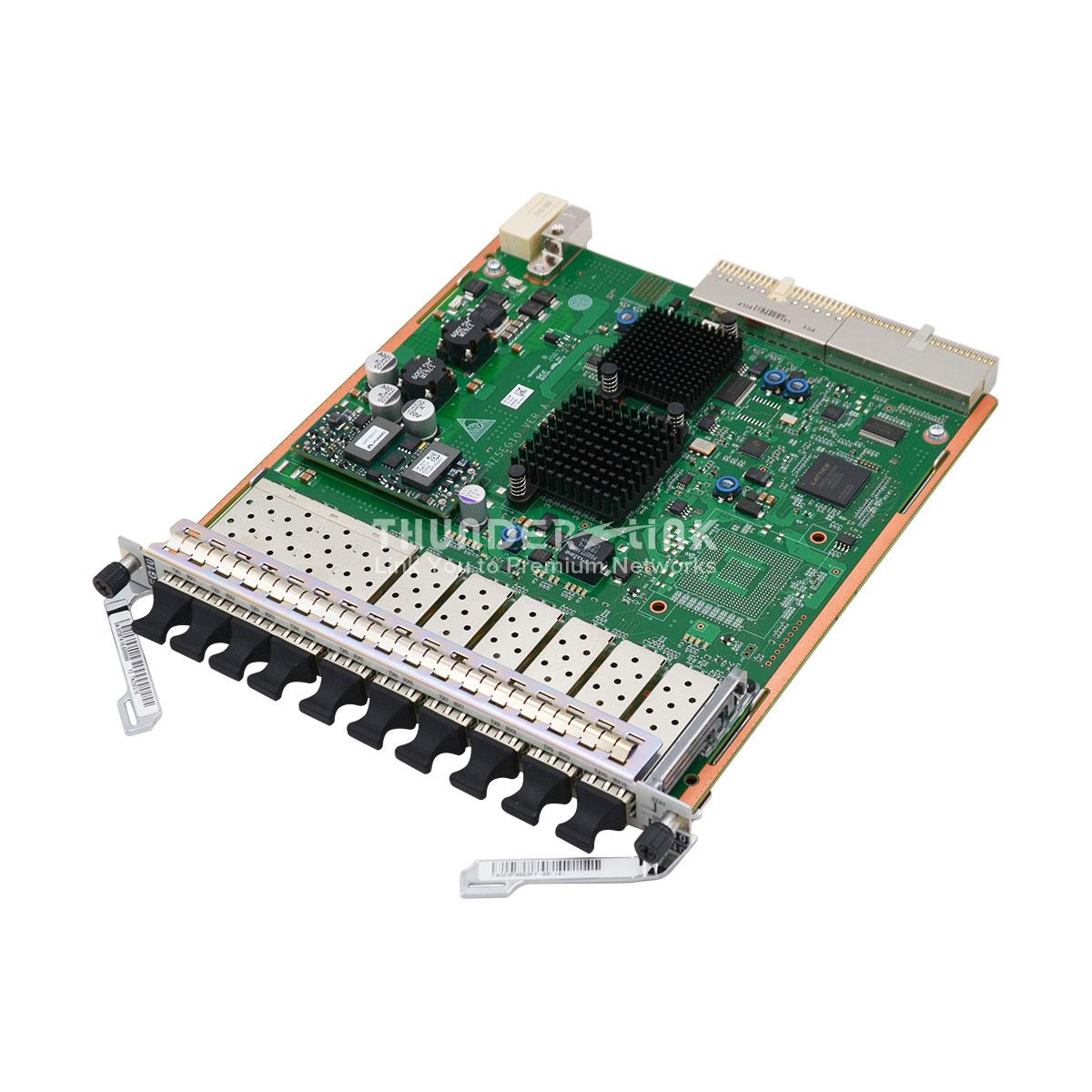

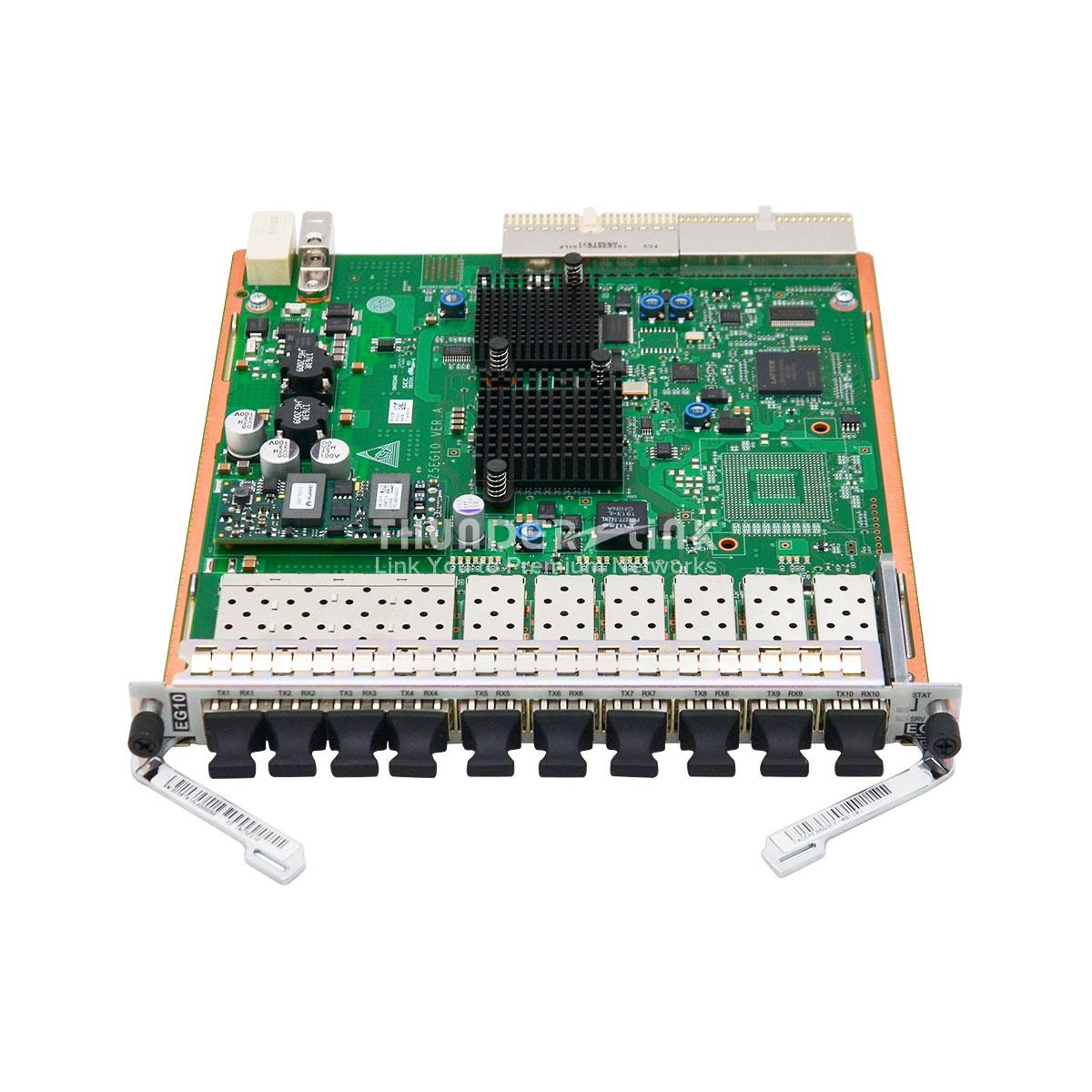

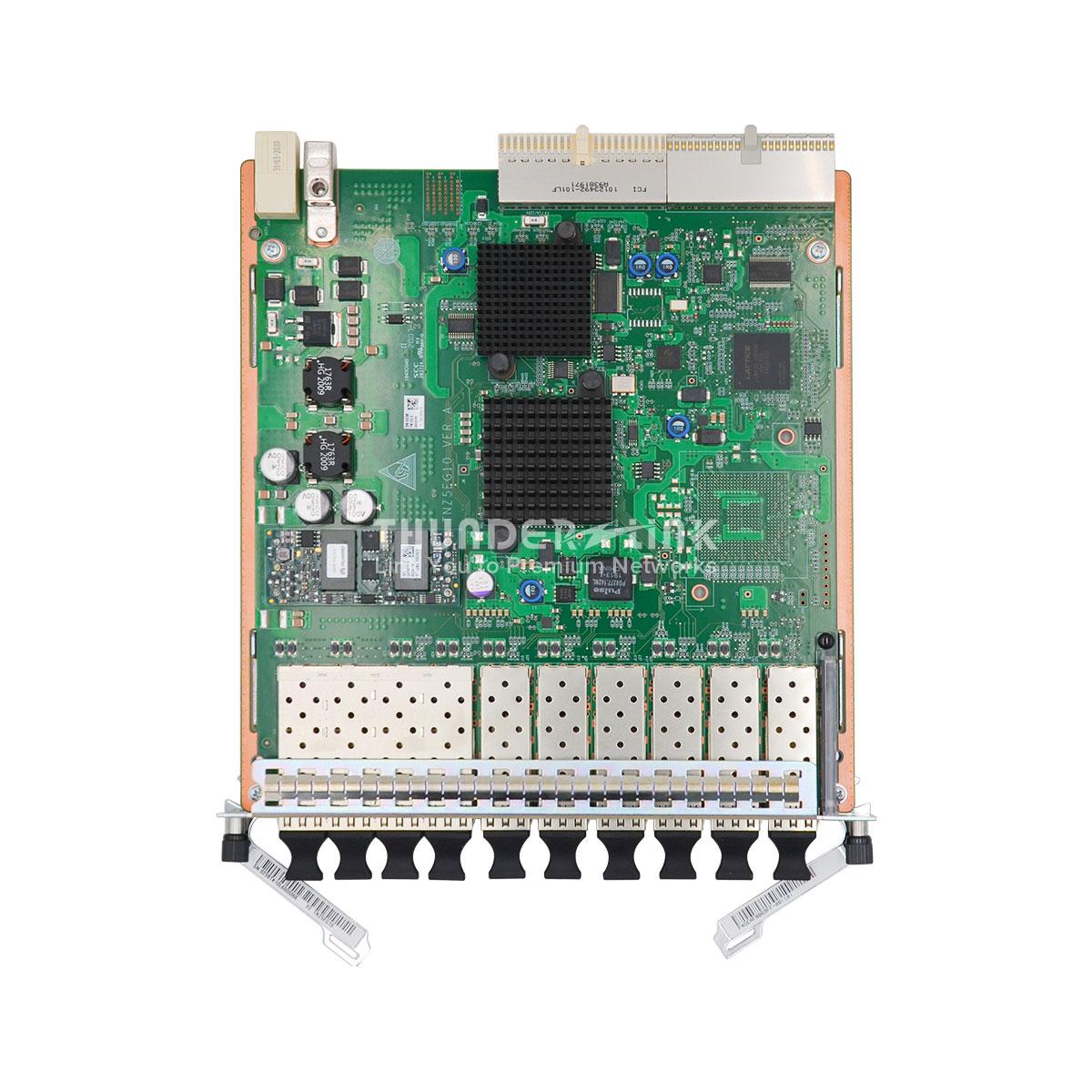

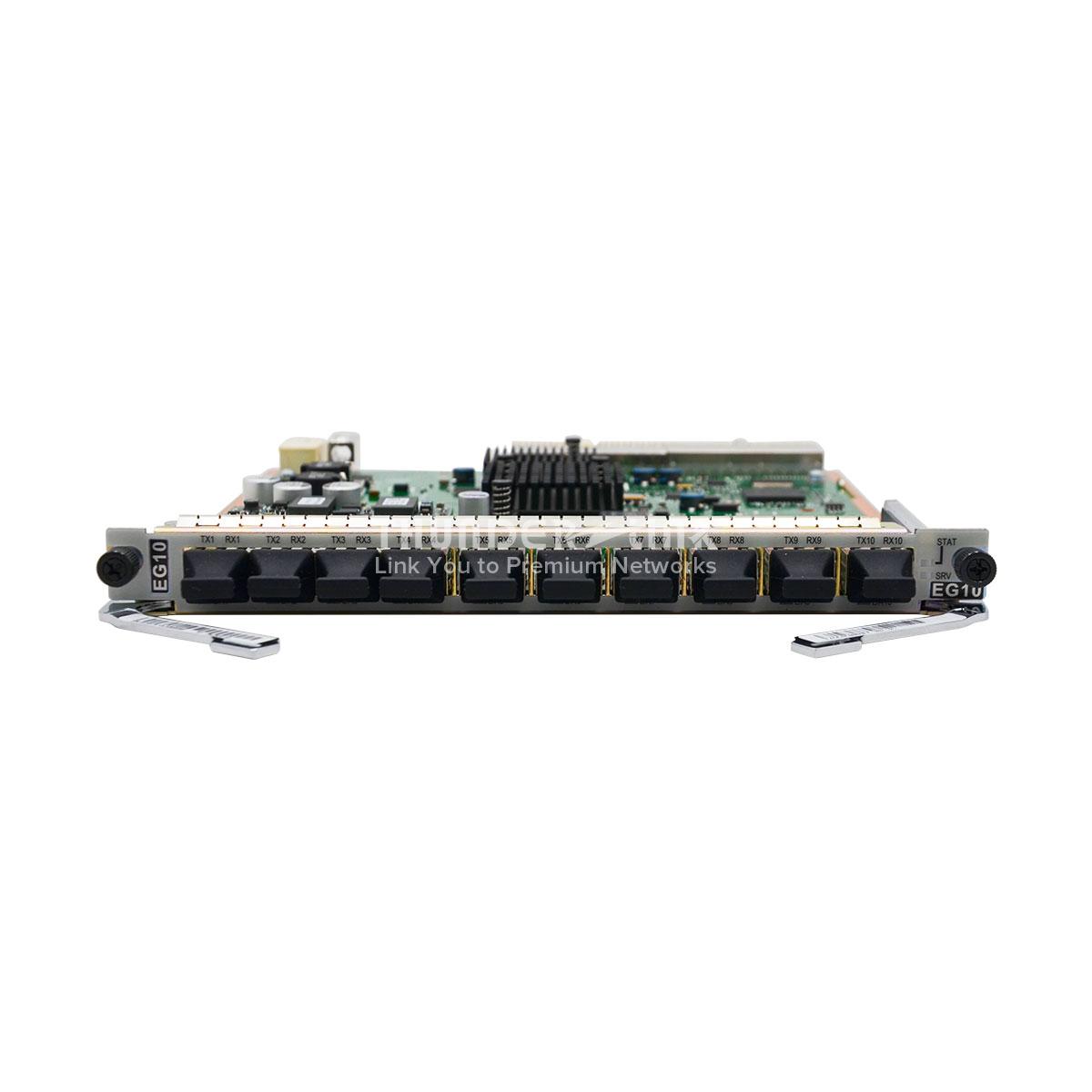

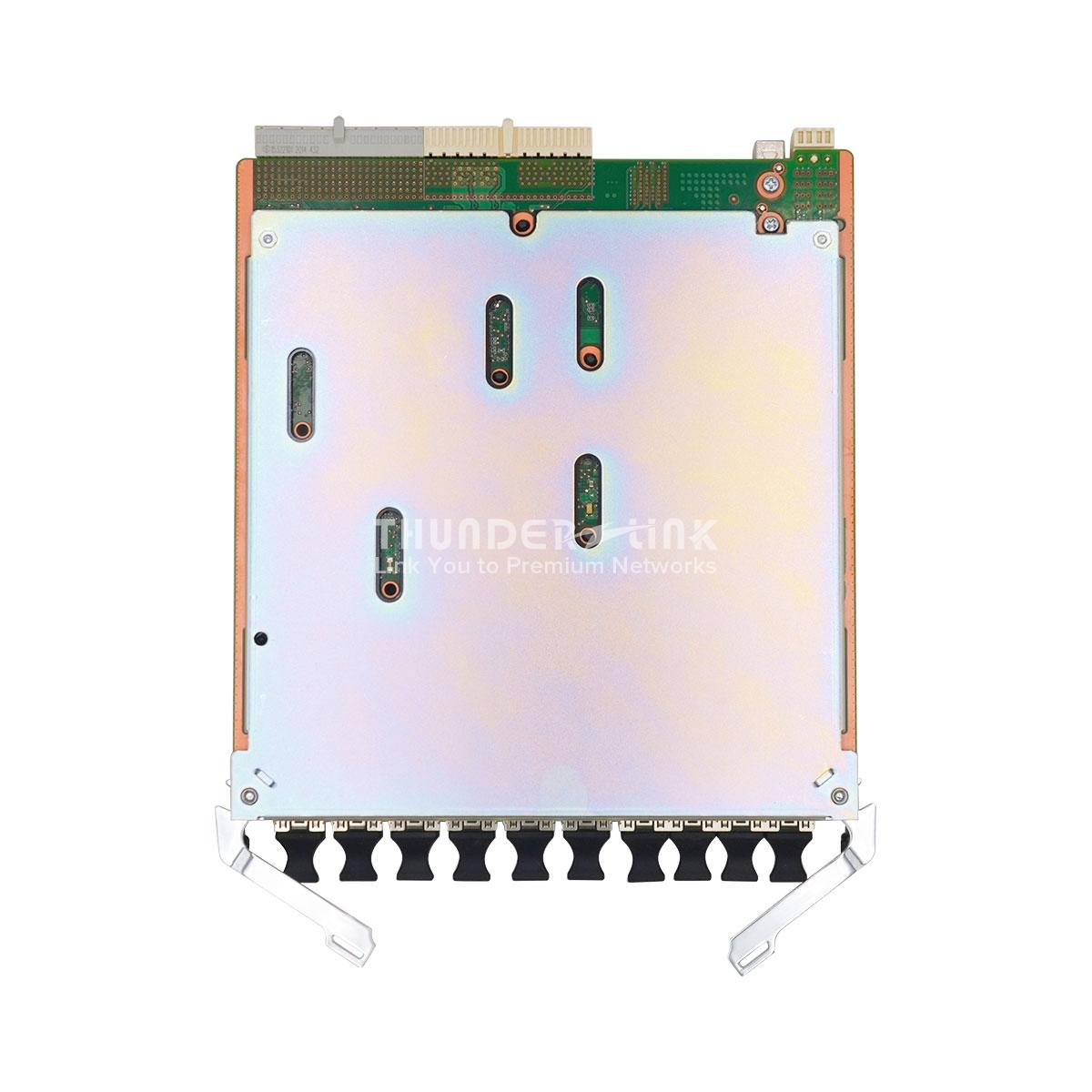

TNZ7EG10 10-port GE(SFP) Ethernet processing board
Applied to Huawei OSN 1800 I Enhanced, OSN 1800 II Enhanced, OSN 1800V
Supports Tunnel APS, MC-PW APS
Supports 1:1 PW FPS/APS
Supports MC-LAG, LPT, MRPS, ERPS
Supports Inband DCN, HQoS
Supports Physical clock
TNZ7EG10 is a 10-port GE(SFP) Ethernet processing board applied to Huawei OSN 1800 I Enhanced, OSN 1800 II Enhanced, OSN 1800V. The EG10 board is a packet board. It supports access of 10 GE/FE services and transmits service signals to cross-connect boards for packet data processing and centralized grooming at the equipment level. On the WDM side, the EG10 board works with a board providing the packet service processing function to implement packet service transmission on the WDM network.
Tech Specs
| Front Panel | |||||
| There are ports on the front panel of the board.
|
|||||
| Specifications | |||||
| Basic function | Receives and transmits GE/FE optical services or GE electrical services.
For GE/FE optical services, a maximum of 10 services is supported.
For GE electrical services: If unshielded network cables are used, a maximum of six services is supported. If shielded network cables are used, a maximum of four services is supported. |
||||
| Backplane bandwidth | 10 Gbit/s | ||||
| Supported service | FE: Ethernet service at a rate of 125 Mbit/s.
GE: Ethernet service at a rate of 1.25 Gbit/s. |
||||
| Working mode | GE optical port: 1000M Full-Duplex, Auto-Negotiation
FE optical port: 100M Full-Duplex GE electrical port: 10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex, Auto–Negotiation |
||||
| MFL | The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+72 bytes. | ||||
| E-Line services | Native ETH services:
E-Line services based on point-to-point transparent transmission E-Line services based on virtual local area networks (VLANs) E-Line services based on 802.1q in 802.1q (QinQ)
ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services) |
||||
| E-LAN services | Native ETH services:
E-LAN services based on IEEE 802.1d bridges E-LAN services based on IEEE 802.1q bridges |
||||
| Client-Side Pluggable Optical Module | |||||
| eSFP-155M-1310nm-MMF-2km
eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-10km eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-10km eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-40km eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-40km eSFP-1.25G-1310nm-SMF-10km eSFP-1.25G-1310nm-SMF-40km eSFP-2.125G-850nm-MMF-0.5km-I eSFP-1.25G-1550nm-SMF-80km-01 eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-40km eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km eSFP-155M-1310nm-SMF-40km eSFP-155M-1550nm-SMF-80km eSFP-155M-1310nm-SMF-15km eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km
SFP-1000Base-T-autonegotiation-100 m-RJ45 NOTE: The GE electrical ports support 10/100/1000 Mbit/s self-adapting and the rate of 1000 Mbit/s. |
|||||
| Version description of the EG10 board | |||||
| Board | Product Applicable-System Control Board-Initial Board Version Supported by System Control Board | ||||
| TNZ7EG10 | 1800 I Enhanced-TMA1UXCL-V100R009C00
1800 II Enhanced-TNZ1UXCL/TNZ2UXCL-V100R009C00 1800 V-TNZ5UXCMS-V100R009C00 |
||||
| Mechanical Specifications | |||||
| Typical Power Consumption(W) | 21.4 | ||||
| Maximum Power Consumption(W) | 23.6 | ||||
| Dimension (W x H x D, mm) | 19.8 x 193.8 x 205.9 | ||||
| Weight(kg) | 0.6 kg | ||||
Additional information
| Weight | 3.0 kg |
|---|---|
| Dimensions | 37.5 × 34.0 × 7.5 cm |
| Features |
Hardware Compatibility, Hardware Tested, Software Compatibility |
