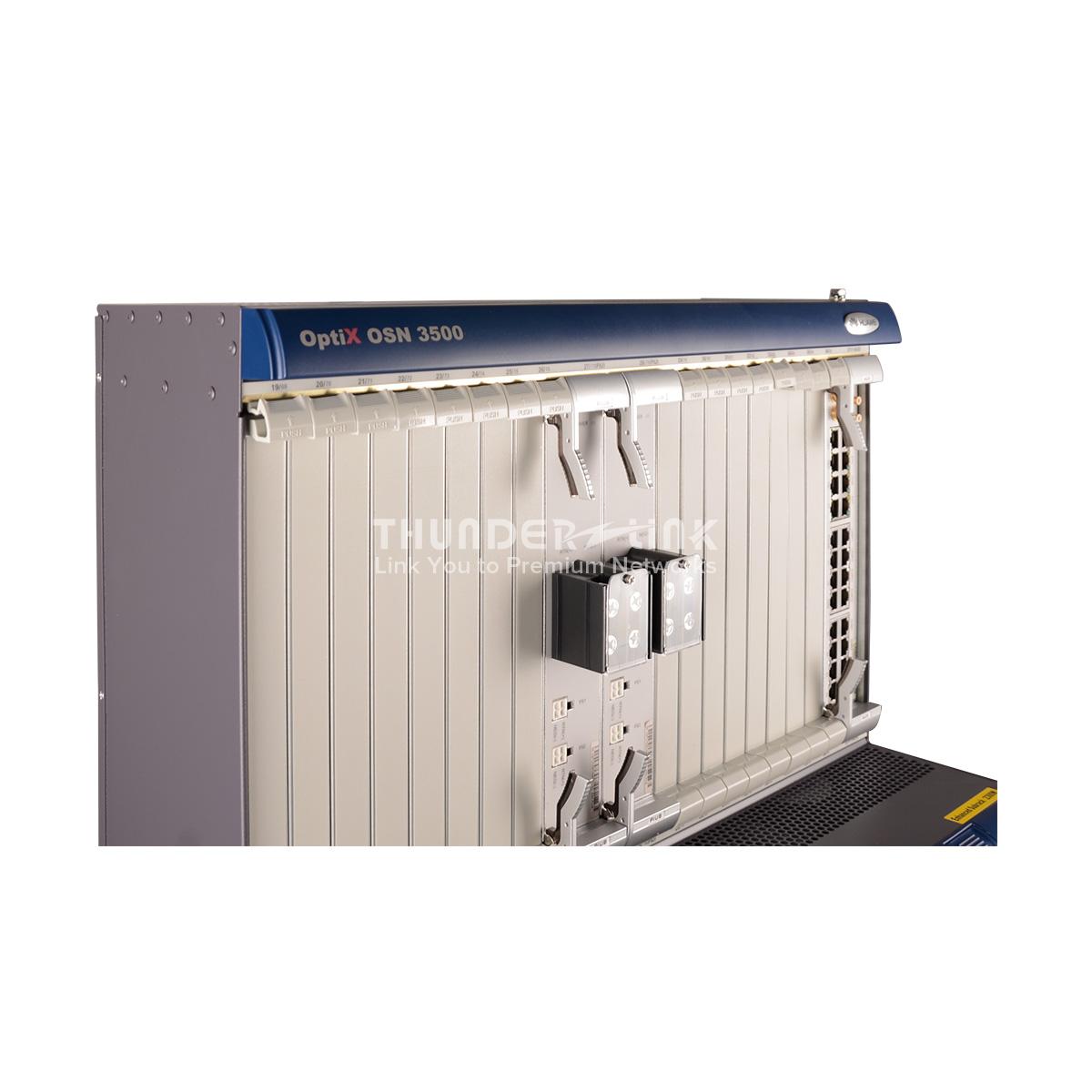

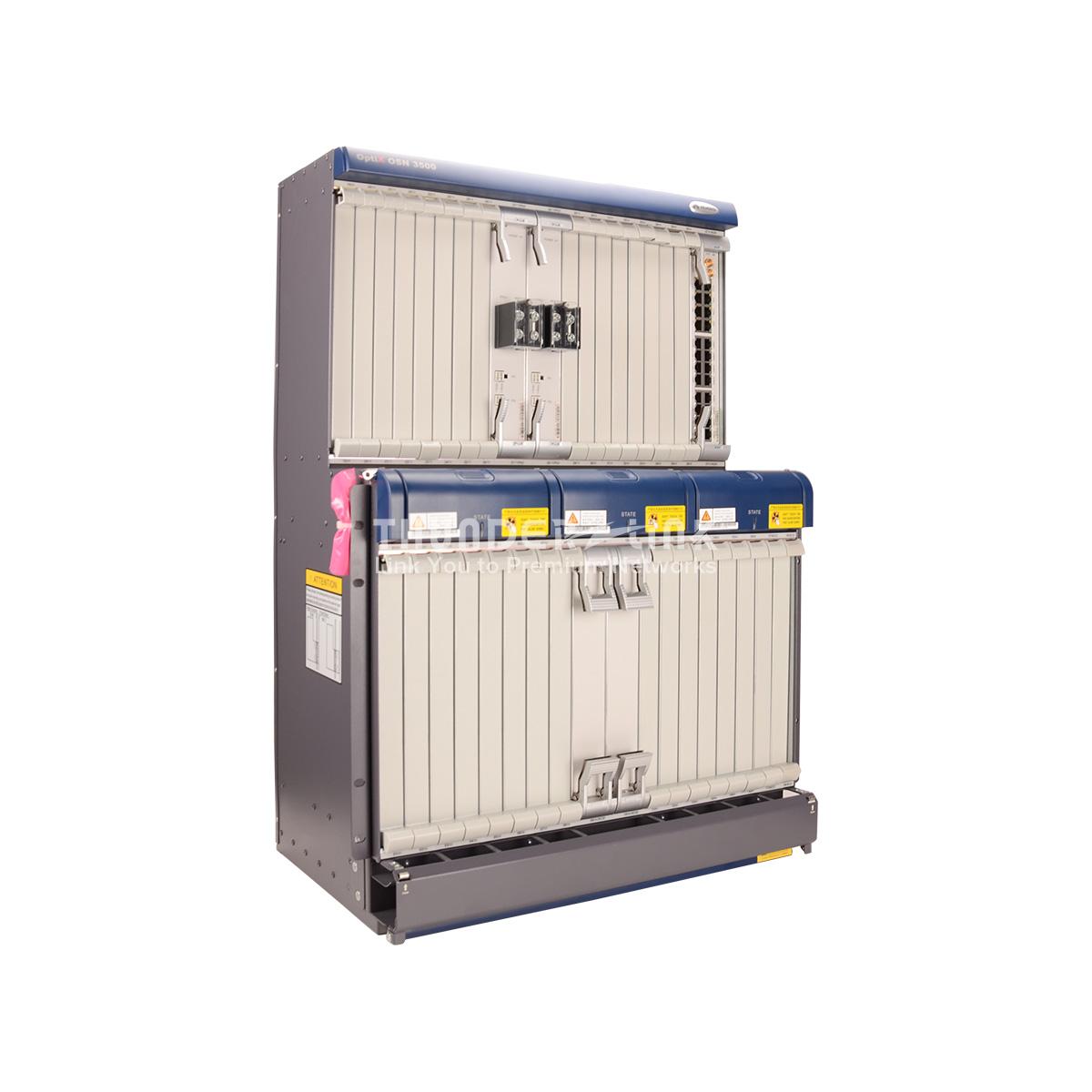

Huawei OptiX OSN3500

OSN 3500
Part Number:

Description:
STM-64/STM-16 Intelligent MSTP Product • Large Capacity: 200G TDM / 160G Packet universal switch, 15 service slots • Ultra Broadband: Bandwidth smooth evolution with built-in WDM • Future-proof: Packet and TDM services transported by one product
Availability:   In Stock
  units



key Feature

  • MAX support 200G TDM or 160G Package universal switch

  • 15 service slots

What's Included

  • OSN 3500 Subrack
  • 2 PCS Power Cable
  • 1 PCS Earth Cable
  • 2 PCS Mount Ear
  • Accessory Package


Similar Items
SSN4SLD64(S-64.2B,LC)

SSN4SLD64(S-64.2B,LC)

2xSTM-64 Optical Interface Board(S-64.2b,LC)..

SSND0SLQ16(S-16.1,LC)

SSND0SLQ16(S-16.1,LC)

4xSTM-16 Optical Interface Board(S-16.1,LC) ..

SSN1SLQ4A(S-4.1,LC)

SSN1SLQ4A(S-4.1,LC)

4xSTM-4 Optical Interface Board(S-4.1,LC)..

SSN4GSCC

SSN4GSCC

System Control and Communication Board..

SSN1SXCSA

SSN1SXCSA

Super Cross-connect and Synchronous Timing Board(Without Extension Host)..

SSND00EGS412

SSND00EGS412

4-port Gigabit Ethernet Switching Processing Board..


Overview
  • Support mesh networking, network nodes plug and play.

  • Support dynamic increase of rate and capacity.

  • Support chain, ring, tangent rings, intersecting rings, etc networking topologies.

  • Support maximum 2 STM-64, 11 STM-16 four-fiber MSP rings, 4 STM-64, 12 STM-16 two-fiber MSP rings.

  • Support Mesh Protection and Restoration(ASON).

  • Support distributed restorable rerouting protection.

  • Support 5-level service dedicated protection scheme.

  • Support 2/4 fiber MSP Ring; 1+1, 1: n Linear MSP; SNCP/SNCMP/SNCTP.

  • Support fiber shared virtual path protection; fiber shared MSP ring; DNI (ITU-TG.842) SDH network protection.

  • Support Ethernet: RPR, RSTP ATM: VP-RING/VC-RING service protection.


    Huawei OSN3500 is a STM-64 level MSTP, It have 15 service slots and can MAX support 12*STM-64 interface. OSN3500 Subrack comes with two PIU (Power Interface Unit), one AUX (System Auxiliary Interface Board), others system board and service board are configurable. Thunder-link.com also offers typical configuration bundle line, to meet your different requirement on various scenarios. In addition, Thunder-link.com provides self configuration page, where you can configure your own OSN3500 by selecting boards and items yourself. With our professional technical support to rich your experience.









Tech Specs
Specifications
Switch CapacityTDM: 200 Gbit/s (higher order), 20 Gbit/s (lower order)
Packet: 160 Gbit/s
Service Slots15 slots for processing boards and 16 slots for interface boards
Supported interfacesMSTP interfacesSTM-1 /4/16/64, E1/E3/E4/T1/T3, FE/GE/10GE, DDN, IMA/ATM, FEC/EFEC, E1 optical interface, SAN, Video
PCM interfacesFXS/FX O, 2/4 wire/E&M
V.35/X .21/V.11/V.24/V.28, RS232/422, G.703 64Kbit/s codirectional interface
Packet transport interfacesE1, ch STM-1, ATM STM-1, FE/GE/10GE
WDM interfaces40-cha nnel DWDM interfaces, compliant with ITU-T G.694.1
8-chan nel CWDM interfaces, compliant with ITU-T G.694.2
Power SupplyDC: -48V DC or -60V DC
AC: 220V/110V AC
Maximum Number of
Services Supported by a Single Subrack
Service InterfaceMaxService InterfaceMax
STM-6412STM-1660
STM-4142STM-1224
STM-1 (electrical)132E432
E3/T3117E1/T1504
E1 Optical112FE180
GE5610GE16
DDN (N×64K)64Framed E164
FXS/FXO902/4 wire/E&M64
STM-1 ATM60STM-4 ATM15
ESCON56FICON/FC10022
FC2008DVB-ASI56
Clock SynchronizationLine clock source
Tributary clock source
Two external clock inputs/outputs (2 MHz or 2 Mbit/s)
Auxiliary InterfaceOrderwire interface, NNI connection interfaces
management serial interface, serial interfaces, 64 kbit/s codirectional data channel, 10M/100M NM interface, commissioning interface
Alarm interface, Cabinet alarm indicator interface
Mechanical Specification
Dimensions(mm)722 (H) x 497 (W) x 295 (D)
Weight(kg)38



Q & A

Q: What is the slot access capacity?

A: OSN3500 slot access capacity is different when equip with different Cross-Connect Board.

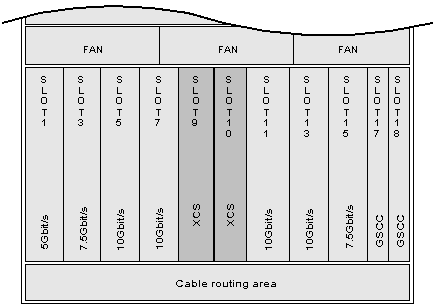

           When equip with N1GXCSA, the slot bandwidth is like below:       When equip with N1EXCSA:



              When equip with N1UXCSA/B:                                                      When equip with N1SXCSA/B:

N1UXCSA N1SXCSA.png

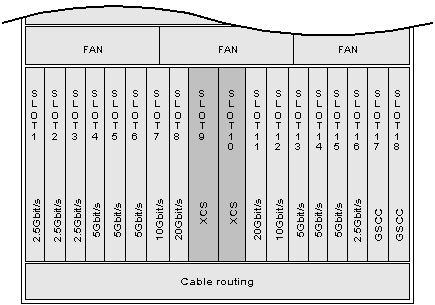

               When equip with N2PSXCSA:                                                       When equip with N1FXCSA:

 N2PSXCSA N2FXCSA.png

Q: What boards are applicable on OSN3500?

A:

List of Cross Connect Boards
N1PSXCS
N2PSXCSA
N3PSXCSA
Super  Cross-connect and Synchronous Timing Board (supporting packet features)N1SXCSASuper  cross-connect and synchronous timing board (only applicable in TDM mode)
N1GXCSAGeneral cross-connect and synchronous timing boardN1SXCSBSuper cross-connect and synchronous timing board (connected to the extended subrack)
N1EXCSAEnhanced cross-connect and synchronous timing boardN1IXCSAInfinite cross-connect and synchronous timing board
N1UXCSAUltra cross-connect and synchronous timing boardN1IXCSBInfinite cross-connect and synchronous timing board (connected to the extended subrack)
N1UXCSBUltra cross-connect and synchronous timing board (connected to the extended subrack)N1XCECross-connect and timing board for the extended subrack
N1FXCSAFull cross-connect and synchronous timing board

List of System Control Board
N1GSCC/N3GSCC
N4GSCC/N6GSCC
System Control and Communication Board

List of packet processing boards
N1PEX22-port 10 Gigabit Ethernet switching processing boardN1PEX1/N2PX11x10GE Ethernet processing board
N1PEG1616xGE Ethernet processing boardN1PEG88-port Gigabit Ethernet switching processing board
 List of packet interface boards
N1CQ14-port channelized STM-1 CES optical interface boardN1PEFF88-port FE optical interface board
N1PETF88xFE electrical interface boardN1MD12Multi-protocol 32xE1 interface board (120 ohms)
N1MD75Multi-protocol 32xE1 interface board (75 ohms)

List of EoD boards
N1EDQ414-port 622/155 Mbit/s SDH optical interface Ethernet dual-mode multi-function processing board

List of SDH boards
N4SLD64/N1SLD642xSTM-64 optical interface boardN4SLO16
N1SLO16
8xSTM-16 optical interface board
N4SFD642xSTM-64 optical interface board with the FEC functionN4SLQ16
N1SLQ16
N2SLQ16
4xSTM-16 optical interface board
N1SL64/N2SL64/N4SL641xSTM-64 optical interface boardN1SLD162xSTM-16 optical interface board
N3SL16/N3SL16A1xSTM-16 optical interface boardN1SL16/N1SL16A
N2SL16/N2SL16A
1xSTM-16 optical interface board
N1SF161xSTM-16 optical interface board (with the outband FEC function)N3SLH4116xSTM-4/STM-1 optical interface board
N1SF16E1xSTM-16 optical interface board (with the outband EFEC function)N3SLQ414xSTM-4/STM-1 optical interface board
N1SLD4/N2SLD4/N1SLD4A2xSTM-4 optical interface boardN1SLQ4/N2SLQ44xSTM-4 optical interface board
N1SL4/N2SL4/N1SL4A1xSTM-4 optical interface boardN1SLQ4A4xSTM-4 optical interface board
N1SLH116xSTM-1 signal processing boardN1SLT112xSTM-1 optical interface board
N1EU088xSTM-1 electrical interface boardN1OU088xSTM-1 optical/electrical interface board (LC)
N2SLO1/N3SLO18xSTM-1 optical interface boardN2OU088xSTM-1 optical interface board (SC)
N1SLQ1/N2SLQ1/N1SLQ1A4xSTM-1 optical interface boardN1SL1/N2SL1/N1SL1A1xSTM-1 optical interface board
N1SEP12xSTM-1 line processing board when interfaces are available on the front panel
8xSTM-1 line processing board when interfaces are available on the corresponding
interface board


List of PDH boards
N1SPQ4/N2SPQ44xE4/STM-1 electrical processing boardN1MU044xE4/STM-1 electrical interface board
N2PQ312xE3/T3 service processing boardN1D34S6xE3/T3 electrical switching interface board
N1C34S3xE3/T3 electrical switching interface boardN1PD3/N2PD36xE3/T3 service processing board
N1PL3/N2PL33xE3/T3 service processing boardN1PL3A/N2PL3A3xE3/T3 service processing board (Interfaces are available on the front panel.)
N1PQ1/N2PQ163xE1 service processing boardN1PQM63xE1/T1 service processing board
N1D12B32xE1/T1 electrical switching interface boardN1D12S32xE1/T1 electrical switching interface board (120 ohms)
N1PFL18xE1 optical processing boardN1D75S32xE1 electrical switching interface board (75 ohms)
N1TSB88-port electrical switching interface boardN1DX1/N3DX1DDN service accessing and converging board
N1DM12DDN service interface boardN1DXADDN service converging and processing board
List of EoS boards
N1EFT8/N2EFT88xFE/16xFE transparent transmission boardN1EAS2/N3EAS22x10GE Layer 2 switching and processing board
N1EFT8A/N2EFT8A8xFE transparent transmission boardN1EGSH16xGE switching and processing board
N1EFS0A16xFE switching and processing board
N1EMS44xGE and 16xFE switching and processing board
N1EFS0/N2EFS0
N4EFS0/N5EFS0
8xFE switching and processing boardN1EMS22xGE and 16xFE switching and processing board
N1EFS4/N2EFS4/N3EFS44xFE switching and processing boardN1EGS/4N3EGS44xGE switching and processing board
N1EFF8/N1EFF8A8x100M Ethernet optical interface boardN1EGT/2N2EGT22xGE transparent transmission board
N1ETF8/N1ETF8A8x100M Ethernet twisted-pair interface boardN2EGS2, N3EGS22xGE switching and processing board
N1ETS88x10/100M Ethernet twisted pair interface switching board

List of ATM boards
N1ADL4/N1IDL41xSTM-4 ATM service processing boardN1ADQ/1N1IDQ14xSTM-1 ATM service processing board
List of RPR boards


N2EGR22xGE ring processing boardN2EMR012xFE and 1xGE ring processing board
List of SAN/video boards
N1VST44-port video service transparent transmission boardN1MST44-port multi-service transparent transmission board
List of PCM boards
N1FXSO1212-port FXS/FXO processing boardN1FXS1212-port FXS processing board
N1FXO1212-port FXO processing boardN1AT66-port 2/4 wire and E&M processing board
List of WDM boards
TN11CMR44-channel optical add/drop multiplexing boardTN11CMR/TN11CMR22-channel optical add/drop multiplexing board
TN11MR22-port optical add/drop multiplexing boardN1MR2C/N1MR2A2-channel optical add/drop multiplexing board
TN11MR44-port optical add/drop multiplexing boardN1CMD22-channel bidirectional optical multiplexer and demultiplexer board
N1LWXArbitrary bit rate wavelength conversion boardTNN1XMD22-channel bidirectional optical add/drop multiplexing board
N1FIBFilter isolating board

List of auxiliary boards
N1AUXSystem auxiliary interface boardN1FANFan board
 List of optical amplifier boards and dispersion compensation boards
N1BPA/N2BPAOne-channel power amplifier and one-channel pre-amplifier boardN1COA, 61COA,62COACase-shaped optical amplifier
N1DCU/N2DCUDispersion compensation boardTN11OBU1/TN12OBU2Optical booster amplifier board
N1BA2Two-channel power amplifier boardN1RPC01/N1RPC02Backward Raman driving board (external)
lists all power boards and their applicable products.
UPMUninterruptible power moduleN1PIUPower interface board (supporting standard subracks)
N1PIUAPower interface board (supporting 1100 W enhanced subrack.)N1PIUBPower interface board (supporting type III subracks)


Q: Can I use new version board to replace old version ones?

A: Yes, most of OSN3500 service board, you can use newer verison to replace old ones, here listed some ordinary substitution boards below, or you can contact Thunder-link.com technical sales team to confirm the board substitution relation.

Substitute BoardTo-Be-Substituted BoardSubstitute BoardTo-Be-Substituted Board
N1PSXCSN1SXCSAN1SL1AN1SL1
N1SXCSBN1UXCSBN1SL4AN1SL4
N1SXCSAN1EXCSA/N1UXCSAN1SL64N2SL64
N2PSXCSAN1SXCSA/N1PSXCSN1SLD4AN1SLD4
N3PSXCSAN1SXCSA/N1PSXCS/N2PSXCSAN1SLQ1AN1SLQ1
N3SL16N1SL16N1SLQ4AN1SLQ4
N2PD3N1PD3N2SLQ16N1SLQ16
N2PL3N1PL3N3SL16N1SL16
N2PL3AN1PL3AN3SL16AN1SL16A
N2PQ1N1PQ1N3SLQ41N1SLQ1/N1SLQ4
N2SLQ1/N2SLQ4
N2PQ1AN1PQ1AN4SF64N1SF64
N2PQ1BN1PQ1BN4SL64N1SL64/N2SL64
N2EFS0N1EFS0N4SLD64N1SLD64
N2EFS4N1EFS4N4SLO16N1SLO16
N2EFT8N1EFT8N4SLQ16N1SLQ16/N2SLQ16
N2EFT8AN1EFT8AN4EGS4N3EGS4
N2EGS2N1EGS2N5EFS0N1EFS0/N2EFS0/N4EFS0
N2EGT2N1EGT2N3EFS4N1EFS4/N2EFS4
N3EGS2N1EGS2/N2EGS2N4EFS0N1EFS0/N2EFS0


Q: Is there any restrictions for board substitution?

A: Yes, there list some restrictions when board substitution below, or you can contact Thunder-link.com technical sales team to confirm the board substitution relation.

Board That Supports the Board Version Replacement FunctionBoard That Cannot Be SubstitutedCondition
N1SL16AN2SL16A/N3SL16AThe TCM function is enabled for the N2SL16A/N3SL16A.
N1SL64N2SL64The TCM function is enabled or AU-3 services are configured for the N2SL64.
N1SLQ16N2SLQ16The TCM function is enabled or AU-3 services are configured for the N2SLQ16.
N3SL16N2SL16The TCM function is enabled or AU-3 services are configured for the N2SL16.
N3SL16AN2SL16AAU-3 services are configured for the N2SL16A.
N3SLO1N2SLO1AU-3 services are configured for the N2SLO1.
N4SL64N2SL64The TCM function is enabled or AU-3 services are configured for the N2SL64.
N2EFS0/N4EFS0N1EFS0The N1EFS0 is configured with QoS functions.If an N4EFS0/N2EFS0 is configured as an N1EFS0 and the simulation package loading method is used, the board software of the N1EFS0 is loaded. As a result, a cold reset is performed on the board and the board version replacement function becomes ineffective. Therefore, an N4EFS0/N2EFS0 must not be configured as an N1EFS0.
N2EFS4N1EFS4If an N2EFS4 is configured as an N1EFS4 and the simulation package loading method is used, the board software of the N1EFS4 is loaded. As a result, a cold reset is performed on the board and the board version replacement function becomes ineffective. Therefore, an N2EFS4 must not be configured as an N1EFS4.
N4EFS0N2EFS0If an N4EFS0 is configured as an N2EFS0 and the simulation package loading method is used, the board software of the N2EFS0 is loaded. As a result, a cold reset is performed on the board and the board version replacement function becomes ineffective. Therefore, an N4EFS0 must not be configured as an N2EFS0.
N2EGS2N1EGS2The N1EGS2 is configured with QoS functions.
N1BPAN2BPAThe ALS function is required but not enabled on the line board.
N2BPAN1BPAThe ALS function is required but not enabled on the N2BPA.


Q: Do you have U2000 NMS If I buy OSN 3500 from you?

A: Yes, we can share U2000 software package to our customers for free.


Q: Do you have U2000 NMS License If I buy OSN 3500 from you?

A: Yes, we provide to our customer U2000 license for test purpose, not for commercial use.


Q: Does OSN3500 have AC power supply?

A: No, OSN3500 power interface unit PIU is DC -48V input only, if you need a AC/DC power converter, please contact with Thunder-link.com sales team.


Q: Do you offer OSN3500 Subrack separately?

A: Yes, please contact with our sales team for details.



Delivery & Payment
Delivery

Thunder-link.com have regular products in stock, and work together with reliable and high efficiency shipment partner, could deliver to our customers worldwide shortly. In normal condition, your cargo would take 3-5 days lead time and inland transportation to your carriers, then takes delivery days as per different delivery method, would be arrived at your destination safely and securely through reliable international carriers. Tracking No. will be provided once delivery out.

There are 3 delivery methods as default selection.
· FCA China Mainland.
Free of charge for FCA China Mainland

· FCA Hong Kong.
Flat rate 150USD for cargo under 100KG. We can delivery to your appointed address in Hong Kong, like your forwarders address.
Please note:
1, Our warehouses and cargoes are not located in Hong Kong, there are logistic and customs commission charges during China to Hong Kong.
2, If your cargo is small dimension, instead of delivery to you Hong Kong carrier, choosing our DHL service to deliver to your country directly is highly recommended.

· CNF.
International shipping methods are by express like DHL/ Fedex/ UPS, DHL is default; or by normal airfreight;

For cargoes under 45kg, DHL is recommended; For cargoes more than 45kg, considering the time-effectiveness, customs clearance convenience, and freight cost, our sales team will provide DHL and normal airfreight cost for your choice.

Please note:

1, Insurance is not included by default, please tell our sales team if you need a insurance during transportation.

2, DHL is door to door service, if you choose normal airfreight, you should collect the cargo at airport; and if there have no airport at your city, you should also responsible for the inland transportation between airport to your place.


Payment


Thunder-link.com accepts variety payment methods. We will constantly upgrade our payment system and provide the most convenient method for our client. The Customer may make payment by any one of the following methods, and Wire Transfer is the regular method in Thunder-link.com.

Payment Methods:
wire transfer western union alipay paypal jbc American express discover network mastercard visa

Paying with Wire Transfer
 hsbc

You can do from any your local bank. Usually, we will have your payment within 2 to 3 day.
All fee (payer & payee) generated by the bank wire transfer should be bear by client. Otherwise, the fee will be deducted from the payment we receive.

Paying with Paypal
 paypal

Thunder-link.com offers an alternative secure payment method via PayPal. PayPal does not insist you open an account, making payment by Credit or Debit card even easier. It's advised you do create an account to enable the benefits of signing up with PayPal, such as buyer protection and faster checkout next time without the need to enter your card details. Our invoicing and back order systems with PayPal work differently from our other payment methods. Our returns system is slightly different, we can only refund you for the items rather than swap them. When paying through PayPal the total order amount will be paid for immediately at checkout when you commit to buy. The items will then be dispatched when we process the order as quickly as we can. If items are out of stock we will aim to dispatch them as soon as possible after they arrive here. The same applies for any back orders that are created due to out of stock items within a larger order. Any canceled orders will be refunded as quickly as possible. Any returns will always be charged back to your original payment method.

Paying with Western Union
 western union

When you buy some items in Thunder-link.com, you have the option of paying for them at any participating Western Union location. The Western Union charge that applies to Thunder-link.com is based on the total amount of your transaction.
All fee (payer & payee) generated by the bank wire transfer should be paid by client.Otherwise, the fee will be deducted from the payment we receive.

Paying with Alipay


Now Alipay is acceptable at Thunder-link.com, if you have and intend to pay by an Alipay account, please contact with our sales team.

Please send us the T/T payment advice with date and invoice number by using below email or telephone number.
Email to: sales@thunder-link.com          Call to : +852-3062-3083




Warranty

All products are vender original products, we provide new equipment for customers, never been used before. Some scratching or copper rust might be seen on the modules, that may caused by carry, inserting in/out from chassis during our in-stock and pre-delivery testing. In normal condition, the scratching and rust are very slightly. When meet with this situation, a picture will send to you first to obtain your confirmation before delivery to you.

Once you bought products from us, we will provide the best post sale service for you. After the shipping out, we will continuously track your cargo until it arrives to your country or region. If there is something wrong during the delivery, we will do our utmost to help you.

Generally, all products provided by Thunder-link.com, will come with standard vender like 1 year warranty. During the warranty period, Thunder-link.com will replace any defective Equipment, but the reverse logistics should responsible by buyer, the re-shipment should obey the trade terms of order. If it is unable to locate a suitable replacement, Thunder-link.com will repair the Equipment. If it is unable to do either, Thunder-link.com will refund the purchase price to Buyer.

This warranty does not apply to any failure of the Equipment as a result of misuse, abuse, accident, neglect or mishandling, lack of proper maintenance, environmental factors, improper installation or configuration, flood, fire or other natural disasters, physical damage, electrical issues such as lightning, power surges or incorrect electrical voltages, or improper modifications.

This warranty is only valid for the original purchaser of the Equipment (“Buyer”).
But if products fail during warranty time, please contact your sales representative, or email to
supports@thunder-link.com to verify your problem and enquire solutions for the failed products. If the problem
still can't be fixed by remote support trouble shooting methods i.e. email or phone support, then return procedure
triggered.

See details when you start the return procedure to return policy.

If there’s any post sale question please e-mail at supports@thunder-link.com or contact with your sales representative.






Reviews

Write a review

Note: HTML is not translated!
    Bad           Good

Downloads
Tags

Bestsellers

Latest

Huawei OptiX OSN3500

  • Huawei OptiX OSN3500
  • Huawei OptiX OSN3500
  • Huawei OptiX OSN3500
  • Huawei OptiX OSN3500
  • Huawei OptiX OSN3500
  • Huawei OptiX OSN3500
